Открытый узел

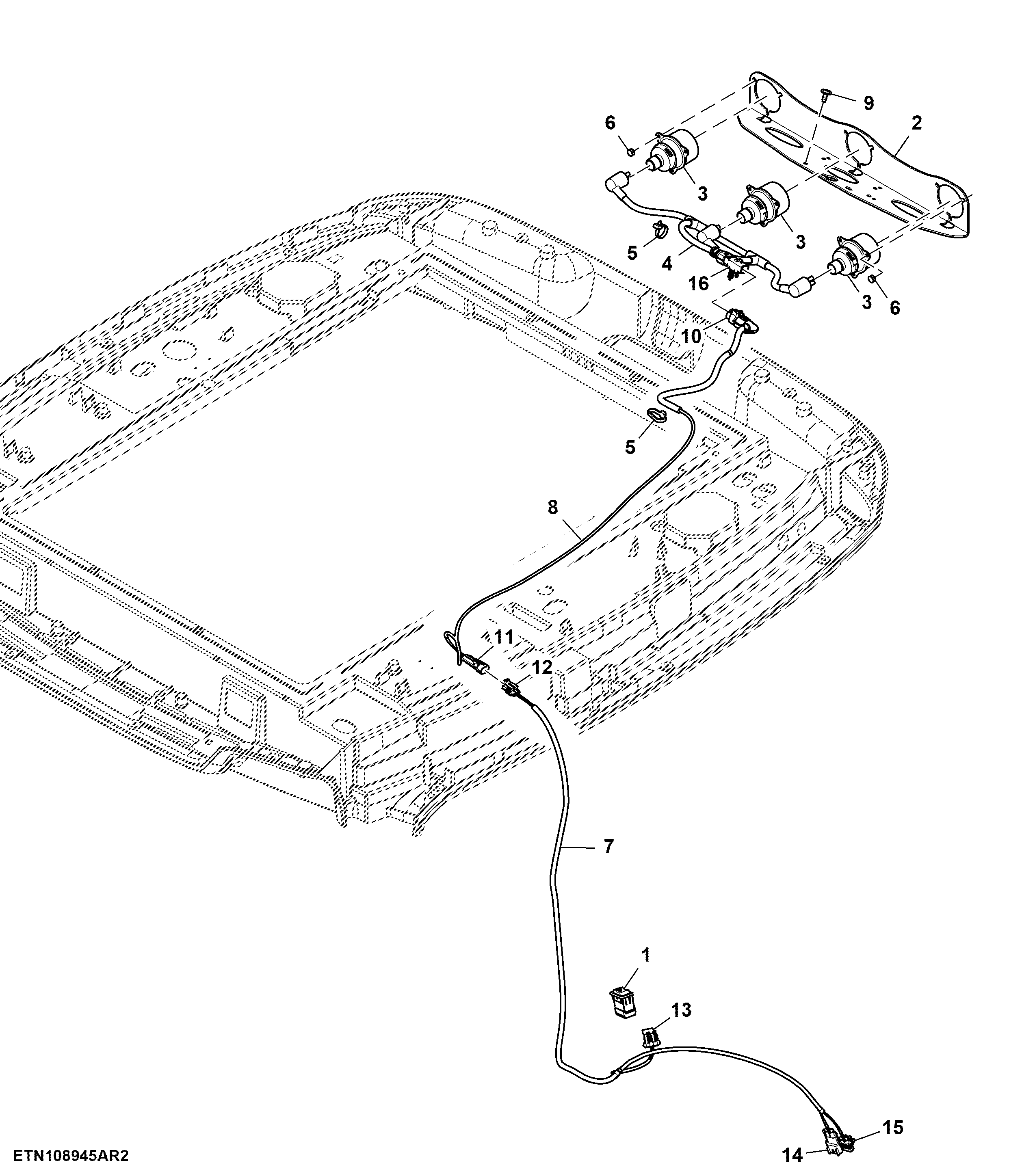

Identification Lights / Wiring Harness

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL213448	1	Toggle/Rocker Switch	-
2	L212021	1	Bracket	-
3	AL213494	3	Lamp	-
4	AL213874	1	Wiring Harness	-
5	R44302	3	Tie Band	-
6	L39134	9	Rivet	-
7	AL215042	1	Wiring Harness	-
8	AL213873	1	Wiring Harness	-
9	L157372	3	Screw	-
10	57M9772	1	Elec. Connector Housing	Inline Identification Lamps, X276F
10	57M10631	2	Elec. Connector Terminal	Cavity 1, 2
11	57M7985	1	Electrical Connector Assy	Inline Warn Lights on Cab Roof, X275M
11	57M7252	2	Elec. Connector Terminal	Cavity A, B
11	57M9215	2	Elec. Connector Seal	Cavity A, B
12	57M7289	1	Elec.Connect Locking Device	-
12	57M9215	2	Elec. Connector Seal	Cavity A, B
12	57M7328	1	Elec. Connector Housing	Inline Roof to Lamp, X275F
12	R104846	2	Elec. Connector Terminal	Cavity A, B
13	57M7255	1	Elec. Connector Housing	Switch for Identification Light, X281F
13	R104846	3	Elec. Connector Terminal	Cavity A, B, C
13	57M9215	3	Elec. Connector Seal	Cavity A, B, C
13	57M9713	1	Elec. Connector Accessory	-
14	57M7306	1	Elec.Connect Locking Device	-
14	57M9218	2	Elec. Connector Seal	Cavity A, B
14	57M7277	2	Elec. Connector Terminal	Cavity A, B
14	57M7304	1	Elec. Connector Housing	Connector for Accessories, X037M-3
15	57M7309	1	Elec. Connector Housing	Connector for Accessories, X037F-3
15	57M7298	2	Elec. Connector Terminal	Cavity A, B
15	57M9219	2	Elec. Connector Seal	Cavity A, B
15	57M7306	1	Elec.Connect Locking Device	-
16	57M9776	1	Elec. Connector Housing	Connection Point Between Harnesses W152 and W151, X276M
16	57M10603	2	Elec. Connector Terminal	Cavity 1, 2
16	57M9940	1	Elec. Connector Accessory	-
16	57M9837	1	Elec. Connector Accessory	-

Identification Lights / Wiring Harness
