Connectors, Electronic Control Units, Front Chassis (M50), Immobilizer, Steering AutoTrac™

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M10614	2	Elec. Connector Housing	(48 - Pin Plug)
2	57M10613	2	Elec. Connector Housing	-
3	57M10514	1	Elec. Connector Terminal	(Cable Gauge Plug Width) 0.5 mm²
3	57M10330	1	Elec. Connector Terminal	(Cable Gauge Plug Width) 0.75 mm²
4	57M10333	1	Elec. Connector Cavity Plug	(White)
4	57M10334	1	Elec. Connector Cavity Plug	(Orange)
5	57M10331	1	Elec. Connector Terminal	(Cable Gauge Plug Width) 0.5 - 1.0 mm²
6	57M10605	1	Elec. Connector Housing	(32 - Pin Plug)
7	57M10604	1	Elec. Connector Housing	-
8	57M9786	1	Elec. Connector Housing	(6 - Pin Plug)
9	57M9809	1	Elec. Connector Terminal	(Cable Gauge Plug Width) 0.5 - 0.8 mm²
10	57M10336	1	Elec. Connector Cavity Plug	(Natural)
11	57M10631	1	Elec. Connector Terminal	(Cable Gauge Plug Width) 1.5 mm²

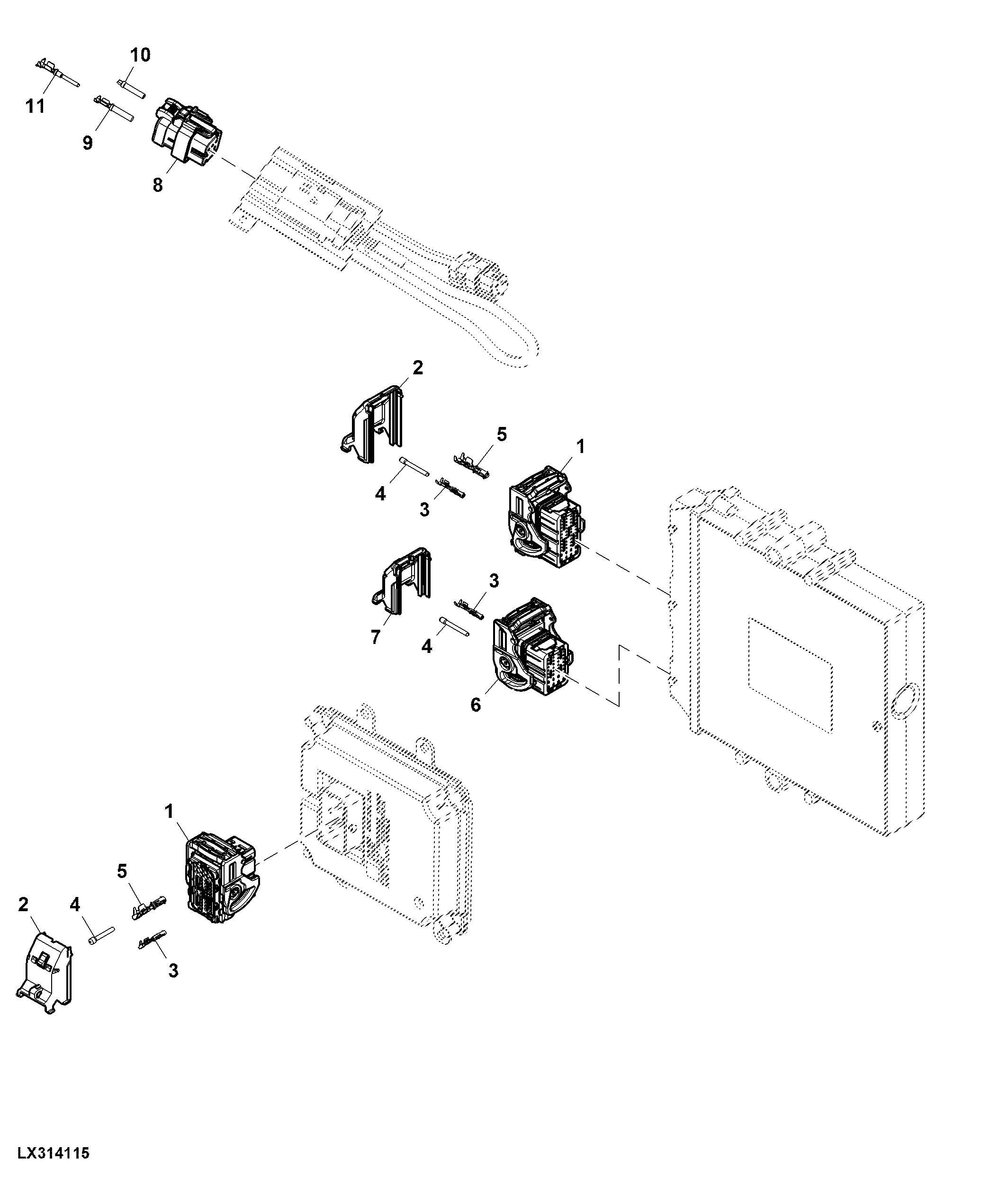

Connectors, Electronic Control Units, Front Chassis (M50), Immobilizer, Steering AutoTrac™

Нет текстового описания
