Attachment, Cable, Battery, W/ Cut-Off Relay

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

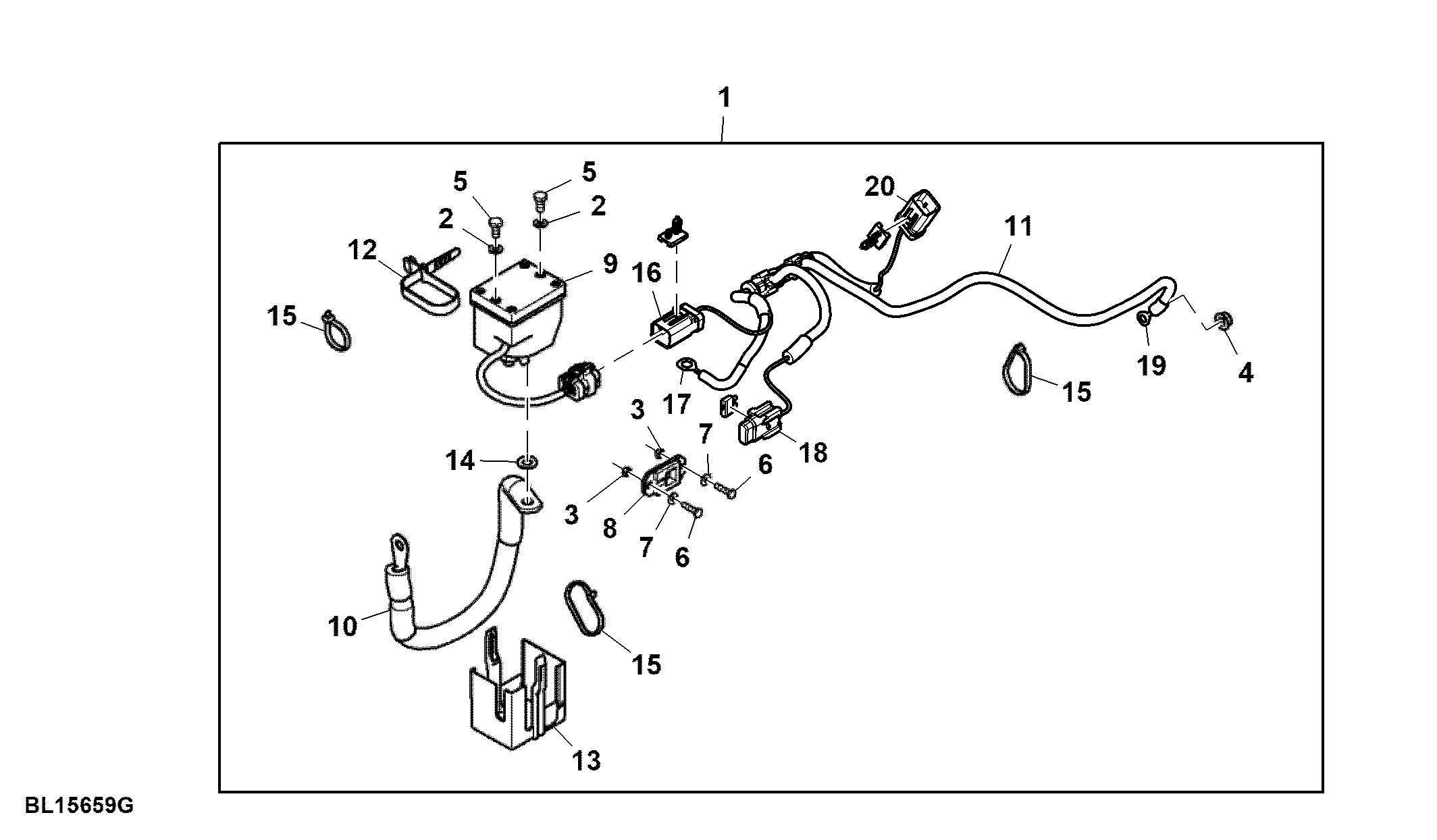

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BL15659	1	Switch	-
2	12M7133	2	Lock Washer	6 mm
3	14M7139	2	Nut	M4
4	14M7298	1	Flange Nut	M8
5	19M6614	2	Cap Screw	M6 X 12
6	19M8078	2	Cap Screw	M4 X 16
7	24M7146	2	Washer	4.300 X 12 X 1 mm
8	57M8093	1	Fuse Holder	-
9	AL219977	1	Relay	ORDER AL227565
9	AL227565	1	Relay	-
10	AL221424	1	Battery Cable	-
11	AL222554	1	Wiring Harness	-
12	L169299	1	Tie Band	-
13	L218252	1	Cover	-
14	L218476	1	Washer	-
15	R44302	3	Tie Band	-
16	57M9796	1	Elec. Connector Housing	Battery Cut-Off Relay, X326M-1
16	57M9939	1	Elec. Connector Accessory	-
16	57M10603	7	Elec. Connector Terminal	Cavity 1,2, 3, 4, 5, 6, 8
16	57M10336	1	Elec. Connector Cavity Plug	Cavity 7
17	57M7894	1	Elec. Connector Terminal	Battery Cut-Off Relay, X326F-2
18	57M8115	1	Fuse Holder	Fuse, F031
18	57M7121	1	Fuse	-
18	57M8057	1	Elec. Connector Terminal	Cavity 1
18	57M8058	1	Elec. Connector Terminal	Cavity 2
19	57M7348	1	Elec. Connector Terminal	Ground Point, XGND56
20	57M9796	1	Elec. Connector Housing	Connection Point between Harnesses W012 and W011, X697M
20	57M9940	1	Elec. Connector Accessory	-
20	57M10603	5	Elec. Connector Terminal	Cavity 2, 4, 5, 6, 7
20	57M9812	1	Elec. Connector Terminal	Cavity 3
20	57M10336	2	Elec. Connector Cavity Plug	Cavity 1, 8
