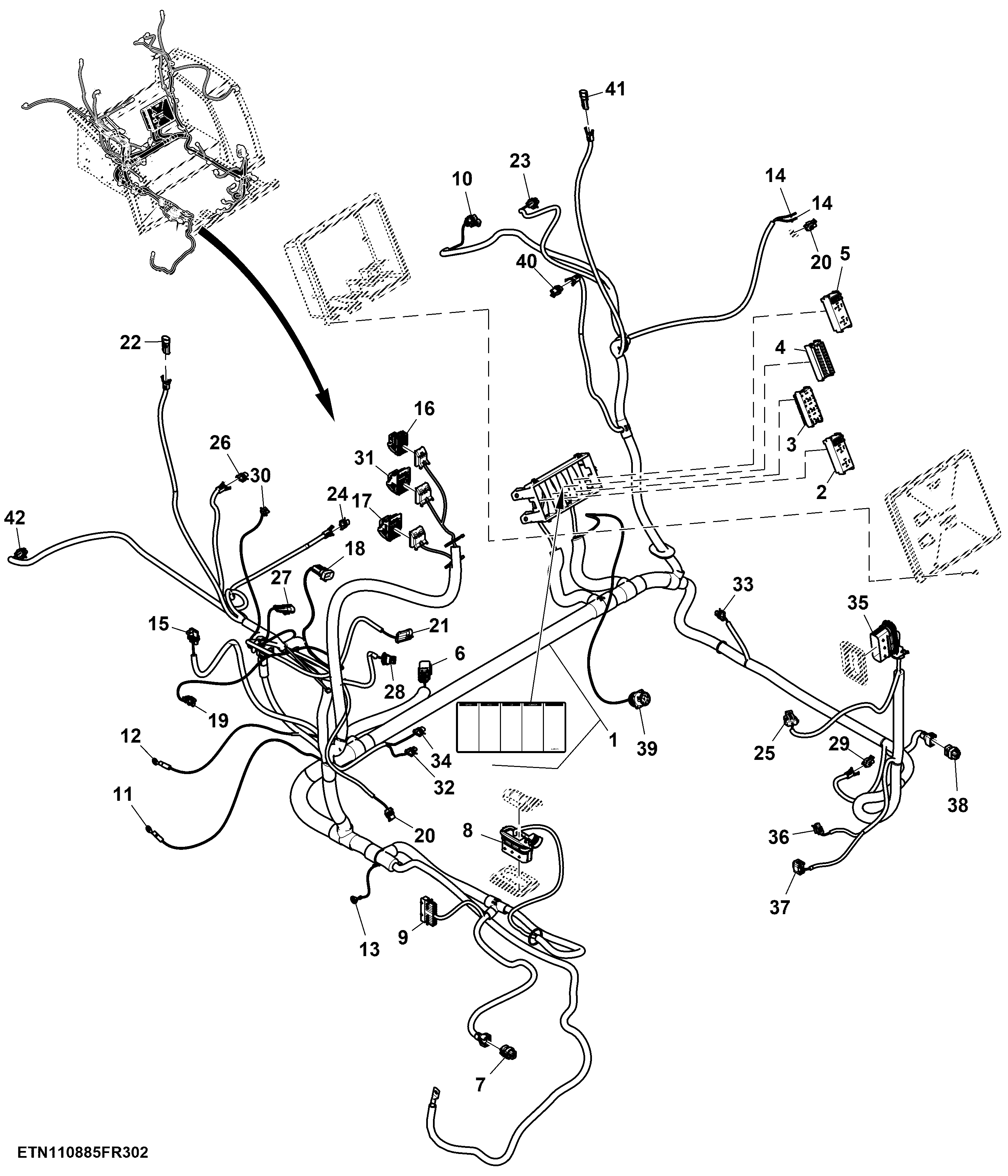

Wiring Harness, Platform, OOS (2/2) ( - 977138)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL222542	1	Wiring Harness	-
2	57M12292	1	Elec. Connector Housing	Load Center, LCS-K01
3	57M9054	2	Elec. Connector Terminal	Cavity A_30, F_87
3	57M9080	1	Elec. Connector Housing	Load Center, LCS-K02
3	57M7439	5	Elec. Connector Terminal	Cavity C_30, C_87, D_30, D_87, F_30
3	57M9050	8	Elec. Connector Terminal	Cavity A_85, A_86, C_85, C_86, D_85, D_86, F_85, F_86
3	57M7440	1	Elec. Connector Terminal	Cavity A_87
4	57M9082	1	Elec. Connector Housing	Load Center, LCS-K02
4	57M9672	6	Elec. Connector Terminal	Cavity 01_1, 03_1, 07_1, 08_1, 13_1, 16_1
4	57M9057	7	Elec. Connector Terminal	Cavity 01_2, 03_2, 04_2, 08_2, 11_1, 13_2, 14_2
4	57M9056	15	Elec. Connector Terminal	Cavity 02_2, 05_2, 06_2, 07_2, 09_2, 10_1, 10_2, 11_2, 12_2, 15_2, 16_2, 17_2, 18_2, 19_2, 20_2
5	57M12292	1	Elec. Connector Housing	Load Center, LCS-K02
6	57M8572	3	Elec. Connector Cavity Plug	Cavity 1, 9, 10
6	57M8565	2	Elec. Connector Terminal	Cavity 3, 8
6	57M8545	5	Elec. Connector Terminal	Cavity 2, 4, 5, 6, 7
6	57M10299	1	Elec. Connector Housing	Inline Adapter 7 Pin Socket, X1235F
7	57M9817	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W202 and W112, X051F
7	57M10631	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
7	57M15919	1	Elec. Connector Accessory	-
7	57M11335	1	Elec. Connector Accessory	-
8	57M7399	2	Elec. Connector Seal	Cavity 59, 62
8	57M8738	1	Elec. Connector Accessory	-
8	57M7401	1	Elec. Connector Cavity Plug	Cavity 61
8	57M7403	45	Elec. Connector Cavity Plug	Cavity 1, 2, 3, 5, 6, 11, 12, 13, 15, 17, 18, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56
8	57M7400	3	Elec. Connector Seal	Cavity 57, 58, 60
8	57M8241	8	Elec. Connector Terminal	Cavity 4, 7, 8, 9, 10, 16, 19, 20
8	57M9042	3	Elec. Connector Terminal	Cavity 57, 58, 60
8	57M9041	11	Elec. Connector Terminal	Cavity 4, 7, 8, 9, 10, 14, 16, 19, 20, 40, 41,
8	57M8731	1	Elec. Connector Housing	Inline Vehicle, X782M
8	57M7402	3	Elec. Connector Cable Seal	Cavity 10, 40, 41
9	57M8084	1	Elec. Connector Accessory	-
9	57M8076	1	Elec. Connector Terminal	-
9	57M7401	1	Elec. Connector Cavity Plug	Cavity 21
9	57M7400	23	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 22, 23, 24
9	57M9042	2	Elec. Connector Terminal	Cavity 23, 24
9	57M8732	21	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 22
9	57M8070	1	Elec. Connector Housing	Inline Transmission, X287M
10	57M7260	1	Elec. Connector Housing	Left Remote Control Switch for Rear Hitch, X035F
10	57M7494	1	Elec. Connector Terminal	Cavity A
10	R104846	5	Elec. Connector Terminal	Cavity B, C, D, E, F
10	57M9214	1	Elec. Connector Seal	Cavity A
10	57M9215	5	Elec. Connector Seal	Cavity B, C, D, E, F
10	57M7291	1	Electrical Connector Assy	-
10	L114840	1	Cap	-
11	57M9419	1	Elec. Connector Terminal	Ground Point, XGND1
12	57M9419	1	Elec. Connector Terminal	Ground Point, XGND5
13	57M7118	1	Elec. Connector Terminal	Ground Point, XGND2
14	R104846	2	Elec. Connector Terminal	-
14	57M9215	1	Elec. Connector Seal	-
15	57M7280	1	Elec. Connector Housing	Inline Adapter Power Strip, X239F
15	57M7491	2	Elec. Connector Terminal	Cavity A, B
15	57M7299	1	Elec. Connector Terminal	Cavity C
15	57M9218	2	Elec. Connector Seal	Cavity A, B
15	57M9217	1	Elec. Connector Seal	Cavity C
15	57M7274	1	Elec. Connector Accessory	-
16	57M10330	2	Elec. Connector Terminal	Cavity B2, J2
16	57M10613	1	Elec. Connector Housing	-
16	57M10334	5	Elec. Connector Cavity Plug	Cavity L1, L2, M2, M3, M4
16	57M10333	28	Elec. Connector Cavity Plug	Cavity A3, A4, B3, B4, C1, C2, C4, D1, D2 , D3, D4, E1, E2, E3, F1, F2, F3, F4, G1, G2, G3, H1, H4, J4, K1, K2, K3, K4
16	57M10331	3	Elec. Connector Terminal	Cavity L3, L4, M1
16	57M10514	10	Elec. Connector Terminal	Cavity A1, A2, B1, C4, E4, G4, H2, H3, J1, J3
16	57M10615	1	Elec. Connector Housing	Main Control Unit, X027F-1
17	57M10401	1	Elec. Connector Accessory	-
17	57M10333	18	Elec. Connector Cavity Plug	Cavity 7, 8, 10, 14, 15, 16, 19, 23, 28, 31, 35, 38, 40, 46, 47, 48, 49, 52
17	57M10334	4	Elec. Connector Cavity Plug	Cavity 6, 18, 30, 42
17	57M11959	1	Elec. Connector Seal	Cavity 5
17	57M10330	9	Elec. Connector Terminal	Cavity 11, 12, 13, 21, 25, 27, 39, 45, 50
17	57M10514	13	Elec. Connector Terminal	Cavity 9, 20, 22, 24, 26, 32, 33, 34, 36, 38, 43, 44, 51
17	57M10332	1	Elec. Connector Terminal	Cavity 5
17	57M10329	1	Elec. Connector Housing	Main Control Unit, X027F-1
17	57M10331	4	Elec. Connector Terminal	Cavity 17, 29, 41, 53
18	57M7264	1	Elec. Connector Housing	Connector of Position Feedback Unit, X014M-1
18	57M7495	8	Elec. Connector Terminal	Cavity A, B, C, D, E, F, G, H
18	57M9214	8	Elec. Connector Seal	Cavity A, B, C, D, E, F, G, H
18	57M7283	1	Elec.Connect Locking Device	-
19	57M7255	1	Elec. Connector Housing	Connector of Rear Hitch Sensitivity Potentiometer, X014F-2
19	57M7494	3	Elec. Connector Terminal	Cavity A, B, C
19	57M9214	3	Elec. Connector Seal	Cavity A, B, C
19	57M9702	1	Elec. Connector Accessory	-
20	57M7254	1	Elec. Connector Housing	Worklight on Front of Right Fender, X317F-1
20	57M7289	1	Elec.Connect Locking Device	-
20	57M9215	2	Elec. Connector Seal	Cavity A, B
20	R104846	2	Elec. Connector Terminal	Cavity A, B
21	57M7257	1	Elec. Connector Housing	Front-Wheel Drive Switch with Auto Function, X075M
21	57M7495	3	Elec. Connector Terminal	Cavity A, B, C
21	57M9214	3	Elec. Connector Seal	Cavity A, B, C
21	57M7317	1	Elec. Connector Accessory	-
22	57M7256	1	Elec. Connector Housing	Right Front Turn-Signal Light in Roof (SAE), X161M
22	57M7252	2	Elec. Connector Terminal	Cavity A, B
22	57M9215	2	Elec. Connector Seal	Cavity A, B
22	57M8218	1	Elec. Connector Accessory	-
23	57M7347	1	Elec. Connector Accessory	-
23	57M9215	4	Elec. Connector Seal	Cavity A, B, C, D
23	57M7349	1	Elec. Connector Accessory	Right Tail Light, X106F
23	R104846	4	Elec. Connector Terminal	Cavity A, B, C, D
24	57M7254	1	Elec. Connector Housing	Left Worklight on Rear of Fender, X113F-1
24	57M8218	1	Elec. Connector Accessory	-
24	R104846	2	Elec. Connector Terminal	Cavity A, B
24	57M9215	2	Elec. Connector Seal	Cavity A, B
25	57M7261	1	Elec. Connector Housing	Brake Pedal Sensor Unit, X324F
25	R104846	4	Elec. Connector Terminal	Cavity A, B, C, D
25	57M9215	4	Elec. Connector Seal	Cavity A, B, C, D
25	57M7296	1	Elec. Connector Accessory	-
25	57M7259	4	Elec. Connector Seal	Cavity E, F, G, H
26	57M7254	1	Elec. Connector Housing	Right Worklight on Rear of Fender, X113F-1
26	57M8218	1	Elec. Connector Accessory	-
26	57M9215	2	Elec. Connector Seal	Cavity A, B
26	R104846	2	Elec. Connector Terminal	Cavity A, B
27	57M7257	1	Elec. Connector Housing	Rear PTO Switch, X125M
27	57M7252	1	Elec. Connector Terminal	Cavity A
27	57M7495	2	Elec. Connector Terminal	Cavity B, C
27	57M9215	1	Elec. Connector Seal	Cavity A
27	57M9214	2	Elec. Connector Seal	Cavity B, C
27	57M9702	1	Elec. Connector Accessory	-
28	57M9214	3	Elec. Connector Seal	Cavity A, B, C
28	57M9713	1	Elec. Connector Accessory	-
28	57M7494	3	Elec. Connector Terminal	Cavity A, B, C
28	57M7255	1	Elec. Connector Housing	Connector of Hand Throttle Potentiometer, X460F
29	57M7254	1	Elec. Connector Housing	Fuel Level Sensor, X803F
29	R104846	1	Elec. Connector Terminal	Cavity A
29	57M7494	1	Elec. Connector Terminal	Cavity B
29	57M9215	1	Elec. Connector Seal	Cavity A
29	57M9214	1	Elec. Connector Seal	Cavity B
29	57M8218	1	Elec. Connector Accessory	-
30	57M7289	1	Elec.Connect Locking Device	-
30	57M9215	2	Elec. Connector Seal	Cavity A, B
30	R104846	2	Elec. Connector Terminal	Cavity A, B
30	57M7254	1	Elec. Connector Housing	Inline Backup Alarm, X037F
31	57M9937	1	Elec. Connector Housing	Main Control Unit, X027F-2
31	57M10332	5	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5
31	57M10331	4	Elec. Connector Terminal	Cavity 6, 18, 30, 42
31	57M10514	20	Elec. Connector Terminal	Cavity 7, 8, 12, 14, 16, 19, 22, 24, 27, 32, 34, 36, 37, 38, 40, 44, 45, 47, 49, 52
31	57M10330	2	Elec. Connector Terminal	Cavity 11, 31
31	57M11959	5	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5
31	57M10333	18	Elec. Connector Cavity Plug	Cavity 9, 10, 13, 15, 20, 21, 23, 25, 26, 28, 33, 35, 39, 43, 46, 48, 50, 51
31	57M10334	4	Elec. Connector Cavity Plug	Cavity 17, 29, 41, 53
31	57M10401	1	Elec. Connector Accessory	-
32	57M7289	1	Elec.Connect Locking Device	-
32	57M9214	2	Elec. Connector Seal	Cavity A, B
32	57M7328	1	Elec. Connector Housing	Operator Presence Switch, X230F-1
32	57M7494	2	Elec. Connector Terminal	Cavity A, B
33	57M7328	1	Elec. Connector Housing	Inline Handbrake, X315F
33	R104846	2	Elec. Connector Terminal	Cavity A, B
33	57M9215	2	Elec. Connector Seal	Cavity A, B
33	57M7289	2	Elec.Connect Locking Device	-
33	57M7259	2	Elec. Connector Seal	-
33	57M7985	1	Electrical Connector Assy	-
34	57M7289	1	Elec.Connect Locking Device	-
34	57M9215	2	Elec. Connector Seal	Cavity A, B
34	R104846	2	Elec. Connector Terminal	Cavity A, B
34	57M7254	1	Elec. Connector Housing	Seat with Compressor and Heater, X488F
35	57M8731	1	Elec. Connector Housing	Inline Front Support, X780M
35	57M9041	24	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 14, 17, 18, 22, 24, 26, 30, 31, 36, 40, 44, 45, 46, 50, 51, 54, 56
35	57M7402	8	Elec. Connector Cable Seal	Cavity 1, 3, 14, 31, 36, 44, 45, 46
35	57M8241	16	Elec. Connector Terminal	Cavity 2, 4, 5, 6, 7, 17, 18, 22, 24, 26, 30, 40, 50, 51, 54, 56
35	57M7399	3	Elec. Connector Seal	Cavity 59, 60, 61
35	57M7403	34	Elec. Connector Cavity Plug	Cavity 8, 9, 10, 11, 12, 13, 15, 16, 19, 20, 21, 23, 25, 27, 28, 29, 32, 33, 34, 35, 37, 38, 39, 41, 42, 43, 47, 48, 49, 52, 53, 52, 53, 55
35	57M7401	3	Elec. Connector Cavity Plug	Cavity 57, 58, 62
36	57M7289	1	Elec.Connect Locking Device	-
36	57M9214	1	Elec. Connector Seal	Cavity B
36	57M9215	1	Elec. Connector Seal	Cavity A
36	R104846	1	Elec. Connector Terminal	Cavity A
36	57M7328	1	Elec. Connector Housing	Inline Differantial Lock, X122F-1
36	57M7494	1	Elec. Connector Terminal	Cavity B
37	57M7953	1	Electrical Connector Assy	Accelerator Pedal Potentiometer, X371F
37	57M9180	3	Elec. Connector Terminal	Cavity 1, 2, 4
37	57M7955	3	Elec. Connector Seal	Cavity 1, 2, 4
37	57M7956	3	Elec. Connector Terminal	Cavity 3, 5, 6
38	57M9817	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W202 and W112, X041F
38	57M10631	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
38	57M15919	1	Elec. Connector Accessory	-
38	57M11335	1	Elec. Connector Accessory	-
39	R78069	5	Elec. Connector Cavity Plug	Cavity E, F, G, H, K
39	57M8164	4	Elec. Connector Terminal	Cavity A, B, C, D
39	57M7919	1	Elec. Connector Housing	Service Socket (CAN Bus), X571M
40	57M7254	1	Elec. Connector Housing	Work Light on Left Rear Fender, X112F-1
40	R104846	2	Elec. Connector Terminal	Cavity A, B
40	57M9215	2	Elec. Connector Seal	Cavity A, B
40	57M8218	1	Elec. Connector Accessory	-
41	57M7256	1	Elec. Connector Housing	Left Front Turn-Signal Light in Roof, X160M
41	57M7252	2	Elec. Connector Terminal	Cavity A, B
41	57M9215	2	Elec. Connector Seal	Cavity A, B
41	57M8218	1	Elec. Connector Accessory	-
42	57M7349	1	Elec. Connector Accessory	Left Tail Light, X107F
42	R104846	4	Elec. Connector Terminal	Cavity A, B, C, D
42	57M9215	4	Elec. Connector Seal	Cavity A, B, C, D
42	57M7347	1	Elec. Connector Accessory	-
