Открытый узел

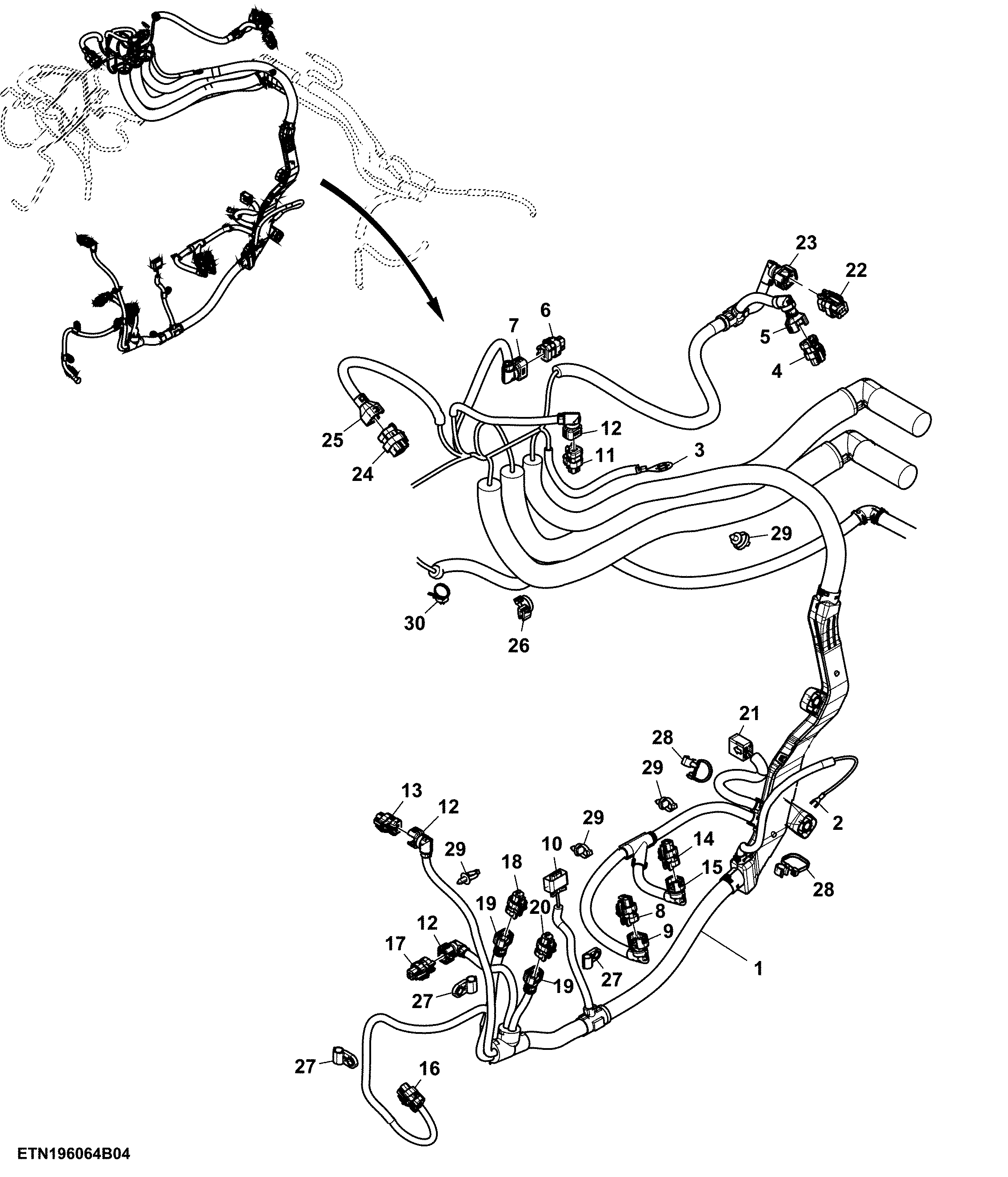

Wiring Harness, Engine, OOS (3/4) (924520 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL231113	1	Wiring Harness	-
1	AL227997	1	Wiring Harness	-
2	57M7054	1	Elec. Connector Terminal	Starter Motor, M1-50F
3	57M7111	1	Elec. Connector Terminal	Ground Engine Controller, XGND74
4	57M9782	1	Elec. Connector Housing	Exhaust Manifold Pressure, X664F-2
4	57M10321	3	Elec. Connector Terminal	Cavity 1, 2, 3
5	57M15926	1	Elec. Connector Accessory	-
6	57M9780	1	Elec. Connector Housing	EGR Flow (Delta Pressure) Sensor, X665F
6	57M10321	3	Elec. Connector Terminal	Cavity 1, 2, 3
7	57M10156	1	Elec. Connector Accessory	-
8	57M9780	1	Elec. Connector Housing	Intake Fuel Pressure Sensor, X668F-2
8	57M10321	3	Elec. Connector Terminal	Cavity 1, 2, 3
9	57M15932	1	Elec. Connector Accessory	-
10	57M11246	1	Elec. Connector Housing	Rail Pressure Sensor, X671F
10	57M11251	3	Elec. Connector Seal	Cavity 1, 2, 3
10	57M11262	3	Elec. Connector Terminal	Cavity 1, 2, 3
11	57M9774	1	Elec. Connector Housing	EGR Exhaust Temperature, X674F
11	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
12	57M10155	3	Elec. Connector Accessory	-
13	57M9773	1	Elec. Connector Housing	Coolant Temperature, X675F-2
13	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
14	57M9774	1	Elec. Connector Housing	Fuel Temperature Sensor, X677F-2
14	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
15	57M10157	1	Elec. Connector Accessory	-
16	57M9775	1	Elec. Connector Housing	Starter Motor, X681F
16	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
17	57M9775	1	Elec. Connector Housing	Cam Sensor, X682F
17	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
18	57M9772	1	Elec. Connector Housing	Control Valve 1 for Fuel Pressure, X700F-2
18	57M10631	2	Elec. Connector Terminal	Cavity 1, 2
19	57M15493	2	Elec. Connector Accessory	-
20	57M9772	1	Elec. Connector Housing	Control Valve 2 for Fuel Pressure, X703F-2
20	57M10631	2	Elec. Connector Terminal	Cavity 1, 2
21	57M11238	1	Elec. Connector Housing	Relief Valve for Fuel Rail Pressure, X704F
21	57M11258	2	Elec. Connector Terminal	Cavity 1, 2
21	57M11251	2	Elec. Connector Seal	Cavity 1, 2
22	57M10321	5	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 6
22	57M10336	1	Elec. Connector Cavity Plug	Cavity 5
22	57M9786	1	Elec. Connector Housing	EGR Valve Actuator, X705F-2
23	57M10230	1	Elec. Connector Accessory	-
24	57M9786	1	Elec. Connector Housing	Intake Air Throttle Actuator, X706F
24	57M10321	5	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 6
24	57M10336	1	Elec. Connector Cavity Plug	Cavity 5
25	57M9841	1	Elec. Connector Accessory	-
26	L206645	1	Tie Band	-
27	57M12003	5	Elec. Connector Accessory	-
28	L210257	2	Tie Band	-
29	RE258807	4	Tie Band	-
30	RE564777	1	Tie Band	-

Wiring Harness, Engine, OOS (3/4) (924520 - )
