Открытый узел

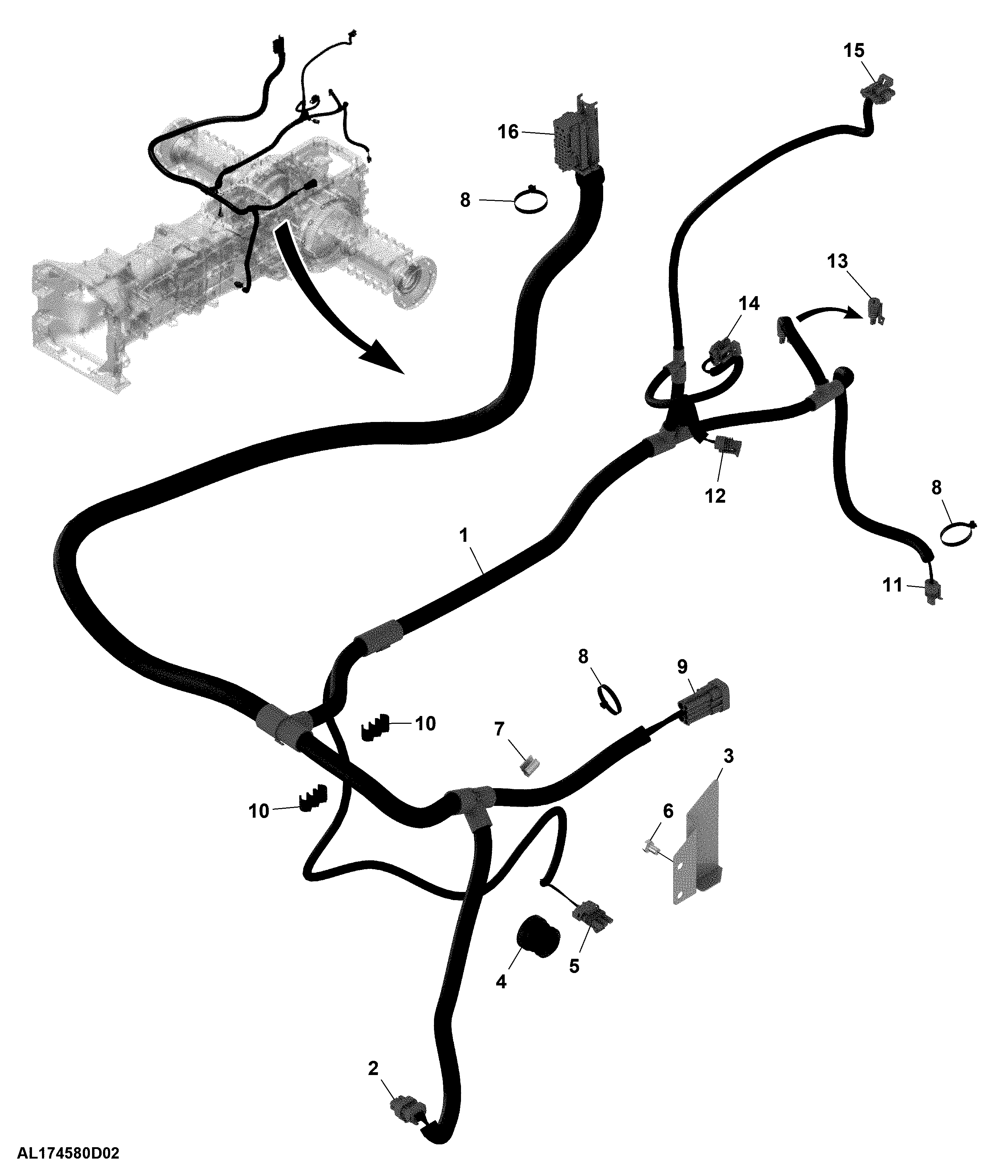

Transmission Harness, Rear (2/2) ( - 009999)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL180004	1	Wiring Harness	-
2	57M9780	1	Elec. Connector Housing	Sending Unit Speed Meter X88F-1
2	57M10631	3	Elec. Connector Terminal	Cavity 1 - 3
3	R254180	1	Shield	-
4	R112629	1	Plug	-
5	RE12364	1	Electrical Connector Assy	Bending Bar X71F
5	57M7368	3	Elec. Connector Cable Seal	Cavity A - C
6	19M7297	2	Cap Screw	M8 X 12
7	L102323	1	Clamp	-
8	L41858	3	Tie Band	-
9	57M7252	5	Elec. Connector Terminal	Cavity A - D, F
9	57M7576	2	Elec. Connector Terminal	Cavity E, G
9	57M7493	5	Elec. Connector Seal	Cavity A - D, F
9	57M7583	2	Elec. Connector Terminal	Cavity E, G
9	57M7697	1	Electrical Connector Assy	7 Pin Trailer Socket X234M
10	L170508	2	Clamp	-
11	57M7379	1	Elec. Connector Housing	Diff Lock Solenoid X87F
11	57M7829	2	Elec. Connector Terminal	Cavity A, B
12	57M7379	1	Elec. Connector Housing	Rear PTO Speed Sensor X94F
12	57M7829	2	Elec. Connector Terminal	Cavity A, B
13	57M7379	1	Elec. Connector Housing	Rear PTO Solenoid X95F
13	57M7829	2	Elec. Connector Terminal	Cavity A, B
14	57M7255	1	Elec. Connector Housing	Rockshaft Position X96F
14	57M7259	1	Elec. Connector Seal	-
14	R104846	3	Elec. Connector Terminal	Cavity A - C
14	57M7493	3	Elec. Connector Seal	Cavity A - C
15	57M7364	1	Elec. Connector Housing	Stepper Motor X92F
15	57M7259	1	Elec. Connector Seal	-
15	R104846	4	Elec. Connector Terminal	Cavity A - D
15	57M7493	4	Elec. Connector Seal	Cavity A - D
16	57M7402	5	Elec. Connector Cable Seal	Cavity 11, 15, 21, 22
16	57M8241	13	Elec. Connector Terminal	Cavity 9, 14, 18, 23 - 26, 31 - 33, 35, 37, 40
16	57M7399	1	Elec. Connector Seal	Cavity 5
16	57M8106	1	Elec. Connector Seal	Cavity 1
16	57M7398	18	Elec. Connector Terminal	Cavity 9, 11, 14 - 16, 18, 21 - 26, 31 - 33, 35, 37, 40
16	57M8079	1	Elec. Connector Terminal	Cavity 5
16	57M8104	1	Elec. Connector Terminal	Cavity 1
16	57M8107	1	Elec. Connector Cavity Plug	-
16	57M7403	1	Elec. Connector Cavity Plug	-
16	57M7401	1	Elec. Connector Cavity Plug	-
16	57M8197	1	Elec. Connector Housing	Interface Cab X430F

Transmission Harness, Rear (2/2) ( - 009999)

Нет текстового описания
