Открытый узел

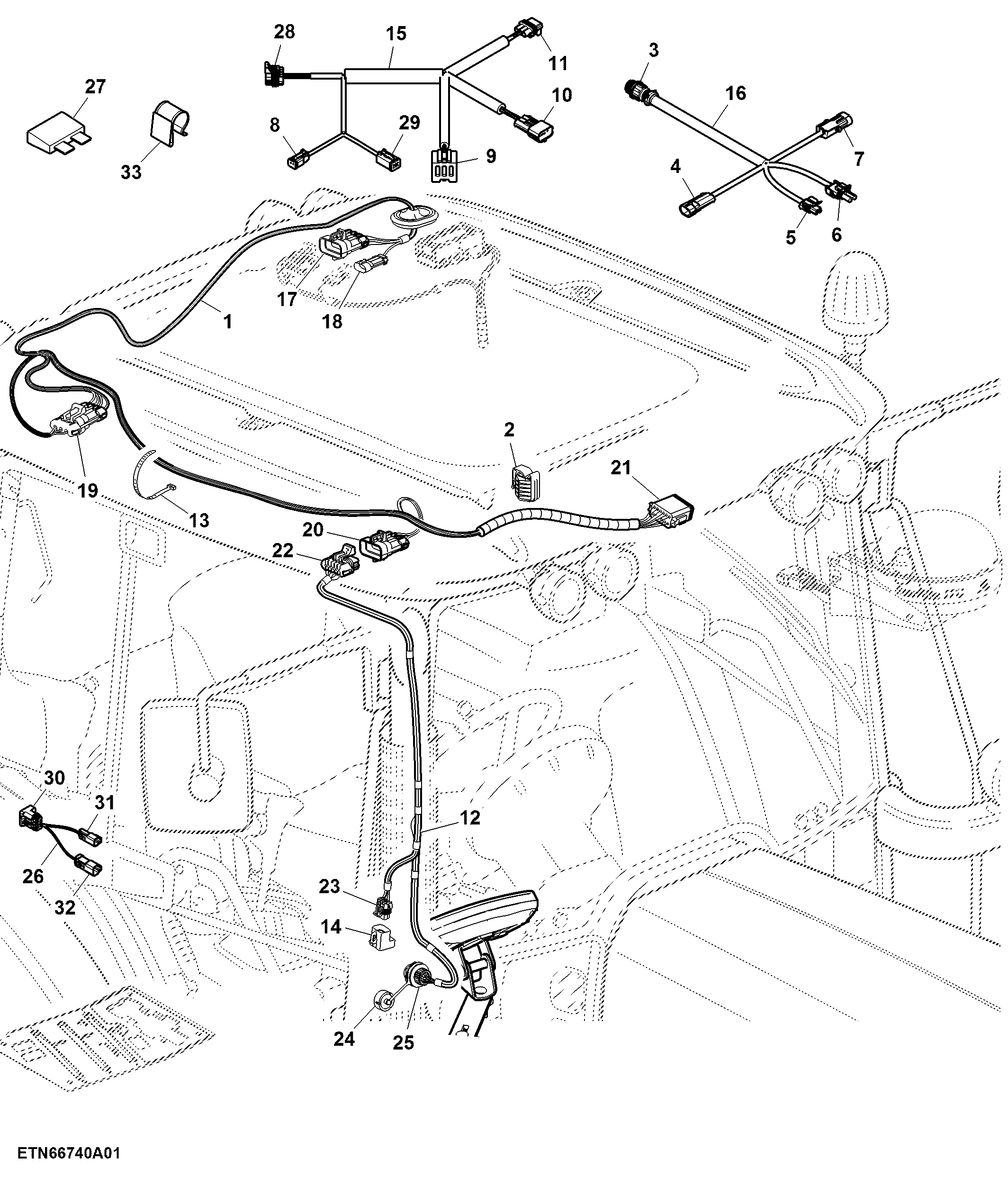

GPS Position Receiver Harness, GreenStar™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL177795	1	Wiring Harness	-
2	L151529	1	Loom	-
3	AE44932	1	Electrical Connector Assy	-
4	57M7985	1	Electrical Connector Assy	Seat Switch Harness
4	57M7289	1	Elec.Connect Locking Device	-
5	57M7328	1	Elec. Connector Housing	-
6	RE12363	1	Electrical Connector Assy	-
7	R78053	1	Electrical Connector Assy	Seat Switch Harness
8	AZ50829	1	Elec. Connector Housing	-
9	57M7528	1	Elec. Connector Accessory	-
10	57M7305	1	Elec. Connector Housing	-
11	57M7280	1	Elec. Connector Housing	-
12	AL175708	1	Wiring Harness	-
13	R44302	1	Tie Band	-
14	RE207311	2	Electronic Control Unit	-
15	PF80845	1	Wiring Harness	-
16	PF80865	1	Wiring Harness	-
17	57M7281	1	Elec.Connect Locking Device	-
17	57M7259	6	Elec. Connector Seal	Cavity H
17	57M7493	6	Elec. Connector Seal	Cavity E, F, K
17	57M7377	6	Elec. Connector Seal	Cavity A, B, C, D, G, J
17	57M7252	9	Elec. Connector Terminal	Cavity A, B, C, D, E, F, G, J, K
17	57M7265	1	Elec. Connector Housing	Interface Cab X535M
18	57M7256	1	Elec. Connector Housing	Interface Cab X930M
18	57M7289	1	Elec.Connect Locking Device	-
18	57M7252	1	Elec. Connector Terminal	Cavity A, B
18	57M7493	1	Elec. Connector Seal	Cavity A, B
18	57M7259	1	Elec. Connector Seal	-
19	57M7264	1	Elec. Connector Housing	Interference Isolated Socket, C-Post X879M-1
19	57M7283	1	Elec.Connect Locking Device	-
19	57M7252	4	Elec. Connector Terminal	Cavity E, F, G, H
19	57M7377	4	Elec. Connector Seal	Cavity E, F, G, H
19	57M7259	4	Elec. Connector Seal	Cavity A, B, C, D
20	57M7265	1	Elec. Connector Housing	-
20	57M7259	1	Elec. Connector Seal	-
20	57M7493	4	Elec. Connector Seal	Cavity D, E, F, K
20	57M7252	10	Elec. Connector Terminal	Cavity A, B, C, D, E, F, G, H, J, K
20	57M7281	1	Elec.Connect Locking Device	-
20	57M7377	6	Elec. Connector Seal	Cavity A, B, C, G, H, J
21	57M7634	1	Electrical Connector Assy	GPS Receiver X565F
21	57M7681	1	Elec. Connector Terminal	-
21	57M7546	6	Elec. Connector Terminal	Cavity 1, 4, 6, 7, 9, 12
22	57M7262	1	Elec. Connector Housing	Interface Greenstar Roof X731F
22	57M7281	1	Elec.Connect Locking Device	-
22	R104846	10	Elec. Connector Terminal	Cavity A, B, C, D, E, F, G, H, J, K
22	57M7377	6	Elec. Connector Seal	Cavity A, B, C, G, H, J
22	57M7493	4	Elec. Connector Seal	Cavity D, E, F, K
23	57M7259	2	Elec. Connector Seal	Cavity A, C
23	57M7377	4	Elec. Connector Seal	Cavity B, D, E, F
23	57M7291	1	Electrical Connector Assy	-
23	57M7260	1	Elec. Connector Housing	60 A, Front Interface X805F
23	R104846	4	Elec. Connector Terminal	Cavity B, D, E, F
24	57M9232	1	Elec. Connector Seal	-
25	57M9231	1	Elec. Connector Housing	X907F
26	PF80831	1	Wiring Harness	-
27	57M7121	2	Fuse	-
28	57M9165	1	Elec. Connector Accessory	-
29	AZ50830	1	Electrical Connector Assy	-
30	57M7260	1	Elec. Connector Housing	Implement CAN Terminating Device
30	57M7291	1	Electrical Connector Assy	-
31	57M7533	1	Elec. Connector Housing	Implement Can Cab Connector
31	57M7621	1	Elec.Connect Locking Device	-
32	57M7628	1	Electrical Connector Assy	-
32	57M7619	1	Elec.Connect Locking Device	-
33	L101519	2	Clip	-
35	AL210785	1	Wiring Harness	-

GPS Position Receiver Harness, GreenStar™

Нет текстового описания
