Открытый узел

Wiring Harness, W/O CAN Bus, OOS, Attachment

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BSJ10606	1	Wiring Harness	-
2	57M10613	1	Elec. Connector Housing	-
3	57M9183	1	Elec. Connector Housing	Service ADVISOR™ 02
3	57M9182	1	Nut	-
3	57M9358	1	Elec. Connector Accessory	-
3	N282069	2	Elec. Connector Terminal	Cavity A, B
3	57M8164	2	Elec. Connector Terminal	Cavity C, D
3	57M9181	5	Elec. Connector Cable Seal	Cavity E, F, G, H, J
4	57M8873	1	Elec. Connector Terminal	Ground
5	57M10331	3	Elec. Connector Terminal	Cavity L1, M1, M2
5	57M10334	5	Elec. Connector Cavity Plug	Cavity L2, L3, L4, M3, M4
5	57M10333	37	Elec. Connector Cavity Plug	Cavity A1, A2, A3, A4, B1, B2, B3, B4, C1, C2, C3, C4, D1, D2, D3, D4, E1, E2, E3, E4, F1, F2, F4, G1, G2, G3, G4, H3, H4, J1, J2, J3, J4, K1, K2, K3, K4
5	57M10514	3	Elec. Connector Terminal	Cavity F3, H1, H2
5	Z36392	1	Tie Band	-
5	57M10614	1	Elec. Connector Housing	MTG Connector 01
6	57M8872	1	Elec. Connector Terminal	Accessory Power ACC
7	14M7396	4	Lock Nut	M8
8	L171496	3	Clamp	-
9	SU61611	1	Bracket	-
10	19M7897	4	Screw	M8 X 35
11	SU61610	1	Bracket	-
12	SJ39085	1	Wiring Harness	-
13	57M8873	1	Elec. Connector Terminal	Battery Power BATT

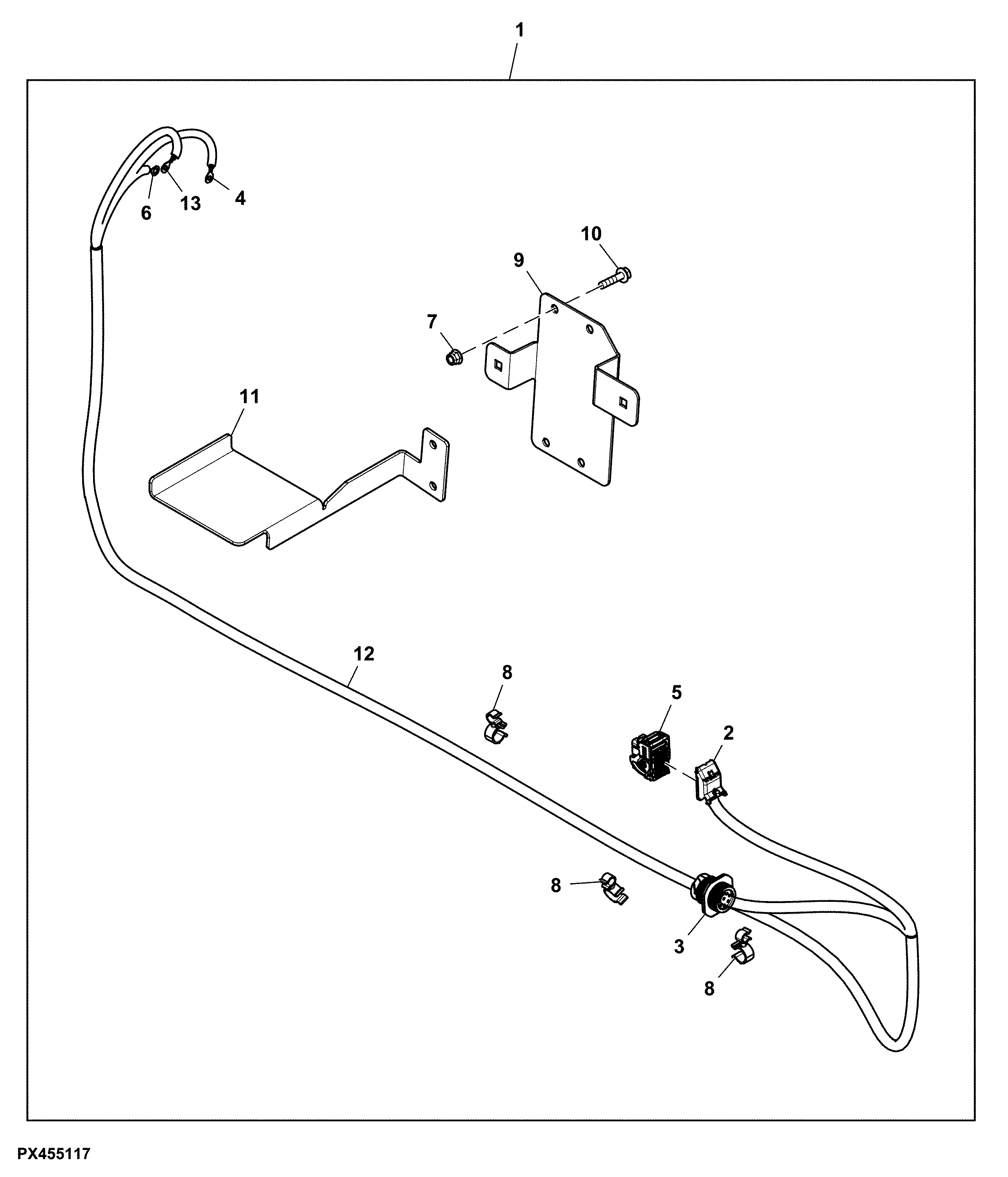

Wiring Harness, W/O CAN Bus, OOS, Attachment

Нет текстового описания
