Открытый узел

Wiring Harness, W/ CAN Bus, Cab, Attachment

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BSJ10604	1	Wiring Harness	-
2	AE44929	1	Electrical Connector Assy	Outlet Connector 03
2	57M9163	1	Elec. Connector Accessory	-
2	57M9239	3	Elec. Connector Terminal	Cavity 1, 2, 3
3	57M7919	1	Elec. Connector Housing	Service Advisor 02
3	N282069	2	Elec. Connector Terminal	Cavity A, B
3	57M8164	2	Elec. Connector Terminal	Cavity A, B
3	R78069	5	Elec. Connector Cavity Plug	Cavity E, F, G, H, J
4	57M10334	5	Elec. Connector Cavity Plug	Cavity L2, L3, L4, M3, M4
4	57M10333	37	Elec. Connector Cavity Plug	Cavity A1, A2, A3, A4, B1, B2, B3, B4, C1, C2, C3, C4, D1, D2, D3, D4, E1, E2, E3, E4, F1, F2, F4, G1, G2, G3, G4, H3, H4, J1, J2, J3, J4, K1, K2, K3, K4
4	57M10514	3	Elec. Connector Terminal	Cavity F3, H1, H2
4	57M10331	3	Elec. Connector Terminal	Cavity L1, M1, M2
4	Z36392	1	Tie Band	-
4	57M10614	1	Elec. Connector Housing	MTG Connector 01
5	57M10613	1	Elec. Connector Housing	-
6	L207604	6	Washer	-
7	RE258807	5	Tie Band	-
8	R105388	2	Tie Band	-
9	19M8875	5	Screw	M6 X 25
10	SU50051	1	Bracket	-
11	M137828	2	Bumper	-
12	L116644	2	Washer	-
13	19M7897	4	Screw	M8 X 35
14	SU61613	1	Bracket	-
15	SU50050	1	Bracket	-
16	14M7396	4	Lock Nut	M8
17	SJ39083	1	Wiring Harness	W/ CAN Bus

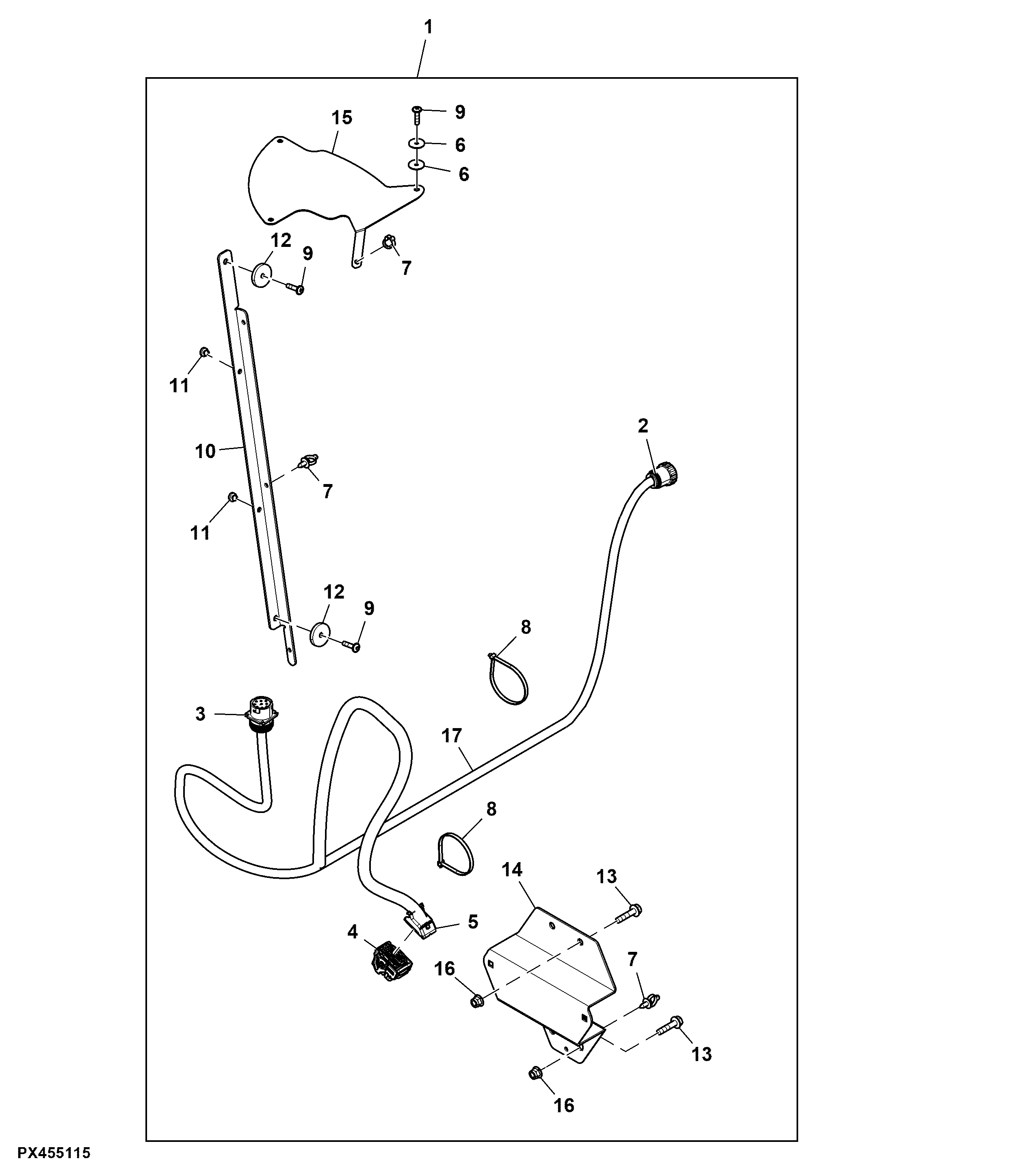

Wiring Harness, W/ CAN Bus, Cab, Attachment
