Открытый узел

Wiring Harness, Cab W/ CAN Bus, Attachement

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BSJ10603	1	Wiring Harness	-
2	57M7919	1	Elec. Connector Housing	Service Advisor 03
2	N282069	2	Elec. Connector Terminal	Cavity A, B
2	57M8164	2	Elec. Connector Terminal	Cavity C, D
2	R78069	5	Elec. Connector Cavity Plug	Cavity E, F, G, H, J
3	57M10613	1	Elec. Connector Housing	-
4	57M7920	1	Electrical Connector Assy	Male to Service Advisor 02
4	57M7546	2	Elec. Connector Terminal	Cavity A, B
4	57M8165	2	Elec. Connector Terminal	Cavity C, D
4	R78069	5	Elec. Connector Cavity Plug	Cavity E, F, G, H, J
5	57M10334	5	Elec. Connector Cavity Plug	Cavity L2, L3, L4, M3, M4
5	57M10333	37	Elec. Connector Cavity Plug	Cavity A1, A2, A3, A4, B1, B2, B3, B4, C1, C2, C3, C4, D1, D2, D3, D4, E1, E2, E3, E4, F1, F2, F4, G1, G2, G3, G4, H3, H4, J1, J2, J3, J4, K1, K2, K3, K4
5	57M10514	3	Elec. Connector Terminal	Cavity F3, H1, H2
5	Z36392	1	Tie Band	-
5	57M10614	1	Elec. Connector Housing	MTG Connector D1
5	57M10331	3	Elec. Connector Terminal	Cavity L1, M1, M2
6	AE44929	1	Electrical Connector Assy	Outlet Connector 04
6	57M9163	1	Elec. Connector Accessory	-
6	57M9239	3	Elec. Connector Terminal	Cavity 1, 2, 3
7	19M7897	4	Screw	M8 X 35
8	L116644	2	Washer	-
9	M137828	2	Bumper	-
10	SU50050	1	Bracket	-
11	SU61613	1	Bracket	-
12	R105388	2	Tie Band	-
13	SU50051	1	Bracket	-
14	L207604	6	Washer	-
15	14M7396	4	Lock Nut	M8
16	19M8875	5	Screw	M6 X 25
17	RE258807	5	Tie Band	-
18	SJ39082	1	Wiring Harness	Cab W/ CAN Bus

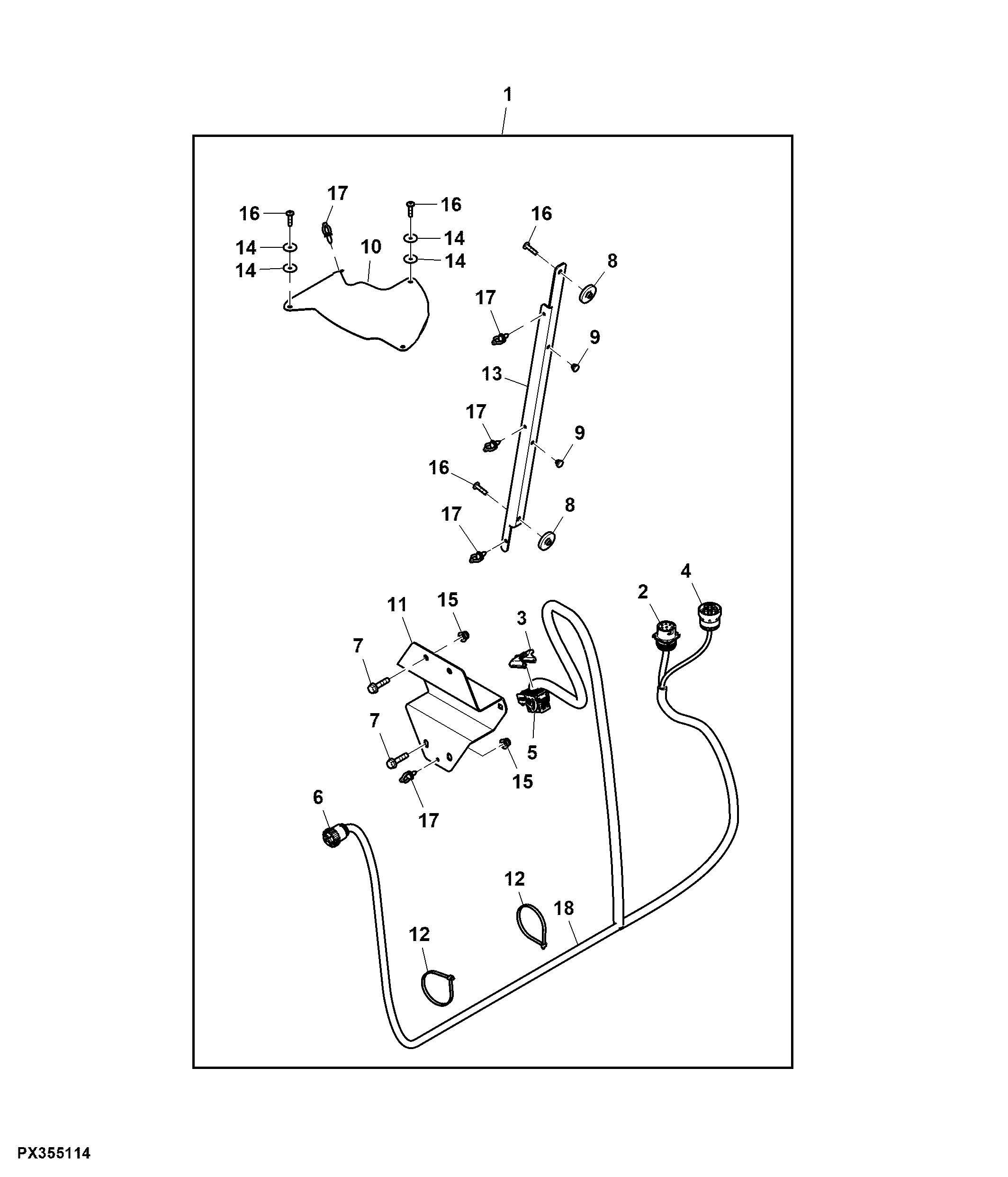

Wiring Harness, Cab W/ CAN Bus, Attachement

Нет текстового описания
