Открытый узел

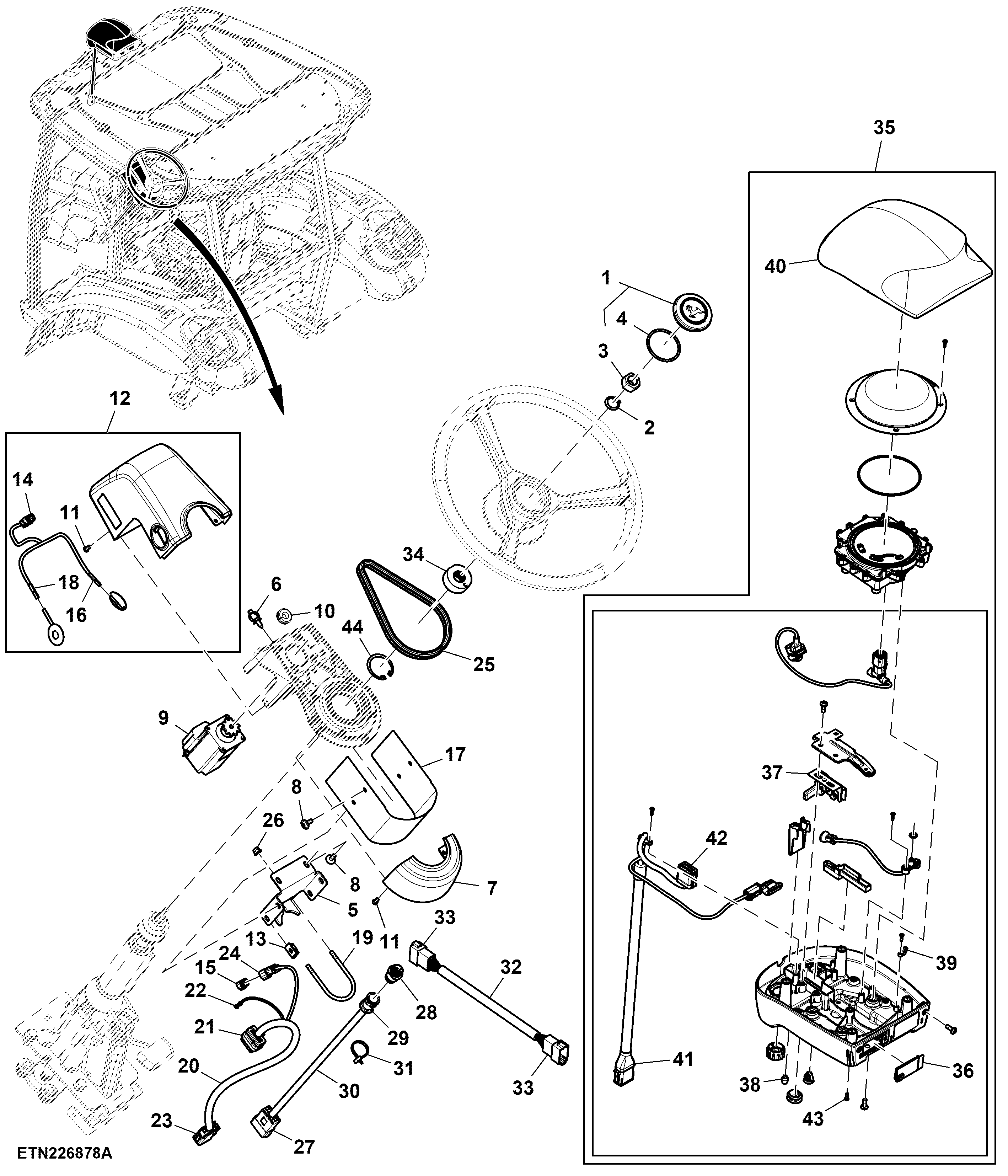

Steering Control, W/ Position Receiver, AutoTrac™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL155227	1	Cover	-
2	R141192	1	Lock Washer	-
3	AL174183	1	Lock Nut	-
4	B3690R	1	O-Ring	-
5	AL231159	1	Bracket	-
6	RE258807	1	Tie Band	-
7	PFP17707	1	Cover	-
8	L157372	6	Screw	-
9	PFA11841	1	Motor Kit	-
10	M85517	1	Grommet	-
11	GX26021	12	Socket Head Screw	-
12	PFA11385	1	Cover	-
13	L102357	4	Nut	-
14	57M8022	1	Elec.Connect Locking Device	-
14	57M8165	2	Elec. Connector Terminal	-
14	57M8021	1	Electrical Connector Assy	Internal Resume
15	57M8021	1	Electrical Connector Assy	-
15	Z78008	2	Elec. Connector Seal	-
15	57M8022	1	Elec.Connect Locking Device	-
16	57M14708	1	Elec. Connector Housing	Switch 01
16	57M14707	2	Elec. Connector Terminal	-
17	SU46085	1	Cover	-
18	57M14708	1	Elec. Connector Housing	Switch 02
18	57M14707	2	Elec. Connector Terminal	-
19	L225530	1	U-Bolt	-
20	PFA11989	1	Harness Kit	Motor
21	57M9800	1	Elec. Connector Housing	Motor
21	57M9809	12	Elec. Connector Terminal	-
22	57M12321	1	Elec. Connector Terminal	Ground
23	57M14637	1	Elec. Connector Housing	Main Line
24	57M8023	1	Elec. Connector Housing	Internal Resume Switch
24	R78066	2	Elec. Connector Terminal	-
24	57M7621	1	Elec.Connect Locking Device	-
24	57M9717	1	Elec.Connect Locking Device	-
25	PFP17709	1	Roller Chain	Links = 54
26	14M7397	2	Lock Nut	M6
27	57M14636	1	Elec. Connector Housing	Main
27	57M11907	7	Elec. Connector Terminal	-
27	57M14638	11	Elec. Connector Seal	-
28	F058915	1	Elec. Connector Housing	AutoTrac™ Universal 200
28	57M12061	7	Elec. Connector Terminal	-
29	57M9165	1	Elec. Connector Accessory	-
30	BPF11855	1	Harness Kit	AutoTrac™ Universal 200
31	R44302	2	Tie Band	-
32	PFP10470	1	Wiring Harness	Gender Changer
33	57M7633	2	Electrical Connector Assy	StarFire™ Connector
34	PF12168	1	Hub	-
35	PFA10461	1	Electronic Control Unit	-
36	PF12989	1	Flap	-
37	PF81189	1	Latch	-
38	PF13007	4	Isolator	-
39	PF13123	6	Tie Band	-
40	PFP13532	1	Housing	-
41	57M7634	1	Electrical Connector Assy	Roof Top Bulkhead Connector
42	57M8242	1	Elec. Connector Accessory	StarFire™ Receiver
43	PH81227135	4	Screw	-
44	40M1863	1	Snap Ring	-

Steering Control, W/ Position Receiver, AutoTrac™

Нет текстового описания
