Platform Wiring Harness OOS (2/5) (010000 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL233458	1	Wiring Harness	-
1	AL232209	1	Wiring Harness	ORDER AL233458
2	L102203	1	Fuse Box	Load Center LCS1
2	57M7205	31	Elec. Connector Terminal	Cavity K102_30, K102_86, K102_87, K103_30, K103_86, K103_87, K103_30, K103_87, K106_30, K106_87, K108_30, K108_87, F101A, F101E, F104A, F106A, F106E, F108A, F108E, F109A, F109E, F110A, F110E, F113A, F113E, F120E F114E, F120E F115E, F120E F119A
2	57M7206	5	Elec. Connector Terminal	Cavity K101_30, K101_87, F102A, F102E, F117E
2	57M8740	4	Elec. Connector Terminal	Cavity K108_85, K108_86, K110_85, K110_86
3	AL77324	4	Relay	40 A
4	AL152098	1	Diode Holder	-
5	AL76702	1	Relay	10 A
6	99M7065	6	Fuse	10 A
7	57M7120	4	Fuse	20 A
8	57M7146	2	Fuse	20 A
9	57M7121	8	Fuse	10 A
10	57M7494	1	Elec. Connector Terminal	Cavity B
10	57M9214	1	Elec. Connector Seal	Cavity B
10	57M9215	2	Elec. Connector Seal	Cavity A, C
10	57M10770	2	Elec. Connector Terminal	Cavity A, C
10	57M7290	1	Elec. Connector Accessory	-
10	57M7255	1	Elec. Connector Housing	Rockshaft Position Sensor X096F
11	57M10466	1	Elec. Connector Housing	Stepper Motor X092F
11	57M7830	4	Elec. Connector Terminal	-
12	57M7256	1	Elec. Connector Housing	Amber Warning Light LH, X160M
12	57M7289	1	Elec.Connect Locking Device	-
12	57M7252	2	Elec. Connector Terminal	-
12	57M9215	2	Elec. Connector Seal	-
13	57M7254	1	Elec. Connector Housing	Work Light ROPS Rear LH, X114F-3
13	57M7289	1	Elec.Connect Locking Device	-
13	57M10770	2	Elec. Connector Terminal	-
13	57M9215	2	Elec. Connector Seal	-
14	57M7347	1	Elec. Connector Accessory	-
14	57M9215	3	Elec. Connector Seal	Cavity B, C, D
14	57M9214	1	Elec. Connector Seal	Cavity A
14	57M7349	1	Elec. Connector Accessory	Rear Signal Turn Light LH, X107F
14	57M10770	3	Elec. Connector Terminal	Cavity B, C, D
15	T209627	1	Clamp	-
16	57M7697	1	Electrical Connector Assy	Inline 7Pin Trailer Socket X234M
16	57M7699	1	Elec. Connector Terminal	-
16	57M7252	5	Elec. Connector Terminal	Cavity A, B, C, D, F
16	57M7583	2	Elec. Connector Terminal	Cavity E, G
16	57M9215	4	Elec. Connector Seal	Cavity A, B, C, F
16	57M9214	1	Elec. Connector Seal	Cavity D
16	57M9563	2	Elec. Connector Cable Seal	Cavity E, G
17	57M7254	1	Elec. Connector Housing	Work Light Fender Front X317F
17	57M7289	1	Elec.Connect Locking Device	-
17	57M10770	2	Elec. Connector Terminal	-
17	57M9215	2	Elec. Connector Seal	-
18	57M7255	1	Elec. Connector Housing	Inline Transmission Rear X287F-1
18	57M9214	3	Elec. Connector Seal	-
18	57M10770	3	Elec. Connector Terminal	-
18	57M7290	1	Elec. Connector Accessory	-
19	57M7262	1	Elec. Connector Housing	Inline Transmission Rear X287F
19	57M7281	1	Elec.Connect Locking Device	-
19	57M10770	9	Elec. Connector Terminal	Cavity A-J
19	57M9215	9	Elec. Connector Seal	Cavity A-J
19	57M7259	1	Elec. Connector Seal	Cavity K
20	57M7919	1	Elec. Connector Housing	Diagnostic CAN Connector X571F
20	57M8164	4	Elec. Connector Terminal	Cavity A-D
20	R78069	5	Elec. Connector Cavity Plug	Cavity E-J
21	L113460	1	Grommet	-
22	57M10362	2	Clamp	-

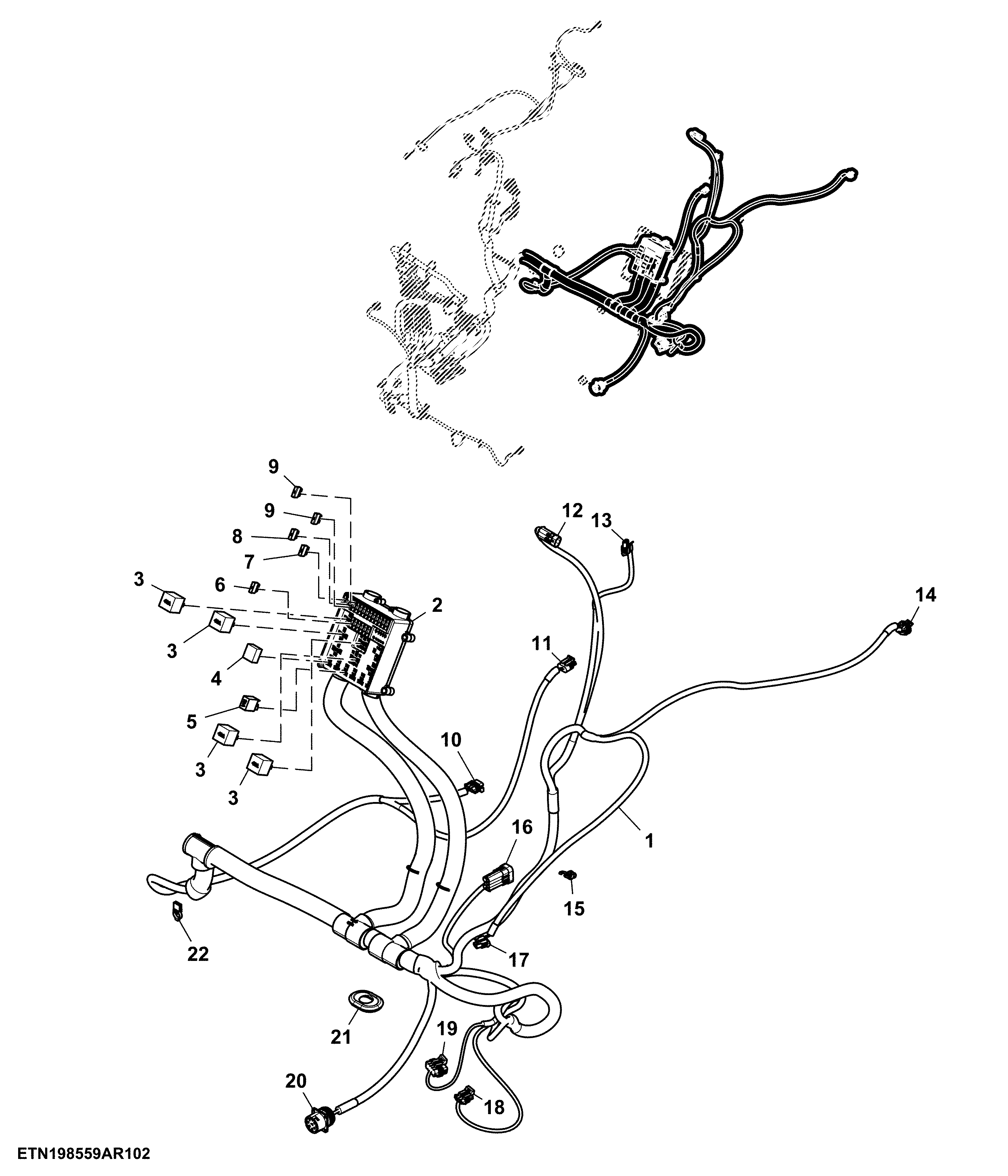

Platform Wiring Harness OOS (2/5) (010000 - )

Нет текстового описания
