Cab Wiring Harness (5/6) (010000 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL233243	1	Wiring Harness	Cab
2	57M7065	1	Elec. Connector Housing	Cigarette Lighter X128F
2	57M7430	2	Elec. Connector Terminal	-
3	57M7257	1	Elec. Connector Housing	Rear PTO Switch X125M
3	57M7290	1	Elec. Connector Accessory	-
3	57M7252	1	Elec. Connector Terminal	Cavity A
3	57M9546	2	Elec. Connector Terminal	Cavity B, C
3	57M9215	1	Elec. Connector Seal	Cavity A
3	57M9214	2	Elec. Connector Seal	Cavity B, C
4	57M7264	1	Elec. Connector Housing	Linear Hitch X014M-1
4	57M7283	1	Elec.Connect Locking Device	-
4	57M7252	2	Elec. Connector Terminal	Cavity A, B
4	57M9546	6	Elec. Connector Terminal	Cavity C-H
4	57M9215	2	Elec. Connector Seal	Cavity A, B
4	57M9214	6	Elec. Connector Seal	Cavity C-H
5	57M7494	1	Elec. Connector Terminal	Cavity B
5	57M9214	1	Elec. Connector Seal	Cavity B
5	57M9215	2	Elec. Connector Seal	Cavity A, C
5	57M7290	1	Elec. Connector Accessory	-
5	57M7255	1	Elec. Connector Housing	Load Depth X014F-2
5	57M10770	2	Elec. Connector Terminal	Cavity A, C
6	57M7244	1	Elec. Connector Housing	Cruise Control X236F
6	57M7318	1	Elec. Connector Accessory	-
6	57M9546	3	Elec. Connector Terminal	Cavity A, C, D
6	57M9214	3	Elec. Connector Seal	Cavity A, C, D
6	57M7259	1	Elec. Connector Seal	Cavity B
7	57M7118	1	Elec. Connector Terminal	Ground XGND2A
8	57M8734	3	Elec. Connector Seal	Cavity 3, 4, 8
8	57M8107	1	Elec. Connector Cavity Plug	Cavity 2
8	57M7403	17	Elec. Connector Cavity Plug	Cavity 10, 16, 17, 19, 20, 21, 22, 27, 28, 29, 30, 34, 35, 36, 38, 39, 4
8	57M8241	13	Elec. Connector Terminal	Cavity 9, 14, 18, 23, 24, 25, 26, 31, 32, 33, 37, 40, 41
8	57M8106	1	Elec. Connector Seal	Cavity 1
8	57M7402	4	Elec. Connector Cable Seal	Cavity 11, 12, 13, 15
8	57M7400	2	Elec. Connector Seal	Cavity 6, 7
8	57M7399	1	Elec. Connector Seal	Cavity 5
8	57M9042	2	Elec. Connector Terminal	Cavity 6, 7
8	57M9041	16	Elec. Connector Terminal	Cavity 11, 12, 13, 14, 15, 18, 23, 24, 25, 26, 31, 32, 33, 37, 40, 41
8	57M8101	1	Elec. Connector Terminal	Cavity 1
8	57M8098	1	Elec. Connector Terminal	-
8	57M8096	1	Retainer	-
8	57M8199	1	Elec. Connector Housing	Inline Transmission Front X430M
8	57M9158	1	Elec. Connector Terminal	Cavity 5
9	57M8106	1	Elec. Connector Seal	Cavity 1
9	57M8734	5	Elec. Connector Seal	Cavity 4, 5, 6, 7, 8
9	57M7403	23	Elec. Connector Cavity Plug	Cavity 9, 10, 11, 12, 15, 16, 17, 20, 21, 23, 26, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 42
9	57M9157	1	Elec. Connector Seal	Cavity 13
9	57M8241	8	Elec. Connector Terminal	Cavity 14, 18, 19, 22, 27, 39, 40, 41
9	57M7402	2	Elec. Connector Cable Seal	Cavity 24, 25
9	57M7400	1	Elec. Connector Seal	Cavity 3
9	57M9041	11	Elec. Connector Terminal	Cavity 13, 14, 18, 19, 22, 24, 25, 27, 39, 40, 41
9	57M8101	1	Elec. Connector Terminal	Cavity 1
9	57M13596	1	Elec. Connector Accessory	-
9	57M8098	1	Elec. Connector Terminal	-
9	57M8096	1	Retainer	-
9	57M8167	1	Elec. Connector Housing	Inline Transmission Front X431M
9	57M9042	1	Elec. Connector Terminal	Cavity 3
10	57M9157	1	Elec. Connector Seal	Cavity 33
10	57M8241	3	Elec. Connector Terminal	Cavity 10, 16, 25
10	57M8105	1	Elec. Connector Terminal	Cavity 2
10	57M7402	15	Elec. Connector Cable Seal	Cavity 9, 11, 12, 13, 15, 18, 19, 20, 22, 23, 24, 28, 29, 35, 36
10	57M7400	4	Elec. Connector Seal	Cavity 4, 5, 7, 8
10	57M11944	1	Elec. Connector Seal	Cavity 1
10	57M9573	1	Elec. Connector Terminal	Cavity 1
10	57M9042	4	Elec. Connector Terminal	Cavity 4, 5, 7, 8
10	57M9041	19	Elec. Connector Terminal	Cavity 9, 10, 11, 12, 13, 15, 16, 18, 19, 20, 22, 23, 24, 25, 28, 29, 33, 35, 36
10	57M8100	1	Elec. Connector Terminal	Cavity 2
10	57M13596	1	Elec. Connector Accessory	-
10	57M8198	1	Elec. Connector Housing	Inline Engine X450M

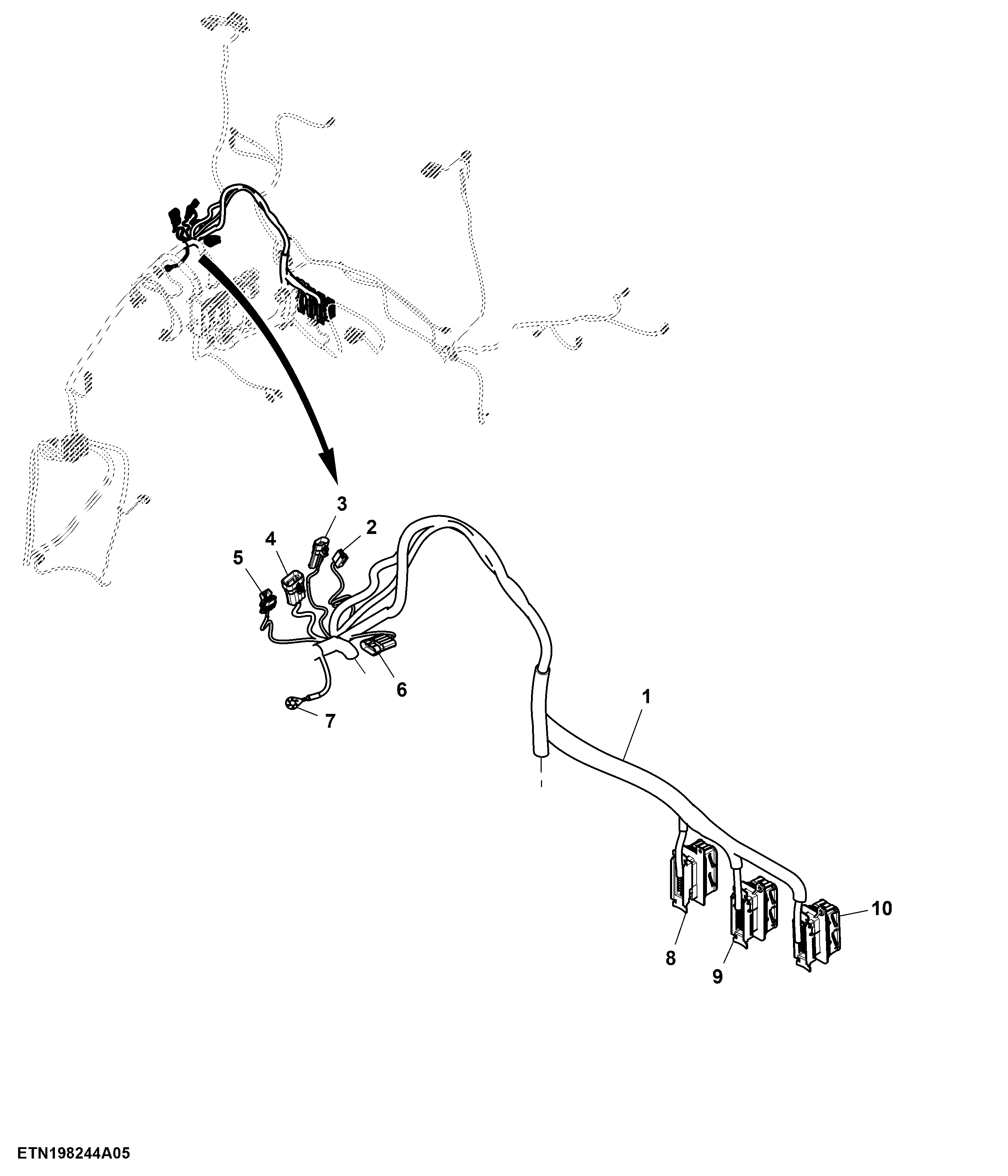

Cab Wiring Harness (5/6) (010000 - )
