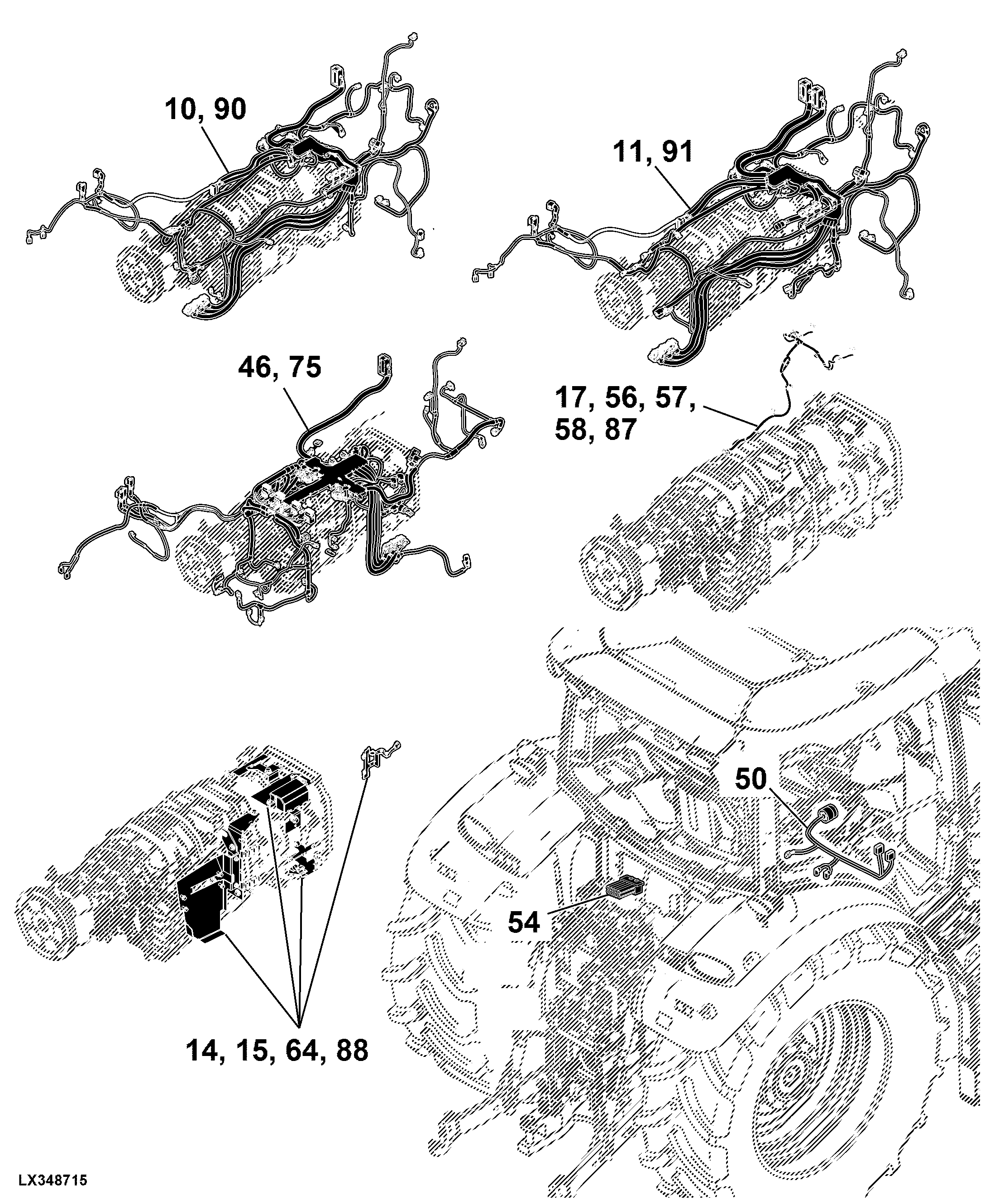

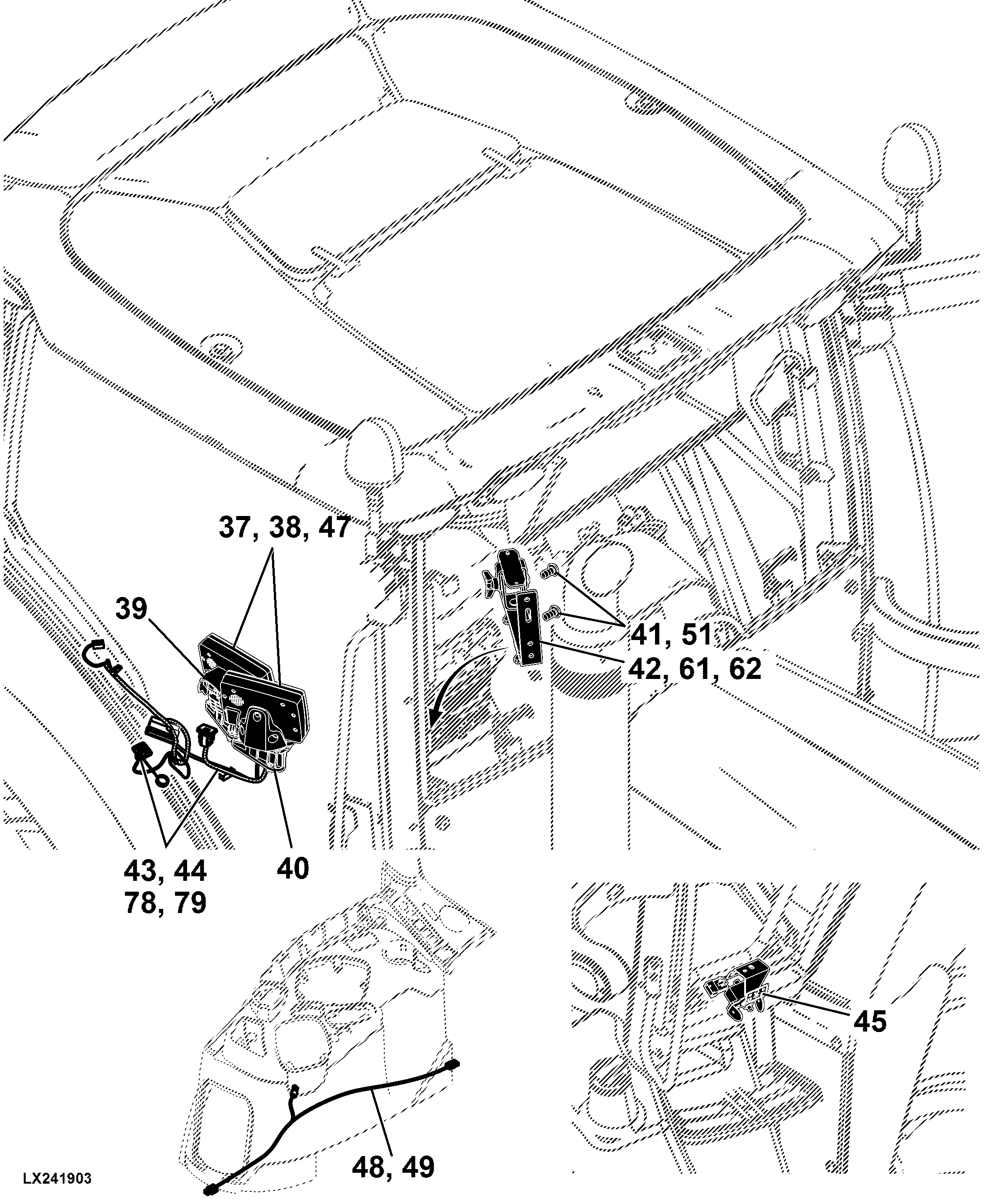

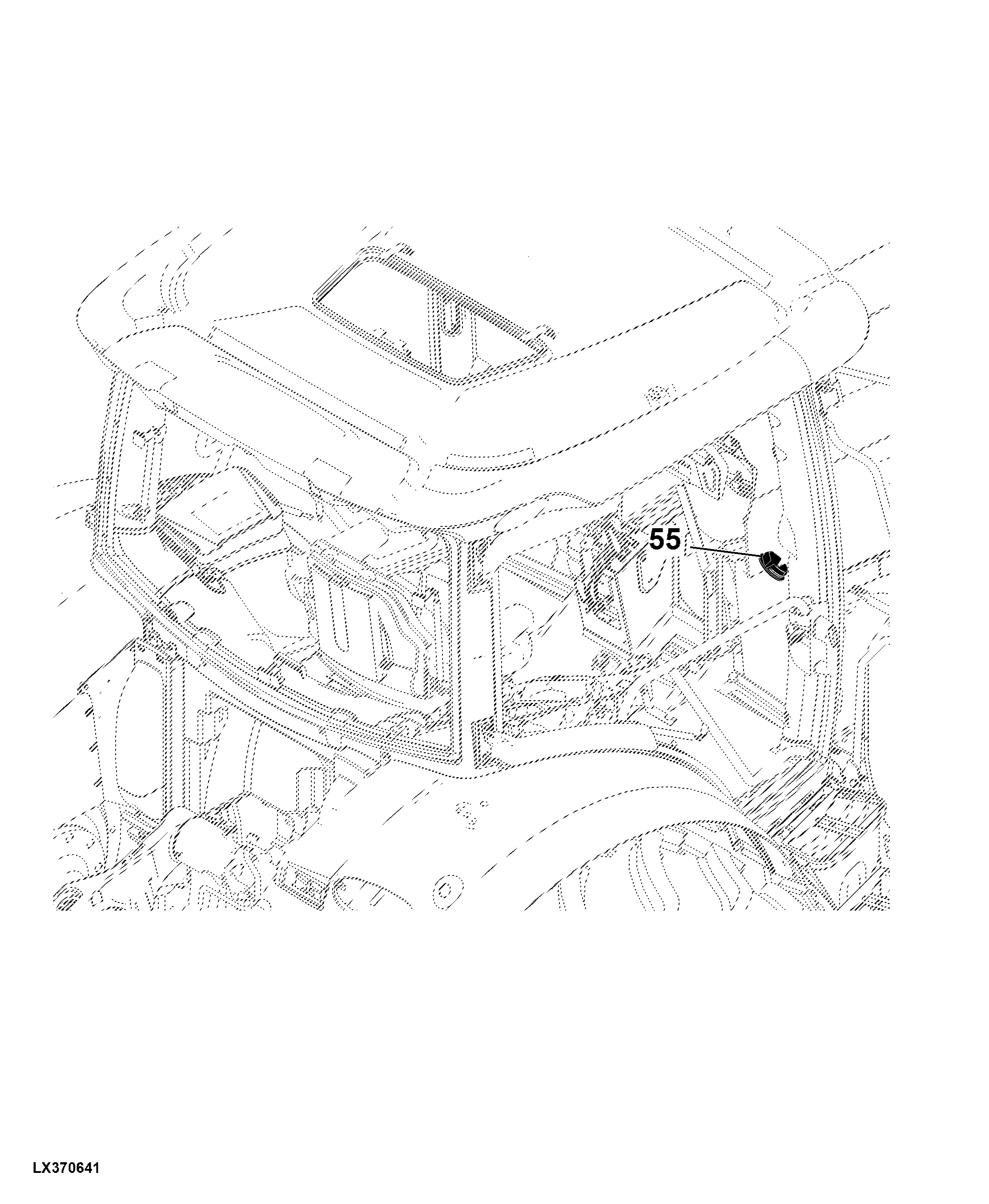

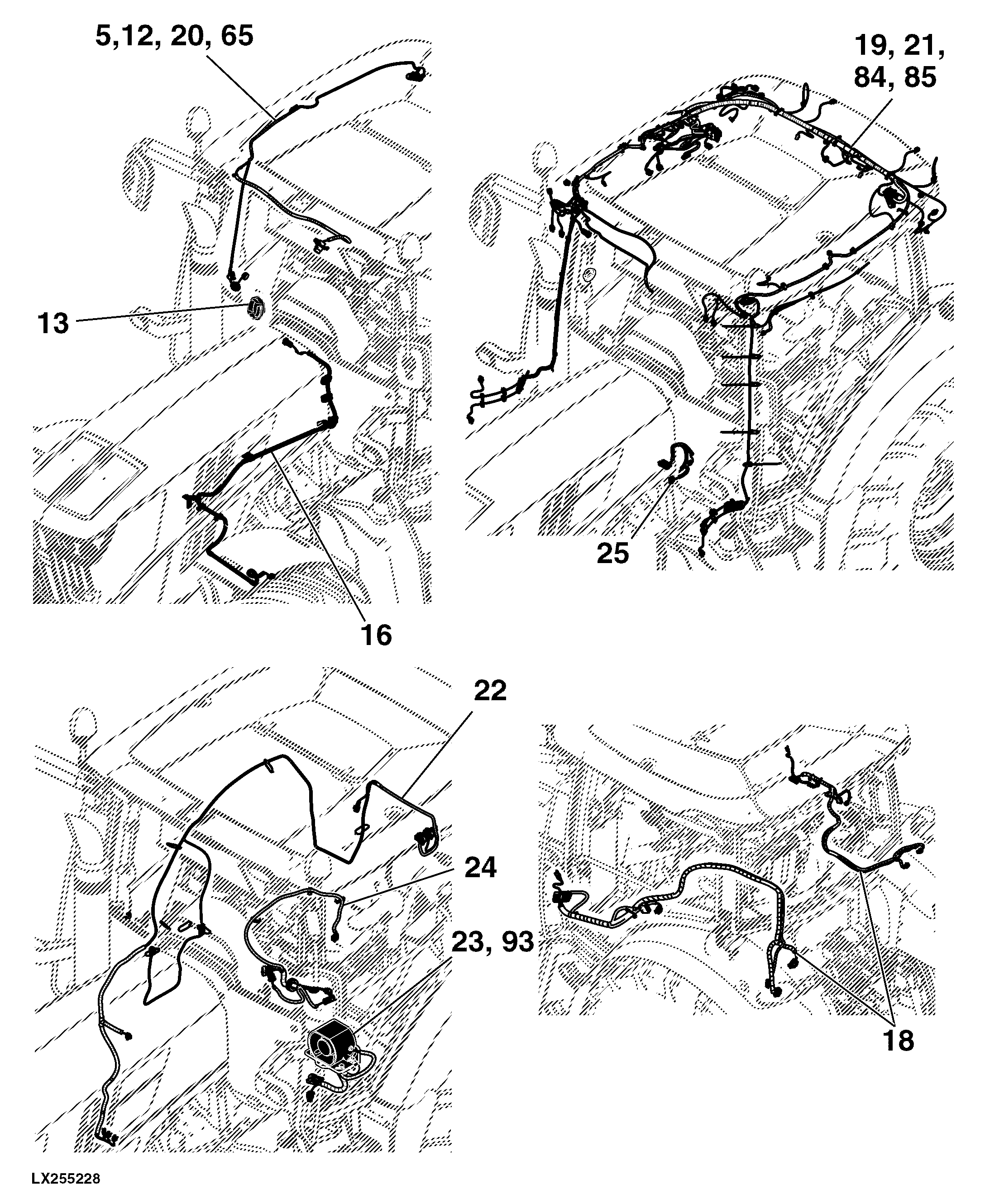

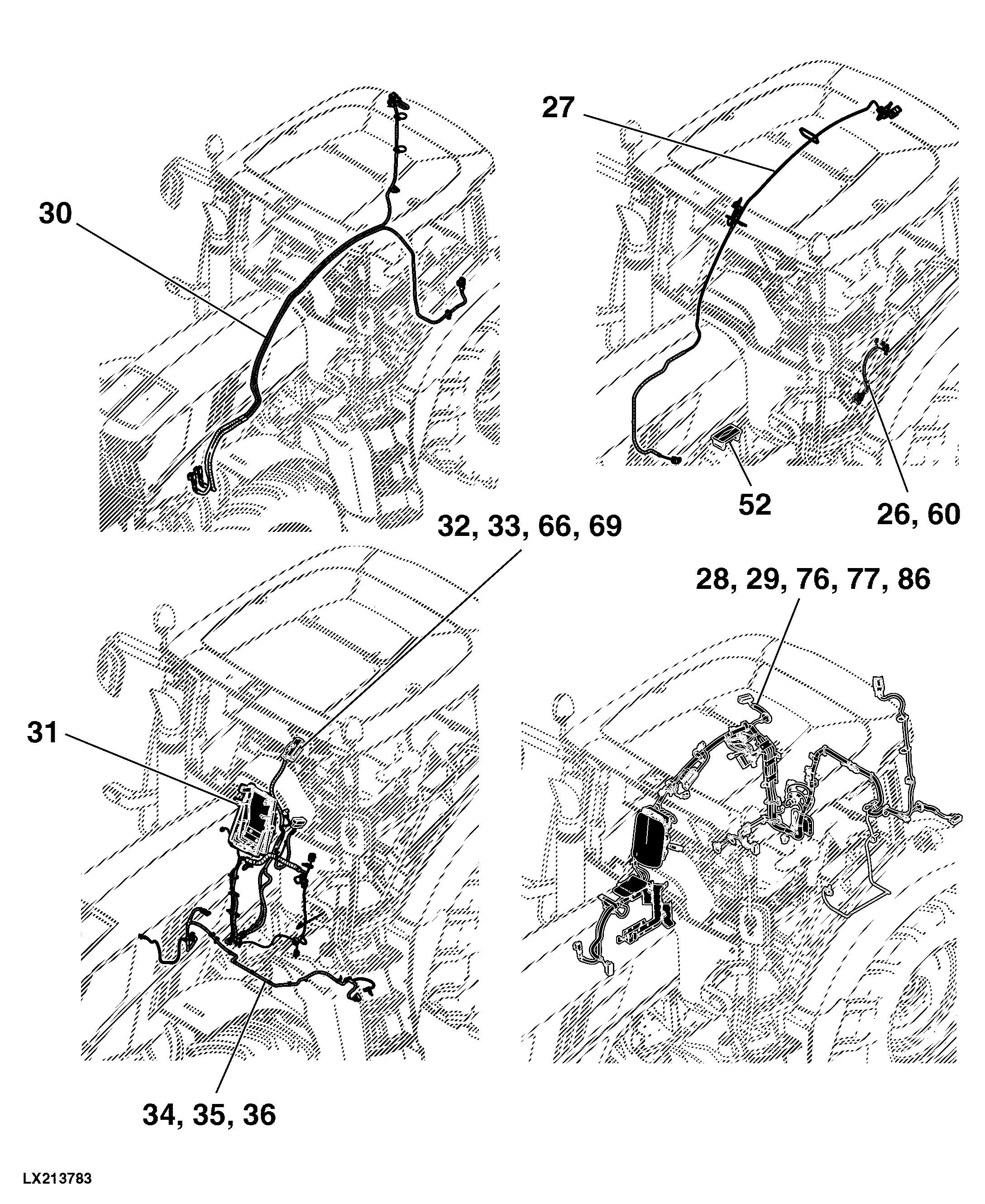

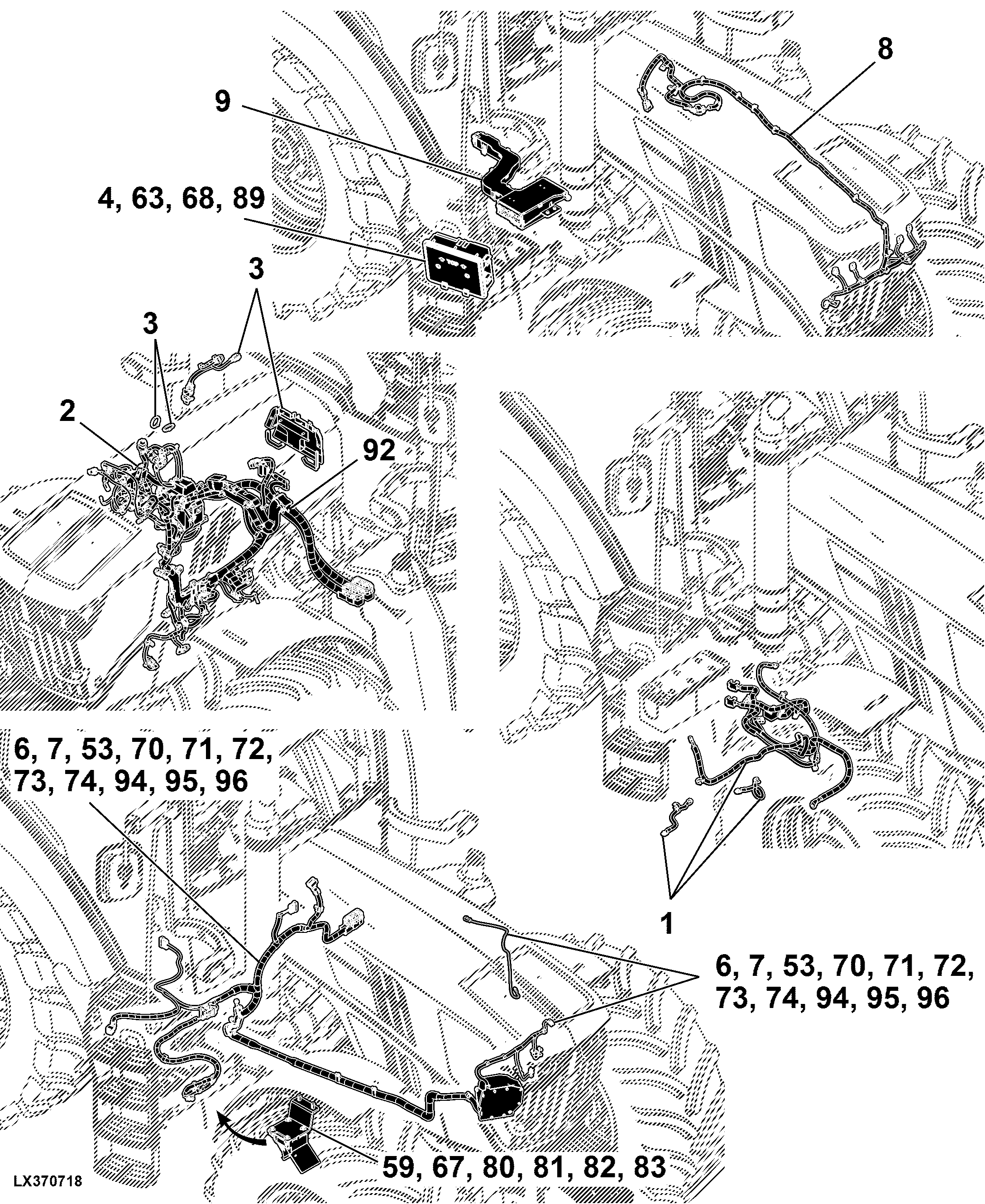

42 Electrical Components / Wiring Harnesses and Precision Farming Equipment

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Wiring Harness, Chassis, Engine Application, 4 Wire CAN Bus ( - 009948)	-
-	-	1	Wiring Harness, Front Chassis, W/O Front Controller, 4 Wire CAN Bus ( - 009703)	-
-	-	1	Wiring Harness, Front Chassis, W/O Front Controller, 2 Wire CAN Bus (009924 - )	-
-	-	1	Wiring Harness, Front Chassis, W/O Front Controller, 2 Wire CAN Bus (007344 - ), ( - 009923)	-
-	-	1	Wiring Harness, Front Chassis, W/ SFA, W/ Front PTO, 4 Wire CAN Bus ( - 009925)	-
-	-	1	Wiring Harness, Front Chassis, W/ SFA, W/ Front PTO, 2 Wire CAN Bus (009928 - )	-
-	-	1	Wiring Harness, Front Chassis, W/ SFA, W/ Front PTO, 2 Wire CAN Bus ( - 009927)	-
-	-	1	Wiring Harness, Foot Step Light	-
-	-	1	Wiring Harness, Engine	-
-	-	1	Wiring Harness, Electrical SCV	-
-	-	1	Wiring Harness, DirectDrive Transmission, 4 Wire Can Bus ( - 011961)	-
-	-	1	Wiring Harness, DirectDrive Transmission, 2 Wire Can Bus (011962 - )	-
-	-	1	Wiring Harness, GreenStar™	-
-	-	1	Wiring Harness, Chassis, Engine Application, 2 Wire CAN Bus (009931 - )	-
-	-	1	Wiring Harness, Chassis, Engine Application, 2 Wire CAN Bus ( - 009930)	-
-	-	1	Wiring Harness, Cab, IVT™	-
-	-	1	Wiring Harness, Battery Cut-Off / Footstep Light	-
-	-	1	Wiring Harness, AutoTrac™	-
-	-	1	Wiring Harness, 4 Wire Can Bus, Cab, GreenStar™, DirectDrive Transmission	-
-	-	1	Wiring Harness, 4 Wire Can Bus, Cab, EPQT	-
-	-	1	Wiring Harness, 4 Wire Can Bus, Cab Roof, W/O Cab Front	-
-	-	1	Wiring Harness, 4 Wire Can Bus, Cab Roof, W/ Cab Front	-
-	-	1	Wiring Harness, 2 Wire Can Bus, Cab, IVT™	-
-	-	1	Wiring Harness, 2 Wire Can Bus, Cab, GreenStar™, DirectDrive Transmission	-
-	-	1	Wiring Harness, Power Feed, Roof / Cabin Controller	-
-	-	1	Wiring Harness, W/ Electro Hydraulical Pick-Up Hitch	-
-	-	1	Wiring Harness, Transmission and Ground Cable, 20 Pin Connector	-
-	-	1	Wiring Harness, Transmission Adapter, SCV Rear	-
-	-	1	Wiring Harness, Transmission Adapter, Hydraulic Stabilizer	-
-	-	1	Wiring Harness, Transmission Adapter, Hydraulic Stabilizer	-
-	-	1	Wiring Harness, Transmission Adapter, Electrical SCV	-
-	-	1	Wiring Harness, Transmission Adapter	-
-	-	1	Wiring Harness, Steering, Braking and Backup Controller, Cab, Secondary Brake, AutoTrac™	-
-	-	1	Wiring Harness, Shift Lever, EPQT	-
-	-	1	Wiring Harness, PowrQuad™, W/ Electrical Reverser Control, 4 Wire Can Bus	-
-	-	1	Wiring Harness, PowrQuad™, W/ Electrical Reverser Control, 2 Wire Can Bus	-
-	-	1	Wiring Harness, 2 Wire Can Bus, Cab, EPQT	-
-	-	1	Wiring Harness, Multi Function Lever, 3-Functions, W/ Diverter Shifting	-
-	-	1	Wiring Harness, Multi Function Lever, 2-Functions, W/ Diverter Shifting	-
-	-	1	Wiring Harness, IVT™, 4 Wire Can Bus	-
-	-	1	Wiring Harness, IVT™, 2 Wire Can Bus	-
-	-	1	Wiring Harness, IVT™ Shift Lever	-
-	-	1	Wiring Harness, Instrument Panel, IVT™	-
-	-	1	Wiring Harness, Instrument Panel, EPQT	-
-	-	1	Wiring Harness, Instrument Panel, DirectDrive Transmission	-
-	-	1	Wiring Harness, Instrument Panel, DirectDrive Transmission	-
-	-	1	Wiring Harness, Hood, W/ Corner Lights	-
-	-	1	Wiring Harness, GreenStar™, Panorama Cab Roof	-
-	-	1	Bracket, SDU, W/O CommandARM™	-
-	-	1	Mounting Parts, Beverage Holder, GreenStar™ Installation	-
-	-	1	Mounting Parts, Beverage Holder, A-Post	-
-	-	1	Fuses / Relays / Wiring Harness, Power Supply, W/O Battery Cut-Off Switch, W/ DirectDriveTransmission	-
-	-	1	Fuses / Relays / Wiring Harness, Power Supply, W/O Battery Cut-Off Switch	-
-	-	1	Cover, W/O Pick Up Hitch	-
-	-	1	Cover, W/O GreenStar™	-
-	-	1	Connectors, W/O Electrical SCV, W/O Electrical ICV	-
-	-	1	Command Center Display Unit, W/O Touchscreen	-
-	-	1	Command Center Display Unit, W/ Touchscreen	-
-	-	1	Channel Assembly, Power Feed Cable	-
-	-	1	Cable, Battery	-
-	-	1	Mounting Parts, Engine Wiring Harness	-
-	-	1	Bracket, SDU, W/ CommandARM™	-
-	-	1	Backup-Alarm, Attachment	-
-	-	1	Backup Alarm	-
-	-	1	Attachment, Wiring Harness, Front Loader	-
-	-	1	Attachment, Wiring Harness, 4 Wire Can Bus, Chassis / Engine	-
-	-	1	Attachment, Wiring Harness, 2 Wire Can Bus, Chassis	-
-	-	1	Attachment, Mounting Parts, Radar Sensor	-
-	-	1	Attachment, Mounting Parts, Additional Monitor / Implement Controls, RH Console, PowrQuad™ / CommandQuad™ Transmission	-
-	-	1	Attachment, Mounting Parts, Additional Monitor / Implement Controls	-
-	-	1	Attachment, Battery Cut-Off Switch	-
-	-	1	Attachment, Battery Cut-Off Switch	-
-	-	1	Radar Sensor, W/ Hitch Stabilizer	-
-	-	1	Wiring Harness, 2 Wire Can Bus, Cab Roof, W/O Cab Front	-
-	-	1	Wiring Harness, 2 Wire Can Bus, Cab Roof, W/ Cab Front	-
-	-	1	Wiring Harness / Switch Module, 4 Wire Can Bus, SDU W/ Video Preparation	-
-	-	1	Wiring Harness / Switch Module, 4 Wire Can Bus, SDU	-
-	-	1	Wiring Harness / Switch Module, 2 Wire Can Bus, SDU W/ Video Preparation	-
-	-	1	Wiring Harness / Switch Module, 2 Wire Can Bus, SDU	-
-	-	1	Switch, Battery Cut-Off	-
-	-	1	Switch / Wiring Harness, Battery Cut-Off	-
-	-	1	Screen Protector, Display	-
-	-	1	Repair Kit, Connector Intake Air Sensor	-
-	-	1	Radar Sensor, W/ Hitch Stabilizer	-
-	-	1	` Wiring Harness, Fender	-
-	-	1	Radar Sensor, Mounting Parts	-
-	-	1	Radar Sensor W/O Hitch Stabilizer	-
-	-	1	Radar Sensor W/O Hitch Stabilizer	-
-	-	1	Plugs, W/O Greenstar™, Panorama Roof	-
-	-	1	Plug, W/O GreenStar™	-
-	-	1	Mounting Parts, Wiring Harness, IVT™	-
-	-	1	Mounting Parts, Wiring Harness, EPQT	-
-	-	1	Mounting Parts, Wiring Harness, DirectDrive Transmission	-
-	-	1	Mounting Parts, Wiring Harness, DirectDrive Transmission	-
-	-	1	Mounting Parts, Monitor, A Post	-
-	-	1	Mounting Parts, Load Center	-

42 Electrical Components / Wiring Harnesses and Precision Farming Equipment

Нет текстового описания
