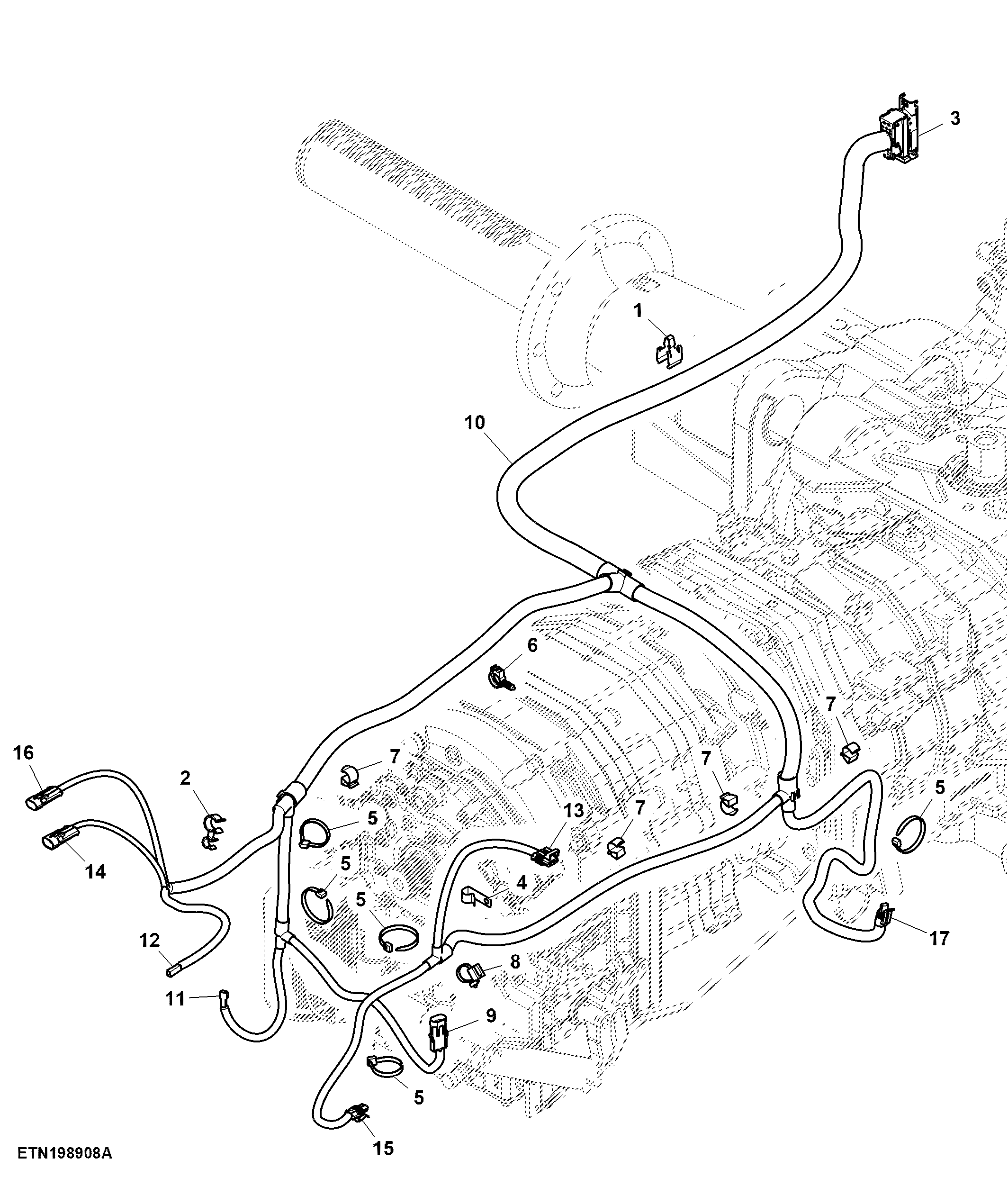

Transmission Wiring Harness, Front, PowrQuad™ (001249 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L153768	1	Clip	-
2	R232182	1	Clip	-
3	57M14000	1	Elec. Connector Terminal	-
3	57M8425	9	Elec. Connector Terminal	-
3	57M8106	1	Elec. Connector Seal	-
3	57M8241	7	Elec. Connector Terminal	-
3	57M7402	2	Elec. Connector Cable Seal	-
3	57M7401	6	Elec. Connector Cavity Plug	-
3	57M7403	25	Elec. Connector Cavity Plug	-
3	57M8107	1	Elec. Connector Cavity Plug	-
3	57M8195	1	Elec. Connector Housing	Inline Platform X431F
4	L167244	1	Clip	-
5	R44302	5	Tie Band	-
6	57M8902	1	Clip	-
7	L115277	4	Clip	-
8	L171035	1	Tie Band	-
9	R78053	1	Electrical Connector Assy	Pressure Switch X033F
9	57M9545	2	Elec. Connector Terminal	-
9	57M9549	2	Elec. Connector Seal	-
10	AL228273	1	Wiring Harness	-
11	57M9621	1	Elec. Connector Terminal	-
11	57M7210	1	Elec. Connector Accessory	Low Temperature Switch X081F
12	57M7213	1	Elec. Connector Housing	High Temperature Switch X082F
12	57M7216	1	Elec. Connector Terminal	-
13	57M7255	1	Elec. Connector Housing	Sending Unit Fuel Gauge X086F
13	R104846	2	Elec. Connector Terminal	-
13	57M9215	2	Elec. Connector Seal	-
13	57M7259	1	Elec. Connector Seal	-
14	R104919	2	Elec. Connector Terminal	-
14	57M9215	2	Elec. Connector Seal	-
14	57M7256	1	Elec. Connector Housing	Sending Unit Oil Filter X080M
15	57M7328	1	Elec. Connector Housing	Start Safety Switch X093F
15	R104846	2	Elec. Connector Terminal	-
15	57M9215	2	Elec. Connector Seal	-
16	57M7985	1	Electrical Connector Assy	Sensor Oil Pressure X083M
16	R104919	2	Elec. Connector Terminal	-
17	57M7379	1	Elec. Connector Housing	Front Wheel Drive Solenoid X091F
17	57M7829	2	Elec. Connector Terminal	-

Transmission Wiring Harness, Front, PowrQuad™ (001249 - )

Нет текстового описания
