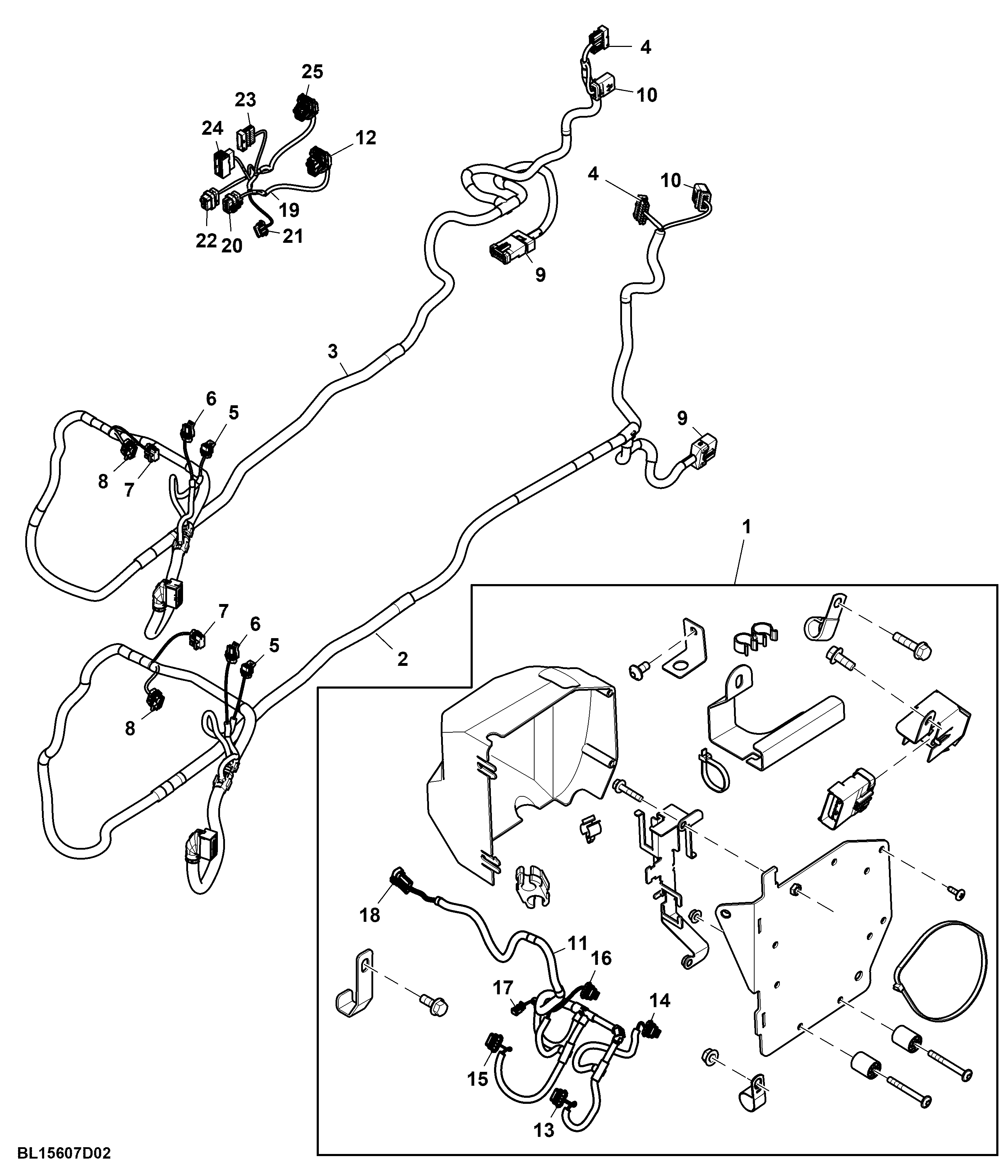

Wiring Harness, Midstack SCVs, Attachment (2/2) ( - 839746)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BL15607	1	Wiring Harness	-
2	AL221523	1	Wiring Harness	-
3	AL221526	1	Wiring Harness	-
4	57M8069	2	Elec. Connector Housing	Connection Point between Wiring Harnesses W291 and W751, X921M
4	57M8075	1	Elec. Connector Seal	-
4	57M8082	1	Elec. Connector Accessory	-
4	57M9042	15	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
4	57M7400	15	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
4	57M7399	1	Elec. Connector Seal	Cavity 16
5	57M7260	2	Elec. Connector Housing	Connection Point between Harnesses W751 or W901 and W912, X1268F
5	57M7291	1	Electrical Connector Assy	-
5	57M10770	5	Elec. Connector Terminal	Cavity A, B, D, E, F
5	57M9215	5	Elec. Connector Seal	Cavity A, B, D, E, F
5	57M7259	1	Elec. Connector Seal	Cavity C
6	57M7328	2	Elec. Connector Housing	Connection Point between Harnesses W751 or W901 and W912, X1278F
6	57M9215	2	Elec. Connector Seal	Cavity A, B
6	57M10770	2	Elec. Connector Terminal	Cavity A, B
6	57M7289	1	Elec.Connect Locking Device	-
7	57M7261	2	Elec. Connector Housing	Connection Point between Wiring Harnesses W751 and W921, X1169F
7	57M7296	1	Elec. Connector Accessory	-
7	57M7494	7	Elec. Connector Terminal	Cavity A, B, C, D, E, F, G
7	57M9214	7	Elec. Connector Seal	Cavity A, B, C, D, E, F, G
7	57M7259	1	Elec. Connector Seal	Cavity H
8	57M7259	1	Elec. Connector Seal	Cavity C
8	57M9215	5	Elec. Connector Seal	Cavity E, F, G, H, K
8	57M7258	2	Elec. Connector Seal	Cavity D, J
8	57M9214	2	Elec. Connector Seal	Cavity A, B
8	57M9541	2	Elec. Connector Terminal	Cavity D, J
8	57M7494	2	Elec. Connector Terminal	Cavity A, B
8	57M7281	1	Elec.Connect Locking Device	-
8	57M7262	2	Elec. Connector Housing	Connection Point between Harnesses W751 and W731, X1134F
8	57M10770	5	Elec. Connector Terminal	Cavity E, F, G, H, K
9	57M8572	2	Elec. Connector Cavity Plug	Cavity 11, 12
9	57M8545	9	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 7, 9, 10, 13
9	57M8565	3	Elec. Connector Terminal	Cavity 1, 8, 14
9	57M12118	1	Elec. Connector Accessory	-
9	57M10297	2	Elec. Connector Housing	Connection Point between Harnesses W751 and W752, X923F
10	57M9805	2	Elec. Connector Housing	Connection Point between Harnesses W291 and W751, X1168M
10	57M9813	9	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 10, 11
10	57M9812	2	Elec. Connector Terminal	Cavity 8, 9
10	57M10603	1	Elec. Connector Terminal	Cavity 12
11	AL215740	1	Wiring Harness	-
12	57M10613	1	Elec. Connector Housing	-
12	57M10334	2	Elec. Connector Cavity Plug	Cavity M2, M3
12	57M10333	10	Elec. Connector Cavity Plug	Cavity A1, B1, B2, B4, C2, E4, F3, F4, G4, K4
12	57M10331	3	Elec. Connector Terminal	Cavity L2, M1, M4
12	57M10617	3	Elec. Connector Housing	Cavity L1, L3, L4
12	57M10514	17	Elec. Connector Terminal	Cavity A4, C1, C3, C4, D1, D2, D3, D4, F2, G1, G3, H1, H2, J1, J4, K1, K3
12	57M10330	13	Elec. Connector Terminal	Cavity A2, A3, B3, E1, E2, E3, F1, G2, H3, H4, J2, J3, K2
12	57M10614	1	Elec. Connector Housing	Connector of Front Chassis Control Unit (M400), X985F-2
13	57M7364	1	Elec. Connector Housing	Steppermotor E-ICV I, X318F
13	57M10770	2	Elec. Connector Terminal	Cavity A, B
13	57M7494	2	Elec. Connector Terminal	Cavity C, D
13	57M9215	2	Elec. Connector Seal	Cavity A, B
13	57M9214	2	Elec. Connector Seal	Cavity C, D
13	57M7318	1	Elec. Connector Accessory	-
14	L116272	1	Elec. Connector Accessory	-
14	57M7318	1	Elec. Connector Accessory	-
14	57M9214	2	Elec. Connector Seal	Cavity C, D
14	57M9215	2	Elec. Connector Seal	Cavity A, B
14	57M10770	2	Elec. Connector Terminal	Cavity A, B
14	57M7494	2	Elec. Connector Terminal	Cavity C, D
14	57M7364	1	Elec. Connector Housing	Steppermotor E-ICV III, X252F
15	57M7364	1	Elec. Connector Housing	Steppermotor Midstack SCV, X253F
15	57M10770	2	Elec. Connector Terminal	Cavity A, B
15	57M7494	2	Elec. Connector Terminal	Cavity C, D
15	57M9215	2	Elec. Connector Seal	Cavity A, B
15	57M9214	2	Elec. Connector Seal	Cavity C, D
15	57M7318	1	Elec. Connector Accessory	-
15	L116272	1	Elec. Connector Accessory	-
16	57M7364	1	Elec. Connector Housing	Steppermotor E-ICV II, X251F
16	57M10770	2	Elec. Connector Terminal	Cavity A, B
16	57M7494	2	Elec. Connector Terminal	Cavity C, D
16	57M9215	2	Elec. Connector Seal	Cavity A, B
16	57M9214	2	Elec. Connector Seal	Cavity C, D
16	57M7318	1	Elec. Connector Accessory	-
17	57M7534	1	Elec. Connector Housing	Switch Valve, X1007F
17	57M7620	1	Electrical Connector Assy	-
17	57M8263	2	Elec. Connector Terminal	Cavity A, B
18	57M7265	1	Elec. Connector Housing	Connection Point between Harnesses W511 and W731, X1134M
18	57M7252	7	Elec. Connector Terminal	Cavity A, B, E, F, G, H, K
18	57M11342	2	Elec. Connector Terminal	Cavity D, J
18	57M9214	2	Elec. Connector Seal	Cavity A, B
18	57M7258	2	Elec. Connector Seal	Cavity D, J
18	57M9215	5	Elec. Connector Seal	Cavity E, F, G, H, K
18	57M7259	1	Elec. Connector Seal	Cavity C
18	57M7281	1	Elec.Connect Locking Device	-
19	AL221334	1	Wiring Harness	-
20	57M10631	1	Elec. Connector Terminal	Cavity 12
20	57M9809	11	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11
20	57M9801	1	Elec. Connector Housing	Connection Point between Harnesses W291 to W511, X1168F
21	57M8416	1	Elec. Connector Housing	Connection Point between Harnesses W291 and W741, X002F
21	57M7318	1	Elec. Connector Accessory	-
21	57M10770	4	Elec. Connector Terminal	Cavity A, B, C, D
21	57M9215	4	Elec. Connector Seal	Cavity A, B, C, D
22	57M9800	1	Elec. Connector Housing	Connection Point between Harnesses W291 and W701, X1083F
22	57M9809	10	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 11, 12
22	57M10336	2	Elec. Connector Cavity Plug	Cavity 7, 10
23	57M7401	8	Elec. Connector Cavity Plug	Cavity 4, 6, 7, 10, 11, 12, 13, 14
23	57M8075	1	Elec. Connector Seal	-
23	57M7400	4	Elec. Connector Seal	Cavity 2, 5, 8, 9
23	57M9042	4	Elec. Connector Terminal	Cavity 2, 5, 8, 9
23	57M8082	1	Elec. Connector Accessory	-
23	57M8069	1	Elec. Connector Housing	Connection Point between Harnesses W291 and W511, X1018M
23	57M7399	4	Elec. Connector Seal	Cavity 1, 3, 15, 16
24	57M7399	1	Elec. Connector Seal	Cavity 16
24	57M7400	15	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
24	57M8079	1	Elec. Connector Terminal	Cavity 16
24	57M9532	15	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
24	57M8083	1	Elec. Connector Accessory	-
24	57M8072	1	Elec. Connector Housing	Connection Point between Harnesses W291/1 and W752, X921F
25	57M10611	1	Elec. Connector Housing	Connector of Front Chassis Control Unit (M400), X985F-1
25	57M10604	1	Elec. Connector Housing	-
25	57M10330	10	Elec. Connector Terminal	Cavity A1, A3, B3, B4, D4, E3, E4, F2, F3, F4
25	57M10514	2	Elec. Connector Terminal	Cavity E1, F1
25	57M10331	4	Elec. Connector Terminal	Cavity G1, G2, H1, H3
25	57M10617	3	Elec. Connector Housing	Cavity G3, G4, H4
25	57M10333	12	Elec. Connector Cavity Plug	Cavity A2, A4, B1, B2, C1, C2, C3, C4, D1, D2, D3, E2
25	57M10334	1	Elec. Connector Cavity Plug	Cavity H2
