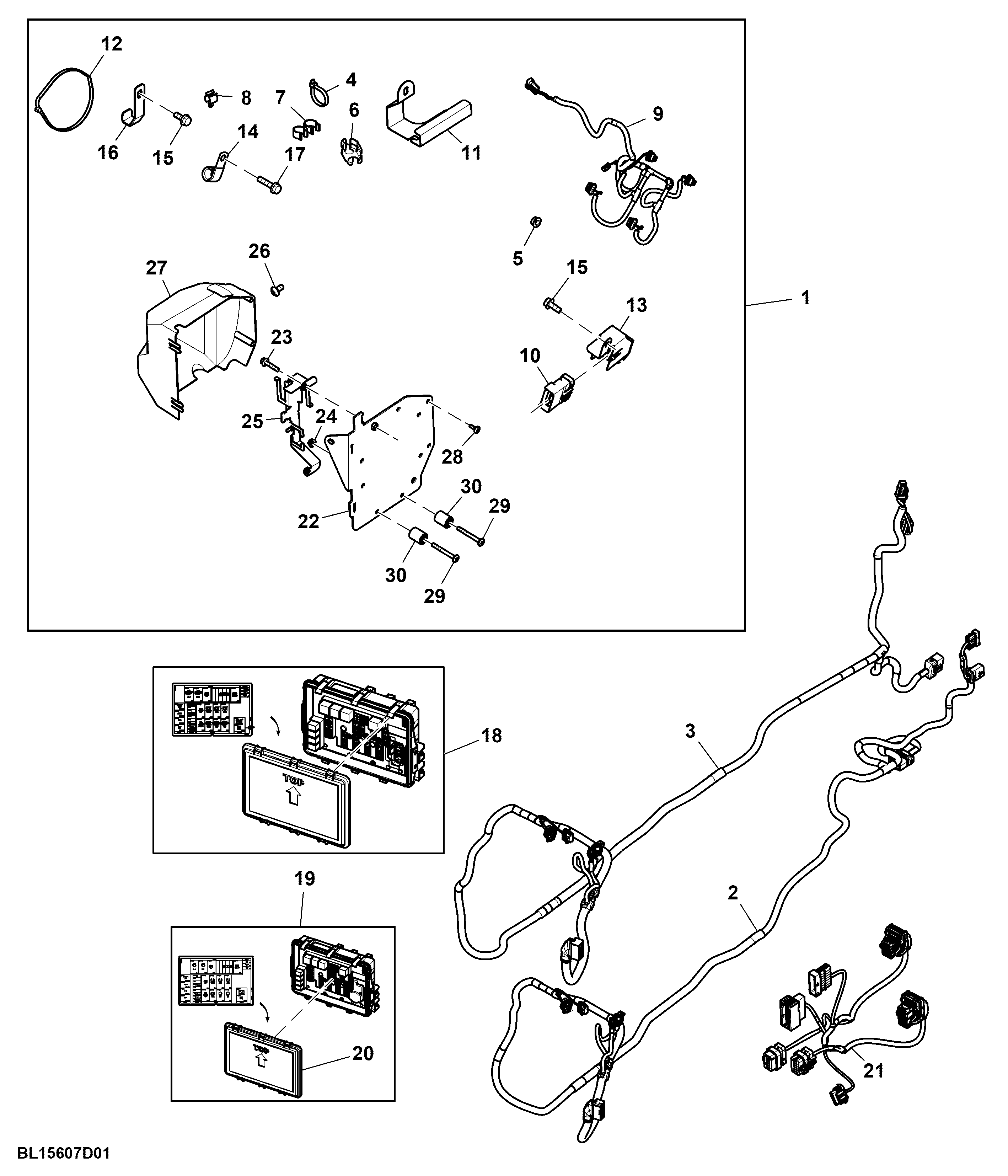

Wiring Harness, Midstack SCVs, Attachment (1/2) ( - 839746)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BL15607	1	Wiring Harness	-
2	AL221526	1	Wiring Harness	Components Listed on Seperate Pages, Order Additionaly If Required, For Tractors 6135R, 6145R, 6155R, Only Required if No Chassis Control Unit M400 was Installed
3	AL221523	1	Wiring Harness	Components Listed on Seperate Pages, Order Additionaly If Required, For Tractors 6110R, 6120R, 6130R, Only Required if No Chassis Control Unit M400 was Installed
4	R44302	9	Tie Band	-
5	14M7298	3	Flange Nut	M8
6	L207210	2	Block Clamp	-
7	R215302	3	Clip	-
8	L156247	1	Clamp	-
9	AL215740	1	Wiring Harness	Components Listed on Seperate Pages
10	AL218954	1	Elec. Connector Housing	-
11	L217093	1	Bracket	-
12	L210204	1	Tie Band	For Securing the Wiring Harness to the Vehicle Frame
13	L214273	1	Retainer	-
14	AH89486	1	Clip	-
15	19M7866	2	Screw	M8 X 20
16	L216107	2	Angle	-
17	19M7897	1	Screw	M8 X 35
18	AL219870	1	Fuse Box	Order Additionaly If Required, For Tractors Without Battery Cut-off System
19	AL219872	1	Fuse Box	Order Additionaly If Required, For Tractors With Battery Cut-off System
20	L215586	1	Cover	-
21	AL221334	1	Wiring Harness	Components Listed on Seperate Pages, Order Additionaly If Required
22	L211510	1	Retainer	-
23	19M7796	1	Screw	M6 X 30
24	14M7303	2	Flange Nut	M6
25	L213982	1	Retainer	-
26	R264173	1	Bolt	-
27	L205154	1	Cover	-
28	L113415	2	Screw	For Attaching the Cover of the Front Chassis Control Unit
29	L209723	3	Screw	-
30	L210308	3	Bushing	-

Wiring Harness, Midstack SCVs, Attachment (1/2) ( - 839746)
