Открытый узел

Wiring Harness, Electric Socket, 7-Pin, Front Hitch

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL217571	1	Wiring Harness	-
2	L115277	1	Clip	-
3	L172406	1	Clip	-
4	R213663	10	Clamp	-
5	AL217578	1	Wiring Harness	-
6	19M7660	2	Screw	M8 X 20
7	24M7362	2	Washer	8.400 X 16 X 1.600 mm
8	L216107	2	Angle	-
9	R44302	1	Tie Band	-
10	57M7170	1	Elec. Connector Housing	Front 7-Terminal Power Outlet Socket, X883-3
10	57M7106	1	Elec. Connector Terminal	Cavity A
11	57M7089	1	Elec. Connector Terminal	Cavity A
11	57M7170	1	Elec. Connector Housing	Front 7-Terminal Power Outlet Socket, X883-4
12	57M7170	1	Elec. Connector Housing	Front 7-Terminal Power Outlet Socket, X883-7
12	57M7089	1	Elec. Connector Terminal	Cavity A
13	57M7170	1	Elec. Connector Housing	Front 7-Terminal Power Outlet Socket, X883-1
13	57M7089	1	Elec. Connector Terminal	Cavity A
14	57M7170	1	Elec. Connector Housing	Front 7-Terminal Power Outlet Socket, X883-5
14	57M7089	1	Elec. Connector Terminal	Cavity A
15	57M7699	1	Elec. Connector Terminal	-
15	57M7574	1	Elec. Connector Terminal	Cavity E
15	57M7259	1	Elec. Connector Seal	Cavity B
15	57M9215	4	Elec. Connector Seal	Cavity A, C, D, F
15	57M7583	1	Elec. Connector Terminal	Cavity G
15	57M7252	4	Elec. Connector Terminal	Cavity A, C, D, F
15	57M7697	1	Electrical Connector Assy	Connection Point between Harnesses W032 and W033, X234M
15	57M9563	1	Elec. Connector Cable Seal	Cavity G
16	57M9063	1	Elec. Connector Housing	-
17	57M7259	1	Elec. Connector Seal	Cavity B
17	57M7698	1	Elec. Connector Terminal	-
17	57M7574	1	Elec. Connector Terminal	Cavity E
17	57M9563	1	Elec. Connector Cable Seal	Cavity G
17	57M9215	4	Elec. Connector Seal	Cavity A, C, D, F
17	57M7581	1	Elec. Connector Terminal	Cavity G
17	57M10770	4	Elec. Connector Terminal	Cavity A, C, D, F
17	57M7696	1	Elec. Connector Housing	Connection Point between Harnesses W032 and W033, X234F
18	57M10299	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W601 and W031, W033 or W861, X1235F-1
18	57M8545	4	Elec. Connector Terminal	Cavity 2, 4, 5, 6
18	57M8565	2	Elec. Connector Terminal	Cavity 3, 7
18	57M8572	4	Elec. Connector Cavity Plug	Cavity 1, 8, 9, 10
19	57M10300	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W601 and W031, W033 or W861, X1235M
19	57M10524	4	Elec. Connector Terminal	Cavity 2, 4, 5, 6
19	57M10525	2	Elec. Connector Terminal	Cavity 3, 7
19	57M8572	4	Elec. Connector Cavity Plug	Cavity 1, 8, 9, 10

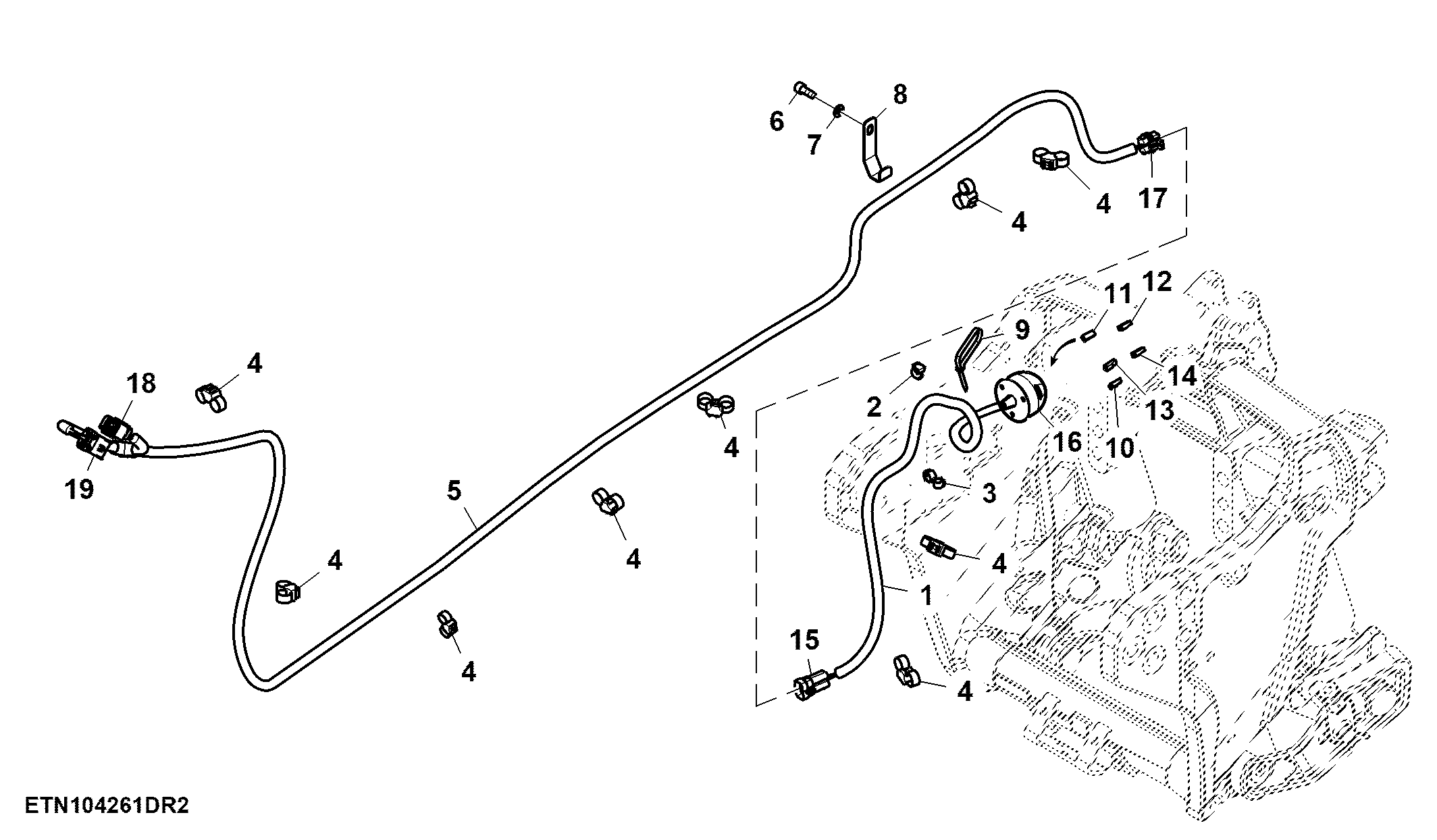

Wiring Harness, Electric Socket, 7-Pin, Front Hitch
