Открытый узел

Wiring Harness, Adapter, Electrical Midstack SCV, Attachment

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BL15927	1	Wiring Harness	-
2	AL224899	1	Wiring Harness	-
3	57M12234	3	Elec. Connector Accessory	-
4	R241878	1	Clip	-
5	57M10466	1	Elec. Connector Housing	Stepper Motor for E-SCV XIII, X252F
5	57M7830	2	Elec. Connector Terminal	Cavity A, B
5	57M7829	2	Elec. Connector Terminal	Cavity C, D
5	L219630	1	Elec. Connector Accessory	-
6	57M10466	1	Elec. Connector Housing	Stepper Motor for E-SCV XII, X251F
6	57M7829	2	Elec. Connector Terminal	Cavity C, D
6	57M7830	2	Elec. Connector Terminal	Cavity A, B
7	57M10466	1	Elec. Connector Housing	Stepper Motor for E-SCV XI, X318F
7	57M7830	2	Elec. Connector Terminal	Cavity A, B
7	57M7829	2	Elec. Connector Terminal	Cavity C, D
8	57M7259	1	Elec. Connector Seal	Cavity C
8	57M7291	1	Electrical Connector Assy	-
8	57M9215	5	Elec. Connector Seal	Cavity A, B, D, E, F
8	R104846	5	Elec. Connector Terminal	Cavity A, B, D, E, F
8	57M7260	1	Elec. Connector Housing	Connection Point between Harnesses W731 or W901 and W912, X1268F
9	57M7328	1	Elec. Connector Housing	Connection Point between Harnesses W731 or W901 and W912, X1278F
9	57M7289	1	Elec.Connect Locking Device	-
9	57M10770	2	Elec. Connector Terminal	Cavity A, B
9	57M9215	2	Elec. Connector Seal	Cavity A, B
10	57M8068	1	Elec. Connector Housing	Connection Point between Harnesses W511 and W731, X1134M
10	57M8074	1	Elec. Connector Terminal	-
10	57M8080	1	Elec. Connector Accessory	-
10	57M9042	7	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 8, 9
10	57M7400	7	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 8, 9
10	57M7399	1	Elec. Connector Seal	Cavity 6
10	57M7401	2	Elec. Connector Cavity Plug	Cavity 7, 10

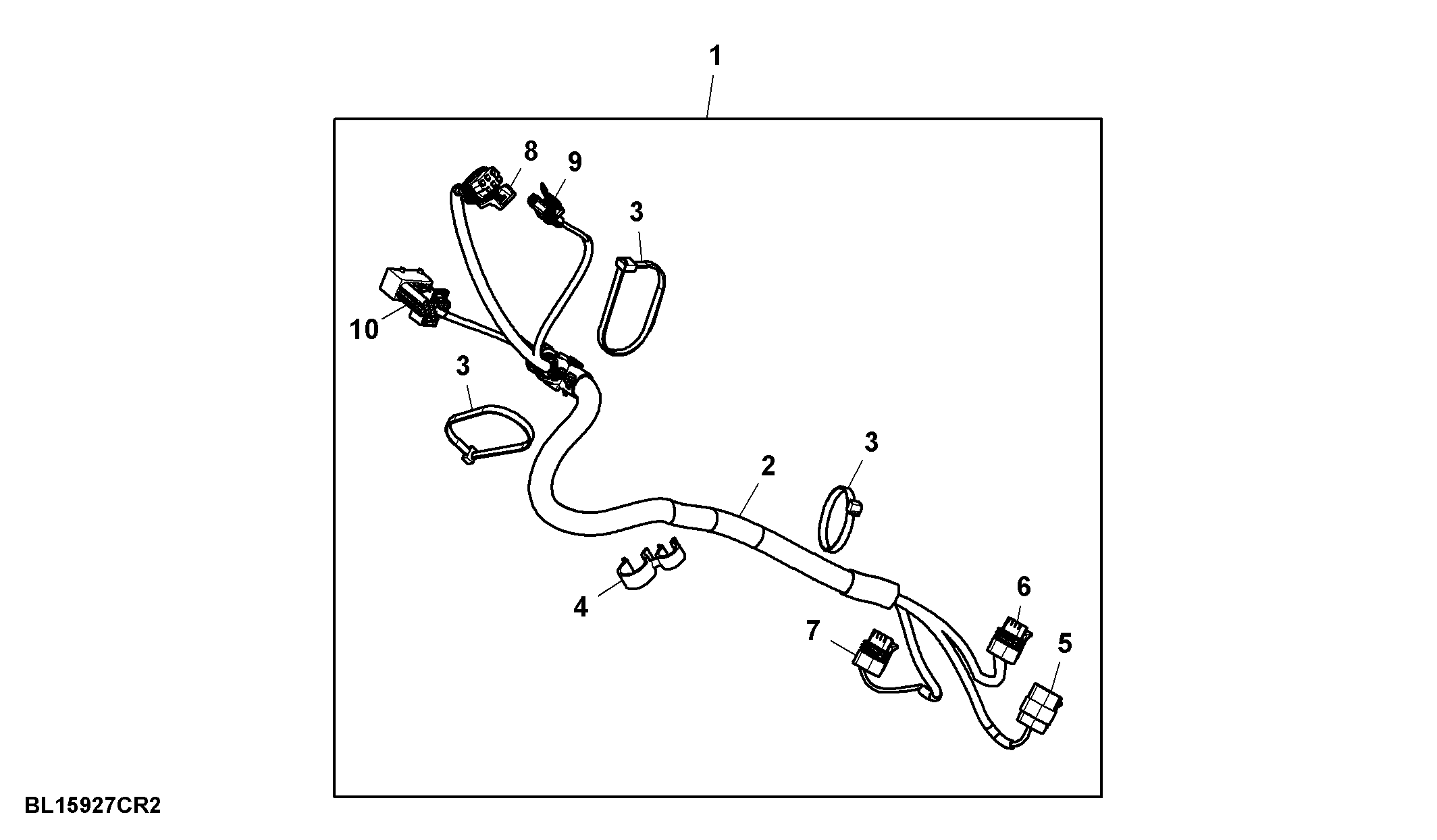

Wiring Harness, Adapter, Electrical Midstack SCV, Attachment
