Открытый узел

Module, Instrument Panel, IVT™, W/ Indicator Reset

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL219196	1	Module	SUB FOR AL217951, AL216082, AL215616, AL213434
2	AL211170	1	Module	-
3	AL209398	1	Lever	Turn Signal
4	AL166429	1	Switch	Wiper Switch
5	AL201750	1	Control	Left Hand Reverser
6	37M7215	3	Screw	-
7	40M7251	1	Snap Ring	-
8	40M7082	1	Snap Ring	-
9	34M7159	1	Spring Pin	3 X 12 mm
10	AL206074	1	Wiring Harness	-
11	AL76568	1	Knob	-
12	AL172312	1	Panel	-
13	L167579	2	Washer	-
14	L166804	2	Plug	-
15	RE61717	1	Rotary Switch	Ignition Switch
16	RE154222	1	Switch	Light Switch ORDER AL220391
16	AL220391	1	Switch	-
17	L203900	1	Housing	ORDER L217036
17	L217036	1	Housing	-
18	L169290	1	Guide	-
19	L169291	1	Guard	-
20	R164403	1	Knob	-
21	L221355	1	Boot	SUB FOR RE189712
22	L170129	3	Screw	-
23	L170130	12	Screw	M3 X 12
24	L170131	2	Screw	-
25	R44342	1	Nut	-
26	R44165	1	Lock Nut	ORDER H204146
26	H204146	1	Nut	-
27	21M7265	8	Screw	M5 X 12
28	19M9166	1	Screw	M3 X 6
29	L204417	1	Insert	-
30	L167915	3	Clamp	-
31	19M7555	3	Screw	M8 X 30
32	AL175387	1	Shield	-
33	57M7089	6	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6
33	L78202	1	Elec. Connector Housing	Connector of Key Switch S001F
34	57M8721	1	Elec. Connector Accessory	Connector of Instrument Cluster X733F
34	57M8719	17	Elec. Connector Terminal	Cavity 7, 10, 11, 12, 13, 15, 16, 21, 22, 23, 25, 26, 27, 28, 29, 31, 32
35	57M9578	1	Elec. Connector Housing	Connector of Turn Signal Lever X732F
35	57M9580	8	Elec. Connector Terminal	Cavity 1, 3, 4, 5, 6, 7, 8, 9
36	57M8070	1	Elec. Connector Housing	Connection Point on Harness W231 X735M-1
36	57M7401	6	Elec. Connector Cavity Plug	Cavity 6, 7, 9, 10, 13, 18
36	57M8076	1	Elec. Connector Terminal	-
36	57M7399	5	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5
36	57M7400	13	Elec. Connector Seal	Cavity 8, 11, 12, 14, 15, 16, 17, 19, 20, 21, 22, 23, 24
36	57M8946	5	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5
36	57M8943	1	Elec.Connect Locking Device	-
37	57M8758	1	Elec. Connector Housing	Connector of Light Switch X774F
37	57M9582	5	Elec. Connector Terminal	Cavity B, 1, 2, 3, 4
37	57M8757	4	Elec.Connect Locking Device	-
37	57M8759	1	Elec.Connect Locking Device	-
38	57M9579	1	Elec. Connector Housing	Connector of Switch for Windshield and Rear Window Wipers X734F
38	57M9580	11	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 9, 10, 11, 12, 13, 16

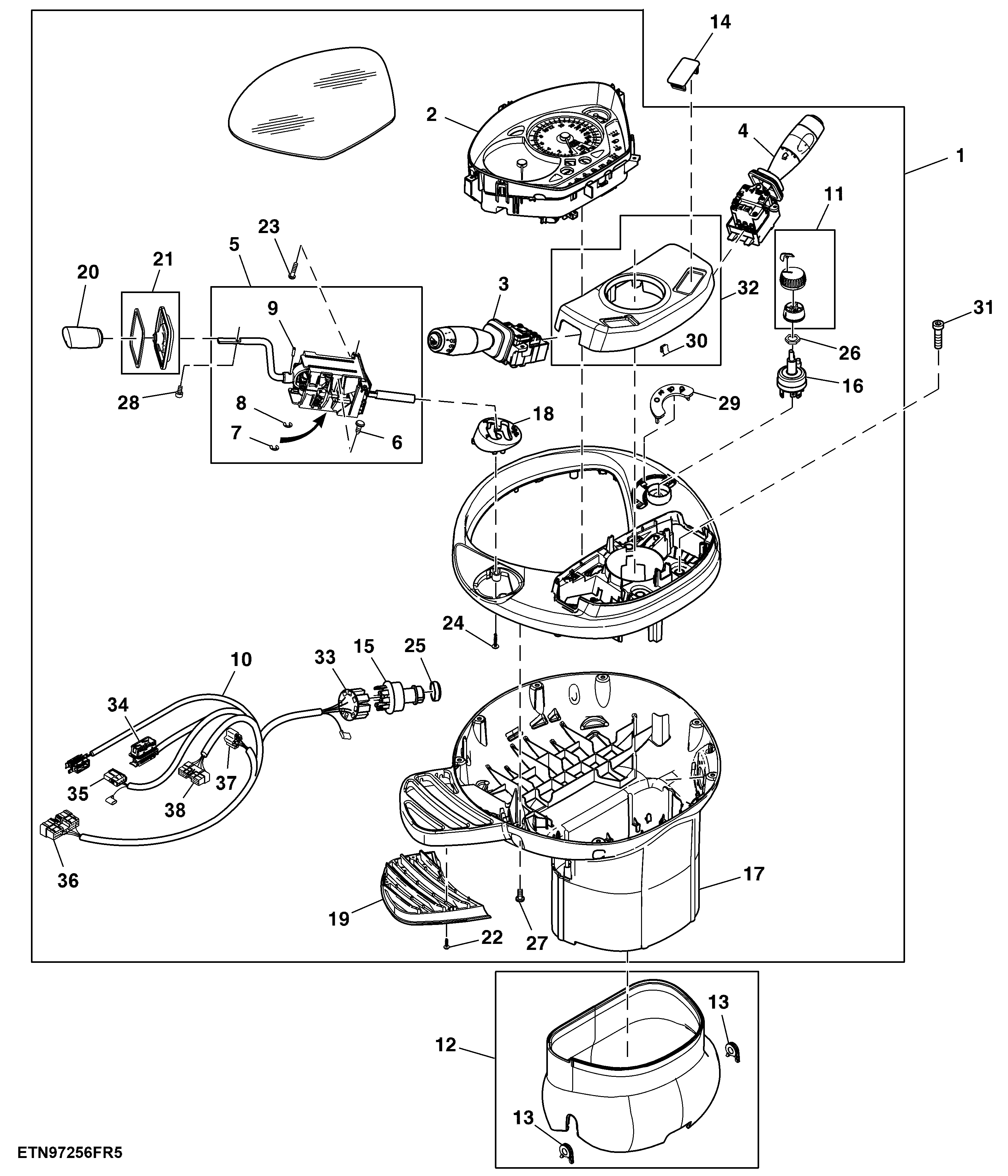

Module, Instrument Panel, IVT™, W/ Indicator Reset
