Module, Instrument Panel, DirectDrive Transmission

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7555	3	Screw	M8 X 30
2	AL172312	1	Panel	-
3	L167579	2	Washer	-
4	L166804	2	Plug	-
5	AL219194	1	Module	SUB FOR AL217953, AL216080, AL215611
6	AL209398	1	Lever	Turn Signal Lever/Horn SUB FOR AL166428 APPL
7	AL166429	1	Switch	Wiper Switch
8	AL202652	1	Control	Left Hand Reverser
9	40M7251	1	Snap Ring	-
10	40M7082	1	Snap Ring	-
11	34M7159	1	Spring Pin	3 X 12 mm
12	37M7215	3	Screw	-
13	AL206074	1	Wiring Harness	-
14	AL76568	1	Knob	-
15	AL175387	1	Shield	-
16	RE61717	1	Rotary Switch	Rotary Switch
17	RE154222	1	Switch	ORDER AL220391
17	AL220391	1	Switch	Light Switch
18	L204417	1	Insert	-
19	L203900	1	Housing	ORDER L217036
19	L217036	1	Housing	-
20	L203679	1	Guide	-
21	L169291	1	Guard	-
22	R164403	1	Knob	Reverse Drive Lever
23	RE189712	1	Boot	ORDER L221355
23	L221355	1	Boot	-
24	L170129	3	Screw	-
25	L170130	12	Screw	-
26	L170131	2	Screw	-
27	R115974	1	Nut	-
28	R44165	1	Lock Nut	ORDER H204146
28	H204146	1	Nut	-
29	21M7265	8	Screw	M5 X 12
30	19M9166	1	Screw	M3 X 6
31	AL211374	1	Module	-
32	L167915	3	Clamp	-
33	L78202	1	Elec. Connector Housing	Connector of Key Switch S001F
33	57M7089	6	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6
34	57M8721	1	Elec. Connector Accessory	Connector of Instrument Cluster X733F
34	57M8719	17	Elec. Connector Terminal	Cavity 7, 10, 11, 12, 13, 15, 16, 21, 22, 23, 25, 26, 27, 28, 29, 31, 32
35	57M9580	8	Elec. Connector Terminal	Cavity 1, 3, 4, 5, 6, 7, 8, 9
35	57M9578	1	Elec. Connector Housing	Connector of Turn Signal Lever X732F
36	57M8070	1	Elec. Connector Housing	Connection Point on Harness W231 X735M-1
36	57M8943	1	Elec.Connect Locking Device	-
36	57M8946	5	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5
36	57M7400	13	Elec. Connector Seal	Cavity 8, 11, 12, 14, 15, 16, 17, 19, 20, 21, 22, 23, 24
36	57M7399	5	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5
36	57M8076	1	Elec. Connector Terminal	-
36	57M7401	6	Elec. Connector Cavity Plug	Cavity 6, 7, 9, 10, 13, 18
37	57M8758	1	Elec. Connector Housing	Connector of Light Switch X774F
37	57M9582	5	Elec. Connector Terminal	Cavity B, 1, 2, 3, 4
37	57M8757	4	Elec.Connect Locking Device	-
37	57M8759	1	Elec.Connect Locking Device	-
38	57M9579	1	Elec. Connector Housing	Connector of Switch for Windshield and Rear Window Wipers X734F
38	57M9580	11	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 9, 10, 11, 12, 13, 16

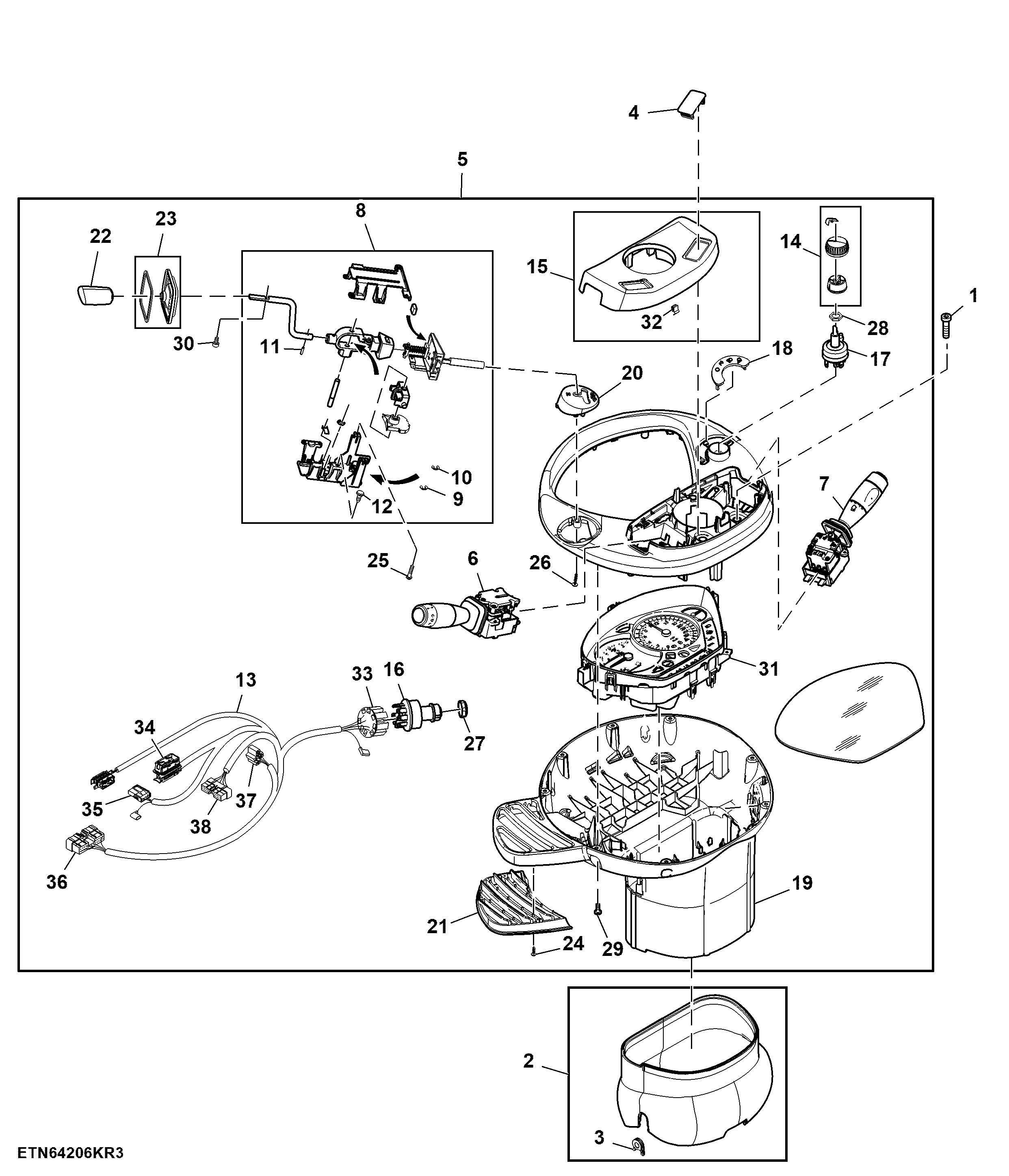

Module, Instrument Panel, DirectDrive Transmission
