Открытый узел

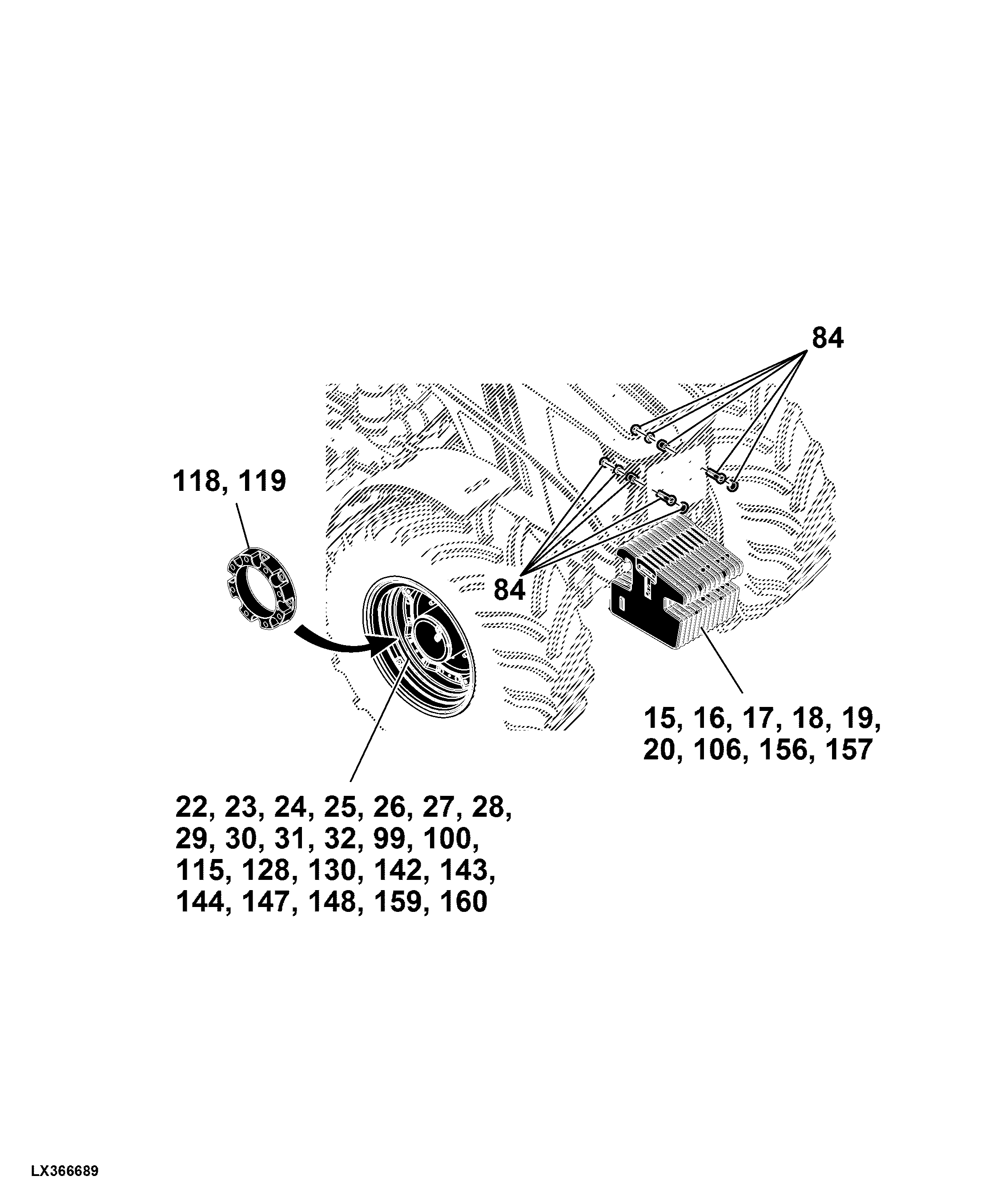

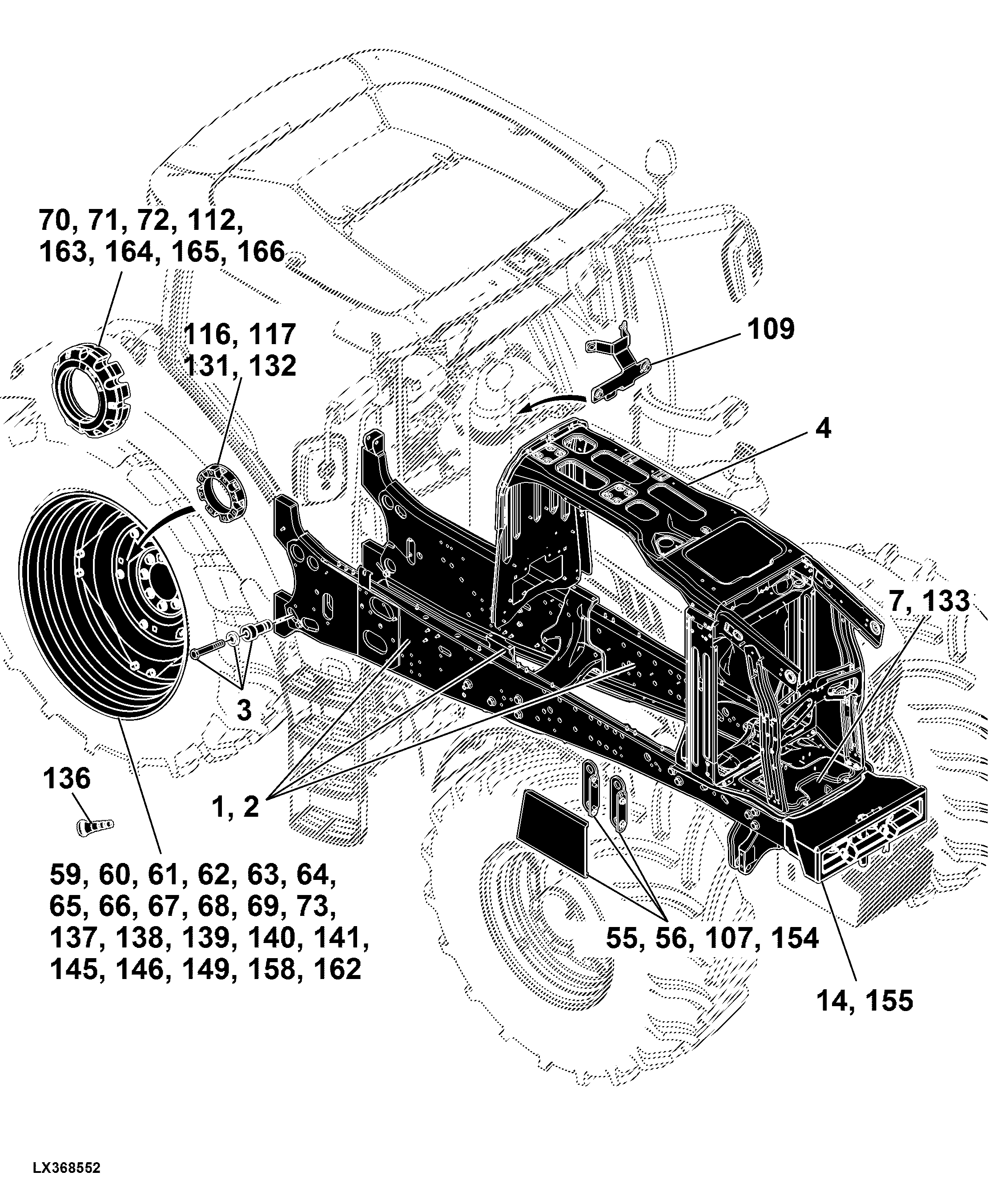

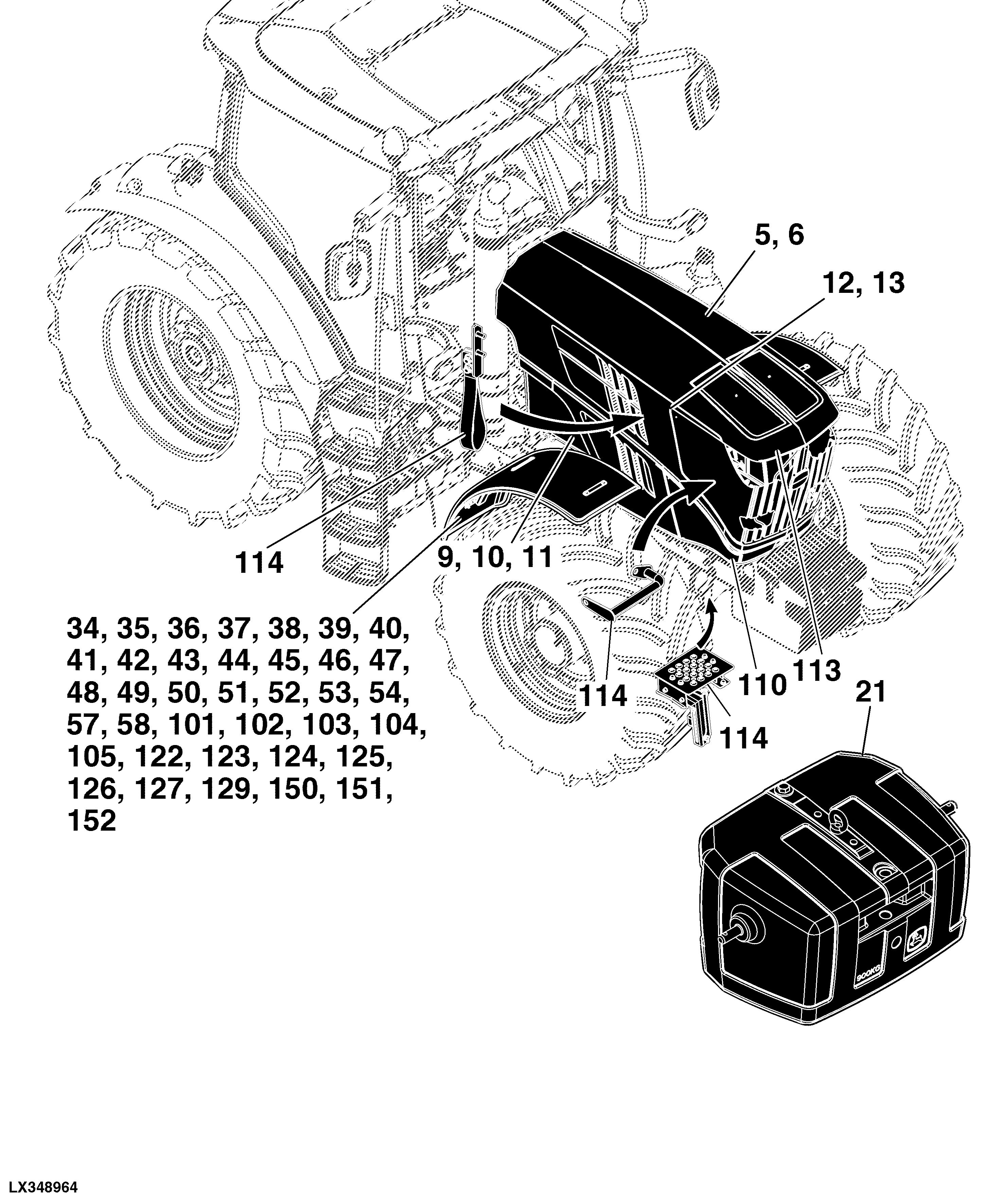

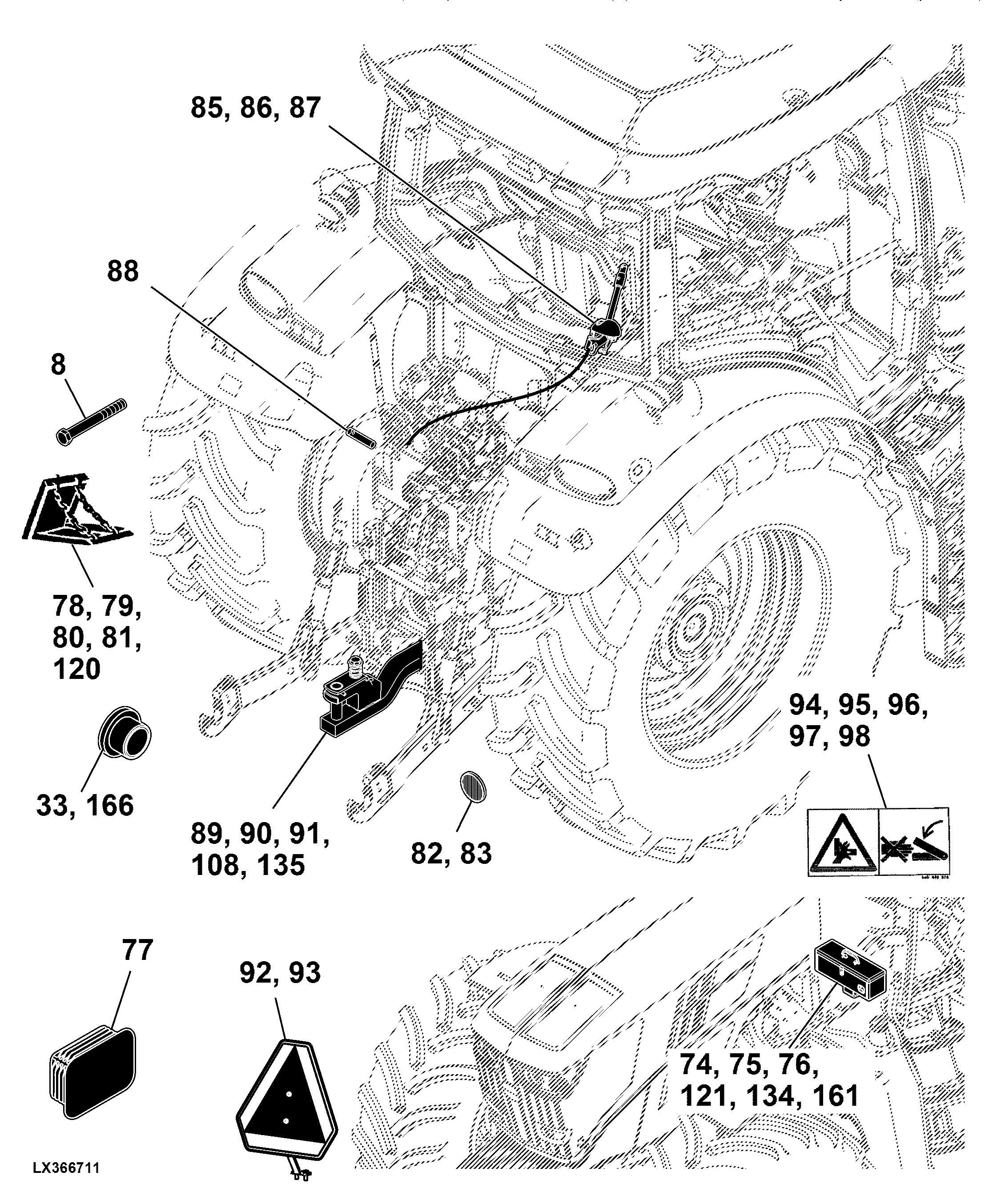

82 Wheels, Sheet Metal, Miscellaneous

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Panel, Fender Stop, for Front Loader Application	-
-	-	1	Main Frame, W/ TLS™	-
-	-	1	Main Frame, W/O TLS™	-
-	-	1	Mounting Parts, Front License Plate	-
-	-	1	Mounting Parts, Front Wheels	-
-	-	1	Mounting Parts, Front Wheels, 2WD	-
-	-	1	Mounting parts, Main frame	-
-	-	1	Mounting Parts, Rear Wheels, W/ Spacer LGTH= 52mm	-
-	-	1	Mounting Parts, Trailer Hitch	-
-	-	1	One Chock Block / Cab Frame Rear, W/O HCS	-
-	-	1	One Chock Block / Cab Frame, W/ HCS	-
-	-	1	Main Frame Cover	-
-	-	1	Pick Up Weight, 900 kg	-
-	-	1	Pins, W/O Pick-Up Hitch	-
-	-	1	Plastic Plugs, W/O Front Fender, 2WD Axle	-
-	-	1	Plastic Plugs, W/O Front Fender, MFWD Axle	-
-	-	1	Plate, Fender Stop	-
-	-	1	Plug, W/O Chock Block	-
-	-	1	Rear Wheel, Fixed, DW18LX38	-
-	-	1	Rear Wheels, DW18LX38	-
-	-	1	Rear Wheels, Mounting Parts, Heavy Duty Conditions W/ Flanged Axle On	-
-	-	1	Front Wheels, W15LX28	-
-	-	1	Front Wheels, Adjustable, 16 Position, W15LX24	-
-	-	1	Front Wheels, Adjustable, 16 Position, W15LX28	-
-	-	1	Front Wheels, Adjustable, 8 Position, DW13AX30	-
-	-	1	Front Wheels, Adjustable, 8 Position, W10X34	-
-	-	1	Front Wheels, Adjustable, 8 Position, W12X28	-
-	-	1	Front Wheels, DW15AX30	-
-	-	1	Front Wheels, W10AX46	-
-	-	1	Front Wheels, W12X28	-
-	-	1	Front Wheels, W12X28	-
-	-	1	Front Wheels, W12X28	-
-	-	1	Rear Wheels, TW18LX38, 275MM Bolt Circle Diameter	-
-	-	1	Hood / Radiator Grille	-
-	-	1	Hood Lift Cylinder / Front Grille	-
-	-	1	Hood Support	-
-	-	1	Hub Extension, 219 mm, Front, Tread Adjustment, Attachment	-
-	-	1	Hub Extension, 219 mm, Rear, Tread Adjustment, Attachment	-
-	-	1	Hub Extension, 94 mm, Front, Tread Adjustment, Attachment	-
-	-	1	Hub Extension, 94 mm, Rear, Tread Adjustment, Attachment	-
-	-	1	Label, Seat Belt Safety	-
-	-	1	Main Frame Basic Weight, W/O Pin, 110 kg	-
-	-	1	Valve, Tubeless Tires	-
-	-	1	Tool Box and Mounting Parts, W/ Front Loader	-
-	-	1	Tool Box and Mounting Parts, W/ Front Loader	-
-	-	1	Tool Box W/ Tray, Mounting Parts, Cab, LH	-
-	-	1	Tool Box, Attachment	-
-	-	1	Tool Box, LH Main Frame	-
-	-	1	Toolbox W/ Tray, Mounting Parts, W/ Front Loader	-
-	-	1	Trademark, Decals	-
-	-	1	Trademark, Decals, Black / Yellow	-
-	-	1	Two Chock Block / Cab Frame Rear, W/ HCS	-
-	-	1	Two Chock Block / Cab Frame Rear, W/O HCS	-
-	-	1	Support, Drawbar, Swinging	-
-	-	1	Warning Shield	-
-	-	1	Warning Shield Bracket, C-Post	-
-	-	1	Weights, 110 kg (242.5 lb), Rear Wheels	-
-	-	1	Weights, 220 kg (485 lb), Rear Wheels	-
-	-	1	Wheel Weights, 2 Weights, Inner Rear, 205 kg (452 lb)	-
-	-	1	Wheel Weights, 2 Weights, Outside Rear, 205 kg (452 lb)	-
-	-	1	Wheel Weights, 4 Weights, Inner Rear, 205 kg (452 lb)	-
-	-	1	Wheel Weights, Inner, Rear, 72 / 205 kg	-
-	-	1	Wheel Weights, Outer, Rear, 72 / 205 kg	-
-	-	1	Steel Disk Rear Wheels, 2 Position, DW20BX38	-
-	-	1	Reflector	-
-	-	1	Reflector, Rear Axle	-
-	-	1	Side Cover, LH	-
-	-	1	Side Cover, RH	-
-	-	1	Side Cover, W/ Cold Start Package, RH	-
-	-	1	Spacer, Front Fender, W/ AutoTrac™	-
-	-	1	Steel Disk Front Wheels, Adjustable, 8 Position, W15X26	-
-	-	1	Steel Disk Rear Wheels, 2 Position, DW15LX38, 275 mm Bolt Circle Diameter	-
-	-	1	Steel Disk Rear Wheels, 2 Position, DW16LX42	-
-	-	1	Front Wheels, Adjustable, 16 Position, W12X28	-
-	-	1	Steel Disk Rear Wheels, 2 Position, TW23BX38, 275 mm Bolt Circle Diameter	-
-	-	1	Steel Disk Rear Wheels, 2 Position, W16AX38	-
-	-	1	Steel Disk Rear Wheels, 2 Position, W16AX42	-
-	-	1	Steel Disk Rear Wheels, Adjustable, 16 Position, DW15LX38	-
-	-	1	Steel Disk Rear Wheels, Adjustable, 16 Position, DW20BX38	-
-	-	1	Steel Disk Rear Wheels, Adjustable, 16 Position, W10X50	-
-	-	1	Steel Disk Rear Wheels, Adjustable, 8 Position, W15LX38	-
-	-	1	Steel Front Wheels, Adjustable, 8 Position, W15LX28, 335 mm Bolt Circle Diameter	-
-	-	1	Storage Compartment, W/O Wagon Hitch, W/O Pick-Up Hitch, W/ RH Console	-
-	-	1	Cast Rear Wheels, DW10X50, Rack and Pinion Axle	-
-	-	1	Attachment, Hood Locking Parts, Vandal Protection	-
-	-	1	Attachment, Main Frame Cover	-
-	-	1	Attachment, Panel, Fender Stop	-
-	-	1	Attachment, Panel, Fender Stop	-
-	-	1	Attachment, Rear Wheels, Mounting Parts, Heavy Duty Conditions W/ Flanged Axle On	-
-	-	1	Attachment, Step, Front Axle	-
-	-	1	Base Part, Front Fender, W/ AutoTrac™	-
-	-	1	Bracket, License Plate	-
-	-	1	Cast Rear Wheel Disk, Rack and Pinion Axle, 814 mm Bolt Circle Diameter	-
-	-	1	Cast Rear Wheel Hub, Rack and Pinion Axle	-
-	-	1	Attachment, Hood Improvement Kit	-
-	-	1	Cast Rear Wheels, DW13X46	-
-	-	1	Cast Rear Wheels, DW16LX42, Rack and Pinion Axle	-
-	-	1	Cast Rear Wheels, Rack and Pinion Axle, DW16LX42	-
-	-	1	Cast Rear Wheels, Rack and Pinion Axle, W18AX38	-
-	-	1	Cast Rear Wheels, W16AX38, Rack and Pinion Axle	-
-	-	1	Cast Rear Wheels, W18AX38, Rack and Pinion Axle	-
-	-	1	Control, Pick-Up Hitch, W/ RH Console	-
-	-	1	Control, Wagon Hitch, W/ RH Console	-
-	-	1	Cover, Front Axle Support, W/O Front PTO ( - 015074)	-
-	-	1	Attachment, Front Fenders, High Support, MFWD, 370 mm Wide	-
-	-	1	Additional Front Weights, 12 Weights ( - XXXX)	-
-	-	1	Additional Front Weights, 14 Weights ( - XXXX)	-
-	-	1	Additional Front Weights, 16 Weights, 800 kg	-
-	-	1	Additional Front Weights, 18 Weights	-
-	-	1	Additional Front Weights, 4 Weights	-
-	-	1	Additional Front Weights, 6 Weights	-
-	-	1	Additional Front Weights, 8 Weights ( - XXXX)	-
-	-	1	Attachment, Base Support, Front Fenders, MFWD, Pivot	-
-	-	1	Attachment, Base Support, Front Fenders, MFWD, Rigid	-
-	-	1	Attachment, Chock Blocks, Cab Frame Rear	-
-	-	1	Cover, Front Axle Support, W/O Front PTO (015075 - 360000)	-
-	-	1	Attachment, Front Fenders, High Support, MFWD, 420 mm Wide	-
-	-	1	Attachment, Front Fenders, High Support, MFWD, 480 mm Wide	-
-	-	1	Attachment, Front Fenders, High Support, MFWD, 540 mm Wide	-
-	-	1	Attachment, Front Fenders, High Support, MFWD, 620 mm Wide	-
-	-	1	Attachment, Front Fenders, Regular Support, MFWD, 370 mm Wide	-
-	-	1	Attachment, Front Fenders, Regular Support, MFWD, 420 mm Wide	-
-	-	1	Attachment, Front Fenders, Regular Support, MFWD, 480 mm Wide	-
-	-	1	Attachment, Front Fenders, Regular Support, MFWD, 540 mm Wide	-
-	-	1	Attachment, Front Fenders, Regular Support, MFWD, 620 mm Wide	-
-	-	1	Front Fenders, Regular Support, MFWD, Rigid, 540 mm Wide	-
-	-	1	Front Fenders, High Support, MFWD, Rigid, 620 mm Wide	-
-	-	1	Front Fenders, Regular Support, MFWD, Pivot, W/ Stop, 370 mm Wide	-
-	-	1	Front Fenders, Regular Support, MFWD, Pivot, W/ Stop, 420 mm Wide	-
-	-	1	Front Fenders, Regular Support, MFWD, Pivot, W/ Stop, 480 mm Wide	-
-	-	1	Front Fenders, Regular Support, MFWD, Pivot, W/ Stop, 480 mm Wide	-
-	-	1	Front Fenders, Regular Support, MFWD, Pivot, W/ Stop, 540 mm Wide	-
-	-	1	Front Fenders, Regular Support, MFWD, Pivot, W/ Stop, 620 mm Wide	-
-	-	1	Front Fenders, Regular Support, MFWD, Rigid, 370 mm Wide	-
-	-	1	Front Fenders, Regular Support, MFWD, Rigid, 420 mm Wide	-
-	-	1	Front Fenders, Regular Support, MFWD, Rigid, 480 mm Wide	-
-	-	1	Front Fenders, High Support, MFWD, Rigid, 540 mm Wide	-
-	-	1	Front Fenders, Regular Support, MFWD, Rigid, 620 mm Wide	-
-	-	1	Front Fenders, W/ 2WD	-
-	-	1	Front Wheels, 2 Position, TW18LX28	-
-	-	1	Front Wheels, 2 Position, TW20BX28	-
-	-	1	Front Wheels, 2 Position, W10HX20	-
-	-	1	Front Wheels, 2 Position, W10LX16	-
-	-	1	Front Wheels, 2 Position, W11CX16	-
-	-	1	Front Wheels, 2 Position, W15LX24	-
-	-	1	Front Wheels, 2 Position, W15LX28	-
-	-	1	Front Fenders, High Support, MFWD, Pivot, W/ Stop, 370 mm Wide	-
-	-	1	Decal	-
-	-	1	Decal, Safety	-
-	-	1	Decal, Starting Motor	-
-	-	1	Decal, Wearing, Slow Speed Overload	-
-	-	1	Drawbar, IVT™	-
-	-	1	Drawbar, Standard, W/ Chainholder, Category 2	-
-	-	1	Drawbar, Standard, W/ Hammer Strap, W/ Chainholder, Category 2	-
-	-	1	Drawbar, W/ Chain Holder, IVT™	-

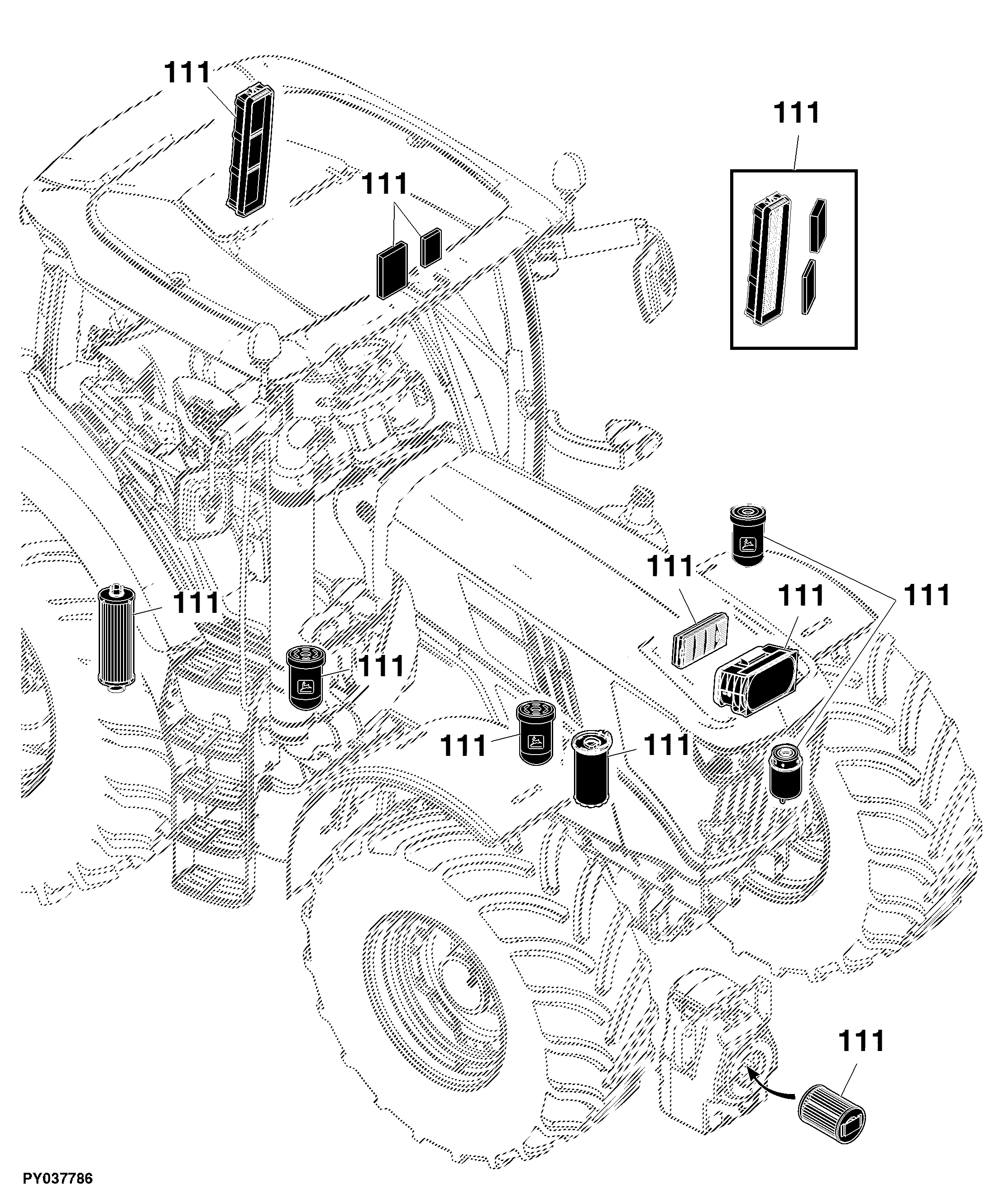

-	-	1	Filter Overview	-
-	-	1	Additional Front Weights, 10 Weights ( - XXXX)	-
-	-	1	Front Fenders, High Support, MFWD, Pivot, W/ Stop, 420 mm Wide	-
-	-	1	Front Fenders, High Support, MFWD, Pivot, W/ Stop, 480 mm Wide	-
-	-	1	Front Fenders, High Support, MFWD, Pivot, W/ Stop, 480 mm Wide	-
-	-	1	Front Fenders, High Support, MFWD, Pivot, W/ Stop, 540 mm Wide	-
-	-	1	Front Fenders, High Support, MFWD, Pivot, W/ Stop, 540 mm Wide	-
-	-	1	Front Fenders, High Support, MFWD, Pivot, W/ Stop, 620 mm Wide	-
-	-	1	Front Fenders, High Support, MFWD, Rigid, 370 mm Wide	-
-	-	1	Front Fenders, High Support, MFWD, Rigid, 420 mm Wide	-
-	-	1	Front Fenders, High Support, MFWD, Rigid, 480 mm Wide	-

82 Wheels, Sheet Metal, Miscellaneous

Нет текстового описания
