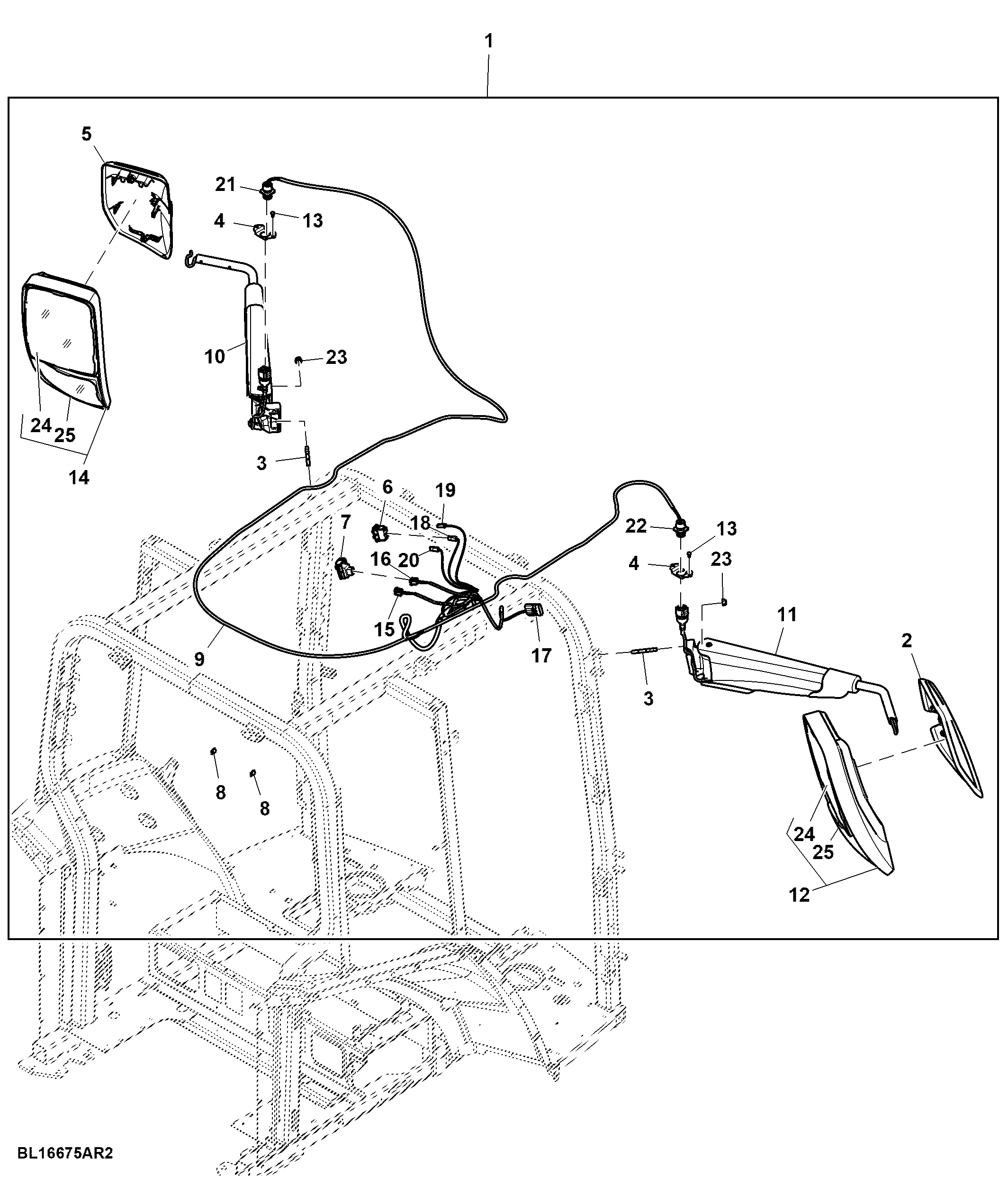

Rear-View Mirror, W/ Wide Angle, Electrical Telescopic, Electrically Adjusted, Attachment

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BL16675	1	Rear View Mirror	-
2	L225577	1	Cover	RH
3	L221449	4	Stud	-
4	L201687	2	Strap	-
5	L225576	1	Cover	LH
6	AL181124	1	Toggle/Rocker Switch	Mirror Heater Switch
7	RE236245	2	Switch	Mirror Adjuster Switch
8	57M7689	2	Fuse	10 A
9	AL206936	1	Wiring Harness	-
10	AL232747	1	Arm	LH
11	AL232748	1	Arm	RH
12	AL232744	1	Rear View Mirror	RH
13	37M7357	4	Screw	-
14	AL232743	1	Rear View Mirror	LH
15	57M9078	1	Elec. Connector Housing	Mirror Arm Adjustment Switch X1106F
15	57M9046	6	Elec. Connector Terminal	Cavity 3, 4, 5, 6, 7, 8
16	57M9046	8	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8
16	57M9078	1	Elec. Connector Housing	Mirror Adjuster Switch X1016F
17	57M7244	1	Elec. Connector Housing	Roof Interface X1210M
17	R104919	4	Elec. Connector Terminal	Cavity A, B, C, D
17	57M7493	3	Elec. Connector Seal	Cavity A, C, D
17	57M9214	1	Elec. Connector Seal	Cavity B
18	57M7170	1	Elec. Connector Housing	Mirror Heater Switch X559F-1
18	57M7089	3	Elec. Connector Terminal	Cavity A
19	57M7170	1	Elec. Connector Housing	Mirror Heater Switch X559F-2
19	57M7089	3	Elec. Connector Terminal	Cavity A
20	57M7170	1	Elec. Connector Housing	Mirror Heater Switch X559F-3
20	57M7089	3	Elec. Connector Terminal	Cavity A
21	57M8205	1	Elec. Connector Housing	Rear View Mirror, Left X556M-1
21	57M8204	7	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7
22	57M8205	1	Elec. Connector Housing	Rear View Mirror, Right X556M-2
22	57M8204	7	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7
23	14M7780	4	Flange Nut	M8
24	AL225823	2	Rear View Mirror	-
25	AL225824	2	Rear View Mirror	-
