Открытый узел

Range Shift / Speed Control, W/ 5-Range, PowrQuad™, W/ Hand Clutch, W/ Armrest

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M9058	1	Screw	M4 X 10
2	AL201259	1	Clamp	INCLUDES 37M7348
3	37M7348	2	Screw	-
4	AL162790	1	Pin & Bushing Kit	-
5	AL163492	1	Cam Kit	-
6	AL176298	1	Quadrant	5 mA, S114; Park Lock Switch (Version 1)
7	AL176301	1	Quadrant	-
8	AL176303	1	Lever	-
9	AL177595	1	Quadrant	-
10	AL177821	1	Shifter Rod	-
11	AL179241	1	Grip	-
12	AL218978	1	Switch	Front-Wheel Drive Switch with Auto Function
12	AL181690	1	Switch	ORDER AL218978
13	AL182043	1	Knob	-
14	37M7389	3	Screw	-
15	L155831	1	Pin Fastener	-
16	L155834	1	Rivet	-
17	L157330	1	Lock Washer	-
18	L166436	1	Stud	-
19	L173658	1	Clip	-
20	19M7139	2	Cap Screw	M8 X 20
21	24M7207	2	Washer	8.400 X 24 X 2 mm
22	34M7159	2	Spring Pin	3 X 12 mm
23	AL162922	2	Beam	-
24	AL166673	2	Side Wall	-
25	AL176302	2	Quadrant	-
26	L153917	2	Disk Spring	-
27	L156750	2	Washer	-
28	L172360	2	Lever	-
29	L173755	2	Nut	-
30	L201443	2	Clamp	-
31	19M6614	4	Cap Screw	M6 X 12
32	24M7139	4	Washer	6.400 X 18 X 1.600 mm
33	AL158176	4	Lever	-
34	L158581	4	Extension Spring	-
35	40M7042	8	Snap Ring	-
36	L152269	8	Bushing	-
37	L155832	1	Pin Fastener	-
38	L155835	1	Extension Spring	-
39	57M7244	1	Elec. Connector Housing	-
39	57M7318	1	Elec. Connector Accessory	-
40	57M7257	1	Elec. Connector Housing	-
40	57M7317	1	Elec. Connector Accessory	-
41	57M7254	1	Elec. Connector Housing	-
41	57M7289	1	Elec.Connect Locking Device	-

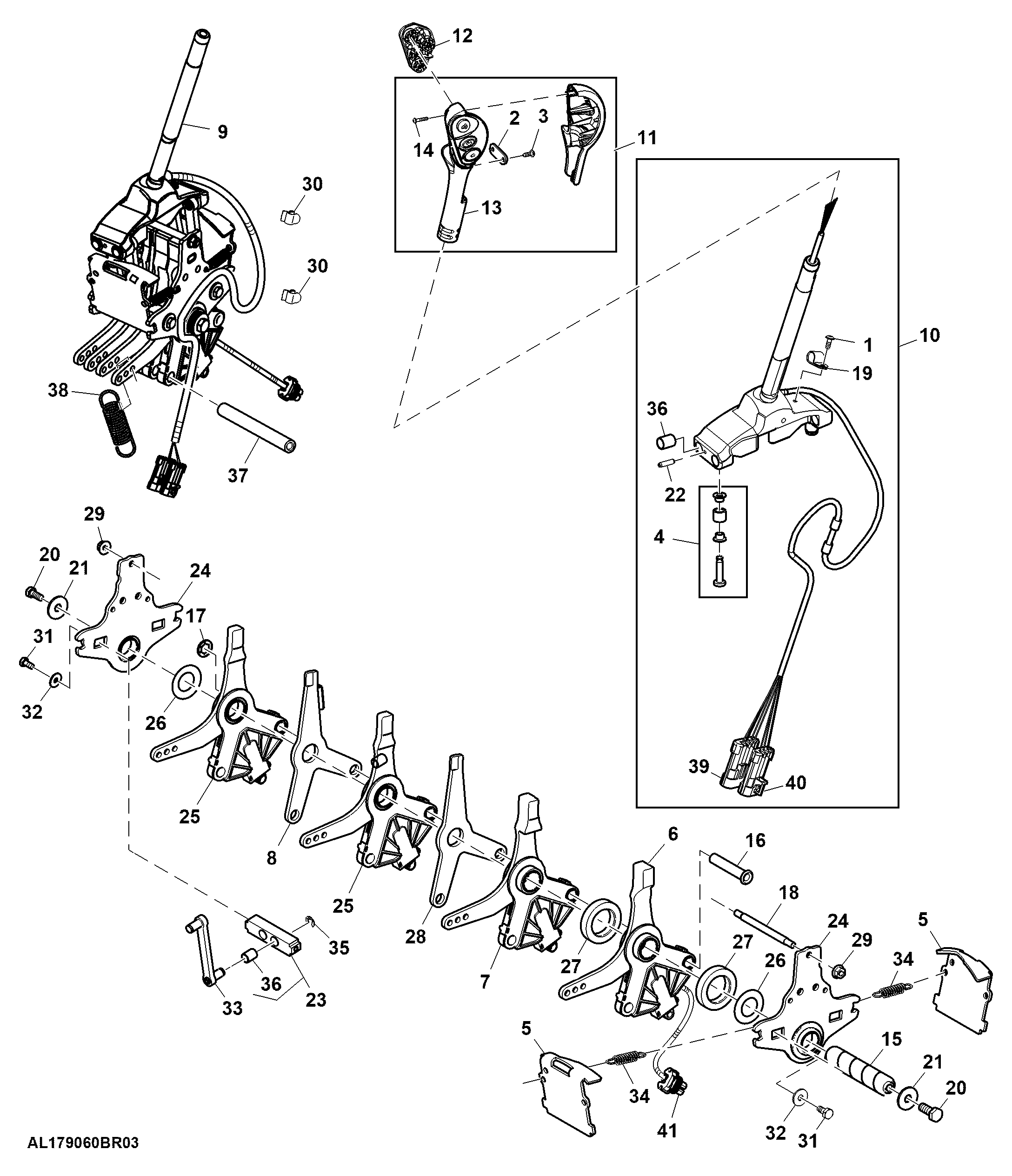

Range Shift / Speed Control, W/ 5-Range, PowrQuad™, W/ Hand Clutch, W/ Armrest
