Electronic Support, Front PTO, W/ Electronic Control Unit, W/ TLS™, Attachment

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BL15164	1	Power-Takeoff	-
2	RE160961	1	Toggle/Rocker Switch	W/O CommandARM™
3	AL211935	1	Electronic Control Unit	-
4	RE576339	1	Toggle/Rocker Switch	Order Additionally if required W/ CommandARM™
5	AL204930	1	Wiring Harness	Order Additionally if required
6	57M7493	4	Elec. Connector Seal	Cavity A, B, C, D
6	57M7259	1	Elec. Connector Seal	-
6	57M7252	4	Elec. Connector Terminal	Cavity A, B, C, D
6	57M7318	1	Elec. Connector Accessory	-
6	57M7244	1	Elec. Connector Housing	Engine Interface X2M
7	57M7346	1	Elec. Connector Housing	Front PTO Speed Sensor X167F
7	57M7347	1	Elec. Connector Accessory	-
7	R104846	2	Elec. Connector Terminal	Cavity A, B
7	57M7493	2	Elec. Connector Seal	Cavity A, B
7	57M7259	1	Elec. Connector Seal	-
8	57M7813	1	Elec. Connector Housing	Front PTO Solenoid Valve X95F
8	57M7829	2	Elec. Connector Terminal	Cavity A, B

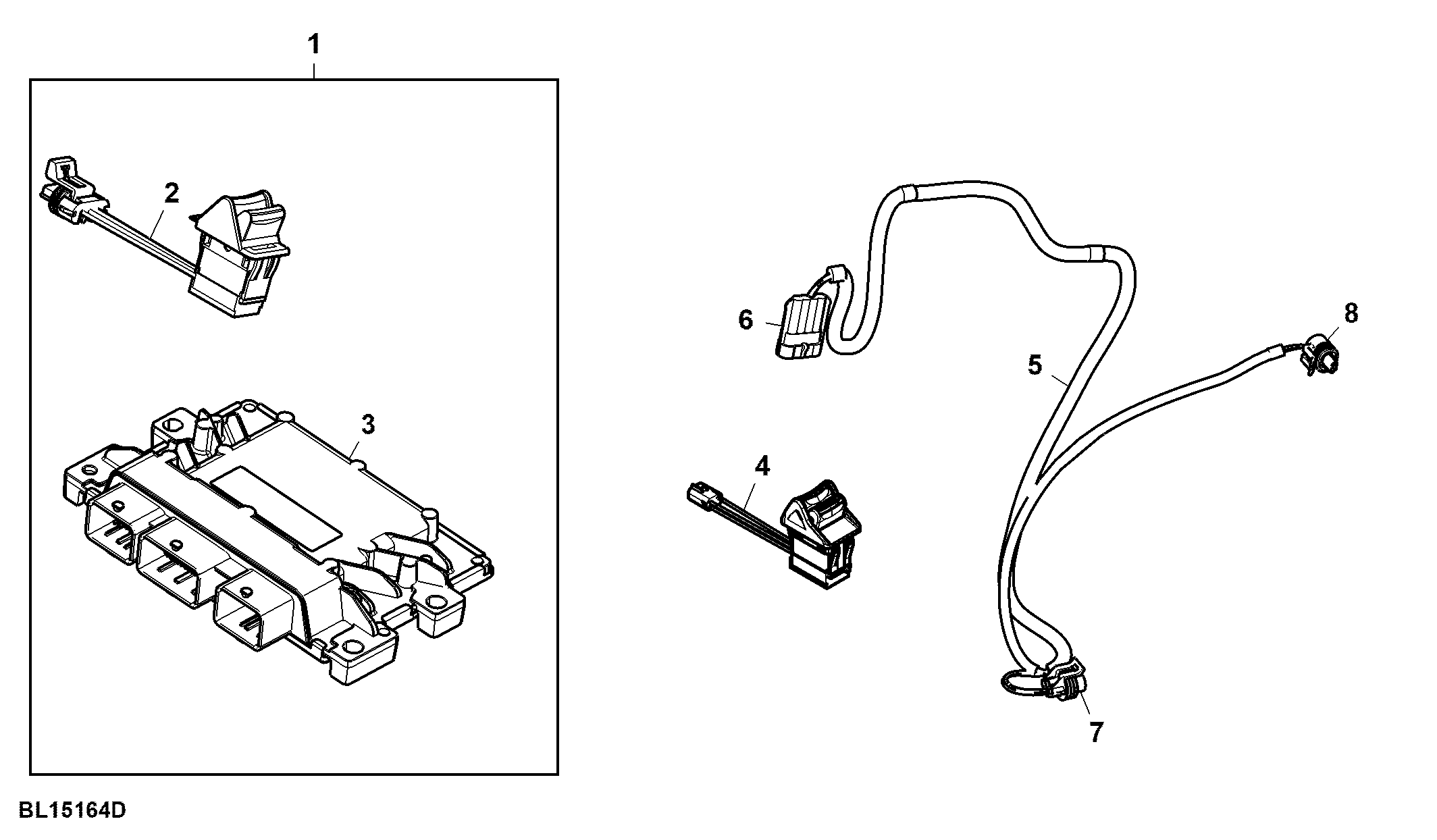

Electronic Support, Front PTO, W/ Electronic Control Unit, W/ TLS™, Attachment

Нет текстового описания
