Открытый узел

Control Parts, Mechanical SCV, 1st, 2nd, 3rd, 4th, W/ Creeper

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L168683	1	Pin Fastener	-
2	L172091	1	Pin Fastener	-
3	L172418	1	Angle	-
4	AL215037	1	Lever	(With SCV Position 3rd) SUB FOR AL209897
5	L170554	4	Screw	-
6	24M7244	4	Washer	6.400 X 12 X 1.600 mm
7	14M7350	4	Lock Nut	M6
8	12M7150	4	Disk Spring	7.200 X 14 X 0.800 mm
9	AL215034	1	Quadrant	SUB FOR AL201077
10	L168546	4	Bushing	-
11	AL215036	1	Lever	(With SCV Position 2nd) SUB FOR AL209895
12	AL215033	1	Quadrant	SUB FOR AL207092
13	AL215035	1	Lever	(With SCV Position 1st) SUB FOR AL209893
14	AL215032	1	Quadrant	SUB FOR AL201078
15	AL177510	1	Lever	(With SCV Position 4th)
16	AL177509	1	Quadrant	(With SCV Position 4th)
17	L172877	1	Bushing	-
18	L171518	1	Holder	-
19	L171519	1	Holder	-
20	19M7865	4	Screw	M8 X 16
21	L168731	3	Nut	-
22	L201726	1	Frame	-
23	L201151	1	Guide	-
24	L201727	1	Latch	-
25	L201728	1	Latch	-
26	L201729	1	Latch	-
27	37M7348	8	Screw	-
28	L207519	3	Compression Spring	-
29	L77747	3	Knob	-
30	L171710	1	Ring	(Green)
31	L171711	1	Ring	(Blue)
32	L171712	1	Ring	(Brown)
33	14M7396	3	Lock Nut	M8
34	L171481	3	Insert	-

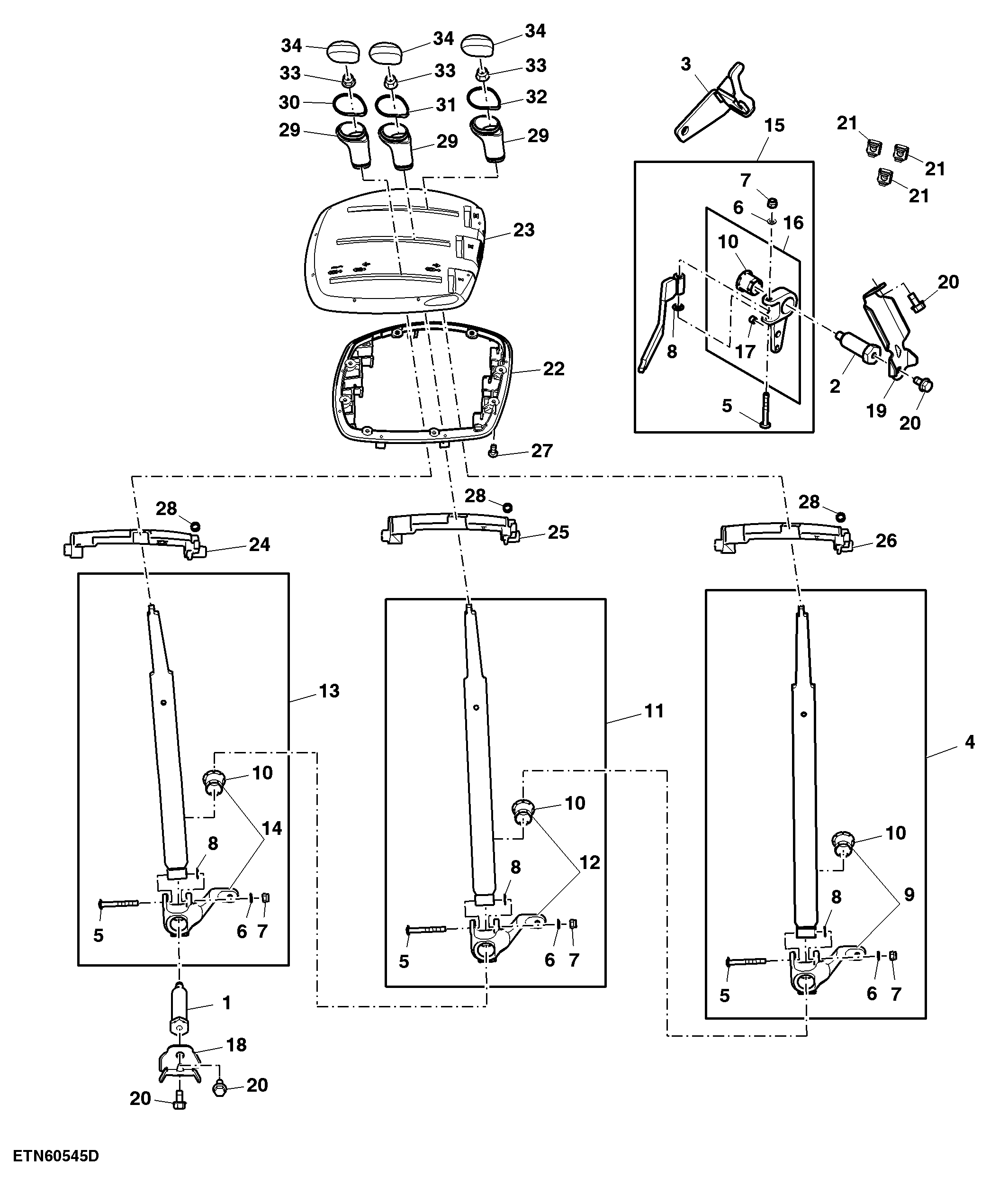

Control Parts, Mechanical SCV, 1st, 2nd, 3rd, 4th, W/ Creeper

Нет текстового описания
