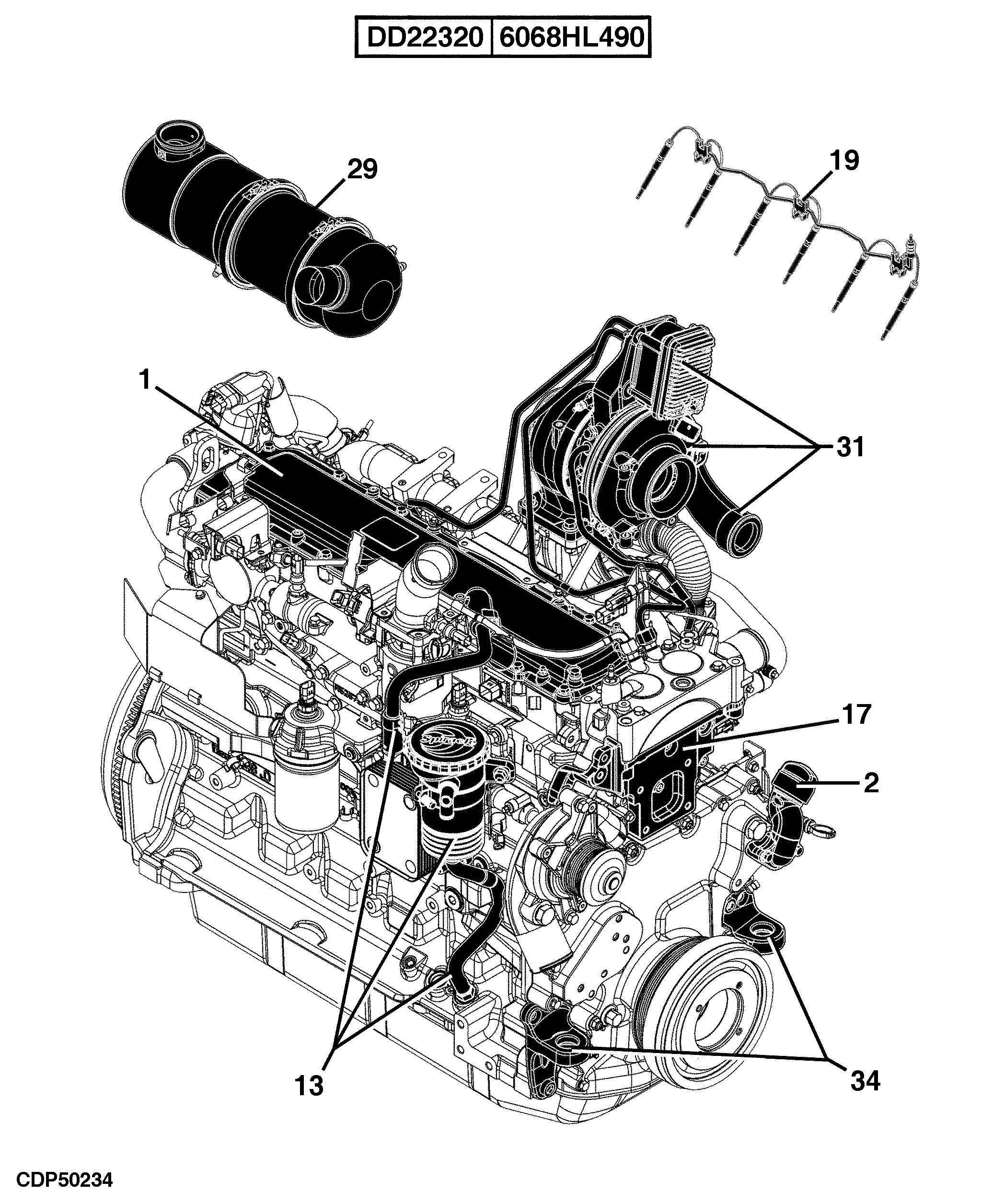

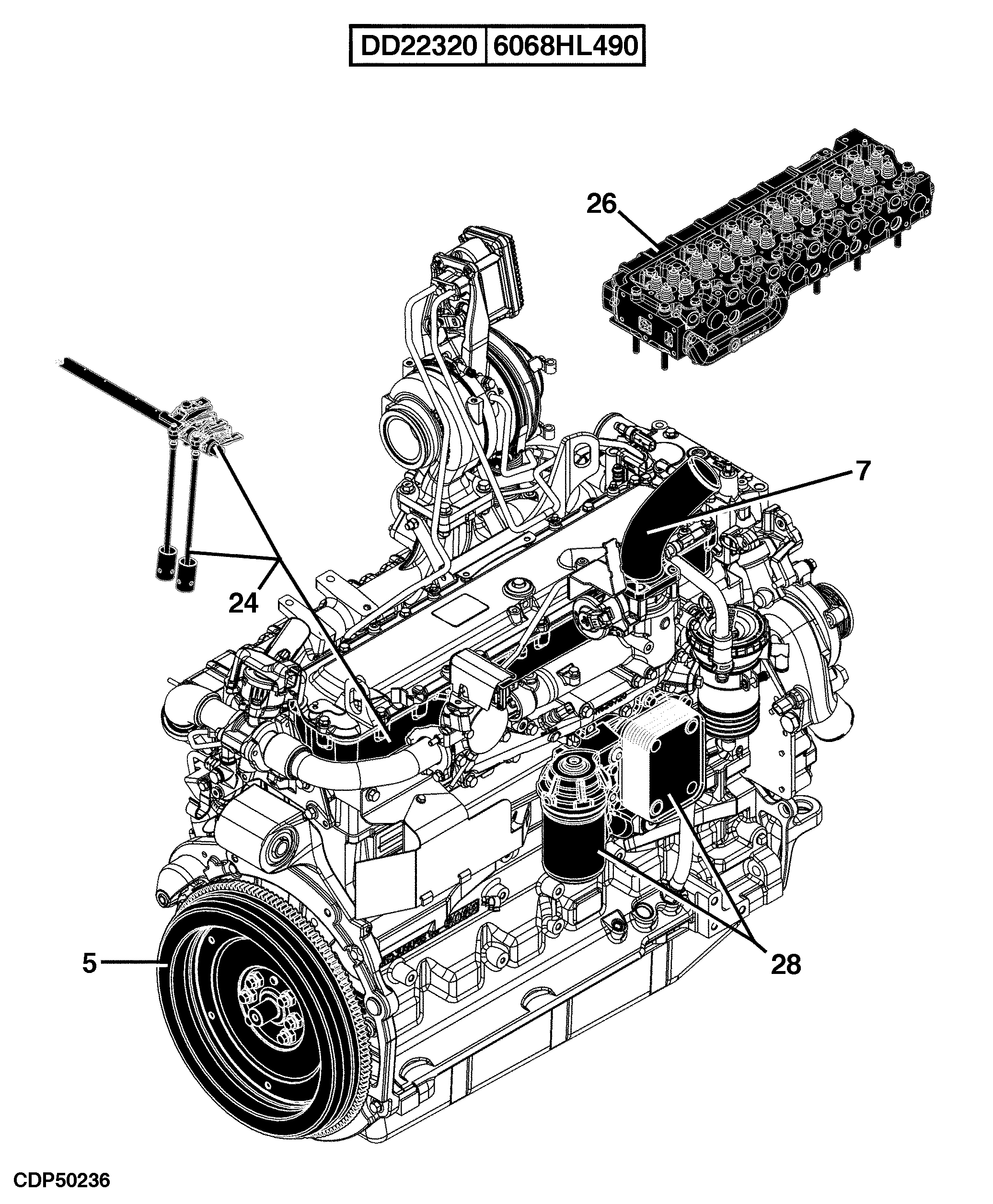

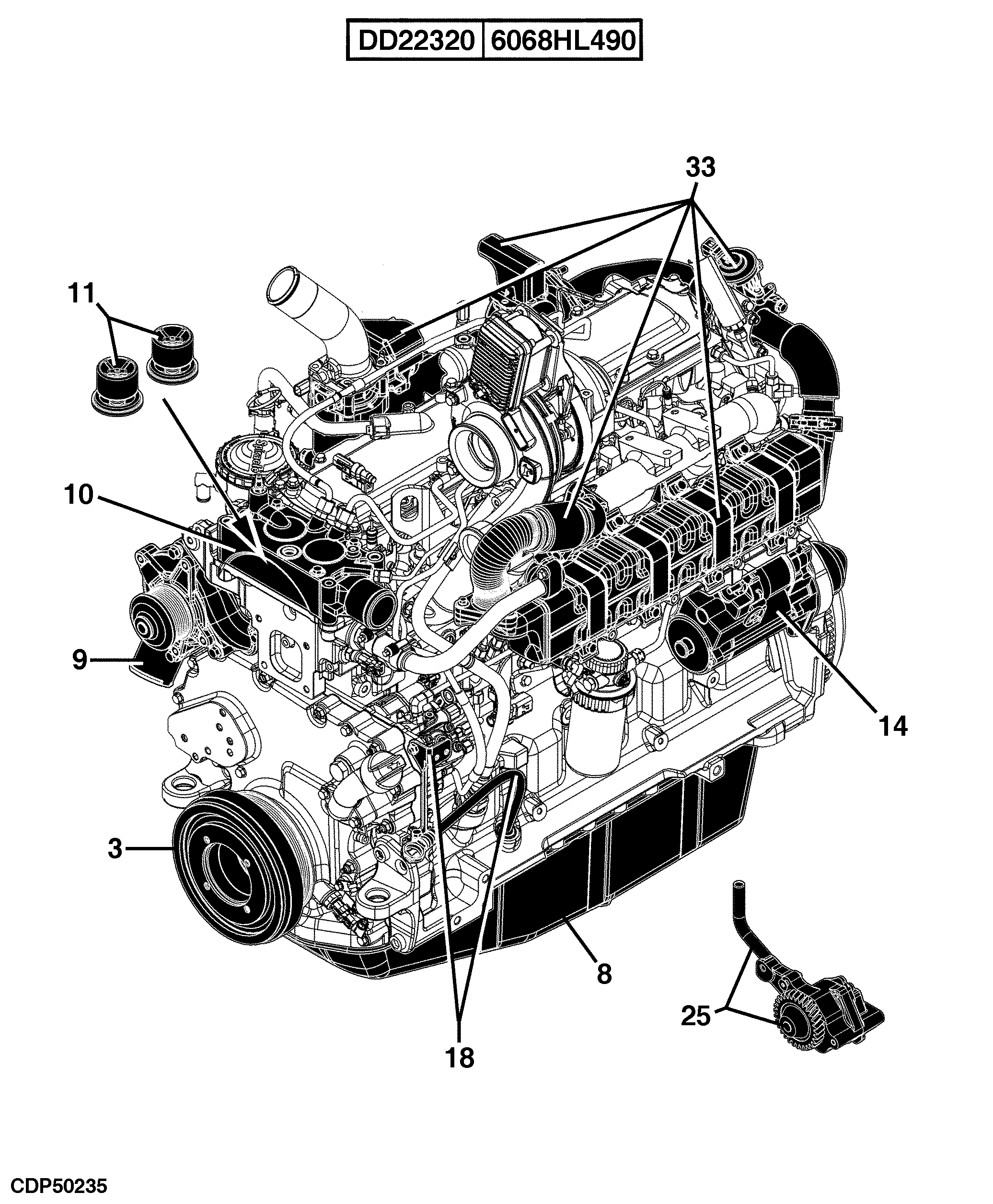

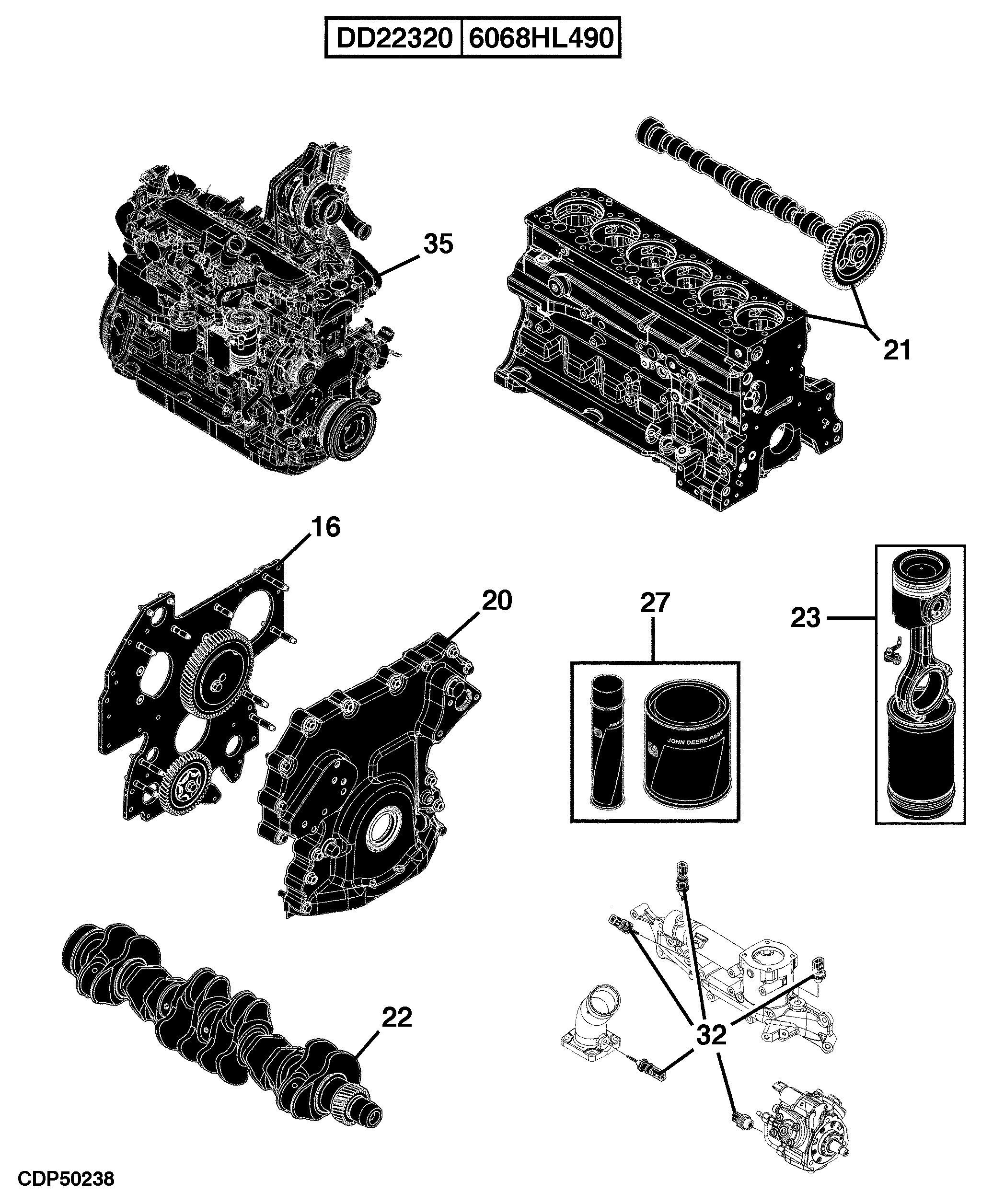

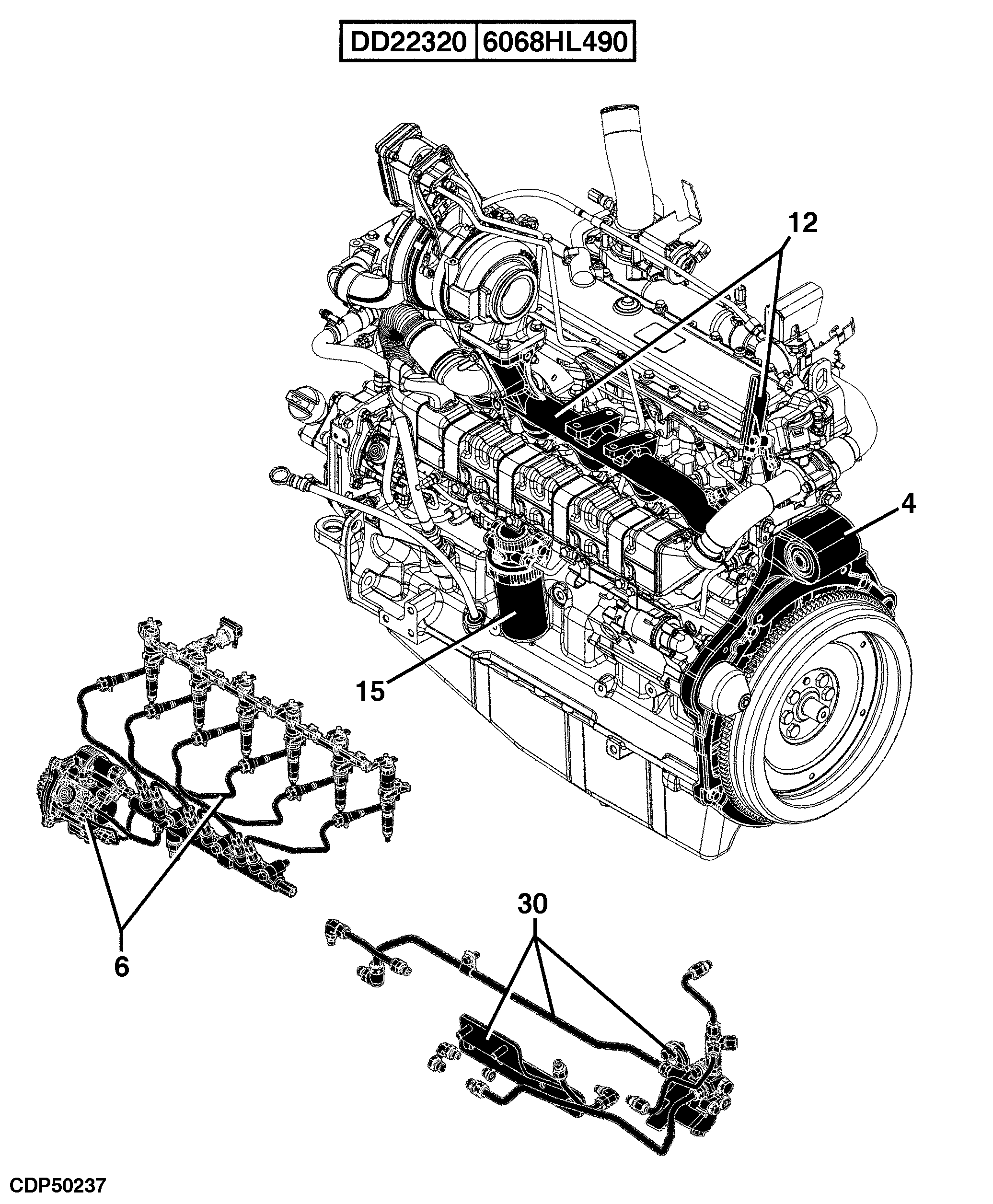

24 Engine 6068HL490-DD22320-DD22366-PE11443-ETN97201-ETN97202-ETN97203-ETN108607-ETN108610-ETN108611-ETN110895-ETN110896-ETN110901-ETN97205-ETN108612-ETN110902

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	9901 Complete Block Assembly	-
-	-	1	9901 Engine Gasket Kit (2/4)	-
-	-	1	9901 Engine Gasket Kit (2/3)	-
-	-	1	9901 Engine Gasket Kit (1/4)	-
-	-	1	9901 Engine Gasket Kit (1/3)	-
-	-	1	9901 Cylinder Head Bolt Kit	-
-	-	1	9901 Crankshaft Bearing Kit	-
-	-	1	9901 Coolant Pump Rebuilt Kit	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Engine Gasket Kit (3/3)	-
-	-	1	9887 Lift Straps Hardware (107703 - )	-
-	-	1	9853 Lift Straps Hardware ( - 107644)	-
-	-	1	95AU Engine Front Brackets	-
-	-	1	8926 Exhaust Gas Recirculation	-
-	-	1	84DM Engine Wiring Harness	-
-	-	1	6757 Engine Sensors	-
-	-	1	65YV Turbocharger	-
-	-	1	63DX Low Pressure Fuel Lines	-
-	-	1	9901 Plug and Seal Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Starter Motor Kit	-
-	-	1	9901 Short Block Hardware Kit (2/2)	-
-	-	1	9901 Short Block Hardware Kit (1/2)	-
-	-	1	9901 Short Block Assembly	-
-	-	1	9901 Replacement Engine	-
-	-	1	6125 Exhaust Filter / Diesel Particulate Filter	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 O Ring Kit, Cylinder Liner	-
-	-	1	9901 Injection Nozzle	-
-	-	1	9901 Engine Overhaul Kit (2/2)	-
-	-	1	9901 Engine Overhaul Kit (1/2)	-
-	-	1	9901 Engine Gasket Kit (4/4)	-
-	-	1	9901 Engine Gasket Kit (3/4)	-
-	-	1	2051 Water Pump	-
-	-	1	29EF Ventilating System (111027 - )	-
-	-	1	2996 Ventilating System ( - 107472)	-
-	-	1	2995 Ventilating System (107479 - ), ( - 111026)	-
-	-	1	28DQ Exhaust Manifold (107703 - )	-
-	-	1	28AP Exhaust Manifold ( - 107644)	-
-	-	1	2221 Engine Thermostat	-
-	-	1	21AQ Thermostat Cover (110335 - )	-
-	-	1	2174 Thermostat Cover ( - 110334)	-
-	-	1	3095 Starter Motor	-
-	-	1	19CJ Oil Pan	-
-	-	1	17DQ Air Intake	-
-	-	1	16KH Fuel Injection System	-
-	-	1	1593 Flywheel	-
-	-	1	1484 Flywheel Housing ( - 096444)	-
-	-	1	1448 Flywheel Housing (096445 - )	-
-	-	1	1341 Crankshaft Pulley and Damper	-
-	-	1	1245 Oil Filler Neck	-
-	-	1	4663 Cylinder Block (103304 - )	-
-	-	1	5957 Engine Oil Cooler and Oil Filter	-
-	-	1	5602 Green Paint	-
-	-	1	5137 Cylinder Head with Valves	-
-	-	1	5027 Engine Oil Pump	-
-	-	1	4913 Valve Actuating Mechanism	-
-	-	1	4850 Connecting Rods and Pistons	-
-	-	1	4712 Crankshaft and Bearings	-
-	-	1	46AG Cylinder Block (102882 - 103303)	-
-	-	1	1174 Valve Cover	-
-	-	1	4663 Cylinder Block ( - 102881)	-
-	-	1	4479 Timing Gear Cover (054681 - )	-
-	-	1	4460 Timing Gear Cover ( - 054680)	-
-	-	1	4353 Starting Aid	-
-	-	1	4078 Engine Oil Dipstick	-
-	-	1	3936 Thermostat Housing	-
-	-	1	3630 Front Plate	-
-	-	1	35FT Final Fuel Filter	-

24 Engine 6068HL490-DD22320-DD22366-PE11443-ETN97201-ETN97202-ETN97203-ETN108607-ETN108610-ETN108611-ETN110895-ETN110896-ETN110901-ETN97205-ETN108612-ETN110902

Нет текстового описания
