Открытый узел

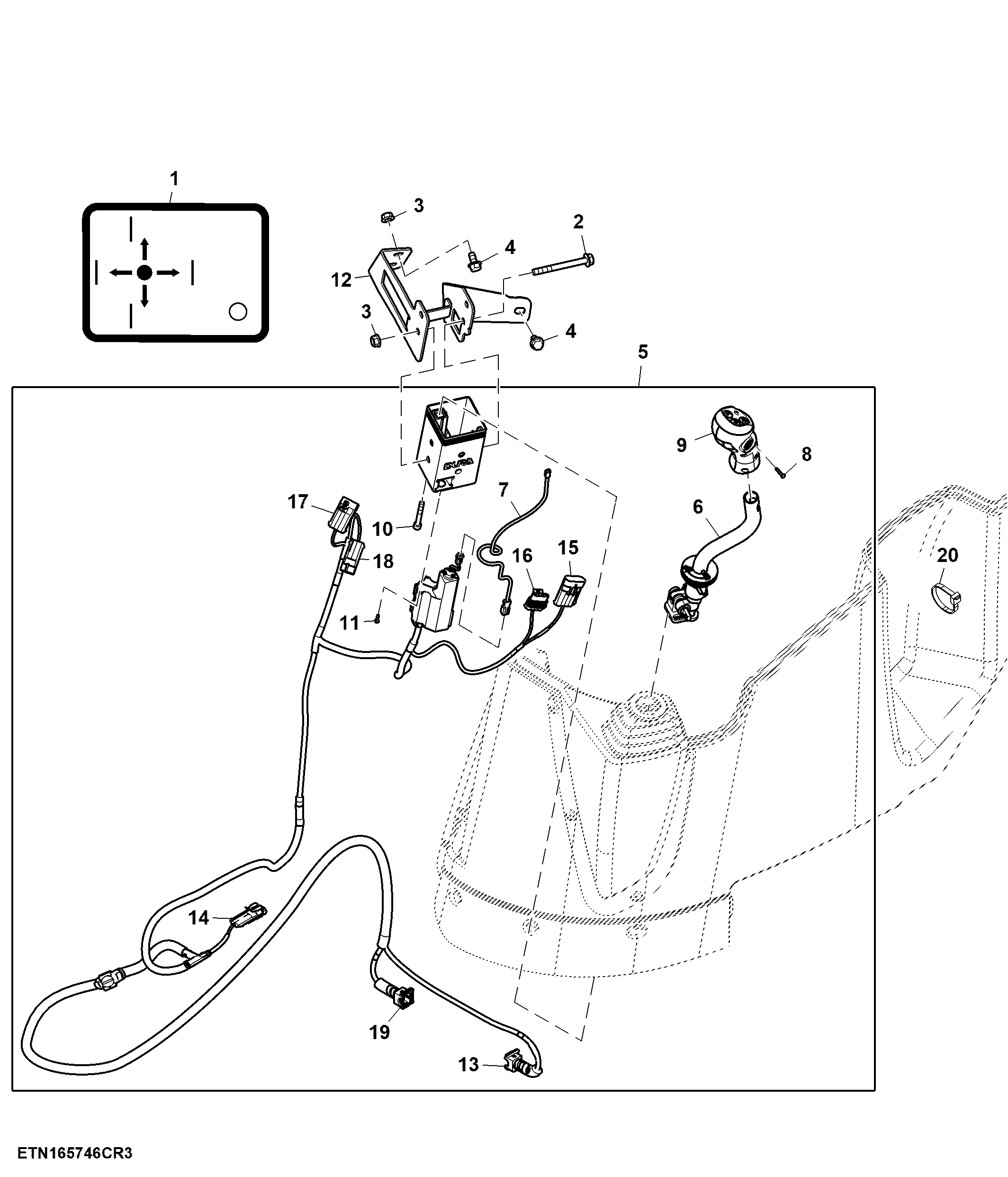

Multi Function Lever, W/ 3- Functions, W/O Diverter Control, W/ Loader Suspension, W/ Gear Shift Switch

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	W31909	1	Instruction Plate	Control Lever Instruction
2	19M8039	2	Screw	M8 X 80
3	14M7416	4	Flange Nut	M8
4	19M7865	3	Screw	M8 X 16
5	AL225806	1	Multi-Functional Controller	-
6	AL225454	1	Control Lever	-
7	AL208243	1	Wiring Harness	-
8	37M7389	4	Screw	-
9	AL225807	1	Handle	-
10	19M9730	1	Screw	M6 X 45
11	37M7095	2	Screw	-
12	AL225453	1	Support	Single Lever Control
13	57M7406	1	Elec. Connector Housing	Solenoid Valve for Third Function for the Front Loader, XY002M
13	57M7400	2	Elec. Connector Seal	Cavity 1, 2
13	57M9532	2	Elec. Connector Terminal	Cavity 1, 2
14	57M7985	1	Electrical Connector Assy	Connection Point between Wiring Harnesses W912 and W731 or W901, X1278M
14	57M7252	1	Elec. Connector Terminal	Cavity A
14	57M9546	1	Elec. Connector Terminal	Cavity B
14	57M9215	2	Elec. Connector Seal	Cavity A, B
14	57M7259	2	Elec. Connector Seal	-
14	57M7289	2	Elec.Connect Locking Device	-
14	57M7328	1	Elec. Connector Housing	-
15	57M8415	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W202 or W241 and W901, X003M-3
15	57M7469	1	Electrical Connector Assy	-
15	57M9546	4	Elec. Connector Terminal	Cavity A, B, C, D
15	57M9214	4	Elec. Connector Seal	Cavity A, B, C, D
16	57M8416	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W202 or W241 and W901, X003F-3
16	57M7494	4	Elec. Connector Terminal	Cavity A, B, C, D
16	57M9214	4	Elec. Connector Seal	Cavity A, B, C, D
16	57M7318	1	Elec. Connector Accessory	-
17	57M9215	1	Elec. Connector Seal	Cavity C
17	57M7290	1	Elec. Connector Accessory	-
17	57M9214	2	Elec. Connector Seal	Cavity A, B
17	57M7252	1	Elec. Connector Terminal	Cavity C
17	57M9546	2	Elec. Connector Terminal	Cavity A, B
17	57M7257	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W20X and W901, X237M
18	57M7256	1	Elec. Connector Housing	Connector for Accessories (Lead 0362), X037M-4
18	57M11342	2	Elec. Connector Terminal	Cavity A, B
18	57M7258	2	Elec. Connector Seal	Cavity A, B
18	57M7289	1	Elec.Connect Locking Device	-
19	57M7406	1	Elec. Connector Housing	Solenoid Valve for Third Function for the Front Loader, XY007M
19	57M9532	2	Elec. Connector Terminal	Cavity 1, 2
19	57M7400	2	Elec. Connector Seal	Cavity 1, 2
20	L222108	1	Tie Band	-

Multi Function Lever, W/ 3- Functions, W/O Diverter Control, W/ Loader Suspension, W/ Gear Shift Switch

Нет текстового описания
