Открытый узел

Multi Function Lever, W/ 3- Functions, W/ Diverter Control, W/ Loader Suspension

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	W31909	1	Instruction Plate	Control Lever Instruction
2	19M7865	3	Screw	M8 X 16
3	14M7416	4	Flange Nut	M8
4	19M8039	2	Screw	M8 X 80
5	AL225802	1	Multi-Functional Controller	-
6	AL225454	1	Control Lever	-
7	37M7095	2	Screw	-
8	AL225803	1	Handle	-
9	AL208243	1	Wiring Harness	-
10	37M7389	4	Screw	-
11	19M9730	1	Screw	M6 X 45
12	AL225453	1	Support	Single Lever Control
13	57M7406	1	Elec. Connector Housing	Solenoid Valve for Third Function for the Front Loader, XY002M
13	57M9532	2	Elec. Connector Terminal	Cavity 1, 2
13	57M7400	2	Elec. Connector Seal	Cavity 1, 2
14	57M7328	1	Elec. Connector Housing	-
14	57M7289	2	Elec.Connect Locking Device	-
14	57M7259	2	Elec. Connector Seal	-
14	57M9546	1	Elec. Connector Terminal	Cavity B
14	57M7252	1	Elec. Connector Terminal	Cavity A
14	57M7985	1	Electrical Connector Assy	Connection Point between Wiring Harnesses W912 and W731 or W901, X1278M
14	57M9215	2	Elec. Connector Seal	Cavity A, B
15	57M7263	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W912 and W731 or W901, X1268M
15	57M7252	2	Elec. Connector Terminal	Cavity A, B
15	57M9215	2	Elec. Connector Seal	Cavity A, B
15	57M7259	4	Elec. Connector Seal	Cavity C, D, E, F
15	57M7291	1	Electrical Connector Assy	-
16	57M7252	1	Elec. Connector Terminal	Cavity C
16	57M7290	1	Elec. Connector Accessory	-
16	57M9215	1	Elec. Connector Seal	Cavity C
16	57M9214	2	Elec. Connector Seal	Cavity A, B
16	57M9546	2	Elec. Connector Terminal	Cavity A, B
16	57M7257	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W20X and W901, X237M
17	57M7256	1	Elec. Connector Housing	Connector for Accessories (Lead 0362), X037M-4
17	57M11342	2	Elec. Connector Terminal	Cavity A, B
17	57M7258	2	Elec. Connector Seal	Cavity A, B
17	57M7289	1	Elec.Connect Locking Device	-
18	57M7406	1	Elec. Connector Housing	Solenoid Valve for Third Function for the Front Loader, XY007M
18	57M9532	2	Elec. Connector Terminal	Cavity 1, 2
18	57M7400	2	Elec. Connector Seal	Cavity 1, 2
19	L222108	1	Tie Band	-

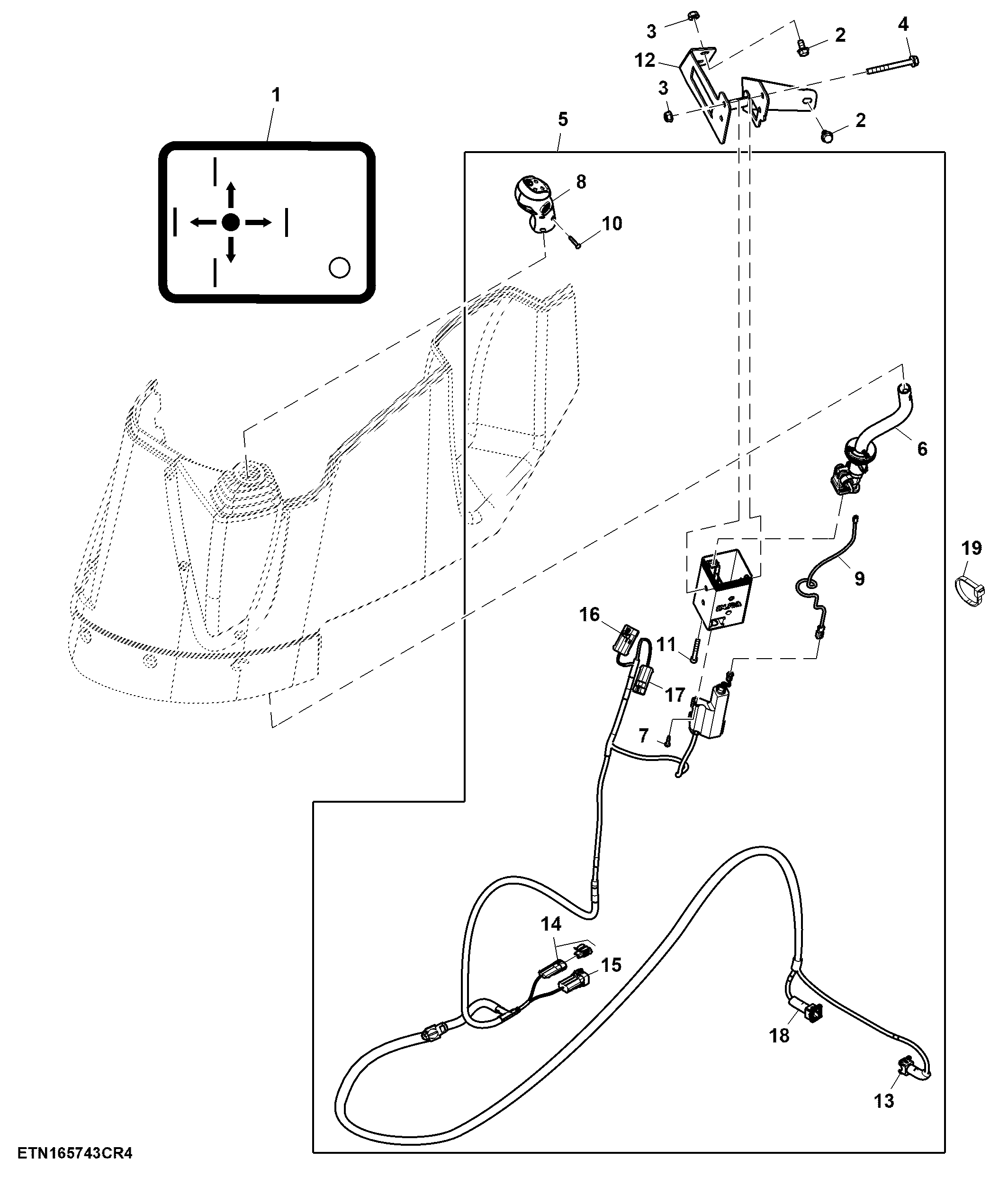

Multi Function Lever, W/ 3- Functions, W/ Diverter Control, W/ Loader Suspension
