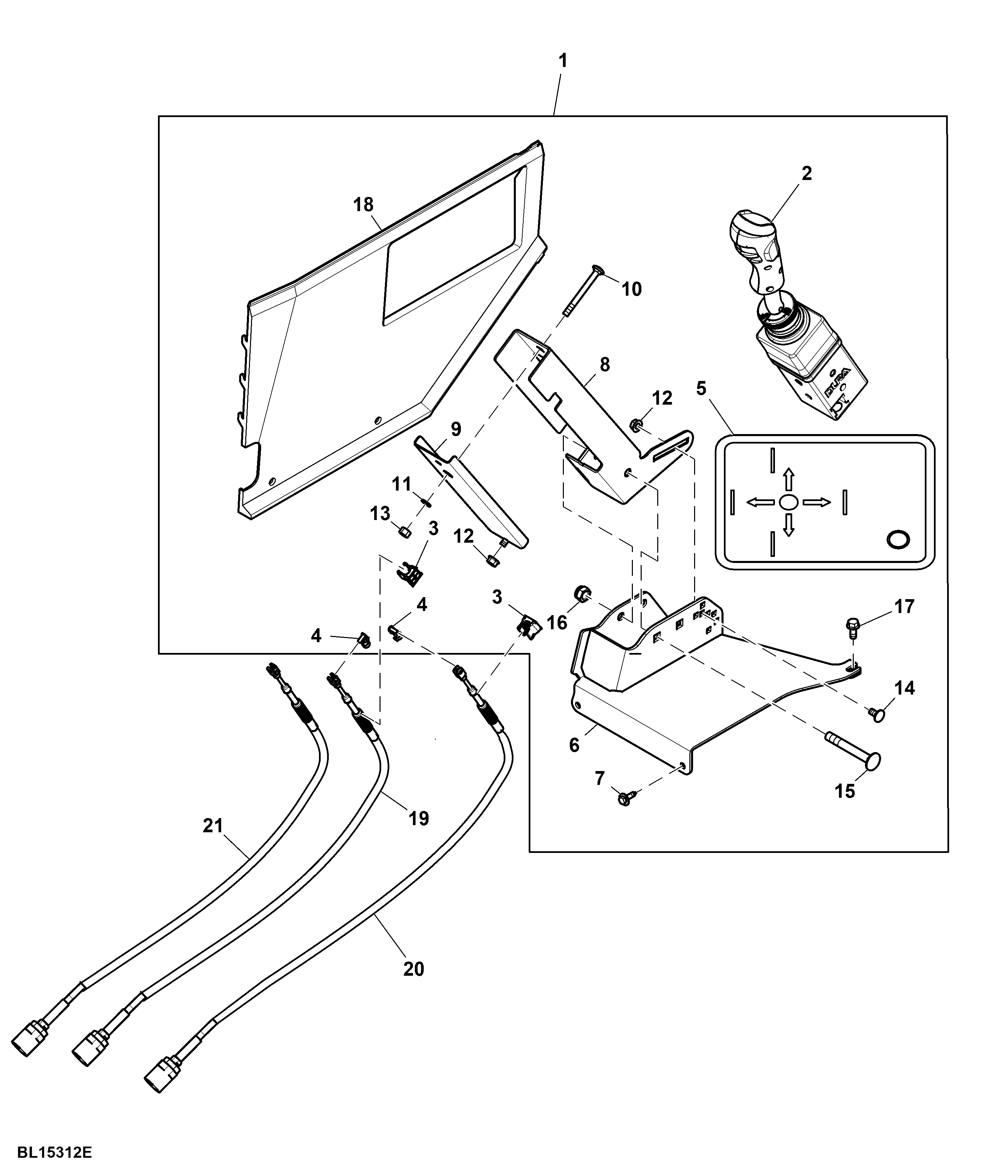

Multi-Function Lever, Mechanical ICV, W/ 3-Functions, W/ Memo Button, W/ Gear Shift Switches, W/ Front-Loader Dampening, Attachment

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BL15312	1	Actuator	-
2	AL222473	1	Multi-Functional Controller	-
3	L208072	2	Retainer	-
4	L209039	2	Pin	-
5	W31909	1	Instruction Plate	-
6	AL177603	1	Floor	-
7	AL151524	2	Screw With Washer	-
8	AL214958	1	Bracket	-
9	AL214960	1	Shield	-
10	03M7267	2	Bolt	M8 X 80
11	24M7095	1	Washer	8.400 X 15 X 1.600 mm
12	14M7298	3	Flange Nut	M8
13	14M7327	1	Lock Nut	M8
14	03M7183	1	Bolt	M8 X 16
15	03M7248	1	Bolt	M12 X 90
16	14M7168	1	Lock Nut	M12
17	19M7866	1	Screw	M8 X 20
18	L158839	1	Cover	-
19	AL215425	2	Push Pull Cable	LGTH = 1430 mm, Order Additionaly If Required, For Tractors 6110M, 6120M, 6130M with Open Operator's Station
20	AL215427	2	Push Pull Cable	LGTH = 1570 mm, Order Additionaly If Required, For Tractors 6135M, 6145M, 6155M with Open Operator's Station and 6110M, 6120M, 6130M, 6135M, 6145M, 6150M with Cab
21	AL215428	2	Push Pull Cable	LGTH = 1630 mm, Order Additionaly If Required, For Tractors 6155M, 6175M, 6195M with Cab

Multi-Function Lever, Mechanical ICV, W/ 3-Functions, W/ Memo Button, W/ Gear Shift Switches, W/ Front-Loader Dampening, Attachment
