Transmission Wiring Harness, Front, OOS (010000 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R44302	1	Tie Band	-
2	24M7044	1	Washer	13 X 20 X 2 mm
3	19M7386	1	Cap Screw	M12 X 20
4	AH78125	1	Clip	-
5	AL232226	1	Wiring Harness	Transmission
6	AH225364	1	Clip	-
7	57M7379	1	Elec. Connector Housing	High Temperature Sensor X307F
7	57M7829	2	Elec. Connector Terminal	-
8	57M7289	3	Elec.Connect Locking Device	-
9	57M7296	1	Elec. Connector Accessory	-
10	57M9214	1	Elec. Connector Seal	Cavity A
10	57M7259	1	Elec. Connector Seal	Cavity E
10	57M9215	6	Elec. Connector Seal	Cavity B, C, D, F, G, H
10	57M7252	6	Elec. Connector Terminal	Cavity B, C, D, F, G, H
10	57M9546	1	Elec. Connector Terminal	Cavity A
10	57M7264	1	Elec. Connector Housing	Inline Platform X286M
11	57M7256	1	Elec. Connector Housing	Sending Unit Oil Filter X080M
11	57M7289	1	Elec.Connect Locking Device	-
11	57M7252	2	Elec. Connector Terminal	-
11	57M9215	2	Elec. Connector Seal	-
12	57M7985	1	Electrical Connector Assy	Sending Unit For Engagement Oil X083M
12	57M9546	2	Elec. Connector Terminal	-
12	57M9214	2	Elec. Connector Seal	-
13	57M10244	1	Elec. Connector Terminal	XGND26
14	57M7328	1	Elec. Connector Housing	Start Safety Switch X093F
14	57M10770	2	Elec. Connector Terminal	-
14	57M9215	2	Elec. Connector Seal	-

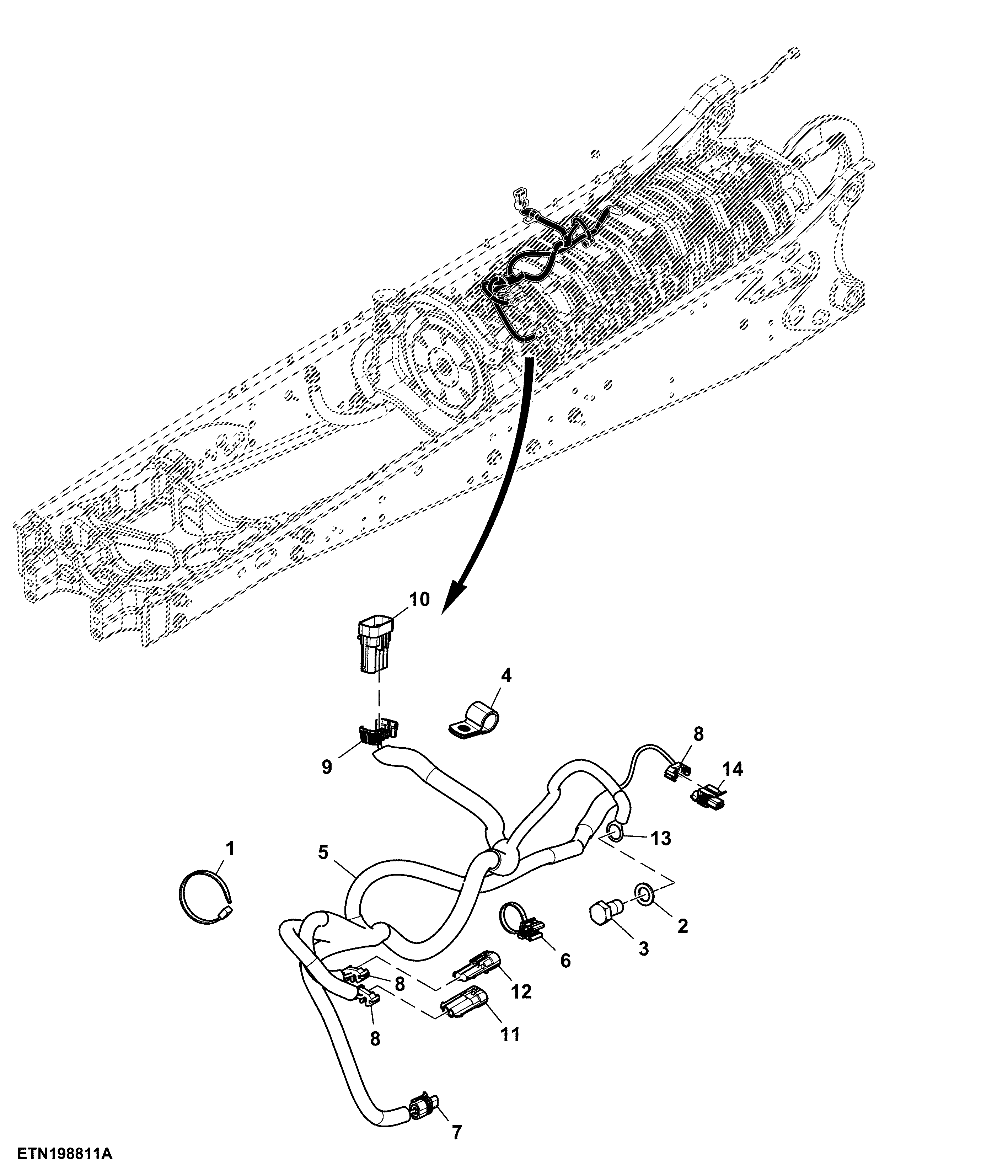

Transmission Wiring Harness, Front, OOS (010000 - )
