Wiring Harness, Battery Cut-Off / Footstep Light

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL216432	1	Wiring Harness	-
2	L167244	1	Clip	-
3	AL159725	2	Clamp	-
4	L222108	1	Tie Band	-
5	L170015	3	Clamp	-
6	37M7089	1	Screw	M6 X 12
7	57M9796	1	Elec. Connector Housing	X1272M
7	57M10322	6	Elec. Connector Terminal	Cavity 1, 3, 4, 5, 6, 8
7	57M9812	1	Elec. Connector Terminal	Cavity 2
7	57M10336	1	Elec. Connector Cavity Plug	Cavity 7
7	57M9842	1	Elec. Connector Accessory	-
7	57M9940	1	Elec. Connector Accessory	-
8	57M7254	1	Elec. Connector Housing	Step Light RH, X606F-1
8	57M7289	1	Elec.Connect Locking Device	-
8	57M9215	2	Elec. Connector Seal	Cavity A, B
8	57M10770	2	Elec. Connector Terminal	Cavity A, B
9	57M9792	1	Elec. Connector Housing	X697F
9	57M10631	5	Elec. Connector Terminal	Cavity 2, 4, 5, 6, 7
9	57M9808	1	Elec. Connector Terminal	Cavity 3
9	57M10336	2	Elec. Connector Cavity Plug	Cavity 1, 8
9	57M9842	1	Elec. Connector Accessory	-
10	57M7254	1	Elec. Connector Housing	Step Light LH, X606F-2
10	57M10770	2	Elec. Connector Terminal	Cavity A, B
10	57M9215	2	Elec. Connector Seal	Cavity A, B
10	57M7289	1	Elec.Connect Locking Device	-

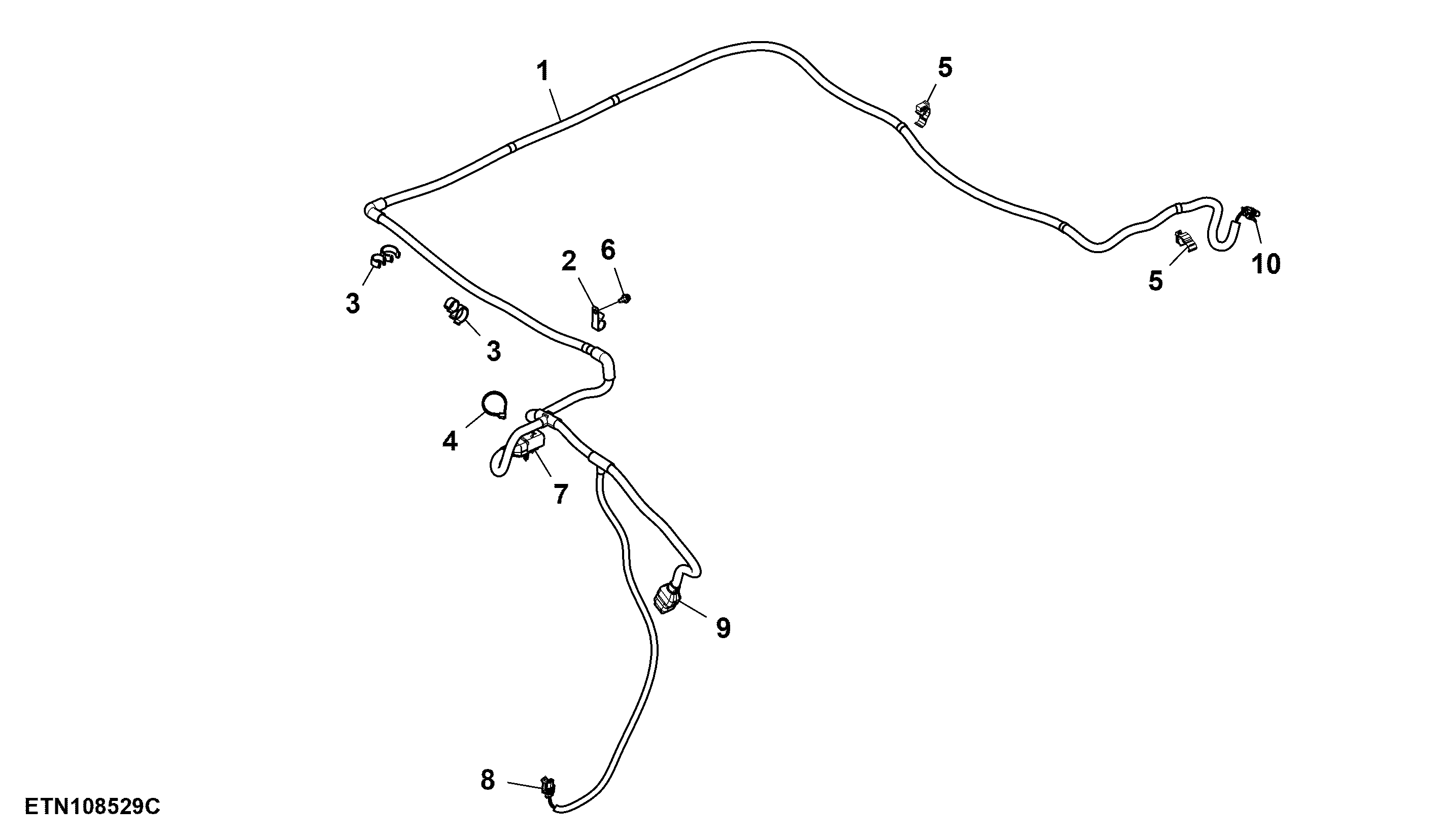

Wiring Harness, Battery Cut-Off / Footstep Light

Нет текстового описания
