Открытый узел

Range Shift / Speed control, CommandQuad™, W/ 6-Ranges, W/ Parking Lock, W/ Cab

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL216897	1	Panel	-
2	AL218330	1	Lock	ORDER AL227452
2	AL227452	1	Lock	-
3	37M7082	2	Screw	M3 X 10
4	57M7264	1	Elec. Connector Housing	-
5	57M7283	1	Elec.Connect Locking Device	-
6	R198159	1	Bushing	-
7	14M7397	3	Lock Nut	M6
8	AL215847	1	Toggle/Rocker Switch	-
9	19M8403	1	Cap Screw	M8 X 75
10	14M7166	1	Lock Nut	M8
11	L112469	3	Shim	-
12	L112053	1	Support	-
13	L77805	1	Knob	-
14	19M7560	1	Cap Screw	M6 X 16
15	L101929	3	Bushing	-
16	L113018	1	Insert	-
17	AL110860	1	Support	-
18	AL80994	1	Isolator	-
19	AL112614	1	Support	-
20	L114032	1	Pin Fastener	-
21	24M7139	1	Washer	6.400 X 18 X 1.600 mm
22	L203687	4	Nut	-
23	AL218425	1	Shifter Rod	-
24	14M7416	5	Flange Nut	M8
25	M78508	4	Cap Screw	-
26	24M7024	4	Washer	9 X 28 X 3 mm
27	L102451	1	Extension Spring	-
28	19M7865	4	Screw	M8 X 16
29	L79335	2	Washer	-
30	L113994	1	Pin Fastener	-
31	L32394	1	Cap	-
32	-	1	Part 33	CTL 1000mm, MF L58448
33	L222108	1	Tie Band	-
34	AL218299	1	Bracket	-
35	L217902	2	Washer	-
36	L218647	1	Bracket	-
37	03M7184	1	Bolt	M8 X 20
38	57M7254	1	Elec. Connector Housing	-
38	57M9712	1	Elec. Connector Accessory	-
38	R104846	2	Elec. Connector Terminal	-
38	57M7258	2	Elec. Connector Seal	-

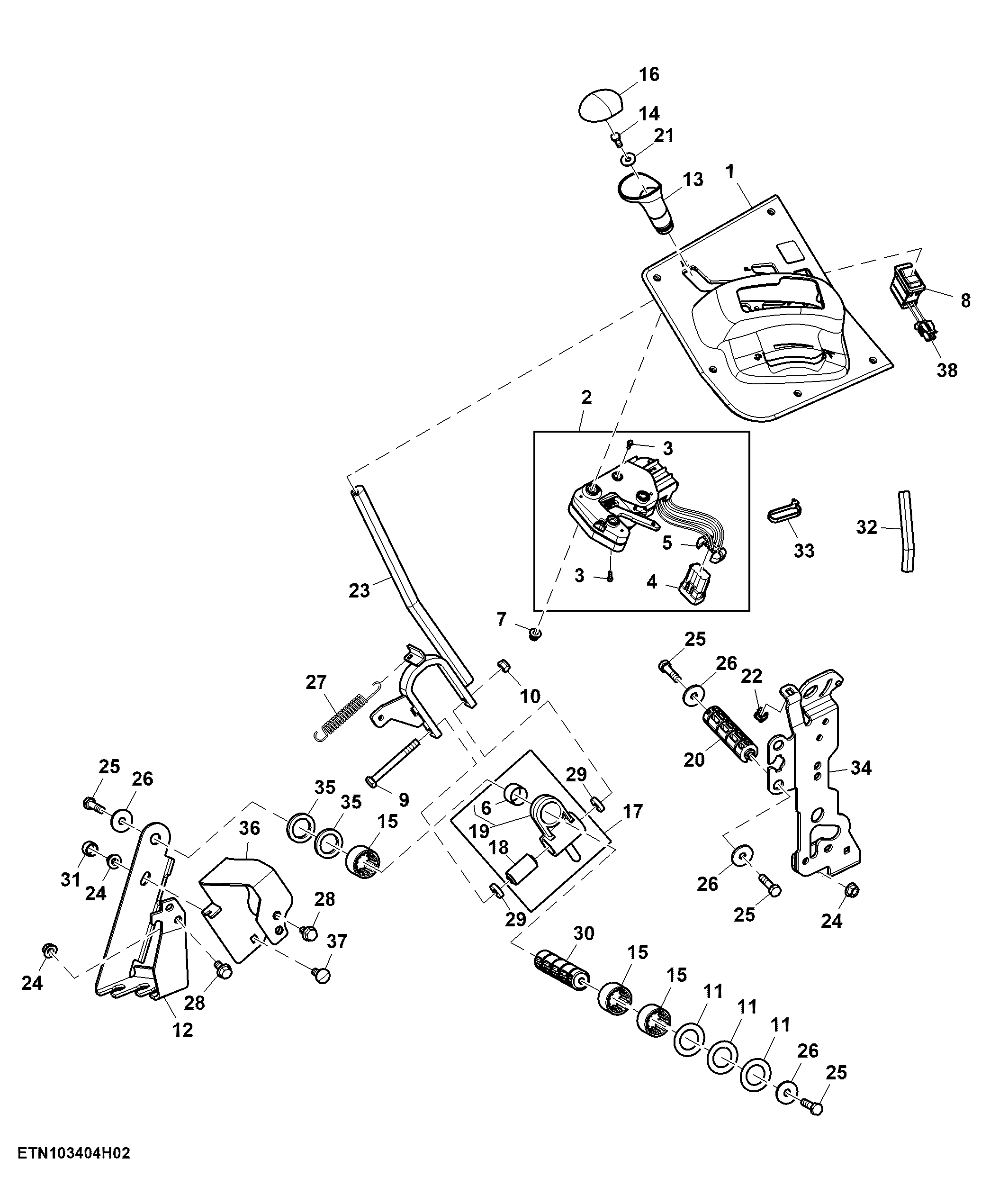

Range Shift / Speed control, CommandQuad™, W/ 6-Ranges, W/ Parking Lock, W/ Cab

Нет текстового описания
