Wiring Harness, Front Support, CommandQuad™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L170967	1	Channel	-
2	L172533	1	Bolt	-
3	24M7055	1	Washer	8.400 X 16 X 1.600 mm
4	14M7273	1	Nut	M8
5	L32394	1	Cap	-
6	57M13596	1	Elec. Connector Accessory	SUB FOR R44302 APPL
7	L115803	1	Guard	-
8	L205661	1	Nut	-
9	57M13529	1	Elec. Connector Accessory	-
10	AL226448	1	Wiring Harness	SUB FOR AL222303
11	57M7290	1	Elec. Connector Accessory	-
11	57M7259	1	Elec. Connector Seal	Cavity B
11	57M9215	2	Elec. Connector Seal	Cavity A, C
11	R104846	2	Elec. Connector Terminal	Cavity A, C
11	57M7255	1	Elec. Connector Housing	Connection Point on Wiring Harness W211, X020F
12	57M8416	1	Elec. Connector Housing	Connection Point on Wiring Harness W211, X039F-1
12	57M7469	1	Electrical Connector Assy	-
12	R104846	4	Elec. Connector Terminal	Cavity A, B, C, D
12	57M9215	4	Elec. Connector Seal	Cavity A, B, C, D
13	57M7044	1	Elec. Connector Terminal	Cavity 1
13	57M7214	2	Elec. Connector Housing	Connector of Light for Air Brake Pressure Gauge, X120-1F1/X120-1F2
14	57M7260	1	Elec. Connector Housing	Connection Point on Wiring Harness W211, X322F
14	57M7291	1	Electrical Connector Assy	-
14	R104846	2	Elec. Connector Terminal	Cavity C, E
14	57M7494	2	Elec. Connector Terminal	Cavity D, F
14	57M9215	2	Elec. Connector Seal	Cavity C, E
14	57M9214	2	Elec. Connector Seal	Cavity D, F
14	57M7259	2	Elec. Connector Seal	Cavity A, B
15	R104846	8	Elec. Connector Terminal	Cavity A, C, D, E, F, G, H, J
15	57M7259	2	Elec. Connector Seal	Cavity B, K
15	57M9215	8	Elec. Connector Seal	Cavity A, C, D, E, F, G, H, J
15	57M7281	1	Elec.Connect Locking Device	-
15	57M7262	1	Elec. Connector Housing	Connector of Turn Signal Lever, X487F
16	57M7255	1	Elec. Connector Housing	Connection Point on Wiring Harness W211, X583F
16	57M9713	1	Elec. Connector Accessory	-
16	R104846	3	Elec. Connector Terminal	Cavity A, B, C
16	57M9215	3	Elec. Connector Seal	Cavity A, B, C
17	57M7261	1	Elec. Connector Housing	Connector of Reverse Drive Lever, X767F
17	57M7259	1	Elec. Connector Seal	Cavity A
17	57M9215	2	Elec. Connector Seal	Cavity G, H
17	57M9214	5	Elec. Connector Seal	Cavity B, C, D, E, F
17	57M7494	5	Elec. Connector Terminal	Cavity B, C, D, E, F
17	R104846	2	Elec. Connector Terminal	Cavity G, H
17	57M7296	1	Elec. Connector Accessory	-
18	57M8731	1	Elec. Connector Housing	Connection Point on Wiring Harness W211, X780M
18	57M9041	36	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 17, 20, 22, 25, 26, 27, 28, 29, 30, 36, 38, 40, 41, 44, 45, 46, 47, 50, 51, 55, 56
18	57M9042	1	Elec. Connector Terminal	Cavity 57
18	57M8241	17	Elec. Connector Terminal	Cavity 1, 2, 5, 9, 13, 17, 20, 22, 25, 27, 28, 29, 30, 38, 41, 55, 56
18	57M7402	19	Elec. Connector Cable Seal	Cavity 3, 4, 6, 7, 8, 10, 11, 12, 14, 15, 26, 36, 40, 44, 45, 46, 47, 50, 51
18	57M7400	1	Elec. Connector Seal	Cavity 57
18	57M7399	4	Elec. Connector Seal	Cavity 58, 59, 60, 61
18	57M7403	20	Elec. Connector Cavity Plug	Cavity 16, 18, 19, 21, 23, 24, 31, 32, 33, 34, 35, 37, 39, 42, 43, 48, 49, 52, 53, 54
18	57M7401	1	Elec. Connector Cavity Plug	Cavity 62
19	57M7953	2	Electrical Connector Assy	Connector of Brake Pedal Sensor Unit, X1211F-RH/X1212F-LH
19	57M11548	6	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6
19	57M7955	6	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6
20	57M10336	1	Elec. Connector Cavity Plug	Cavity 3
20	57M9809	2	Elec. Connector Terminal	Cavity 2, 5
20	57M9786	1	Elec. Connector Housing	Connector of Immobilizer Antenna, X1182F
20	57M10631	3	Elec. Connector Terminal	Cavity 1, 4, 6
21	L78202	1	Elec. Connector Housing	Connector of Key Switch, X327F
21	57M7089	5	Elec. Connector Terminal	Cavity ACC, AID, BAT1, ELX, IGN
21	57M7106	1	Elec. Connector Terminal	Cavity ST
22	57M7348	1	Elec. Connector Terminal	Ground Point, XGND40
23	57M13625	1	Elec. Connector Housing	Connector of Light Switch, X939F
23	57M7089	2	Elec. Connector Terminal	Cavity 1, 3, B
24	57M7256	1	Elec. Connector Housing	Connector of Worklight Switch, X919M
24	57M9215	2	Elec. Connector Seal	Cavity A, B
24	57M7252	2	Elec. Connector Terminal	Cavity A, B
24	57M9712	1	Elec. Connector Accessory	-
25	57M7257	1	Elec. Connector Housing	Connector of Hazard Warning Light Switch, X126M
25	57M7290	1	Elec. Connector Accessory	-
25	57M7252	2	Elec. Connector Terminal	Cavity A, B
25	57M9215	2	Elec. Connector Seal	Cavity A, B
25	57M7259	1	Elec. Connector Seal	Cavity C

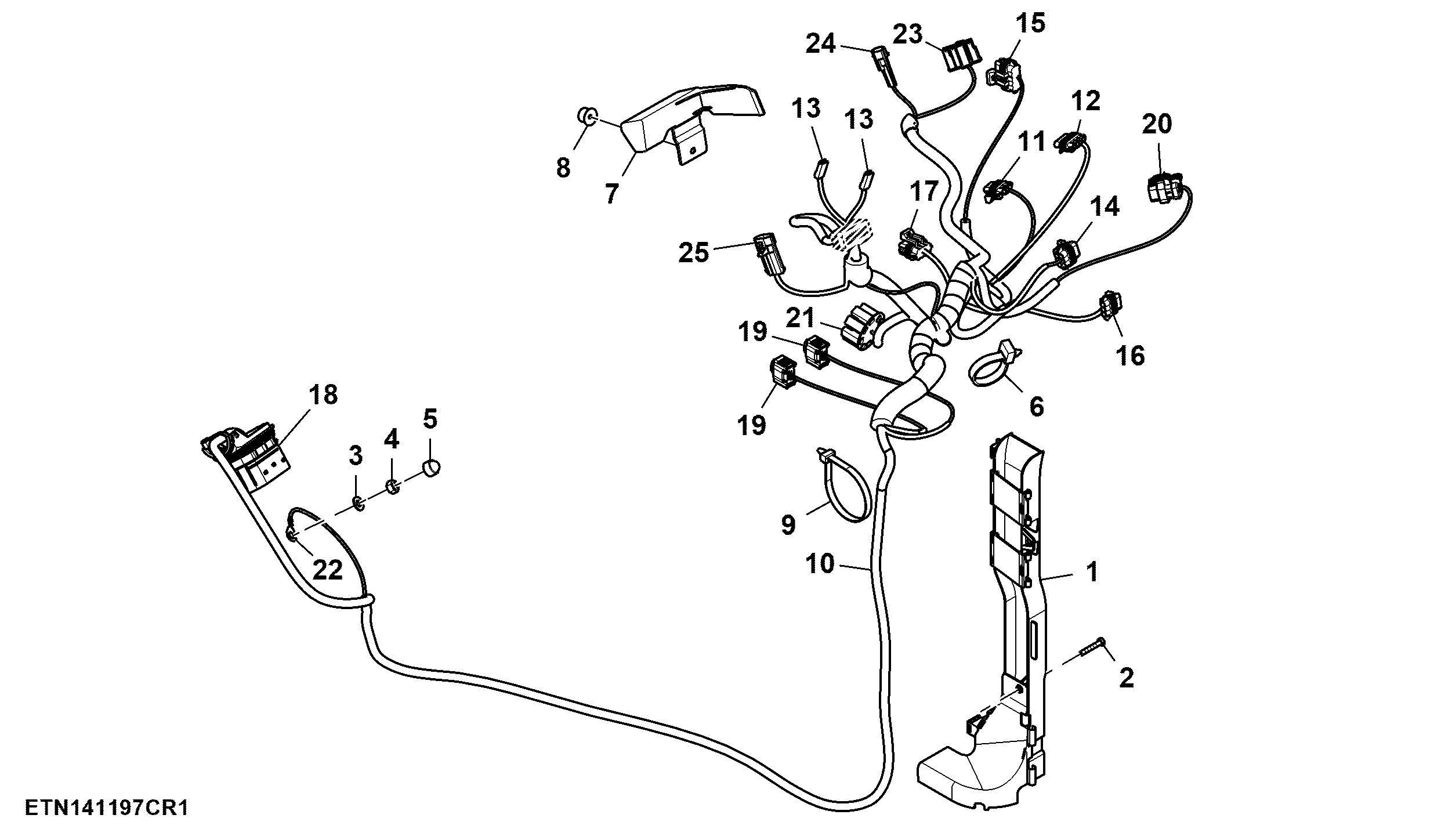

Wiring Harness, Front Support, CommandQuad™
