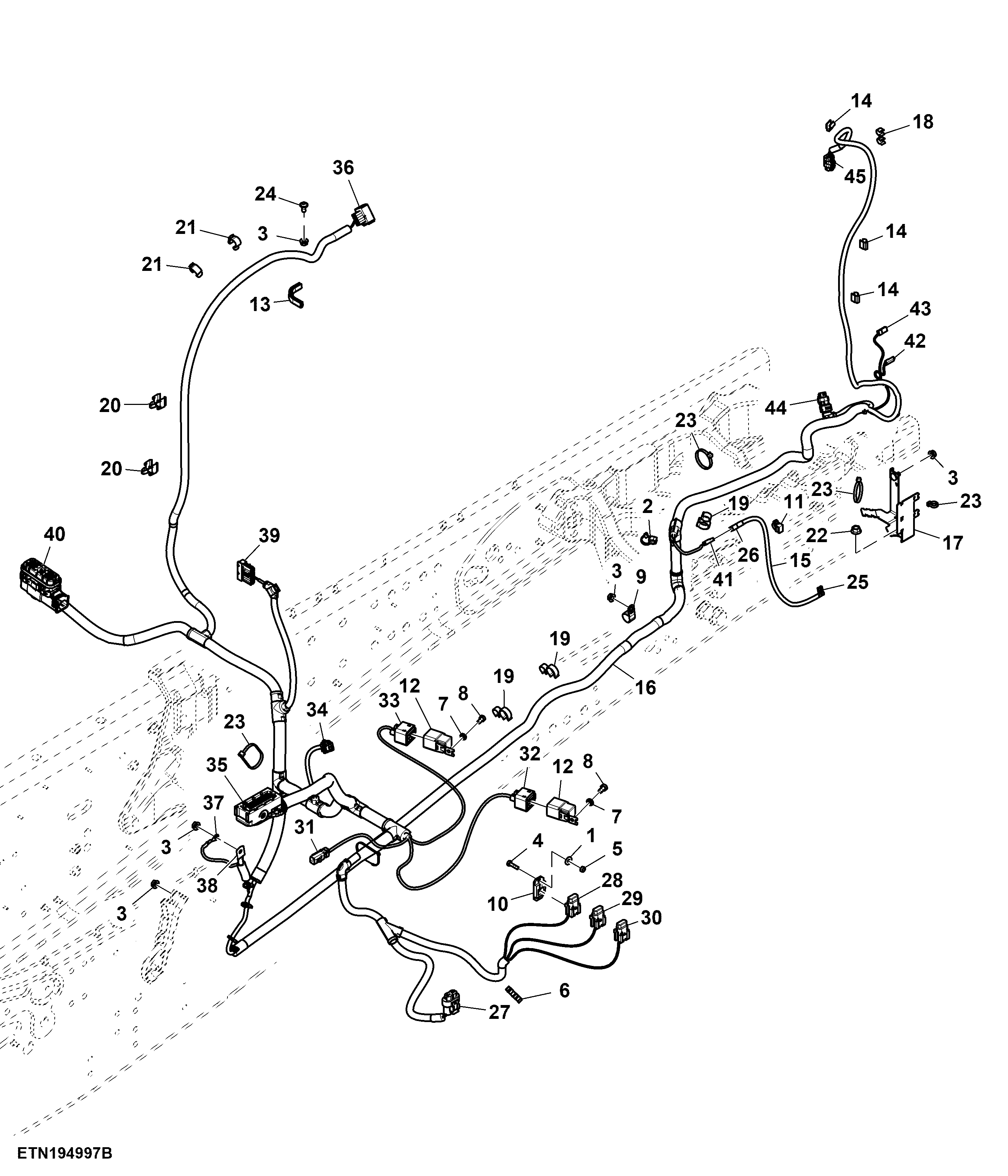

Wiring Harness, Front Chassis, W/ Front Controller, W/O Front PTO (924527 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24M7146	2	Washer	4.300 X 12 X 1 mm
2	L206645	1	Tie Band	-
3	14M7298	6	Flange Nut	M8
4	19M8078	2	Cap Screw	M4 X 16
5	14M7139	2	Nut	M4
6	L206271	1	Clamp	-
7	24M7054	2	Washer	6.400 X 12 X 1.600 mm
8	19M6614	2	Cap Screw	M6 X 12
9	57M9856	1	Clamp	-
10	57M8093	1	Fuse Holder	-
11	L171035	1	Tie Band	-
12	AL156697	2	Relay	-
13	L152663	1	Weatherstrip	-
14	L102323	3	Clamp	-
15	AL200541	1	Wiring Harness	-
16	AL226789	1	Wiring Harness	SUB FOR AL224897
17	L222276	1	Bracket	-
18	L156556	1	Clamp	-
19	AL159725	3	Clamp	-
20	L153768	2	Clip	-
21	L169020	2	Clip	-
22	14M7296	1	Flange Nut	M10
23	57M12234	8	Elec. Connector Accessory	-
24	R264173	1	Bolt	-
25	57M8481	1	Elec. Connector Terminal	Radiator Ground Connection, X305F
26	57M7068	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W51X and W523, X305F-1
26	57M7039	1	Elec. Connector Terminal	Cavity 1
27	57M11279	1	Elec. Connector Housing	Connection for F01PLB Fuses, X547F
28	57M12075	1	Elec. Connector Housing	Fuse for Engine Control Unit, F027
28	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
29	57M8435	1	Fuse Holder	Fuse for Engine Control Unit, F028
29	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
30	57M12075	1	Elec. Connector Housing	Fuse for Engine Control Unit, F029
30	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
31	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
31	57M11134	1	Elec. Connector Housing	-
31	57M9776	1	Elec. Connector Housing	CAN Bus Terminating Resistor, X1316M
32	57M8233	1	Electrical Connector Assy	Starter Relay 2, K003
32	57M8234	2	Elec. Connector Terminal	Cavity 1, 2
32	57M8237	2	Elec. Connector Seal	Cavity 1, 2
33	57M8233	1	Electrical Connector Assy	Starter Relay 1, K002
33	57M8234	2	Elec. Connector Terminal	Cavity 1, 2
33	57M8237	2	Elec. Connector Seal	Cavity 1, 2
34	L114840	1	Cap	-
34	57M7291	1	Electrical Connector Assy	-
34	57M7259	2	Elec. Connector Seal	Cavity E, F
34	57M9215	2	Elec. Connector Seal	Cavity C, D
34	57M10770	2	Elec. Connector Terminal	Cavity C, D
34	57M7494	2	Elec. Connector Terminal	Cavity A, B
34	57M7260	1	Elec. Connector Housing	Connection Point on Wiring Harness W511, X637F-1
34	57M9214	2	Elec. Connector Seal	Cavity A, B
35	57M8738	1	Elec. Connector Accessory	-
35	57M7401	2	Elec. Connector Cavity Plug	Cavity 57, 61, 62
35	57M7403	40	Elec. Connector Cavity Plug	Cavity 1, 2, 3, 5, 6, 12, 13, 15, 17, 18, 21, 22, 23, 24, 26, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 42, 43, 44, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56
35	57M7400	1	Elec. Connector Seal	Cavity 60
35	57M7399	2	Elec. Connector Seal	Cavity 58, 59
35	57M8241	9	Elec. Connector Terminal	Cavity 4, 7, 8, 9, 10, 16, 19, 20, 25
35	57M8584	1	Elec. Connector Terminal	Cavity 60
35	57M8585	2	Elec. Connector Terminal	Cavity 58, 59
35	57M9161	16	Elec. Connector Terminal	Cavity 4, 7, 8, 9, 10, 11, 14, 16, 19, 20, 25, 27, 40, 41, 45, 46
35	57M8730	1	Elec. Connector Housing	Connection Point on Wiring Harness W511, X782F
35	57M7402	7	Elec. Connector Cable Seal	Cavity 11, 14, 27, 40, 41, 45, 46
36	57M7400	4	Elec. Connector Seal	Cavity 1, 2, 3, 5
36	57M8081	1	Elec. Connector Accessory	-
36	57M7401	1	Elec. Connector Cavity Plug	Cavity 7
36	57M7399	5	Elec. Connector Seal	Cavity 4, 6, 8, 9, 10
36	57M8079	5	Elec. Connector Terminal	Cavity 4, 6, 8, 9, 10
36	57M9532	4	Elec. Connector Terminal	Cavity 1, 2, 3, 5
36	57M8071	1	Elec. Connector Housing	Connection Point on Wiring Harness W511, X1233F
37	57M7382	1	Elec. Connector Terminal	Ground Point, XGND9F
38	57M7411	1	Elec. Connector Terminal	Ground Point, XGND9E
39	57M8082	1	Elec. Connector Accessory	-
39	57M9042	1	Elec. Connector Terminal	Cavity 7
39	57M8075	1	Elec. Connector Seal	-
39	57M7401	9	Elec. Connector Cavity Plug	Cavity 1, 2, 8, 9, 11, 13, 14, 15, 16
39	57M7399	5	Elec. Connector Seal	Cavity 3, 4, 5, 10, 12
39	57M8069	1	Elec. Connector Housing	Connection Point on Wiring Harness W511/1, X1080M
39	57M7400	2	Elec. Connector Seal	Cavity 6, 7
40	RE538505	1	Elec. Connector Accessory	Engine Control Unit, X021F-3
40	57M9808	2	Elec. Connector Terminal	Cavity 1, 2
40	57M10321	14	Elec. Connector Terminal	Cavity 7, 11, 12, 13, 14, 16, 17, 23, 24, 27, 32, 43, 44, 50
40	57M10336	38	Elec. Connector Cavity Plug	Cavity 3, 4, 5, 6, 8, 9, 10, 15, 18, 19, 20, 21, 22, 25, 26, 28, 29, 30, 31, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 45, 46, 47, 48, 49, 51, 52, 53, 54
40	57M13590	2	Elec. Connector Accessory	-
40	R528122	1	Elec. Connector Accessory	-
41	57M7170	1	Elec. Connector Housing	Connector for Radiator Ground Connection, X305F-1
41	57M7106	1	Elec. Connector Terminal	Cavity A
42	57M7214	1	Elec. Connector Housing	Horn, X066F-2
42	57M7430	1	Elec. Connector Terminal	Cavity 1
43	57M7214	1	Elec. Connector Housing	Horn, X066F-1
43	57M7430	1	Elec. Connector Terminal	Cavity 1
44	57M9772	1	Elec. Connector Housing	Connection Point on Harness W501, X575F
44	57M10631	2	Elec. Connector Terminal	Cavity 1, 2
44	57M10155	1	Elec. Connector Accessory	-
44	57M11333	1	Elec. Connector Accessory	-
45	57M9772	1	Elec. Connector Housing	Connector of Fuel Preheater Element, X079F-2
45	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
45	57M11333	1	Elec. Connector Accessory	-
