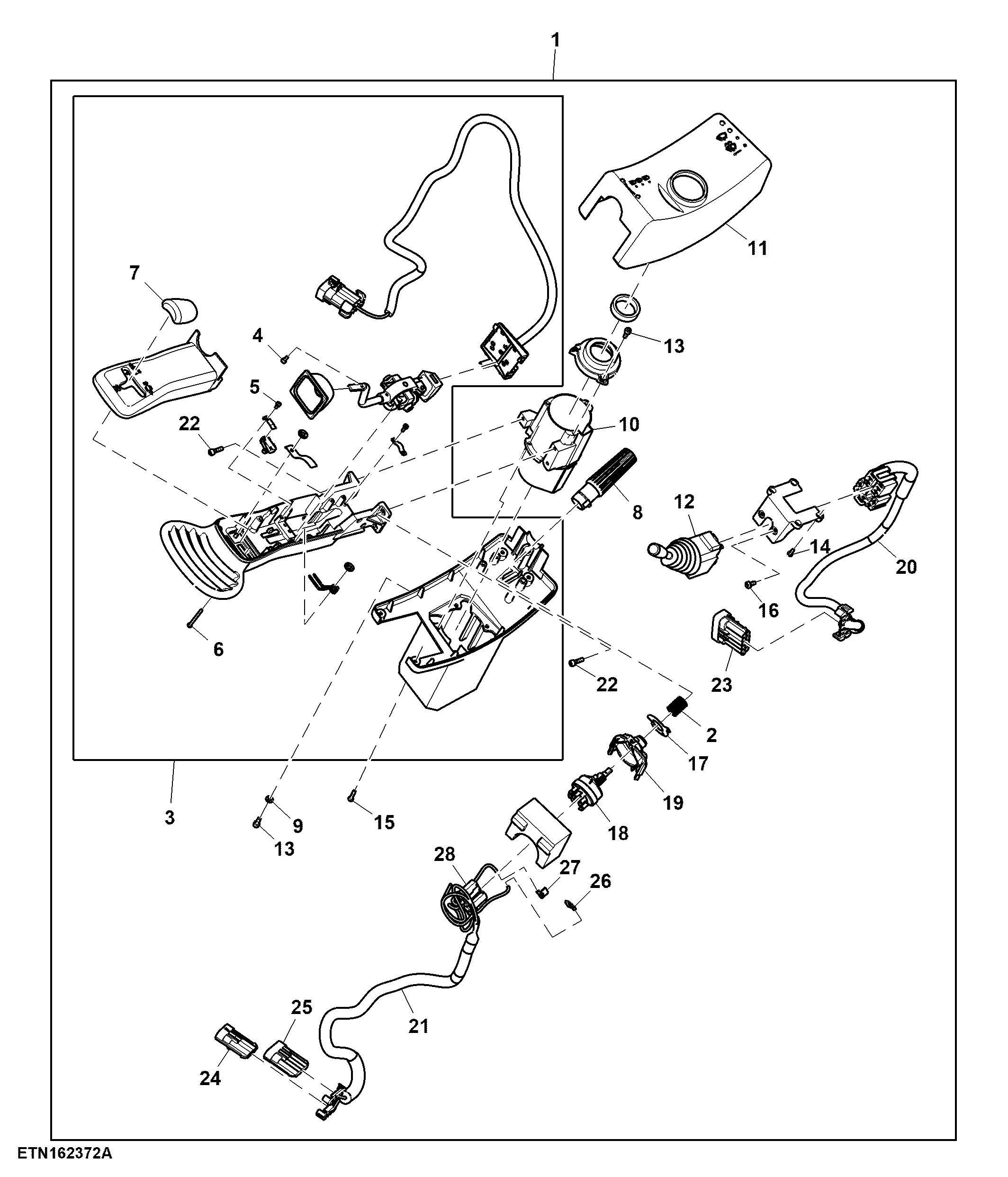

Multi Function Unit, W/ Electrical Reverser Control (967014 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL224660	1	Module	-
2	L77816	1	Compression Spring	-
3	AL220737	1	Lever	-
4	19M9166	1	Screw	M3 X 6
5	21M7268	1	Screw	M3 X 6
6	37M7534	6	Screw	-
7	R164403	1	Knob	-
8	AL111570	1	Grip	-
9	24M7117	2	Washer	4.300 X 9 X 0.800 mm
10	R177680	1	Core	-
11	L220258	1	Housing	-
12	AL224659	1	Lever	-
13	19M10439	5	Socket Head Screw	M4 X 10
14	37M7533	4	Screw	-
15	37M7532	4	Screw	-
16	21M7495	2	Screw	M4 X 10
17	L78496	1	Washer	-
18	AL220391	1	Switch	-
19	L220804	1	Support	-
20	AL225613	1	Wiring Harness	-
21	AL225792	1	Wiring Harness	-
22	L221299	3	Screw	-
23	57M7265	1	Elec. Connector Housing	Connector of the Turn-Signal Lever, X487M
23	57M7281	1	Elec.Connect Locking Device	-
23	57M7252	8	Elec. Connector Terminal	Cavity A, C, D, E, F, G, H, J
23	57M9215	8	Elec. Connector Seal	Cavity A, C, D, E, F, G, H, J
23	57M7259	2	Elec. Connector Seal	Cavity B, K
24	57M9215	2	Elec. Connector Seal	Cavity A, C
24	57M7259	1	Elec. Connector Seal	Cavity B
24	57M7252	2	Elec. Connector Terminal	Cavity A, C
24	57M7290	1	Elec. Connector Accessory	-
24	57M7257	1	Elec. Connector Housing	Connection point on wiring harness W901, X020M
25	57M7244	1	Elec. Connector Housing	Connection point on wiring harness W901, X039M
25	57M7318	1	Elec. Connector Accessory	-
25	57M7252	4	Elec. Connector Terminal	Cavity A, B, C, D
25	57M9215	4	Elec. Connector Seal	Cavity A, B, C, D
26	57M7250	1	Elec. Connector Terminal	Connector of Windshield Washer Switch, X063F
27	57M7250	1	Elec. Connector Terminal	Connector of Windshield Washer Switch, X064F
28	57M13625	1	Elec. Connector Housing	Connector of Switch for Trailering Lights, X278F
28	57M7089	5	Elec. Connector Terminal	Cavity 1, 2, 3, 4, B

Multi Function Unit, W/ Electrical Reverser Control (967014 - )
