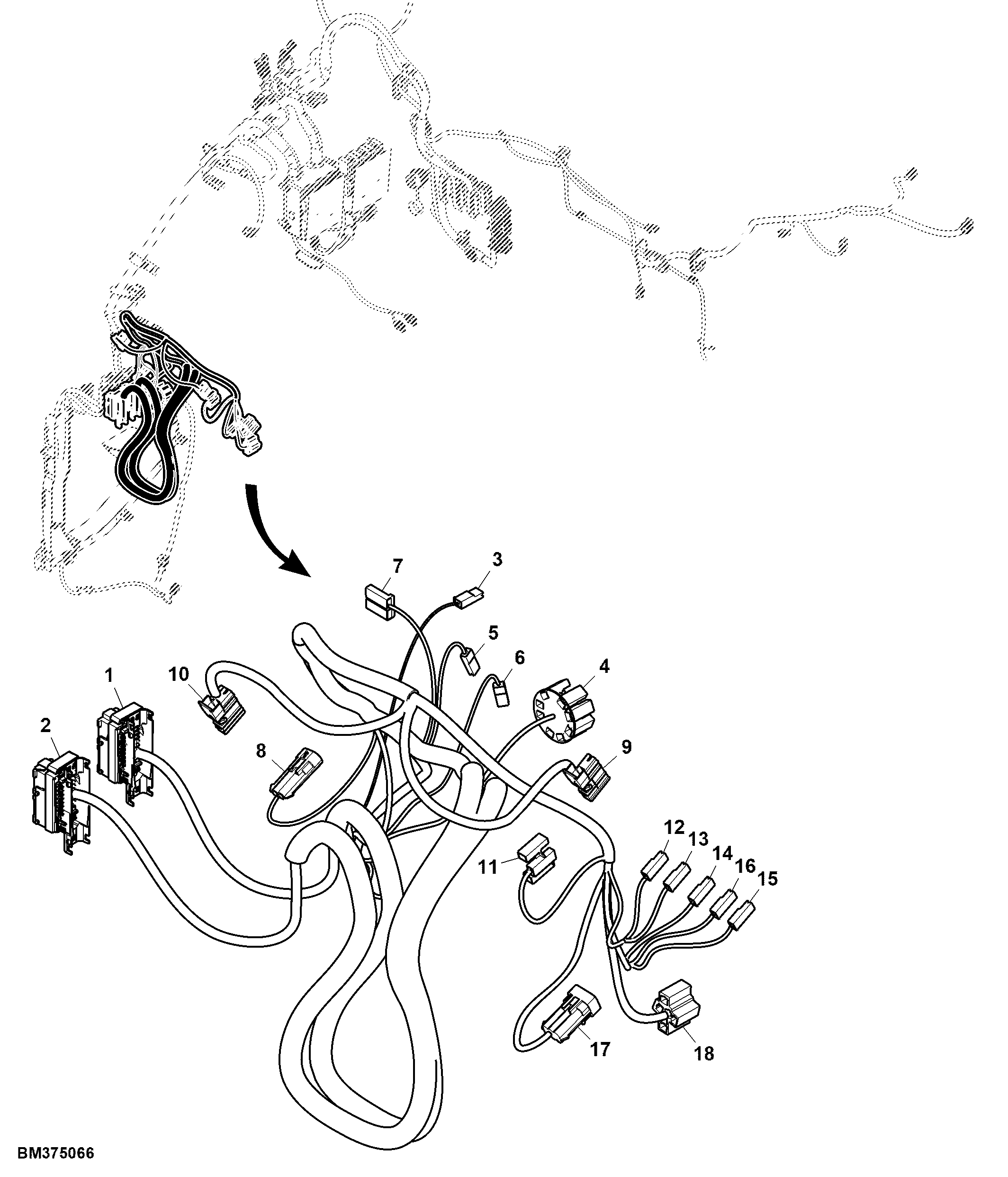

Wiring Harness, Cab (4/5) (000645 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M9532	3	Elec. Connector Terminal	Cavity 3, 4, 6
1	57M8195	1	Elec. Connector Housing	Inline Platform Cab Black X504F
1	57M7403	19	Elec. Connector Cavity Plug	-
1	57M7401	3	Elec. Connector Cavity Plug	-
1	57M7402	10	Elec. Connector Cable Seal	-
1	57M7400	3	Elec. Connector Seal	-
1	57M8105	2	Elec. Connector Terminal	-
1	57M8425	15	Elec. Connector Terminal	Cavity 10, 11, 13, 14, 17, 19, 20, 21, 22, 23, 24, 26, 27, 29, 30
1	57M8241	5	Elec. Connector Terminal	-
2	57M8107	2	Elec. Connector Cavity Plug	-
2	57M7403	14	Elec. Connector Cavity Plug	-
2	57M7402	15	Elec. Connector Cable Seal	-
2	57M8241	5	Elec. Connector Terminal	-
2	57M7400	4	Elec. Connector Seal	-
2	57M7399	2	Elec. Connector Seal	-
2	57M7398	20	Elec. Connector Terminal	Cavity 9, 10, 11, 12, 15, 17, 18, 19, 20, 21, 22, 23, 24, 26, 27, 28, 29, 31, 32, 33
2	57M8078	4	Elec. Connector Terminal	Cavity 4, 5, 6, 8
2	57M8079	2	Elec. Connector Terminal	Cavity 3, 7
2	57M8196	1	Elec. Connector Housing	Inline Platform Cab Grey X505F
3	57M7170	1	Elec. Connector Housing	Main Switch S001-1
3	57M10073	1	Elec. Connector Terminal	-
4	L78202	1	Elec. Connector Housing	Main Switch S001
4	57M7089	5	Elec. Connector Terminal	Cavity ACC, ELX, GND, IGN, ST
4	57M7106	2	Elec. Connector Terminal	Cavity BAT1, BAT2
5	57M7214	1	Elec. Connector Housing	Manometer Light X120-1F1
5	57M7044	1	Elec. Connector Terminal	-
6	57M7214	1	Elec. Connector Housing	Manometer Light X120-1F2
6	57M7044	1	Elec. Connector Terminal	-
7	R77480	1	Electrical Connector Assy	Horn Switch S004
7	U46662	2	Elec. Connector Terminal	-
8	57M7256	1	Elec. Connector Housing	Rear Roof Worklight Switch X433M
8	R104919	2	Elec. Connector Terminal	-
8	57M9215	2	Elec. Connector Seal	-
9	57M7239	1	Elec. Connector Housing	Instrument X025F, RH
9	57M7238	16	Elec. Connector Terminal	-
10	57M7239	1	Elec. Connector Housing	Instrument X026F, LH
10	57M7238	15	Elec. Connector Terminal	-
11	57M7183	1	Elec. Connector Accessory	S08
11	57M7089	3	Elec. Connector Terminal	-
12	57M7170	1	Elec. Connector Housing	Air Heater Indicator Light X579F-2
12	57M10073	1	Elec. Connector Terminal	-
13	57M7170	1	Elec. Connector Housing	Air Heater Indicator Light X579F-1
13	57M10073	1	Elec. Connector Terminal	-
14	57M7170	1	Elec. Connector Housing	High - Low Beam Switch S010-1
14	57M10073	1	Elec. Connector Terminal	-
15	57M7170	1	Elec. Connector Housing	High - Low Beam Switch S010-3
15	57M10073	1	Elec. Connector Terminal	-
16	57M7170	1	Elec. Connector Housing	High - Low Beam Switch S010-2
16	57M10073	1	Elec. Connector Terminal	-
17	57M7263	1	Elec. Connector Housing	Hazard Warning Light X516M
17	R104919	4	Elec. Connector Terminal	-
17	57M9215	4	Elec. Connector Seal	-
17	57M7259	2	Elec. Connector Seal	-
18	57M8758	1	Elec. Connector Housing	Light Switch X406F
18	57M10392	1	Elec. Connector Terminal	Cavity B
18	57M7429	1	Elec. Connector Terminal	Cavity 1
18	R104933	2	Elec. Connector Terminal	Cavity 3, 4

Wiring Harness, Cab (4/5) (000645 - )
