Engine Wiring Harness, Cab, 6 Cylinder (2/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL212806	1	Jumper	Generator to Starting Motor
2	57M7207	1	Elec. Connector Terminal	G02
3	57M7360	1	Elec. Connector Terminal	M01
4	AL158294	1	Power Supply	Power Supply
5	57M8169	1	Elec. Connector Housing	X473F
5	57M8200	2	Elec. Connector Terminal	Cavity 1, 2
5	57M8202	2	Elec. Connector Terminal	Cavity 1, 2
6	57M7360	1	Elec. Connector Terminal	Battery G1-2
7	57M8182	1	Elec. Connector Accessory	F13
7	57M8186	2	Elec. Connector Terminal	-
8	57M8186	2	Elec. Connector Terminal	-
8	57M8182	1	Elec. Connector Accessory	F14
9	AL234868	1	Wiring Harness	Fuel Shutoff Solenoid
10	57M10118	1	Elec. Connector Housing	Fuel Shutoff Solenoid XK024F-2
10	57M9532	2	Elec. Connector Terminal	Cavity 1, 2
10	57M7400	3	Elec. Connector Seal	Cavity 1, 2
11	57M9777	1	Elec. Connector Housing	Inline Engine X1197M
11	57M10603	2	Elec. Connector Terminal	Cavity 1, 2
12	AL234195	1	Wiring Harness	Engine
13	57M11537	1	Elec. Connector Housing	Alternator G002-1
13	57M7983	1	Electrical Connector Assy	Cavity 2
13	57M7981	1	Elec. Connector Seal	Cavity 1
13	57M11535	1	Elec. Connector Terminal	Cavity 1
14	57M7348	1	Elec. Connector Terminal	Alternator G002-2
15	57M7262	1	Elec. Connector Housing	Inline Hood X411F
15	57M10770	7	Elec. Connector Terminal	B - H
15	57M9215	7	Elec. Connector Seal	B - H
15	57M7259	3	Elec. Connector Seal	A, J, K
16	57M7052	1	Elec. Connector Terminal	Starter Motor M001-50
17	57M7175	1	Elec. Connector Terminal	Engine Ground XGND9
18	57M8071	1	Elec. Connector Housing	Inline Power Link Box X547F
18	57M8079	4	Elec. Connector Terminal	Cavity 1, 2, 3, 10
18	57M7399	4	Elec. Connector Seal	Cavity 1, 2, 3, 10
18	57M7401	6	Elec. Connector Cavity Plug	Cavity 4 - 9
19	57M9219	2	Elec. Connector Seal	Cavity A, B
19	57M7298	2	Elec. Connector Terminal	Cavity A, B
19	57M7309	1	Elec. Connector Housing	Compressor Clutch X130F
20	57M7379	1	Elec. Connector Housing	Sending Unit Coolant Temperature Gauge X077F
20	57M7829	2	Elec. Connector Terminal	Cavity A, B
21	57M7379	1	Elec. Connector Housing	Sending Unit Engine Speed X076F
21	57M7829	2	Elec. Connector Terminal	Cavity A, B
22	57M7984	1	Elec. Connector Terminal	Engine Oil Pressure X078F
22	57M8024	1	Elec. Connector Terminal	Cavity 1
23	57M7406	1	Elec. Connector Housing	Air Cleaner Restr Warning Switch X070F
23	57M7393	2	Elec. Connector Terminal	Cavity 1, 2
23	57M7400	2	Elec. Connector Seal	Cavity 1, 2
24	57M8481	1	Elec. Connector Terminal	Ground Cooler X305F
25	57M7403	23	Elec. Connector Cavity Plug	Cavity 14, 17 - 24, 26, 27, 30 - 32, 34 - 42
25	57M7401	3	Elec. Connector Cavity Plug	Cavity 3, 5, 6
25	57M8107	1	Elec. Connector Cavity Plug	Cavity 1
25	57M7402	2	Elec. Connector Cable Seal	Cavity 28, 29
25	57M8241	9	Elec. Connector Terminal	Cavity 9 - 13, 15, 16, 25, 33
25	57M7399	1	Elec. Connector Seal	Cavity 7
25	57M7400	2	Elec. Connector Seal	Cavity 4, 8
25	57M7398	11	Elec. Connector Terminal	Cavity 9 - 13, 15, 16, 25, 28, 29, 33
25	57M8079	1	Elec. Connector Terminal	Cavity 7
25	57M8078	2	Elec. Connector Terminal	Cavity 4, 8
25	57M13998	1	Elec. Connector Terminal	Cavity 2
25	57M8196	1	Elec. Connector Housing	Inline Cab X450F
25	57M8105	1	Elec. Connector Terminal	Cavity 2
26	57M9776	1	Elec. Connector Housing	Bus Terminator Engine X778F
26	57M9813	2	Elec. Connector Terminal	Cavity 1, 2
27	57M9773	1	Elec. Connector Housing	Inline Fuel Shutoff Solenoid X1197F
27	57M9807	2	Elec. Connector Terminal	Cavity 1, 2
28	57M11134	1	Elec. Connector Housing	-
29	57M10093	2	Elec. Connector Accessory	-
30	57M10638	2	Elec. Connector Accessory	-
31	57M10289	1	Elec. Connector Accessory	-
32	57M12105	2	Elec. Connector Accessory	-
33	57M13596	2	Elec. Connector Accessory	-
34	H141394	1	Clip	-

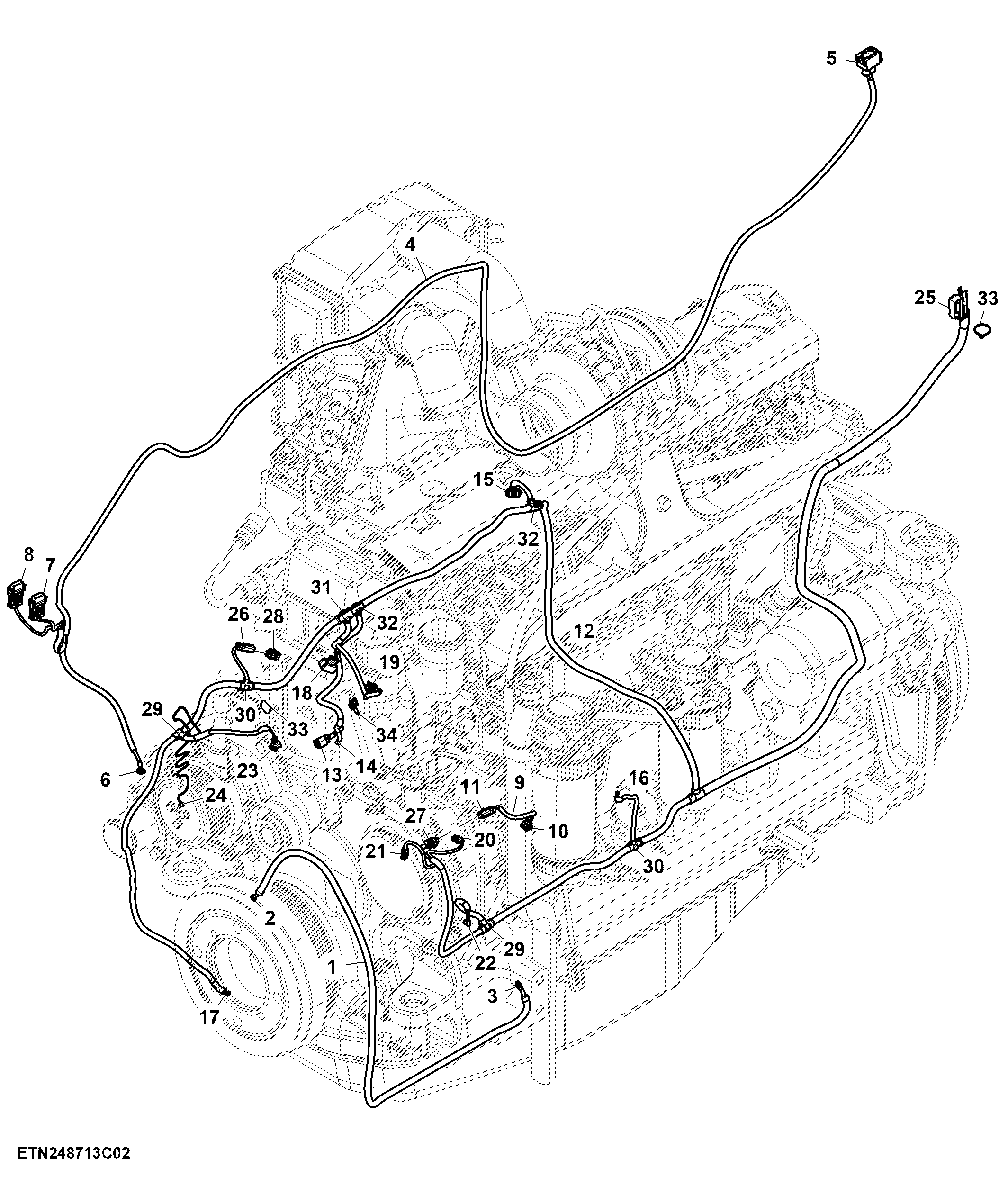

Engine Wiring Harness, Cab, 6 Cylinder (2/2)
