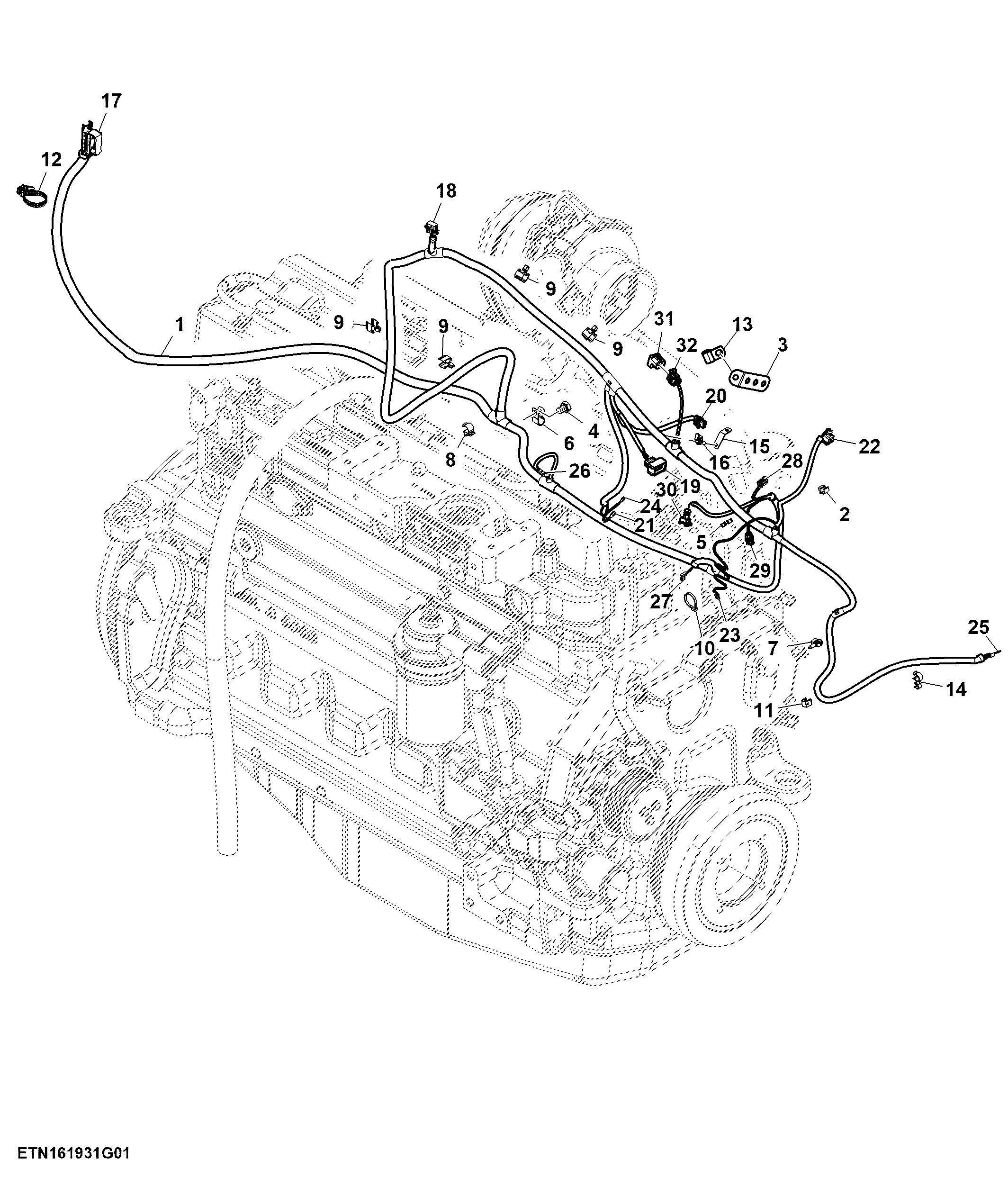

Engine Wiring Harness, 6 Cylinder, Optional (1/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL232886	1	Wiring Harness	Engine SUB FOR AL222357
2	L110765	1	Clamp	-
3	L206091	1	Angle	-
4	19M7557	1	Cap Screw	M10 X 16
5	L175641	1	Clamp	-
6	R73291	1	Clamp	-
7	57M8902	1	Clip	-
8	L115277	1	Clip	-
9	L153768	7	Clip	-
10	R44302	2	Tie Band	-
11	L101519	1	Clip	-
12	L169299	1	Tie Band	-
13	H75541	1	Clamp	-
14	R232182	2	Clip	-
15	L214608	1	Angle	-
15	L224980	1	Angle	-
16	H141394	1	Clip	-
17	57M7403	20	Elec. Connector Cavity Plug	Cavity 14, 17, 18, 19, 20, 21, 22, 23, 24, 26, 27, 32, 34, 35, 36, 37, 38, 40, 41, 42
17	57M8097	1	Retainer	-
17	57M7401	3	Elec. Connector Cavity Plug	Cavity 3, 5, 6
17	57M8107	1	Elec. Connector Cavity Plug	Cavity 1
17	57M7402	4	Elec. Connector Cable Seal	Cavity 28, 29, 30, 31
17	57M8241	10	Elec. Connector Terminal	Cavity 9, 10, 11, 12, 13, 15, 16, 25, 33, 39
17	57M7399	1	Elec. Connector Seal	Cavity 7
17	57M7400	2	Elec. Connector Seal	Cavity 4, 8
17	57M8105	1	Elec. Connector Terminal	Cavity 2
17	57M7398	14	Elec. Connector Terminal	Cavity 9, 10, 11, 12, 13, 15, 16, 25, 28, 29, 30, 31, 33, 39
17	57M8079	1	Elec. Connector Terminal	Cavity 7
17	57M8078	2	Elec. Connector Terminal	Cavity 4, 8
17	57M8103	1	Elec. Connector Terminal	Cavity 2
17	57M13596	1	Elec. Connector Accessory	-
17	57M8196	1	Elec. Connector Housing	Inline Cab X450F
18	57M7259	3	Elec. Connector Seal	Cavity A, J, K
18	57M9215	7	Elec. Connector Seal	Cavity B, C, D, E, F, G, H
18	57M10770	7	Elec. Connector Terminal	Cavity B, C, D, E, F, G, H
18	57M7262	1	Elec. Connector Housing	Inline Hood X411F
18	57M7281	1	Elec.Connect Locking Device	-
19	57M8071	1	Elec. Connector Housing	Inline Power Link Box X547F
19	57M8081	1	Elec. Connector Accessory	-
19	57M8079	4	Elec. Connector Terminal	Cavity 1, 2, 3, 10
19	57M7399	4	Elec. Connector Seal	Cavity 1, 2, 3, 10
19	57M7401	6	Elec. Connector Cavity Plug	Cavity 4, 5, 6, 7, 8, 9
20	57M7309	1	Elec. Connector Housing	Compressor Clutch X130F
20	57M7306	1	Elec.Connect Locking Device	-
20	57M7298	2	Elec. Connector Terminal	Cavity A, B
20	57M9219	2	Elec. Connector Seal	Cavity A, B
21	57M7348	1	Elec. Connector Terminal	Alternator G002-2
22	57M7406	1	Elec. Connector Housing	Air Cleaner Warning System X070F
22	57M7393	2	Elec. Connector Terminal	Cavity 1, 2
22	57M7400	2	Elec. Connector Seal	Cavity 1, 2
23	57M8481	1	Elec. Connector Terminal	Ground Cooler X305F
24	57M7052	1	Elec. Connector Terminal	Alternator G002-1
25	57M7175	1	Elec. Connector Terminal	Engine Ground XGND9
26	57M7054	1	Elec. Connector Terminal	Starter Motor M1-50
27	57M7984	1	Elec. Connector Terminal	Engine Oil Pressure X078F
27	57M8024	1	Elec. Connector Terminal	Cavity 1
28	57M7379	1	Elec. Connector Housing	Sending Unit Engine Speed X076F
28	57M7829	2	Elec. Connector Terminal	Cavity A, B
29	57M7379	1	Elec. Connector Housing	Coolant Temperature Sending Unit X077F
29	57M7829	2	Elec. Connector Terminal	Cavity A, B
30	57M10118	1	Elec. Connector Housing	Fuel Shut Off Solenoid XK024F
30	57M9532	2	Elec. Connector Terminal	Cavity 1, 2
30	57M7400	2	Elec. Connector Seal	Cavity 1, 2
31	RE207311	1	Electronic Control Unit	-
32	57M7260	1	Elec. Connector Housing	BUS Terminator Engine X778F
32	57M7291	1	Electrical Connector Assy	-
32	57M7494	4	Elec. Connector Terminal	Cavity B, D, E, F
32	57M9214	4	Elec. Connector Seal	Cavity B, D, E, F
32	57M7259	2	Elec. Connector Seal	Cavity A, C

Engine Wiring Harness, 6 Cylinder, Optional (1/2)
