Открытый узел

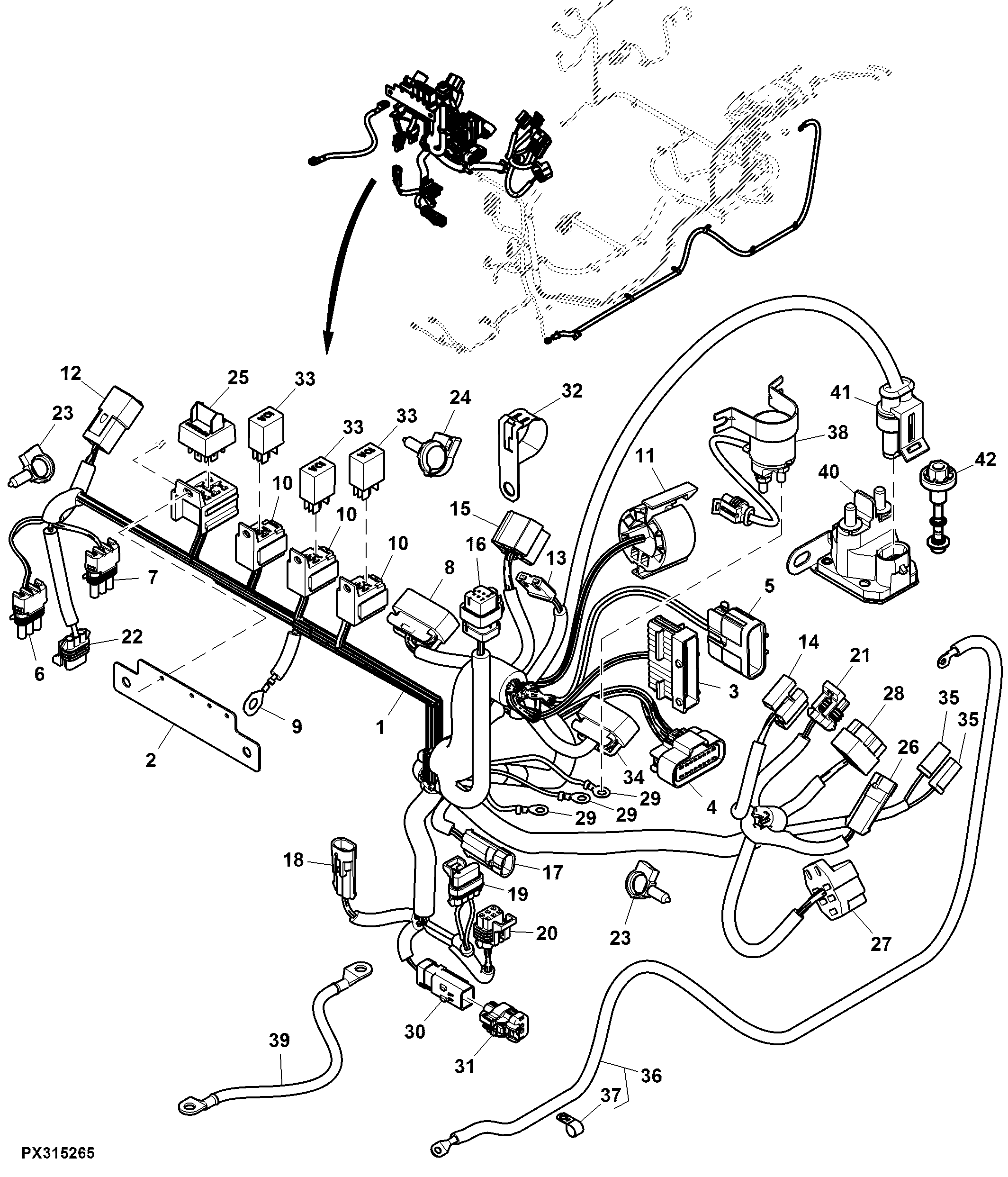

Wiring Harness, PowrReverser™, Cab, (2/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ30547	1	Wiring Harness	USE WITH SJ25589; SUB FOR SJ20690
2	R276202	1	Bracket	-
3	57M8070	1	Elec. Connector Housing	Cab Connector 3
3	57M8943	1	Elec.Connect Locking Device	-
3	57M8076	1	Elec. Connector Terminal	-
3	57M10371	6	Elec. Connector Terminal	Cavity 1, 2, 4, 6, 7, 24
3	57M10371	15	Elec. Connector Terminal	Cavity 3, 8, 9, 10, 11, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22
3	57M7399	6	Elec. Connector Seal	Cavity 1, 2, 4, 6, 7, 24
3	57M8515	15	Elec. Connector Seal	Cavity 3, 8, 9, 10, 11, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22
3	57M7259	2	Elec. Connector Seal	Cavity 5, 23
4	57M8324	4	Elec. Connector Terminal	Cavity A, H, J, S
4	57M9223	1	Elec. Connector Seal	Cavity C
4	57M8321	11	Elec. Connector Terminal	Cavity B, D, E, F, G, K, L, M, N, P, R
4	57M8304	4	Elec. Connector Terminal	Cavity A, H, J, S
4	57M8299	1	Elec. Connector Terminal	Cavity C
4	57M8156	1	Elec. Connector Housing	Cab Connector 2
4	57M11996	1	Elec. Connector Accessory	-
4	57M8300	11	Elec. Connector Terminal	Cavity B, D, E, F, G, K, L, M, N, P, R
5	57M9223	3	Elec. Connector Seal	Cavity G, N, S
5	57M8321	13	Elec. Connector Terminal	Cavity A, B, C, D, E, F, H, J, K, L, M, P, R
5	57M9539	3	Elec. Connector Terminal	Cavity G, N, S
5	57M8301	13	Elec. Connector Terminal	Cavity A, B, C, D, E, F, H, J, K, L, M, P, R
5	57M9919	1	Elec. Connector Accessory	-
5	57M10717	1	Elec. Connector Housing	Cab Connector 1
6	RE12364	1	Electrical Connector Assy	Brake Switch
6	57M7303	3	Electrical Connector Assy	Cavity A, B, C
6	57M9219	3	Elec. Connector Seal	Cavity A, B, C
7	RE12364	1	Electrical Connector Assy	Second Brake Switch
7	57M7303	3	Electrical Connector Assy	Cavity A, B, C
7	57M9219	3	Elec. Connector Seal	Cavity A, B, C
8	57M9919	1	Elec. Connector Accessory	-
8	57M9223	4	Elec. Connector Seal	Caviy G, H, K, N
8	57M8321	10	Elec. Connector Terminal	Caviy A, B, C, D, E, J, L, M, R, S
8	57M8299	4	Elec. Connector Terminal	Caviy G, H, K, N
8	57M8484	1	Elec. Connector Housing	Instrument Cluster J1
8	57M8300	10	Elec. Connector Terminal	Caviy A, B, C, D, E, J, L, M, R, S
9	57M8868	1	Elec. Connector Terminal	Chassis Ground
10	Z61311	3	Elec. Connector Housing	Accessory Relay
10	Z61303	2	Elec. Connector Terminal	Cavity 1, 2
10	57M9492	2	Elec. Connector Terminal	Cavity 3, 4
11	RE46736	1	Electrical Connector Assy	Key Switch USE WITH SJ20690
11	L78202	1	Elec. Connector Housing	Key Switch USE WITH SJ30547
12	57M9956	1	Elec. Connector Housing	Exhaust Filter Cleaning Switch
12	57M8164	3	Elec. Connector Terminal	Cavity 4, 5, 6
13	R77480	1	Electrical Connector Assy	Horn Switch
13	57M9199	2	Elec. Connector Terminal	Cavity 1, 2
14	57M7183	1	Elec. Connector Accessory	Turn Signal Switch
14	57M11328	3	Elec. Connector Terminal	Cavity 1, 2, 3
15	RE46735	1	Electrical Connector Assy	Front Wiper Switch
15	57M7511	4	Elec. Connector Terminal	Cavity 4
15	57M7429	6	Elec. Connector Terminal	Cavity B, P, L, 1, 2, 3
16	57M9786	1	Elec. Connector Housing	Front Wiper Motor
16	57M9809	5	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 6
17	57M7256	1	Elec. Connector Housing	Start Relay Control
18	57M7256	1	Elec. Connector Housing	Audible Alarm
19	57M7840	1	Elec. Connector Housing	FNR Switch
19	57M7840	1	Elec. Connector Housing	-
19	57M7494	2	Elec. Connector Terminal	Cavity A, D
19	57M7469	1	Electrical Connector Assy	-
19	R104846	2	Elec. Connector Terminal	Cavity B, C
20	57M9215	4	Elec. Connector Seal	Cavity B, C, D, E, F
20	57M7291	1	Electrical Connector Assy	-
20	57M7258	1	Elec. Connector Seal	Cavity A
20	R104846	3	Elec. Connector Terminal	Cavity A, B, E
20	57M7260	1	Elec. Connector Housing	Clutch Assembly
20	57M7494	2	Elec. Connector Terminal	Cavity D, F
21	57M7255	1	Elec. Connector Housing	Power Shuttle Pot
21	57M7290	1	Elec. Connector Accessory	-
21	57M7494	3	Elec. Connector Terminal	Cavity A, B, C
21	57M9215	3	Elec. Connector Seal	Cavity A, B, C
22	57M7255	1	Elec. Connector Housing	Park Brake Switch
22	57M7290	1	Elec. Connector Accessory	-
22	57M7494	3	Elec. Connector Terminal	Cavity A, B, C
22	57M9215	3	Elec. Connector Seal	Cavity A, B, C
23	57M8902	5	Clip	-
24	57M8908	2	Clip	-
25	57M10426	1	Elec. Connector Accessory	-
25	57M10980	5	Elec. Connector Terminal	Cavity 2, 4, 5, 6, 8
25	57M9714	2	Elec. Connector Terminal	Cavity 7, 1
25	RE262484	1	Diode	Module SUB FOR RE153894
26	57M7985	1	Electrical Connector Assy	Roll Mode Switch
26	57M9712	1	Elec. Connector Accessory	-
26	57M7495	2	Elec. Connector Terminal	Cavity A, B
26	57M9215	2	Elec. Connector Seal	Cavity A, B
27	57M8758	1	Elec. Connector Housing	Light Switch USE WITH SJ30547
27	57M7624	1	Electrical Connector Assy	Light Switch USE WITH SJ20690
27	57M8759	1	Elec.Connect Locking Device	-
27	57M8292	3	Elec. Connector Terminal	Cavity 1, 3, 4
27	57M7429	1	Elec. Connector Terminal	Cavity B
28	57M7429	1	Elec. Connector Terminal	Cavity Y
28	57M7511	2	Elec. Connector Terminal	Cavity T, W
28	57M7896	1	Electrical Connector Assy	HI / LO Headlight
28	57M7896	1	Electrical Connector Assy	-
29	57M7560	3	Elec. Connector Terminal	Start Relay
30	57M9776	1	Elec. Connector Housing	Control Area Network Terminator
30	57M9812	2	Elec. Connector Terminal	Cavity A, B
31	57M9772	1	Elec. Connector Housing	CAN Terminator
32	57M9412	1	Clamp	-
33	AL76702	3	Relay	-
34	57M9835	1	Elec. Connector Housing	Instrument Cluster J2
34	57M10201	1	Elec. Connector Accessory	-
34	57M8300	6	Elec. Connector Terminal	Cavity A,B, H, F, G, J
34	57M8299	3	Elec. Connector Terminal	Cavity E, M, N
34	57M9223	3	Elec. Connector Seal	Cavity E, M, N
34	57M8321	6	Elec. Connector Terminal	Cavity A,B, H, F, G, J
35	T28583	2	Elec. Connector Housing	Hazard Switch
36	SJ24334	1	Wiring Harness	-
37	57M9855	5	Clamp	-
38	RE234727	1	Starter Relay	-
39	MIA10189	1	Ground Cable	-
40	SJ25589	1	Relay	-
41	57M10497	1	Elec. Connector Housing	Start Realy Control
42	RE545538	1	Bolt Kit	-
44	Z61311	1	Elec. Connector Housing	Neutral
44	Z61303	2	Elec. Connector Terminal	Cavity 1, 2
44	57M9492	1	Elec. Connector Terminal	Cavity 3
44	57M10980	1	Elec. Connector Terminal	Cavity 3
45	Z61311	1	Elec. Connector Housing	Headlight
45	Z61303	2	Elec. Connector Terminal	Cavity 1, 2
45	57M10980	2	Elec. Connector Terminal	Cavity 3, 5
46	AL76702	3	Relay	Headlight
47	AL76702	3	Relay	Neutral

Wiring Harness, PowrReverser™, Cab, (2/3)
