Открытый узел

Hydraulic Pump and Top Plate

Hydraulic Pump and Top Plate

Hydraulic Pump and Top Plate

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

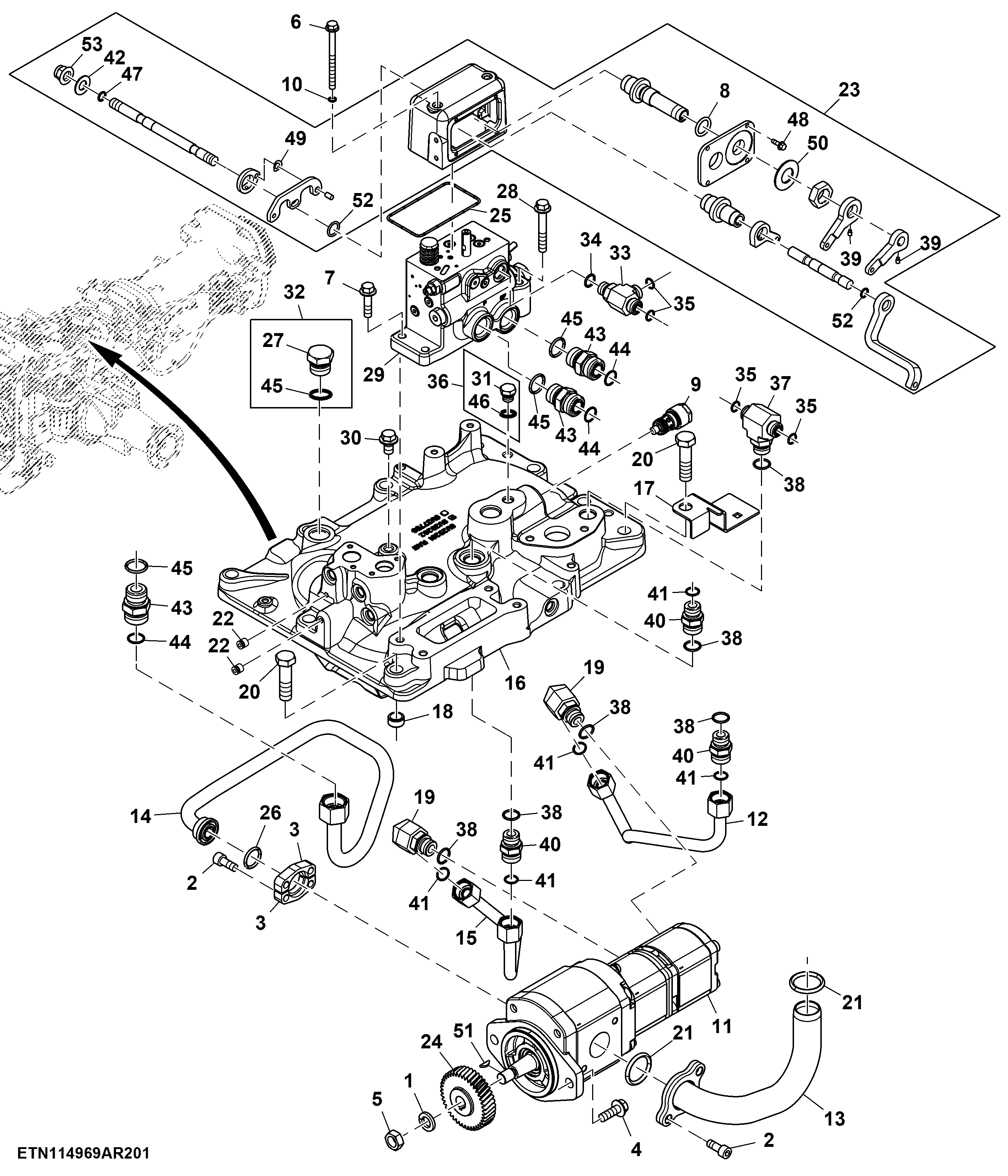

Hydraulic Pump and Top Plate

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H294	1	Lock Washer	5/8"
2	19M8533	6	Screw	M10 X 25
3	R29424	2	Flange Fitting	-
4	19M7790	2	Screw	M12 X 35, USE WITH SJ13305
4	19M7789	2	Screw	M12 X 30, USE WITH SJ22676
5	14H866	1	Nut	5/8"
6	19M7970	2	Screw	M8 X 100
7	19M7835	2	Screw	M10 X 35
8	T75461	1	O-Ring	17.120 X 2.616 mm (0.674" X 0.103")
9	AL177097	1	Valve	Relief Valve
10	R10093	2	O-Ring	-
11	SJ13305	1	Hydraulic Pump	ORDER SJ34566, INCLUDES 26H13 AND RE285561
11	SJ34566	1	Hydraulic Pump	INCLUDES SU51499 AND SJ27080, SUB FOR SJ22676
11	RE285561	1	Seal Kit	USE WITH SJ13305
11	SJ27080	1	Seal Kit	USE WITH SJ22676
12	SJ25803	1	Oil Line	Pump Outlet for Transmission USE WITH SJ22676
12	SJ13937	1	Oil Line	Pump Outlet for Transmission USE WITH SJ13305
13	SJ13938	1	Oil Tube	Suction, Top Cover to Pump
14	SJ13939	1	Oil Line	Pump Outlet for Hitch USE WITH SJ13305
14	SJ33567	1	Oil Line	Pump Outlet for Hitch USE WITH SJ22676; SUB FOR SJ25805
15	SJ19987	1	Oil Line	Pump Outlet for Steering USE WITH SJ13305
15	SJ25806	1	Oil Line	Pump Outlet for Steering USE WITH SJ22676
16	SU25262	1	Cover	Differential Case Top ALSO ORDER (2) AT107509
17	SU26139	1	Bracket	-
18	T26929	2	Bushing	-
19	38H5018	2	Elbow Fitting	-
20	19M7759	10	Cap Screw	M16 X 60
21	A4540R	2	O-Ring	-
22	AT107509	2	Plug	-
23	SJ25332	1	Hitch Controller	SUB FOR SJ18044
24	YZ92162	1	Helical Gear	Z = 41
25	SU21489	1	O-Ring	-
26	T59014	1	O-Ring	-
27	64M1008	1	Drain Plug	-
28	19M7808	2	Screw	M10 X 65
29	SJ14509	1	Control Valve	Mechanical Hitch
30	L77173	1	Cap Screw	-
31	R107768	1	Drain Plug	-
32	64M5008	1	Drain Plug	-
33	38H5029	1	Tee Fitting	ALSO ORDER 51M7043, T77857
34	51M7043	1	O-Ring	15.300 X 2.200 mm
35	T77857	4	O-Ring	-
36	RE46684	1	Fitting Plug	-
37	38H5068	1	Tee Fitting	ALSO ORDER T77857, 51M7045
38	51M7045	6	O-Ring	19.300 X 2.200 mm
39	22M7146	7	Set Screw	M5 X 8
40	38H5004	3	Adapter Fitting	ALSO ORDER 51M7045, T77932
41	T77932	5	O-Ring	-
42	12M6601	2	Disk Spring	14.200 X 28 X 1.500 mm
43	38H5005	3	Adapter Fitting	ALSO ORDER T77858, 51M7047
44	T77858	3	O-Ring	-
45	51M7047	4	O-Ring	23.600 X 2.900 mm
46	51M7041	1	O-Ring	11.300 X 2.200 mm
47	R126014	1	O-Ring	-
48	19M9203	4	Screw	M5 X 16
49	T16736	2	Washer	-
50	N206598	1	Spring Washer	-
51	26H13	1	Shaft Key	5/32" X 3/4", USE WITH SJ13305
51	SU51499	1	Shaft Key	USE WITH SJ22676
52	R113050	6	O-Ring	-
53	14M7401	1	Lock Nut	M12
