Открытый узел

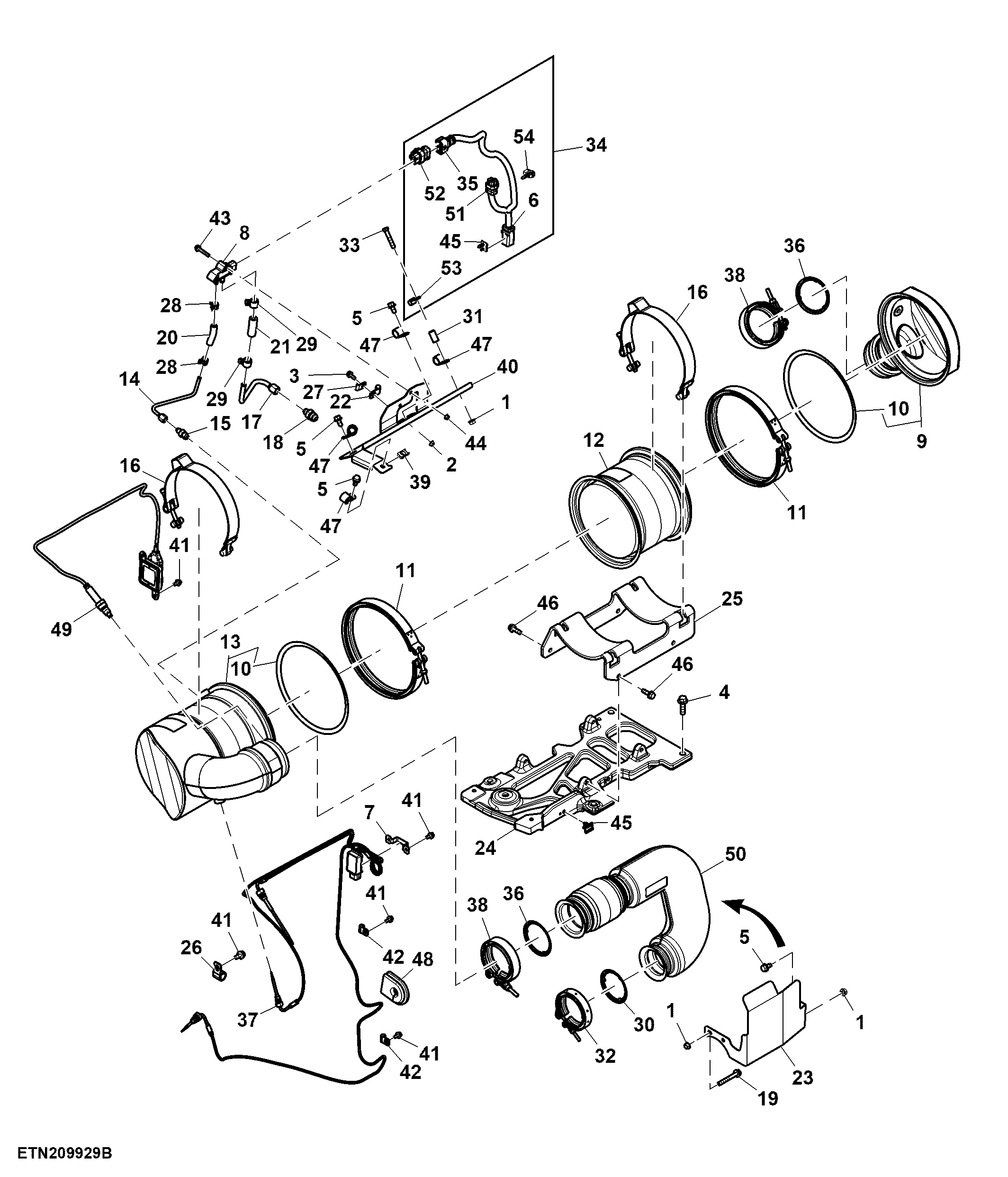

Exhaust Pipe, Diesel Oxidation Catalyst (For US and Canada)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7298	4	Flange Nut	M8
2	14M7303	1	Flange Nut	M6
3	19M7775	1	Screw	M6 X 16
4	19M7835	4	Screw	M10 X 35
5	19M7865	4	Screw	M8 X 16
6	57M9789	1	Elec. Connector Housing	Engine Interface
6	57M9812	5	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5
7	RE542006	1	Strap	-
8	RE546719	1	Pressure Sensor	-
9	DZ100457	1	Exhaust Pipe	-
10	R532139	2	Gasket	-
11	RE545865	2	Clamp	-
12	RE567056	1	Diesel Particulate Filter	SUB FOR RE566858
13	DZ101290	1	Diesel Oxidation Catalyst	SUB FOR RE569301
14	SJ14927	1	Line	Inlet Pressure Sensor
15	SJ15047	1	Fitting	-
16	SJ15134	2	Clamp	-
17	SJ15267	1	Line	Outlet Pressure Sensor
18	SJ15268	1	Union Fitting	-
19	SU24259	2	Cap Screw	-
20	SU27861	1	Hose	LGTH = 54.3 mm, Small Port
21	SU27862	1	Hose	LGTH = 50.9 mm, Large Port
22	SU31656	1	Clamp	-
23	SU33672	1	Guide	-
24	SU33973	1	Support	-
25	SU39131	1	Saddle	-
26	AH80916	1	Clip	-
27	H22660	1	Clip	-
28	L206871	2	Hose Clamp	-
29	R202160	2	Clamp	-
30	SU34912	1	Gasket	-
31	28H3390	1	Spacer	0.364" X 0.540" X 1"
32	RE555336	1	Clamp	-
33	19M7295	1	Cap Screw	M8 X 45
34	SJ22320	1	Wiring Harness	Jumper Delta Pressure Sensor
35	57M9838	1	Elec. Connector Accessory	-
36	R534036	2	Gasket	-
37	RE575421	1	Temperature Sensor	-
38	DZ10554	2	Clamp	-
39	H156360	1	Nut	-
40	SU43042	1	Bracket	Temperature Sensor Mounting
41	19M7774	8	Screw	M6 X 12
42	AH87142	3	Clip	-
43	19M7833	2	Screw	M6 X 35
44	H137327	2	Lock Nut	-
45	57M9940	2	Elec. Connector Accessory	-
46	19M7867	4	Screw	M8 X 25
47	AH77724	4	Clip	-
48	T177623	1	Grommet	-
49	DZ109689	1	Chemical Sensor	SUB FOR RE552182
50	SJ32246	1	Exhaust Pipe	-
51	57M9742	1	Elec. Connector Housing	After Treatment Temperature
51	57M9808	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
52	57M9780	1	Elec. Connector Housing	After Treatment Delta Pressure
52	57M9808	3	Elec. Connector Terminal	Cavity 1, 2, 3
53	57M10316	1	Half Clamp	-
54	57M8902	1	Clip	-

Exhaust Pipe, Diesel Oxidation Catalyst (For US and Canada)

Нет текстового описания
