Открытый узел

191 Engine 4045HP076-DZ105191

191 Engine 4045HP076-DZ105191

191 Engine 4045HP076-DZ105191

191 Engine 4045HP076-DZ105191

191 Engine 4045HP076-DZ105191

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

191 Engine 4045HP076-DZ105191

Нет текстового описания

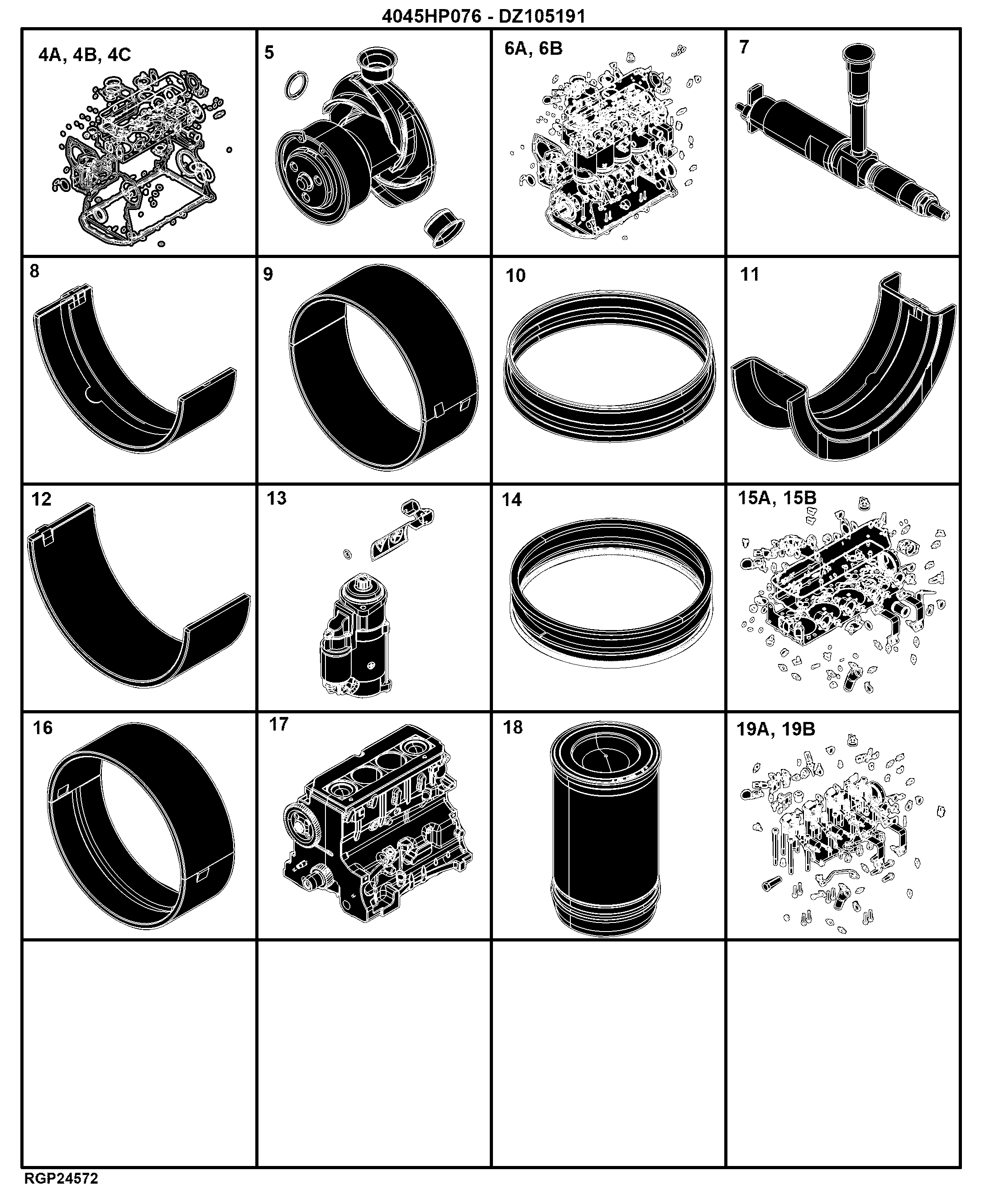

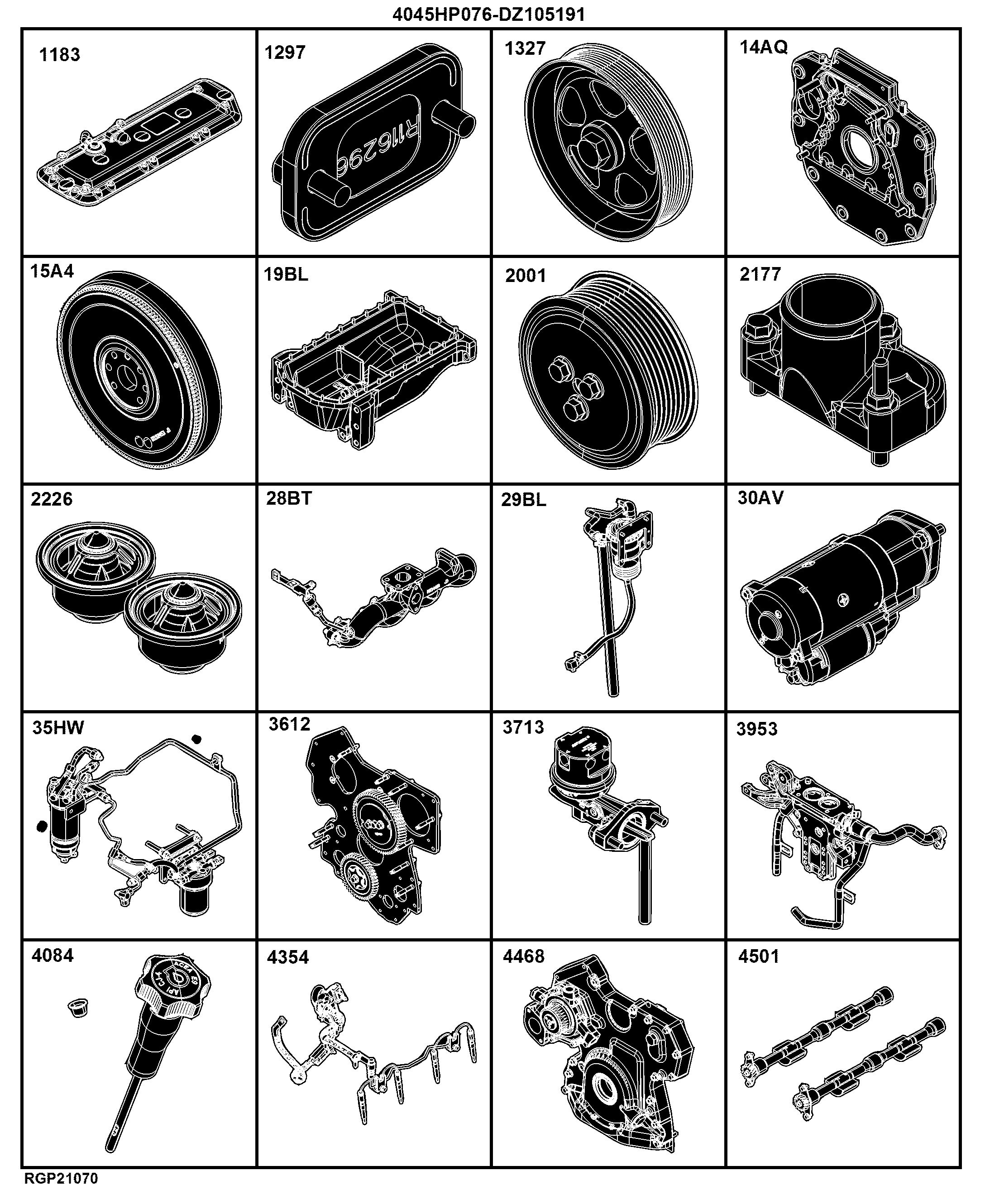

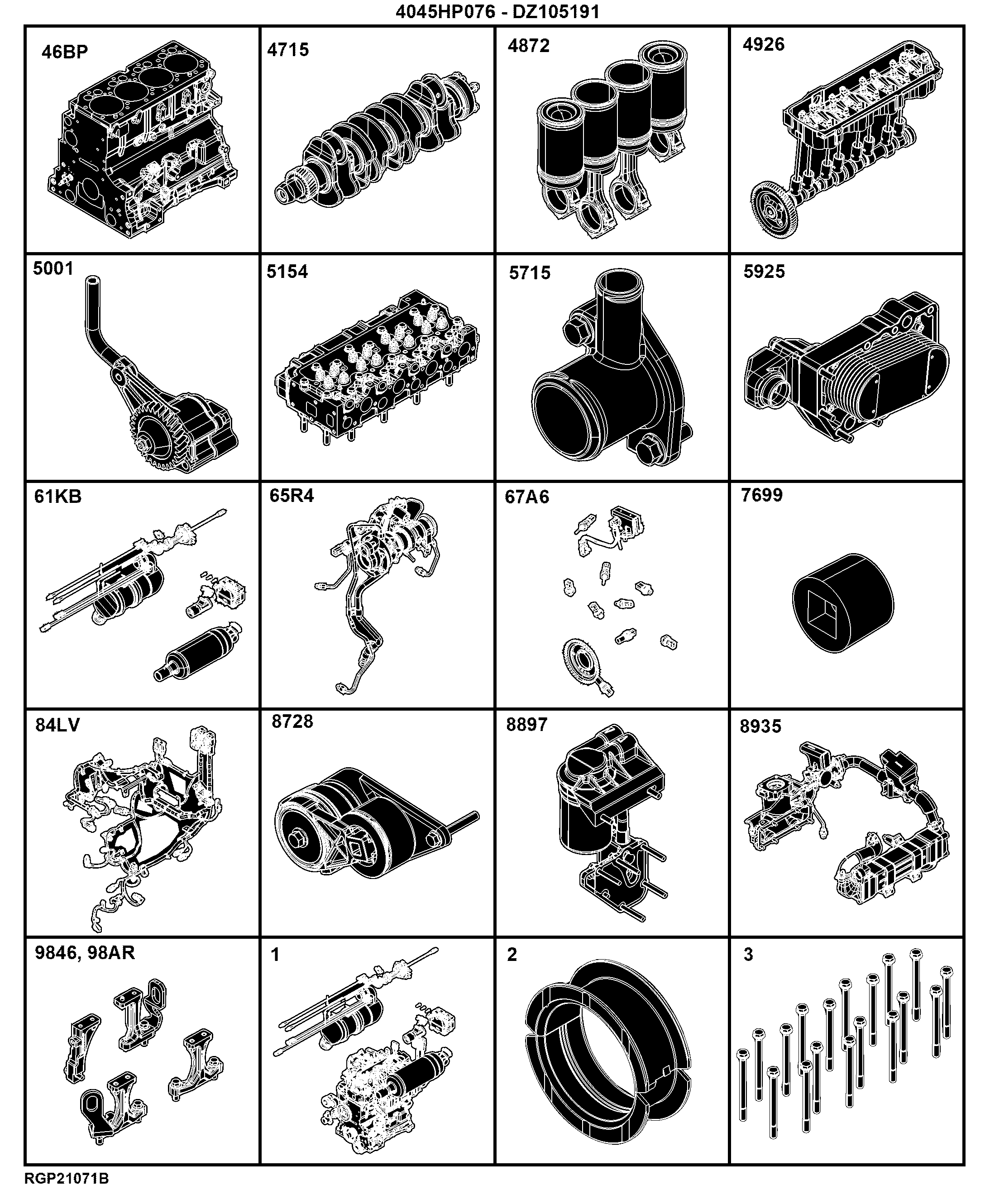

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	98AR Lift Strap (XXXXXX - )	-
-	-	1	9901 Engine Overhaul Gasket Kit (1/3)	-
-	-	1	9901 Engine Gasket Kit (2/2)	-
-	-	1	9901 Engine Gasket Kit (1/2)	-
-	-	1	9901 Engine Coolant Pump Kit	-
-	-	1	9901 Crankshaft Bearing Kit	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Bolt Kit	-
-	-	1	9901 Engine Overhaul Gasket Kit (2/3)	-
-	-	1	9846 Lift Strap ( - XXXXXX)	-
-	-	1	8935 Exhaust Gas Recirculation	-
-	-	1	8897 Engine Oil Filter	-
-	-	1	8728 Belt Tensioner	-
-	-	1	84LV Engine Wiring Harness	-
-	-	1	7699 Oil Pressure Switch Plug	-
-	-	1	67A6 Engine Sensors	-
-	-	1	65R4 Turbocharger	-
-	-	1	9901 Engine Overhaul Gasket Kit (3/3)	-
-	-	1	9901 Engine Overhaul Kit (1/2)	-
-	-	1	9901 Engine Overhaul Kit (2/2)	-
-	-	1	9901 Nozzle kit	-
-	-	1	9901 O Ring Kit, Cylinder Liner	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Short Block Assembly	-
-	-	1	9901 Short Block Hardware Kit (1/2)	-
-	-	1	9901 Short Block Hardware Kit (2/2)	-
-	-	1	9901 Starter Motor Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	3612 Front Plate	-
-	-	1	1327 Crankshaft Pulley	-
-	-	1	14AQ Flywheel Housing	-
-	-	1	15A4 Flywheel	-
-	-	1	16JU Fuel Injection System ( - 128069)	-
-	-	1	16YA Fuel Injection System (128070 - )	-
-	-	1	17ER Air Intake	-
-	-	1	19BL Oil Pan	-
-	-	1	2001 Water Pump Pulley	-
-	-	1	2177 Thermostat Cover	-
-	-	1	2226 Engine Thermostat	-
-	-	1	28BT Exhaust Manifold	-
-	-	1	29BL Ventilation System ( - XXXXXX)	-
-	-	1	29FC Ventilating System (XXXXXX - )	-
-	-	1	30AV Starter Motor	-
-	-	1	35HW Fuel Filter	-
-	-	1	1183 Valve Cover	-
-	-	1	3713 Fuel Transfer Pump	-
-	-	1	3953 Thermostat Housing	-
-	-	1	4084 Engine Oil Dipstick Tube	-
-	-	1	4354 Starting Aid	-
-	-	1	4468 Timing Gear Cover and Water Pump	-
-	-	1	4501 Balancer Shaft	-
-	-	1	46BP Cylinder Block	-
-	-	1	4715 Crankshaft and Bearings	-
-	-	1	4872 Connecting Rods and Pistons	-
-	-	1	4926 Valve Actuating Mechanism	-
-	-	1	5001 Engine Oil Pump	-
-	-	1	5154 Cylinder Head with Valves	-
-	-	1	5715 Water Pump Inlet	-
-	-	1	5925 Engine Oil Cooler	-
-	-	1	61KB Aftertreatment, Exhaust System	-
