Открытый узел

Multi-Function Lever, Mechanical SCV, W/ 2-Functions, W/ Diverter Shifting, W/ Memo Button, W/ Gear Shift Switches, Attachment

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BL15619	1	Actuator	-
2	19M7865	1	Screw	M8 X 16
3	19M8039	2	Screw	M8 X 80
4	AL210117	1	Support	-
5	AL222478	1	Multi-Functional Controller	-
6	L208076	1	Housing	-
7	37M7095	2	Screw	-
8	AL222486	1	Control Lever	-
9	W31909	1	Instruction Plate	-
10	L214961	1	Boot	-
11	AL208243	1	Wiring Harness	-
12	19M9730	1	Screw	M6 X 45
13	AL212354	1	Handle	-
14	37M7389	4	Screw	-
15	AL208272	1	Wiring Harness	-
16	57M7256	1	Elec. Connector Housing	Connector for Accessories, X037M
16	57M11342	2	Elec. Connector Terminal	Cavity A, B
16	57M7493	2	Elec. Connector Seal	Cavity A, B
16	57M7259	1	Elec. Connector Seal	-
16	57M7289	1	Elec.Connect Locking Device	-
17	57M9424	1	Elec.Connect Locking Device	-
17	57M7259	1	Elec. Connector Seal	-
17	57M7493	5	Elec. Connector Seal	Cavity A, B, D, E, F
17	57M7260	1	Elec. Connector Housing	Connection Point between Harnesses W751 or W901 and W912, X1268F
17	R104846	5	Elec. Connector Terminal	Cavity A, B, D, E, F
18	57M7328	1	Elec. Connector Housing	Connection Point between Harnesses W751 or W901 and W912, X1278F
18	R104846	2	Elec. Connector Terminal	Cavity A, B
18	57M7493	2	Elec. Connector Seal	Cavity A, B
18	57M7259	2	Elec. Connector Seal	-
18	57M8218	1	Elec. Connector Accessory	-
19	57M7318	1	Elec. Connector Accessory	-
19	57M7259	1	Elec. Connector Seal	-
19	57M7493	4	Elec. Connector Seal	Cavity A, B, C, D
19	57M7252	4	Elec. Connector Terminal	Cavity A, B, C, D
19	57M7244	1	Elec. Connector Housing	Connector for Gear-Selector Switch and Auto Mode, X003M - 3
20	57M8416	1	Elec. Connector Housing	Connector for Gear-Selector Switch and Auto Mode, X003F - 3
20	R104846	4	Elec. Connector Terminal	Cavity A, B, C, D
20	57M7493	4	Elec. Connector Seal	Cavity A, B, C, D
20	57M7259	1	Elec. Connector Seal	-
20	57M7318	1	Elec. Connector Accessory	-
21	14M7416	2	Flange Nut	M8
22	L201725	1	Boot	-
23	L204886	2	Thrust Washer	-
24	L208072	2	Retainer	-
25	L209039	2	Pin	-

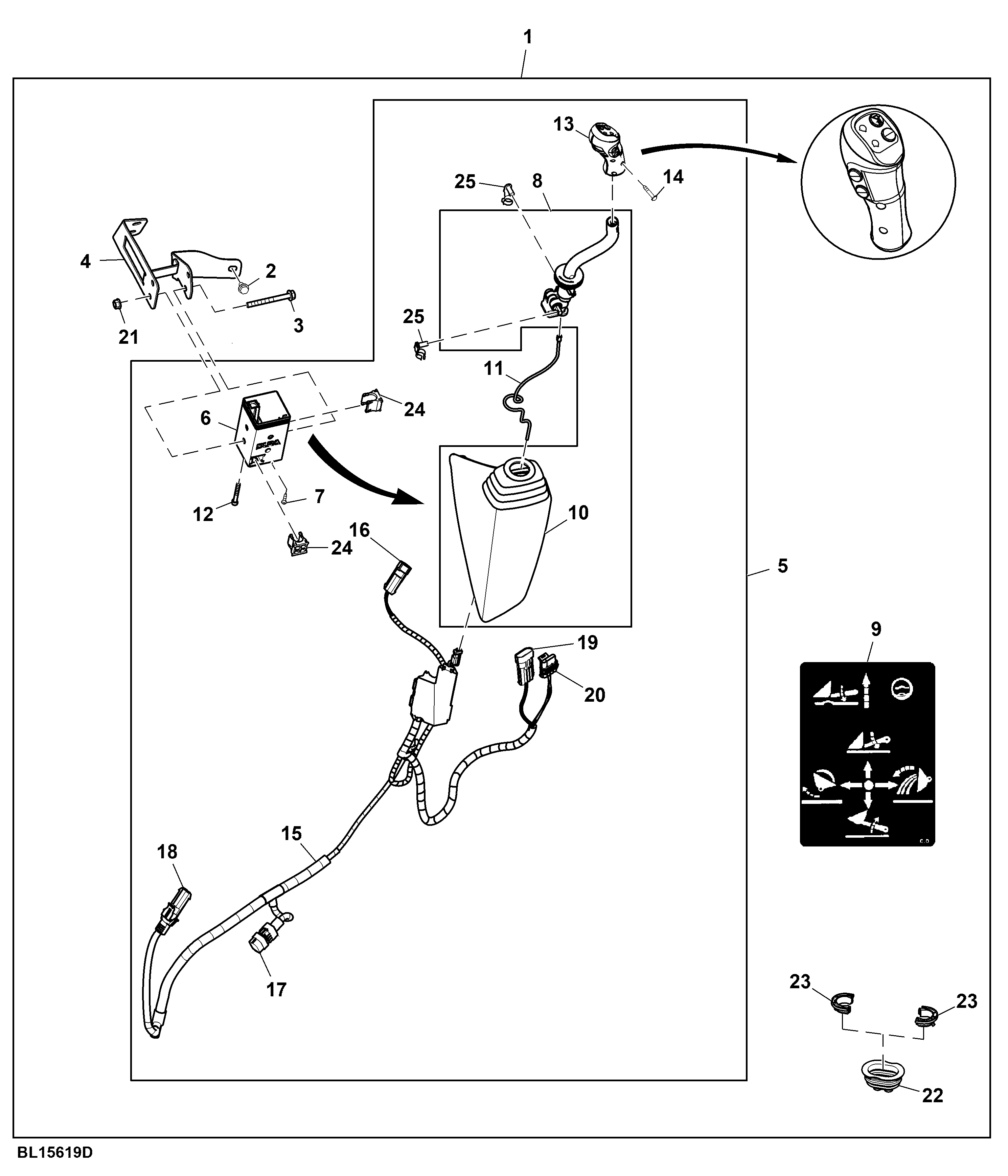

Multi-Function Lever, Mechanical SCV, W/ 2-Functions, W/ Diverter Shifting, W/ Memo Button, W/ Gear Shift Switches, Attachment
