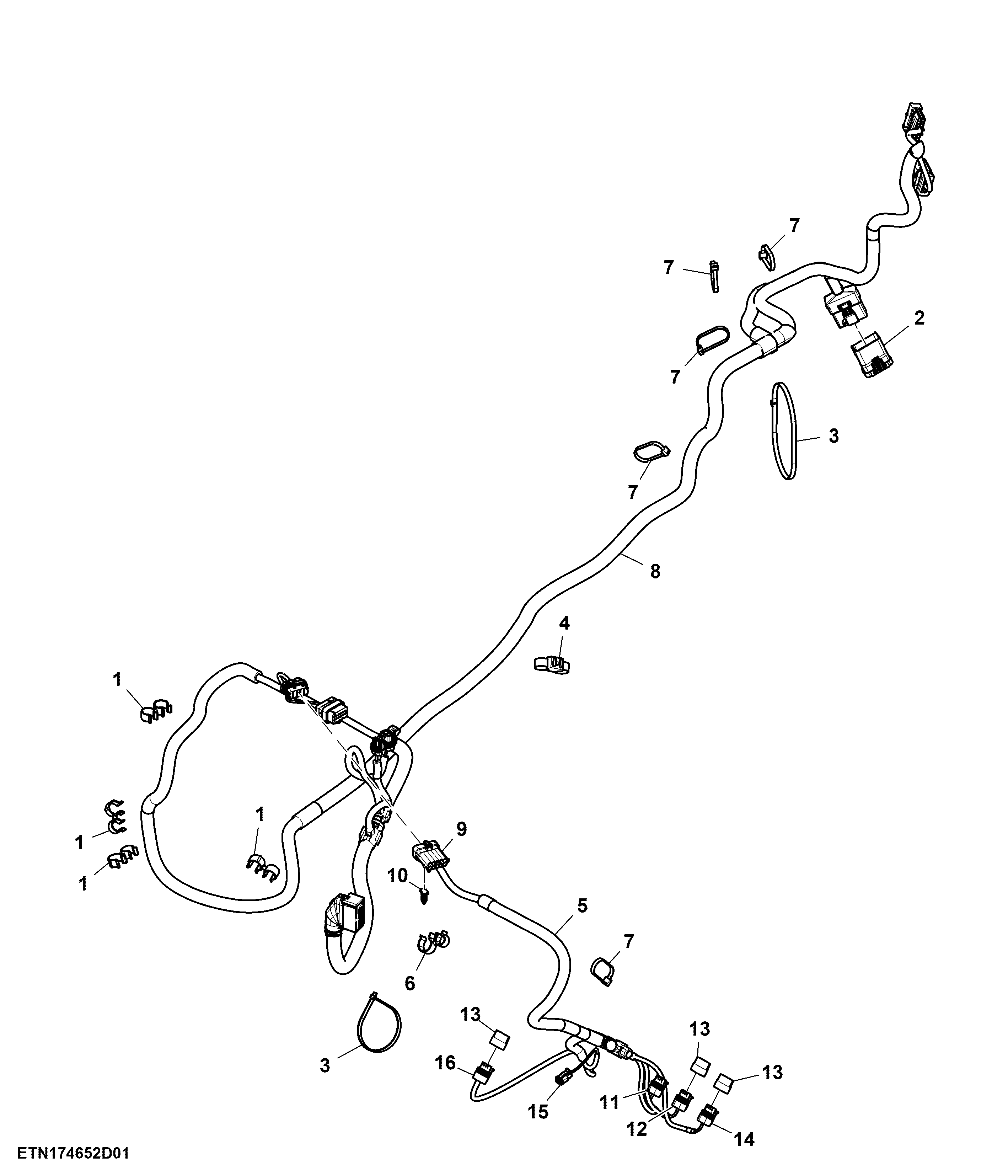

Wiring Harness, Midstack SCV, W/O Front Hitch (1/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R215302	4	Clip	-
2	AL218954	1	Elec. Connector Housing	-
3	L210204	5	Tie Band	-
4	R213663	2	Clamp	-
5	AL224797	1	Wiring Harness	ORDER AL228354
5	AL228354	1	Wiring Harness	-
6	R241878	1	Clip	-
7	57M12234	5	Elec. Connector Accessory	-
8	AL227838	1	Wiring Harness	Components Listed on Separate Pages, ORDER AL233330
8	AL234951	1	Wiring Harness	Components Listed on Separate Pages, SUB FOR AL233330 APPL
9	57M7281	1	Elec.Connect Locking Device	-
9	57M7259	1	Elec. Connector Seal	Cavity C
9	57M9215	5	Elec. Connector Seal	Cavity E, F, G, H, K
9	57M7258	2	Elec. Connector Seal	Cavity D, J
9	R104919	3	Elec. Connector Terminal	Cavity E, H, K
9	57M11342	2	Elec. Connector Terminal	Cavity D, J
9	57M9546	4	Elec. Connector Terminal	Cavity A, B, F, G
9	57M7265	1	Elec. Connector Housing	Connection Point between Harnesses W751 and W731, X1134M
9	57M9214	2	Elec. Connector Seal	Cavity A, B
10	57M9555	1	Clip	-
11	57M10466	1	Elec. Connector Housing	E-SCV XI Stepper Motor, X318F, M012
11	57M7830	2	Elec. Connector Terminal	Cavity A, B
11	57M7829	2	Elec. Connector Terminal	Cavity C, D
12	57M7829	2	Elec. Connector Terminal	Cavity C, D
12	57M7830	2	Elec. Connector Terminal	Cavity A, B
12	57M10466	1	Elec. Connector Housing	E-SCV XII Stepper Motor, X251F, M013
13	L219630	3	Elec. Connector Accessory	-
14	57M10466	1	Elec. Connector Housing	E-SCV XIII Stepper Motor, X252F, M014
14	57M7830	2	Elec. Connector Terminal	Cavity A, B
14	57M7829	2	Elec. Connector Terminal	Cavity C, D
15	57M7534	1	Elec. Connector Housing	Commutation Valve of Front Hitch, X1007F, Y102
15	57M7546	2	Elec. Connector Terminal	Cavity 1, 2
15	57M7620	1	Electrical Connector Assy	-
16	57M10466	1	Elec. Connector Housing	Stepper Motor for Front Hitch, X253F, M015
16	57M7830	2	Elec. Connector Terminal	Cavity A, B
16	57M7829	2	Elec. Connector Terminal	Cavity C, D
