Wiring Harness, Engine (2/2) ( - 937675)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL224634	1	Wiring Harness	-
2	57M10958	1	Elec. Connector Housing	X685F
2	57M11439	1	Elec. Connector Accessory	-
2	57M13072	1	Elec. Connector Accessory	-
2	57M8241	10	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 8, 9, 10, 11, 12
2	57M11248	10	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 8, 9, 10, 11, 12
2	57M7403	2	Elec. Connector Cavity Plug	Cavity 1, 7
3	57M9775	1	Elec. Connector Housing	X077F
3	57M10631	2	Elec. Connector Terminal	Cavity 1, 2
3	57M15493	1	Elec. Connector Accessory	-
3	57M11333	1	Elec. Connector Accessory	-
4	57M9809	1	Elec. Connector Terminal	Cavity 1
4	57M11338	1	Elec. Connector Accessory	-
4	57M9844	1	Elec. Connector Accessory	-
4	57M10336	1	Elec. Connector Cavity Plug	Cavity 8
4	57M9808	2	Elec. Connector Terminal	Cavity 11, 12
4	57M10631	8	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 7, 9, 10
4	57M9800	1	Elec. Connector Housing	X1053F
5	57M9808	4	Elec. Connector Terminal	Cavity 4, 5, 10, 11
5	57M11338	1	Elec. Connector Accessory	-
5	57M9844	1	Elec. Connector Accessory	-
5	57M10631	8	Elec. Connector Terminal	Cavity 1, 2, 3, 6, 7, 8, 9, 12
5	57M9802	1	Elec. Connector Housing	X1253F
6	RE538504	1	Elec. Connector Accessory	X021F-2
6	57M10321	40	Elec. Connector Terminal	Cavity 1, 5, 6, 7, 9, 10, 11, 12, 13, 14, 15, 16, 18, 20, 21, 22, 23, 24, 25, 27, 28, 29, 30, 31, 32, 36, 37, 38, 39, 40, 41, 42, 43, 45, 46, 47, 51, 52, 53, 54
6	57M9808	4	Elec. Connector Terminal	Cavity 26, 35, 44, 50
6	57M10336	10	Elec. Connector Cavity Plug	Cavity 2, 3, 4, 8, 17, 19, 33, 34, 48, 49
6	R528122	1	Elec. Connector Accessory	-
7	RE543733	1	Elec. Connector Accessory	X021F-1
7	57M9808	8	Elec. Connector Terminal	Cavity 2, 3, 4, 33, 43, 44, 45, 46
7	57M10321	38	Elec. Connector Terminal	Cavity 6, 7, 8, 9, 10, 11, 12, 14, 15, 16, 17, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 37, 38, 39, 40, 41, 42, 48, 49, 50, 51, 52, 53, 54
7	57M10336	8	Elec. Connector Cavity Plug	Cavity 1, 5, 13, 18, 19, 20, 31, 47
7	R528122	1	Elec. Connector Accessory	-
8	57M9532	5	Elec. Connector Terminal	Cavity 1, 4, 6, 7, 11
8	57M8083	1	Elec. Connector Accessory	-
8	57M7401	8	Elec. Connector Cavity Plug	Cavity 2, 3, 8, 9, 13, 14, 15, 16
8	57M7399	3	Elec. Connector Seal	Cavity 5, 10, 12
8	57M8079	3	Elec. Connector Terminal	Cavity 5, 10, 12
8	57M8072	1	Elec. Connector Housing	X1080F
8	57M7400	5	Elec. Connector Seal	Cavity 1, 4, 6, 7, 11
9	57M9800	1	Elec. Connector Housing	X5040F
9	57M10321	11	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11
9	57M10336	1	Elec. Connector Cavity Plug	Cavity 12
9	57M9845	1	Elec. Connector Accessory	-
10	57M7054	1	Elec. Connector Terminal	M1-50F
11	57M11295	1	Elec. Connector Terminal	X804F-1
12	57M7054	1	Elec. Connector Terminal	X804F-2
13	57M9782	1	Elec. Connector Housing	X663F-2
13	57M10321	3	Elec. Connector Terminal	Cavity 1, 2, 3
13	57M15932	1	Elec. Connector Accessory	-
14	57M9772	1	Elec. Connector Housing	X690F
14	57M15924	1	Elec. Connector Accessory	-
14	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
15	57M9775	1	Elec. Connector Housing	X681F
15	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
16	57M9786	1	Elec. Connector Housing	X705F
16	57M10321	5	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 6
16	57M10336	1	Elec. Connector Cavity Plug	Cavity 5
16	57M10230	1	Elec. Connector Accessory	-
17	57M9787	1	Elec. Connector Housing	X463F
17	57M10321	5	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 6
17	57M10336	1	Elec. Connector Cavity Plug	Cavity 5
17	57M10230	1	Elec. Connector Accessory	-
18	57M10155	1	Elec. Connector Accessory	-
18	57M9774	1	Elec. Connector Housing	X674F
18	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
19	57M9780	1	Elec. Connector Housing	X665F
19	57M10321	3	Elec. Connector Terminal	Cavity 1, 2, 3
19	57M10156	1	Elec. Connector Accessory	-
20	57M9773	1	Elec. Connector Housing	X673F
20	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
20	57M10155	1	Elec. Connector Accessory	-
21	57M9774	1	Elec. Connector Housing	X677F
21	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
21	57M15493	1	Elec. Connector Accessory	-
22	57M9776	1	Elec. Connector Housing	X1055F
22	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
22	57M11134	1	Elec. Connector Housing	-
23	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
23	57M10155	1	Elec. Connector Accessory	-
23	57M9773	1	Elec. Connector Housing	X672F
24	57M7083	1	Elec. Connector Terminal	XGND74
25	57M9792	1	Elec. Connector Housing	X568F
25	57M9808	6	Elec. Connector Terminal	Cavity 3, 4, 5, 6, 7, 8
25	57M10336	2	Elec. Connector Cavity Plug	Cavity 1, 2
25	57M15922	1	Elec. Connector Accessory	-
26	57M9781	1	Elec. Connector Housing	X666F
26	57M10321	3	Elec. Connector Terminal	Cavity 1, 2, 3
26	57M10156	1	Elec. Connector Accessory	-
27	57M11537	1	Elec. Connector Housing	X325F
27	57M7981	1	Elec. Connector Seal	Cavity 1
27	57M7983	1	Electrical Connector Assy	Cavity 2
28	R78064	2	Elec. Connector Cavity Plug	-
28	57M7306	1	Elec.Connect Locking Device	-
28	57M7304	1	Elec. Connector Housing	-
28	57M9219	2	Elec. Connector Seal	Cavity A, B
28	57M7491	2	Elec. Connector Terminal	Cavity A, B
28	57M7309	1	Elec. Connector Housing	X130F
28	57M10477	1	Elec. Connector Accessory	-
29	57M9784	1	Elec. Connector Housing	X1051M
29	57M10603	3	Elec. Connector Terminal	Cavity 1, 2, 3
30	57M10156	1	Elec. Connector Accessory	-
30	57M9940	1	Elec. Connector Accessory	-
31	57M9773	1	Elec. Connector Housing	X675F
31	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
31	57M10155	1	Elec. Connector Accessory	-
32	57M9772	1	Elec. Connector Housing	X079F-3
32	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
32	57M10155	1	Elec. Connector Accessory	-
32	57M9939	1	Elec. Connector Accessory	-
33	57M9215	4	Elec. Connector Seal	Cavity 1, 2, 3, 4
33	57M9144	1	Elec. Connector Housing	X684F
33	57M9831	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
34	57M9786	1	Elec. Connector Housing	X009F
34	57M9808	3	Elec. Connector Terminal	Cavity 1, 2, 6
34	57M10321	2	Elec. Connector Terminal	Cavity 3, 5
34	57M10336	1	Elec. Connector Cavity Plug	Cavity 4
34	57M15920	1	Elec. Connector Accessory	-
35	57M10156	1	Elec. Connector Accessory	-
35	57M10321	3	Elec. Connector Terminal	Cavity 1, 2, 3
35	57M9781	1	Elec. Connector Housing	X664F
36	57M9783	1	Elec. Connector Housing	X667F
36	57M10321	3	Elec. Connector Terminal	Cavity 1, 2, 3
36	57M10156	1	Elec. Connector Accessory	-
37	57M9780	1	Elec. Connector Housing	X668F
37	57M10321	3	Elec. Connector Terminal	Cavity 1, 2, 3
38	57M9817	1	Elec. Connector Housing	X687F
38	57M10321	2	Elec. Connector Terminal	Cavity 1, 3
38	57M9808	2	Elec. Connector Terminal	Cavity 2, 4
38	57M10227	1	Elec. Connector Accessory	-

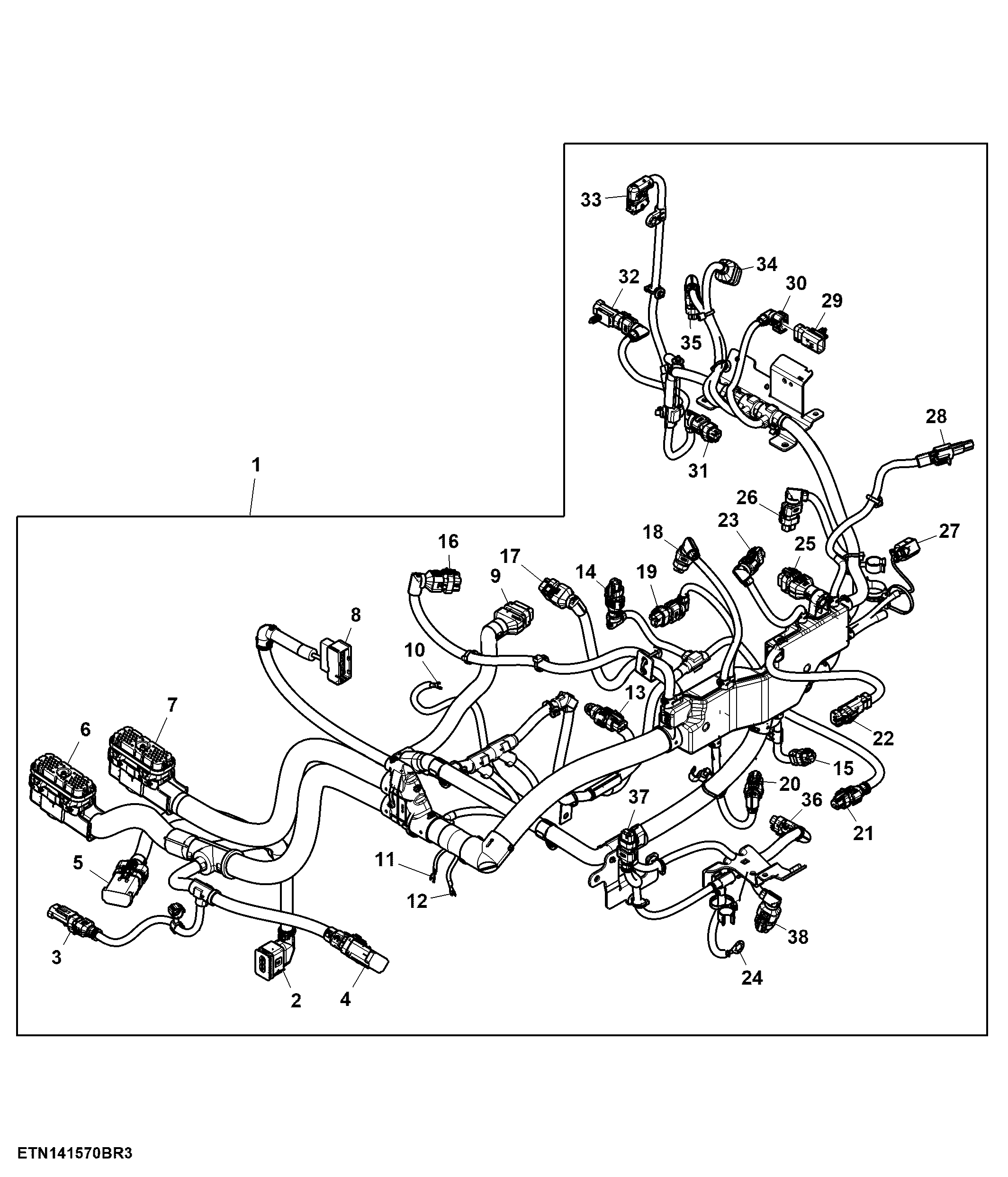

Wiring Harness, Engine (2/2) ( - 937675)
