Открытый узел

OSB Lighting / Rear Fenders / Upholstery / Floor Mat

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Post Upholstery, W/ Power Outlet Socket	-
-	-	1	Side Covers, W/ Cold Start Mounting	-
-	-	1	Side Covers	-
-	-	1	Seat Console Cover	-
-	-	1	Rear Fender Extension, W/ Short Wrap, 2530 X 66 mm, Attachment	-
-	-	1	Rear Fender Extension, W/ Short Wrap, 200 X 20 mm	-
-	-	1	Rear Fender Extension, W/ Short Wrap, 110 X 15 mm	-
-	-	1	Rear Cab Panel, W/O Handbrake	-
-	-	1	Post Upholstery, W/O Power Outlet Socket	-
-	-	1	Splash Guard / Mudguard, Attachment	-
-	-	1	Plug, W/O Switch, Work Lights, Cab, Front	-
-	-	1	Plug, W/O Switch, Work Lights	-
-	-	1	Mounting Parts, Monitor, A Post	-
-	-	1	Mounting Parts, Extremity Warning Lights, Attachment	-
-	-	1	Mounting Parts, Extra-Wide Vehicle Lighting, Attachment	-
-	-	1	Mounting Parts / Wiring Harness, Monitor	-
-	-	1	Licence Plate / Lamp, RH	-
-	-	1	Switch, Work Lights, Cab Front	-
-	-	1	Work Lights, H3, Cab Roof, Rear	-
-	-	1	Work Lights, H3, Cab Front, Upright	-
-	-	1	Work Lights, Fender, Rear, W/ Low Clearance Cab	-
-	-	1	Work Lights, 4 H3, Cab Roof, Front	-
-	-	1	Work Lights, 2 H3, Cab Roof, Rear	-
-	-	1	Work Lights, 2 H3, Cab Roof, Front	-
-	-	1	Tail Lights, W/ Brake Light	-
-	-	1	Switch, Working Lamps	-
-	-	1	Licence Plate / Lamp, LH	-
-	-	1	Switch, Remote Control, PTO, RH	-
-	-	1	Switch, Remote Control, PTO	-
-	-	1	Switch / Wiring Harness, Work Light, H3, Rear Fender, Attachment	-
-	-	1	Switch / Relay / Fuse, Work Lights, Cab, Front	-
-	-	1	Splash Guards, W/O Mudguard, Horizontal Exhaust	-
-	-	1	Splash Guards, W/O Mudguard	-
-	-	1	Splash Guards, W/ Mudguard	-
-	-	1	Attachment, Rear Fender Extension, 200 X 20 mm	-
-	-	1	Cowl, Cab	-
-	-	1	Cover, W/O Controls, Front Loader	-
-	-	1	Cover Panel, Rear, W/ Automatic Wagon Hitch	-
-	-	1	Control Support, Cab	-
-	-	1	Control Support, Cab	-
-	-	1	Bracket, Turn Signal Lights / Position Lights, Cab Front	-
-	-	1	Attachment, Work Lights, 2 H3, Cab Roof, Rear	-
-	-	1	Attachment, Work Lights, 2 H3, Cab Roof, Front	-
-	-	1	Dash / Cowl, Lower, Cab	-
-	-	1	Attachment, Rear Fender Extension, 110 x 15 mm	-
-	-	1	Attachment, Mudguard	-
-	-	1	Attachment, Head Lights, H4, Cab Front, RH Traffic	-
-	-	1	Attachment, Extremity Warning Lights	-
-	-	1	Attachment, Extra-Wide Vehicle Lighting, W/O Warning Sign, Extended Tread 2750 mm	-
-	-	1	Attachment, Extra-Wide Vehicle Lighting, W/ Warning Sign, Extended Tread 2750 mm-3000 mm	-
-	-	1	Attachment, Extra-Wide Vehicle Lighting	-
-	-	1	Floor Mats, Cab, Rear	-
-	-	1	Hydraulic Pump Cover, Low Clearance Cab	-
-	-	1	Hydraulic Pump Cover	-
-	-	1	Headliner, W/O Roof Hatch, W/ Storage Compartment	-
-	-	1	Headliner, W/O Roof Hatch	-
-	-	1	Headliner, W/ Roof Hatch, W/ Storage Compartment	-
-	-	1	Headliner, W/ Roof Hatch	-
-	-	1	Head Lights, H4, Cab Front, RH Traffic	-
-	-	1	Head Lights, H4, Cab Front, LH Traffic	-
-	-	1	Attachment, Bracket, Turn Signal Lights / Position Lights, Handle, Cab Front	-
-	-	1	Floor Mat, Cab, Front	-
-	-	1	Firewall, W/ Panorama Windshield	-
-	-	1	Firewall, Low Clearance Cab	-
-	-	1	Fender, Rear, Cab	-
-	-	1	Fender Upholstery, LH	-
-	-	1	Extra-Wide Vehicle Lighting, Extended Tread 2750 mm-3000 mm, Attachment	-
-	-	1	Extra-Wide Vehicle Lighting, Extended Tread 2750 mm, Attachment	-

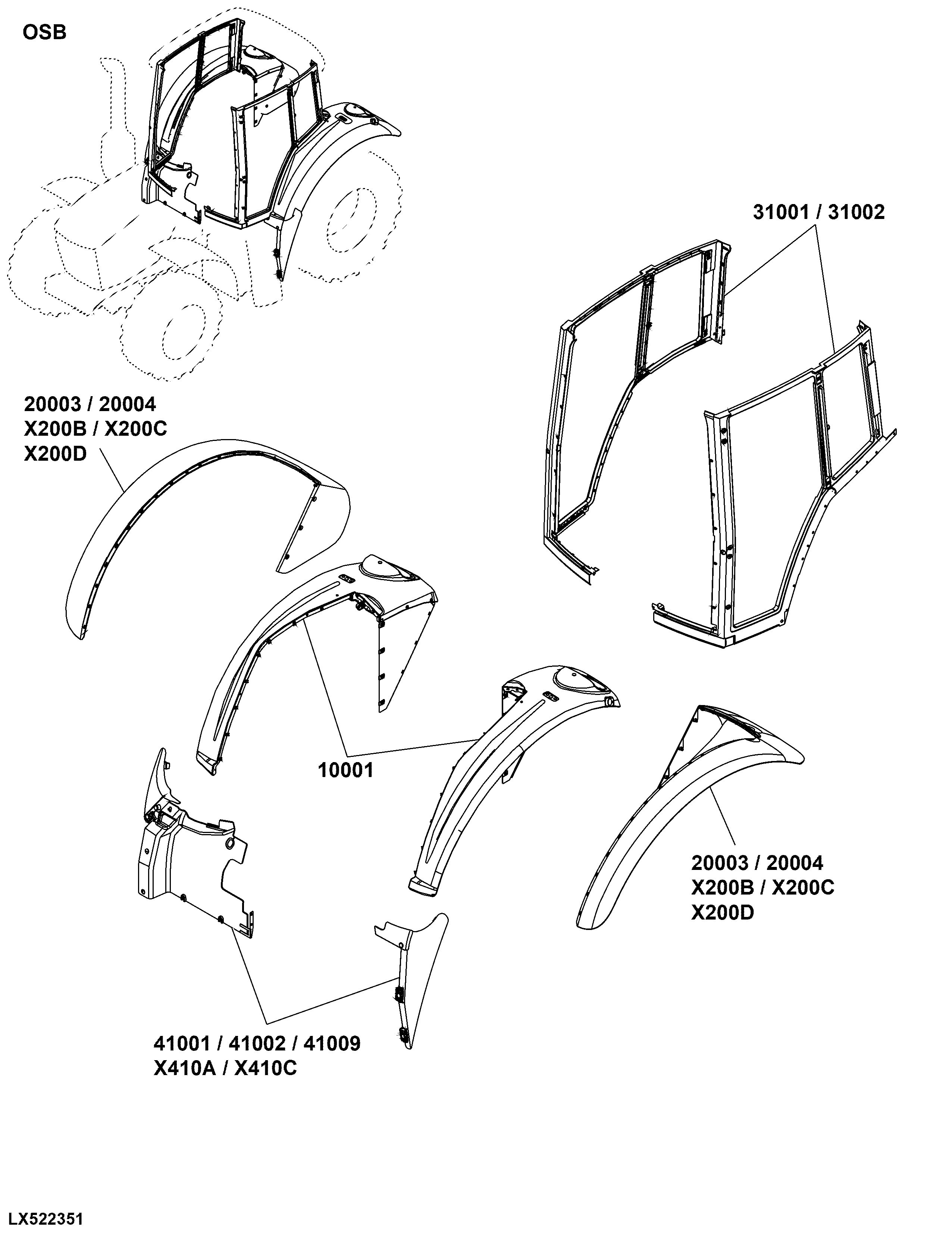

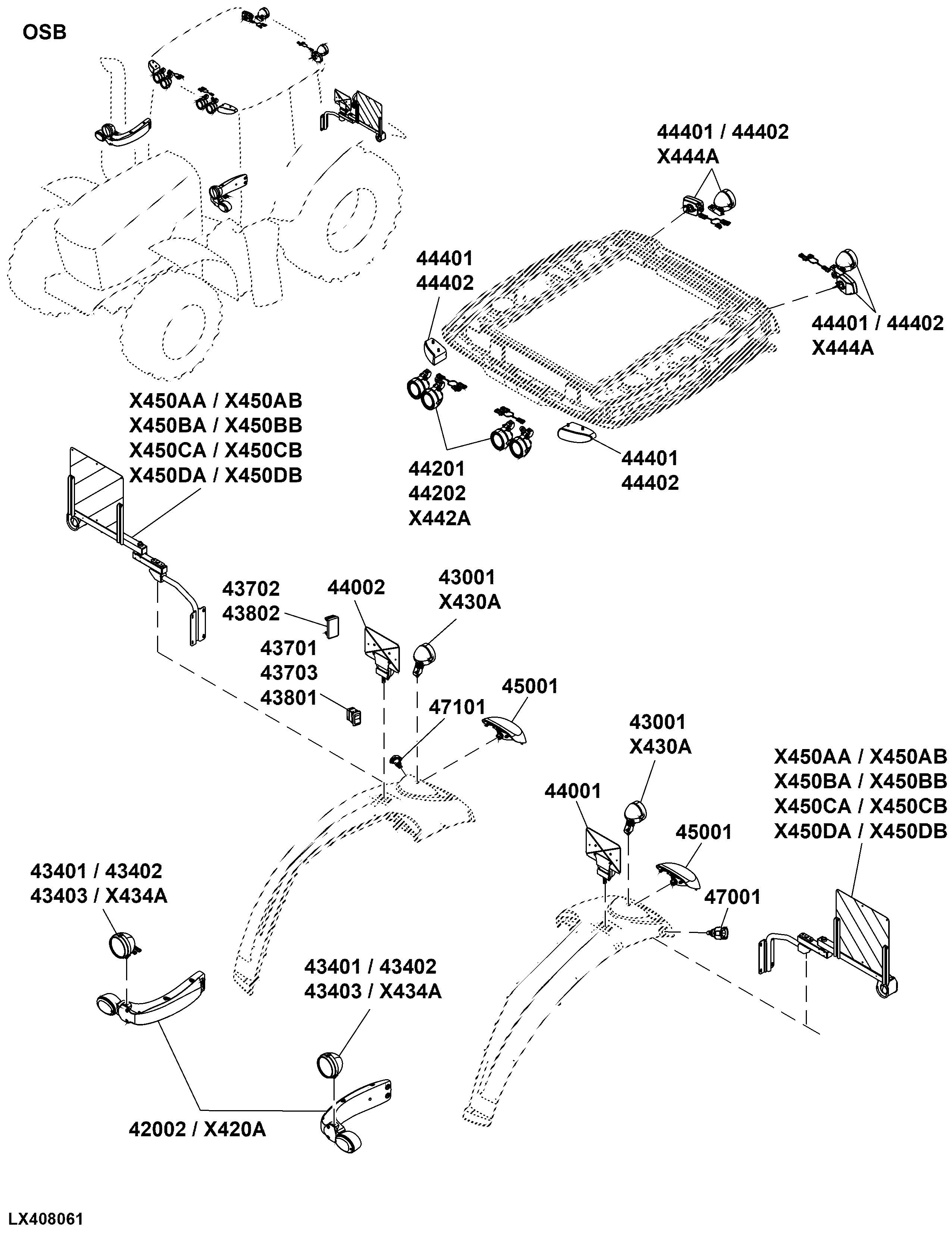

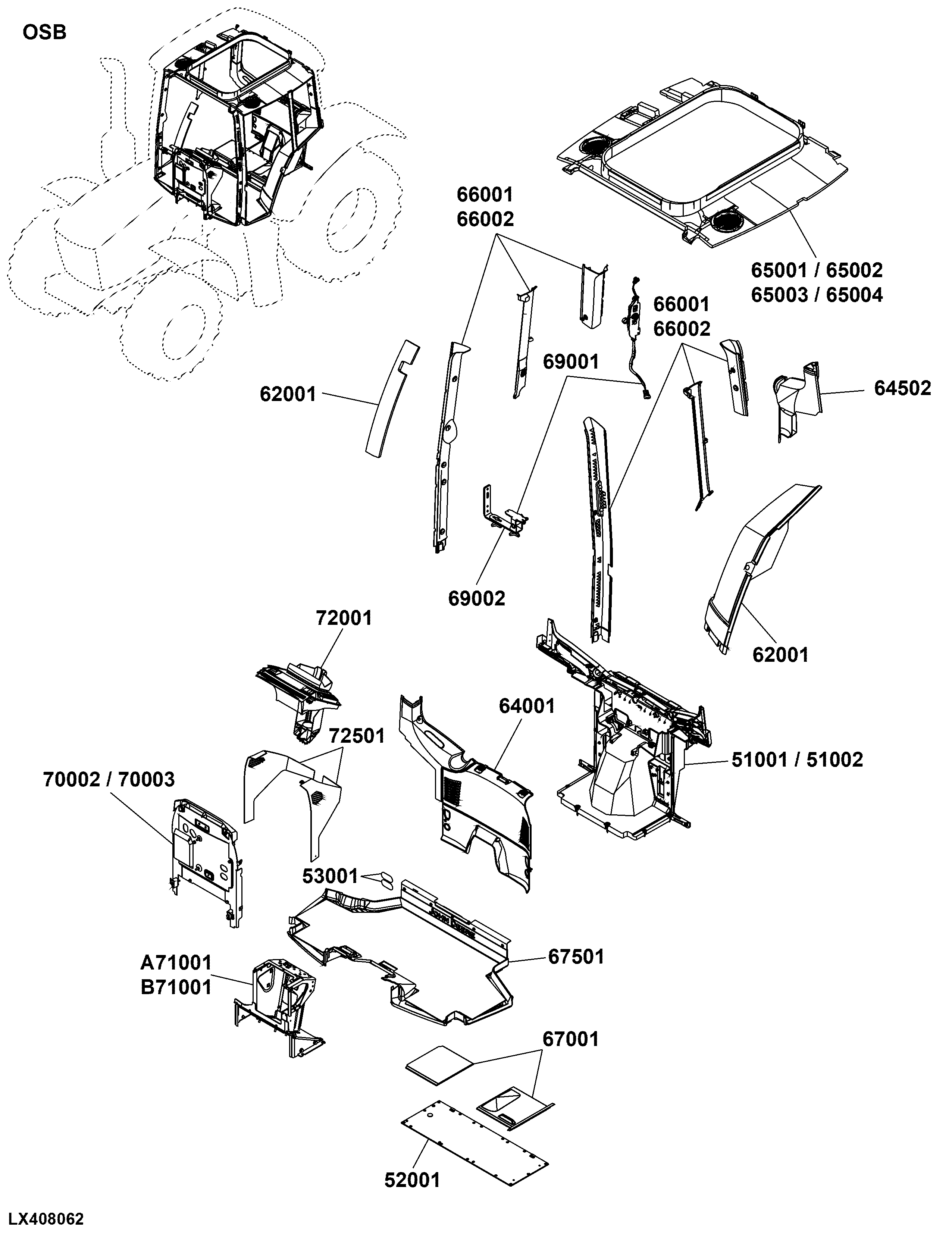

OSB Lighting / Rear Fenders / Upholstery / Floor Mat

Нет текстового описания
