Открытый узел

Wiring Harness, Power Outlet Socket, 60A, Rear, W / Manual Brake

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7868	2	Screw	M8 X 30
2	14M7298	4	Flange Nut	M8
3	T24959	2	Clamp	-
4	R44302	2	Tie Band	-
5	L215125	1	Bracket	-
6	RE568839	1	Electrical Connector Assy	-
7	19M9343	4	Screw	M6 X 55
8	14M7397	4	Lock Nut	M6
9	R72659	1	Clamp	-
10	L171496	1	Clamp	-
11	L210257	1	Tie Band	-
12	AH89486	4	Clip	-
13	57M13652	1	Elec. Connector Housing	Connector for Implement Switch, X760F-1
13	57M7614	2	Elec. Connector Terminal	Cavity 1,3
13	57M13856	2	Elec. Connector Terminal	Cavity 2,4
14	L207653	1	Cover	-
15	L207654	1	Cover	-
16	L216486	1	Label	MARKED L216486; USE WITH AL222906
16	L210947	1	Label	MARKED L210947; USE WITH AL224963
17	AL222662	1	Bracket	-
18	AL224963	1	Wiring Harness	SUB FOR AL222906
19	L214190	1	Adapter	-
20	AL207376	1	Relay	-
21	57M7623	1	Fuse	60A
22	WZ2605354	1	Fuse	30A, ORDER 57M7623
23	AL77324	1	Relay	-
24	57M9679	2	Elec. Connector Terminal	Cavity 4, 6
24	57M7724	1	Electrical Connector Assy	-
24	57M9604	1	Elec. Connector Housing	Relay for Power Supply to Implements, K068
24	57M7071	2	Elec. Connector Terminal	Cavity 2, 8
25	57M9607	1	Elec. Connector Accessory	Power Socket Fuse Box
25	57M8877	2	Elec. Connector Terminal	Cavity 1, 2
25	57M8966	2	Elec. Connector Terminal	Cavity 3, 4
26	57M9600	1	Elec. Connector Housing	Relay for Power Supply to Implements, K069
26	57M9681	2	Elec. Connector Terminal	Cavity 2, 8
26	57M9679	2	Elec. Connector Terminal	Cavity 4, 6
27	57M7175	1	Elec. Connector Terminal	Ground Point, XGND51H
28	57M7411	1	Elec. Connector Terminal	Terminal of Power Supply for Fuse and Relay Box, X541F
29	57M9215	4	Elec. Connector Seal	Cavity A, B, C, K
29	57M7259	2	Elec. Connector Seal	Cavity D, E
29	57M9214	4	Elec. Connector Seal	Cavity F, G, H, J
29	57M7252	8	Elec. Connector Terminal	Cavity A, B, C, F, G, H, J, K
29	57M7281	1	Elec.Connect Locking Device	-
29	57M7265	1	Elec. Connector Housing	Connection point on wiring harness W401, X543M
30	57M9033	1	Elec. Connector Housing	Connector of the Implement Socket (Rear), X760F-2
30	57M12049	1	Elec. Connector Accessory	-
30	57M7618	1	Electrical Connector Assy	-
30	57M8165	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
31	RE12363	1	Electrical Connector Assy	Connector for Implement Switch, X574F
31	R78060	2	Elec. Connector Terminal	Cavity A,B
31	57M9219	2	Elec. Connector Seal	Cavity A,B
32	R205342	2	Push Nut	-
33	34H235	1	Spring Pin	3/32" X 1"
34	R201046	2	O-Ring	-
35	RE201032	1	Electrical Connector Cap	-

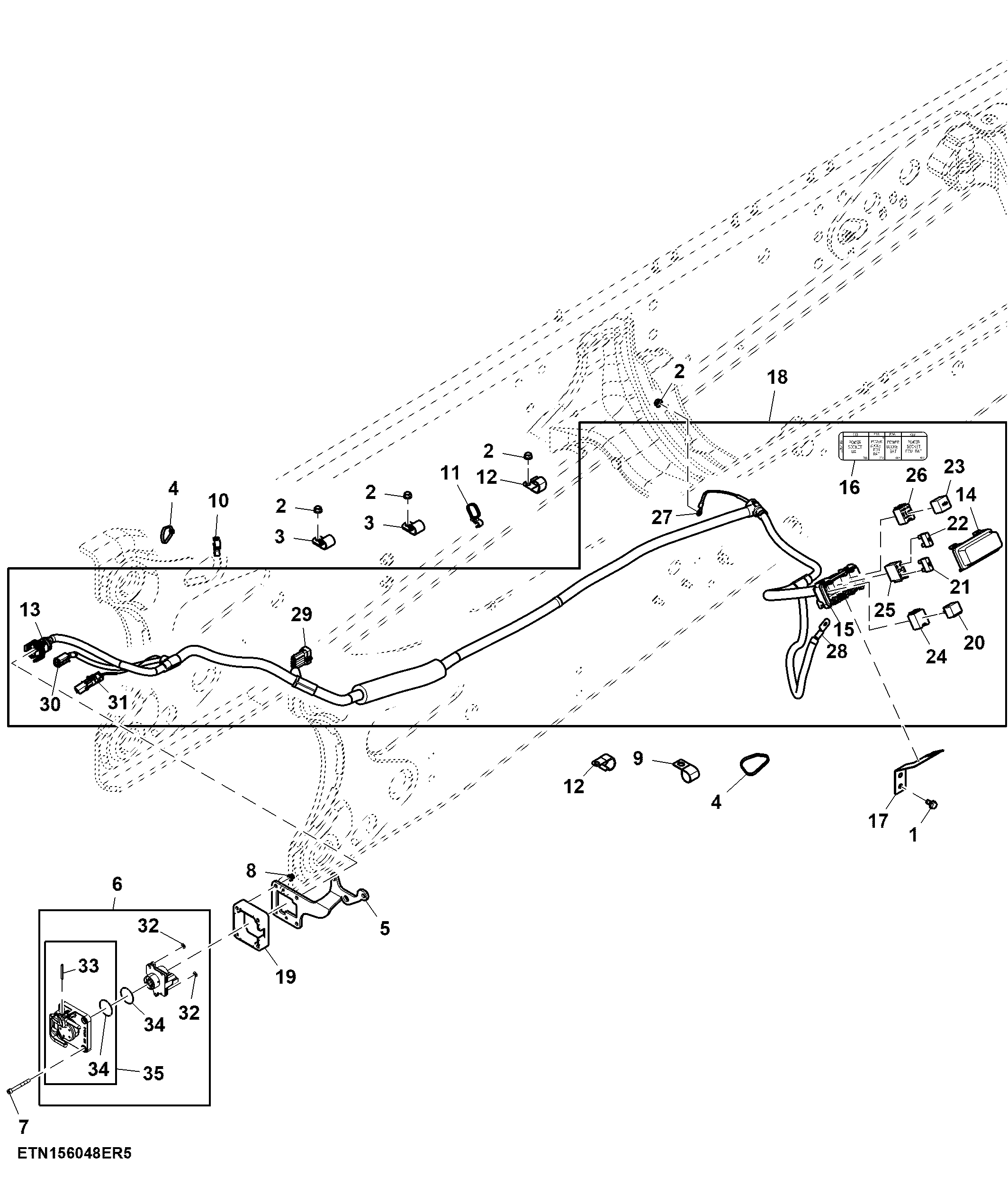

Wiring Harness, Power Outlet Socket, 60A, Rear, W / Manual Brake
