Открытый узел

Toggle/Rocker Switch, W/O Loader Unlatch, W/ Loader Lights

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	37M7089	1	Screw	M6 X 12
2	AL218622	1	Toggle/Rocker Switch	-
3	AL218761	1	Wiring Harness	-
4	L166804	1	Plug	-
5	AH90990	1	Clip	SUB FOR L167244 APPL
6	L40924	1	Nut	SUB FOR L205661 APPL
7	57M12234	4	Elec. Connector Accessory	-
8	AH89557	1	Clip	-
9	L206645	1	Tie Band	-
10	R81207	1	Cover	-
11	AL221631	1	Wiring Harness	-
12	57M8232	1	Elec. Connector Housing	Relay for Hydraulic Quick Release (Front Loader), X441F
12	57M11297	1	Elec. Connector Accessory	-
12	57M11184	2	Elec. Connector Seal	Cavity 3, 5
12	57M8237	2	Elec. Connector Seal	Cavity 1, 2
12	57M11856	2	Elec. Connector Terminal	Cavity 3, 5
12	57M8234	2	Elec. Connector Terminal	Cavity 1, 2
13	57M9817	1	Elec. Connector Housing	Connection Point between Harnesses W911 and W912, X445F
13	57M10631	3	Elec. Connector Terminal	Cavity 1, 2, 3
13	57M10336	1	Elec. Connector Cavity Plug	Cavity 4
13	57M9848	1	Elec. Connector Accessory	-
14	57M7289	1	Elec.Connect Locking Device	-
14	57M7258	2	Elec. Connector Seal	Cavity A, B
14	57M11342	2	Elec. Connector Terminal	Cavity A, B
14	57M7256	1	Elec. Connector Housing	Front Loader Additional Functions, X037M-6
15	57M9541	2	Elec. Connector Terminal	Cavity A, B
15	57M7258	2	Elec. Connector Seal	Cavity A, B
15	57M7289	1	Elec.Connect Locking Device	-
15	57M7254	1	Elec. Connector Housing	Front Loader Additional Functions, X037F-6
16	57M7309	1	Elec. Connector Housing	Front Loader Additional Functions, X037F-7
16	57M7298	2	Elec. Connector Terminal	Cavity A, B
16	57M9219	2	Elec. Connector Seal	Cavity A, B
16	57M7306	1	Elec.Connect Locking Device	-
17	57M7306	1	Elec.Connect Locking Device	-
17	57M7285	2	Elec. Connector Terminal	Cavity A, B
17	57M9219	2	Elec. Connector Seal	Cavity A, B
17	57M7304	1	Elec. Connector Housing	Front Loader Additional Functions, X037M-7
18	57M8542	1	Elec. Connector Housing	Switch for Hydraulic Quick Release (Front Loader), X411F
18	57M8571	2	Elec. Connector Terminal	Cavity 1, 3
18	57M7938	2	Elec. Connector Terminal	Cavity 1, 3
18	57M7743	1	Elec. Connector Cable Seal	-
19	57M7256	1	Elec. Connector Housing	Switch for Front Loader Worklights, X450M
19	57M7252	2	Elec. Connector Terminal	Cavity A, B
19	57M9215	2	Elec. Connector Seal	Cavity A, B
19	57M7289	1	Elec.Connect Locking Device	-
20	57M8237	3	Elec. Connector Seal	Cavity 1, 3, 5
20	57M11297	1	Elec. Connector Accessory	-
20	57M11184	1	Elec. Connector Seal	Cavity 2
20	57M8234	3	Elec. Connector Terminal	Cavity 1, 3, 5
20	57M8232	1	Elec. Connector Housing	Relay for Hydraulic Quick Release (Front Loader), X441F
20	57M11856	1	Elec. Connector Terminal	Cavity 2
21	57M7256	1	Elec. Connector Housing	Switch for Front Loader Worklights, X450M
21	57M7252	2	Elec. Connector Terminal	Cavity A, B
21	57M9215	2	Elec. Connector Seal	Cavity A, B
21	57M7289	1	Elec.Connect Locking Device	-
22	57M8542	1	Elec. Connector Housing	Switch for Hydraulic Quick Release (Front Loader), X411F
22	57M8571	2	Elec. Connector Terminal	Cavity 1, 3
22	57M7938	2	Elec. Connector Terminal	Cavity 1, 3
22	57M7743	1	Elec. Connector Cable Seal	Cavity 2
23	57M7252	1	Elec. Connector Terminal	Cavity A
23	57M7289	1	Elec.Connect Locking Device	-
23	57M7258	1	Elec. Connector Seal	Cavity B
23	57M9215	1	Elec. Connector Seal	Cavity A
23	57M11342	1	Elec. Connector Terminal	Cavity B
23	57M7985	1	Electrical Connector Assy	Front Loader Additional Functions, X037M-8
24	57M7254	1	Elec. Connector Housing	Front Loader Additional Functions, X037F-6
24	57M9541	2	Elec. Connector Terminal	Cavity A, B
24	57M7258	2	Elec. Connector Seal	Cavity A, B
24	57M7289	1	Elec.Connect Locking Device	-
25	57M7258	1	Elec. Connector Seal	Cavity B
25	57M7289	1	Elec.Connect Locking Device	-
25	57M9215	1	Elec. Connector Seal	Cavity A
25	57M10770	1	Elec. Connector Terminal	Cavity A
25	57M7328	1	Elec. Connector Housing	Front Loader Additional Functions, X037F-8
25	57M9541	1	Elec. Connector Terminal	Cavity B
26	57M7256	1	Elec. Connector Housing	Front Loader Additional Functions, X037M-6
26	57M11342	2	Elec. Connector Terminal	Cavity A, B
26	57M7258	2	Elec. Connector Seal	Cavity A, B
26	57M7289	1	Elec.Connect Locking Device	-
27	57M7309	1	Elec. Connector Housing	Front Loader Additional Functions, X037F-7
27	57M7298	2	Elec. Connector Terminal	Cavity A, B
27	57M9219	1	Elec. Connector Seal	Cavity A
27	57M9218	1	Elec. Connector Seal	Cavity B
27	57M10477	1	Elec. Connector Accessory	-
28	57M7285	2	Elec. Connector Terminal	Cavity A, B
28	57M7306	1	Elec.Connect Locking Device	-
28	57M9218	1	Elec. Connector Seal	Cavity B
28	57M9219	2	Elec. Connector Seal	Cavity A
28	57M7304	1	Elec. Connector Housing	Front Loader Additional Functions, X037M-7
29	57M9742	1	Elec. Connector Housing	Connection Point between Harnesses W911 and W912, X445F
29	57M9808	2	Elec. Connector Terminal	Cavity 1, 2
29	57M10631	1	Elec. Connector Terminal	Cavity 3
29	57M10336	1	Elec. Connector Cavity Plug	Cavity 4
29	57M9848	1	Elec. Connector Accessory	-
30	57M7254	1	Elec. Connector Housing	-
30	R104846	2	Elec. Connector Terminal	-
30	57M7258	2	Elec. Connector Seal	-
30	57M9712	1	Elec. Connector Accessory	-

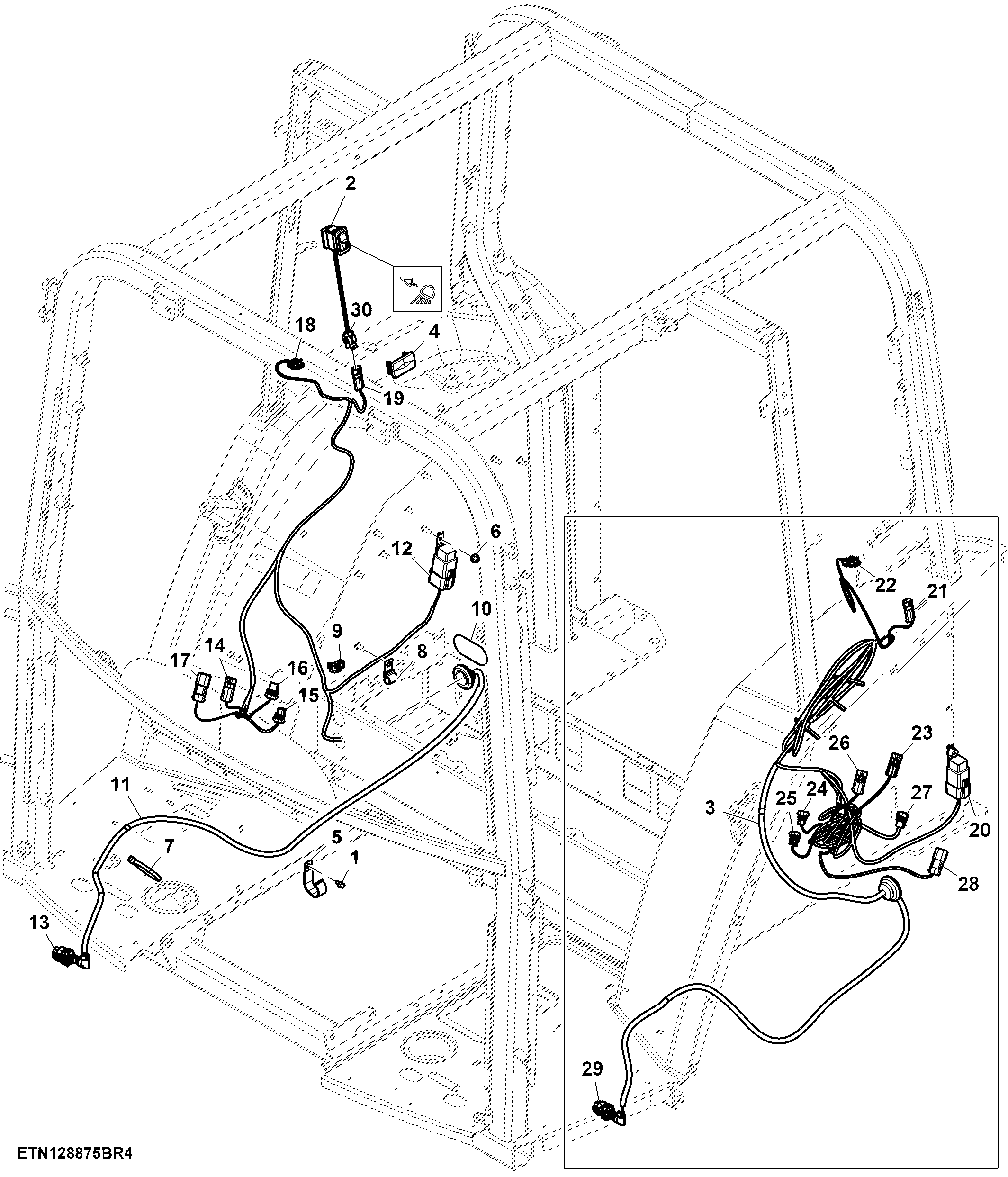

Toggle/Rocker Switch, W/O Loader Unlatch, W/ Loader Lights
