Differential Drive Shaft, Range Transmission, 4 X 4

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL164688	1	Bevel Gear Drive	Z= 8/47 (MARKED L165754, L165753)
2	AL152075	1	Cylindrical Roller Bearing	-
3	AL166438	2	Cylindrical Roller Bearing	-
4	L215099	1	Bearing Housing W/O Bearing	SUB FOR L113426
5	L113724	5	Spring	-
6	L173991	1	Snap Ring	TK= 3.00MM (0.118")
6	L78069	1	Ring	TK= 2.90MM (0.114")
6	L78070	1	Ring	TK= 2.80MM (0.110")
6	L78071	1	Ring	TK= 2.70MM (0.106")
6	L78072	1	Ring	TK= 2.60MM (0.102")
6	L78073	1	Ring	TK= 2.50MM (0.098")
7	L157084	1	Shim	TK= 0.20MM (0.008")
7	L157085	1	Shim	TK= 0.30MM (0.012")
7	L157086	1	Shim	TK= 0.50MM (0.020")
8	L76923	3	Snap Ring	-
9	L168800	1	Pinion	Z= 50/16
10	L113339	1	Thrust Washer	TK= 4.15MM (0.163")
10	L153635	1	Thrust Washer	TK= 4.05MM (0.159")
10	L75917	1	Thrust Washer	TK= 3.80MM (0.149")
10	L76821	1	Thrust Washer	TK= 3.65MM (0.144")
10	L76822	1	Thrust Washer	TK= 3.95MM (0.155")
11	L166228	1	Gear	Z= 63
12	AL157733	2	Synchronizer	-
13	L76923	1	Snap Ring	TK= 2.00MM (0.079")
13	L75906	1	Snap Ring	TK= 2.10MM (0.083")
13	L75905	1	Snap Ring	TK= 2.20MM (0.087")
13	L75904	1	Ring	TK= 2.30MM (0.090")
14	L155889	1	Gear	Z = 55; SUB FOR L213030
15	L166231	1	Gear	Z= 43
16	L166230	1	Gear	Z= 29
17	L110851	1	Screw	-
18	19M7156	4	Cap Screw	M10 X 60
19	L172927	1	Cylindrical Roller Bearing	-
20	24M7332	1	Washer	8.400 X 23 X 4 mm
21	19M7162	1	Cap Screw	M8 X 16
22	L116130	4	Synchronizer	-
23	L155496	1	Gear	-
24	L170237	2	Ring	-
25	L167749	1	Washer	-

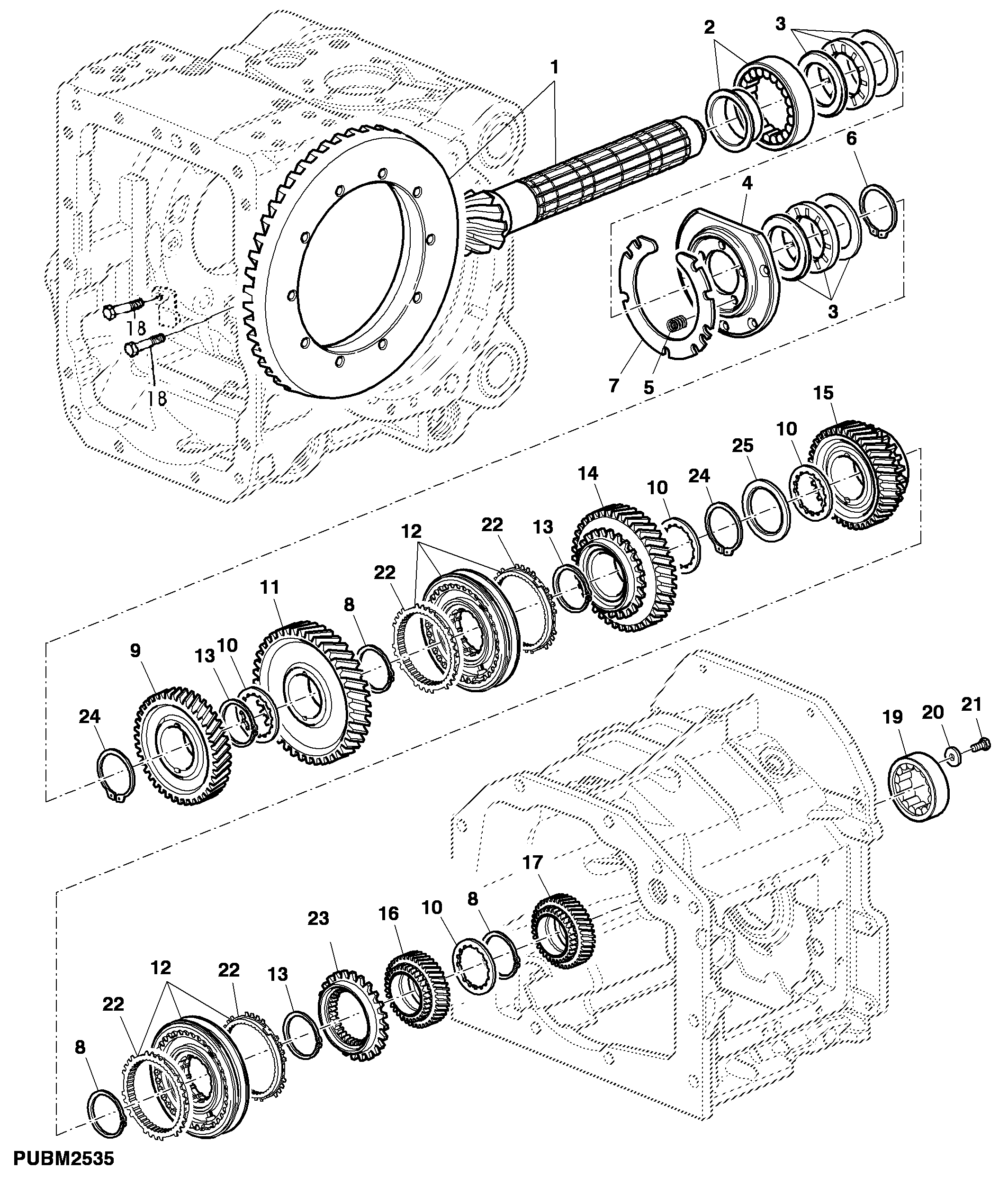

Differential Drive Shaft, Range Transmission, 4 X 4
